Aputure Amaran PT4C-2K 4ft / 120cm Battery Powered RGBWW Colour LED Pixel Tube - 2 Light Kit

Backorder

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

The amaran PT4c 2-Light Production Kit includes two 4-foot battery-powered pixel tubes that are part of amaran’s first-ever full-colour LED pixel tube series. The Pixel Tube series is comprised of a family of 1-foot, 2-foot, and 4-foot lengths – all featuring multiple Pixel FX, RGBWW colour quality, Sidus Link app & DMX control, and USB-C rechargeable batteries packed into their sleek & slender form factor. The 2-Light Production Kit multiplies this expansive tube light’s capabilities, with not only twice the available light but also the inclusion of mini tripod floor stands and USB-C to DMX adapters to expand creativity and enhance functionality.

For greater control and color-chasing capabilities, the PT4c features 16 built-in pixels that can be independently adjusted via the Sidus Link app and 7 pre-programmed Pixel FX for a variety of scenarios, in addition to 9 System FX.

As a full-colour fixture, the PT4c’s RGBWW LED chipset produces stellar colour quality and accurate skin tones throughout its CCT range of 2,700K to 10,000K with full green-magenta control, achieving high CRI [95], TLCI [98], and SSI values across the board, with an SSI (Tungsten) of 85 and SSI (D56) of 75.

Inside its sleek T12 form factor, the PT4c is powered by a 77Wh internal lithium-ion battery for up to 170 minutes of maximum output. By utilizing a ubiquitous USB-C port, the PT4c can be easily charged and can even fast charge at 32W using USB-C PD to reach full capacity in approximately 3 hours.

Complementing its simple design, each PT4c comes with two clear, 3/8- 16in threaded magnetic T12 brackets to make mounting as easy as possible. Use the magnets to attach the pixel tube to ferromagnetic surfaces or add a 3/8-16in spigot or baby pin to mount it to a light stand. The clear design of the brackets ensures that the mounting solutions do not interfere with the quality or output of the light.

For additional mounting options, each endcap houses a 3/8-16in threaded mount. The possibilities are endless, with the ability to use splicing connectors1 to arrange the tubes in multiple 3D shapes, like with the amaran T2c/T4c.

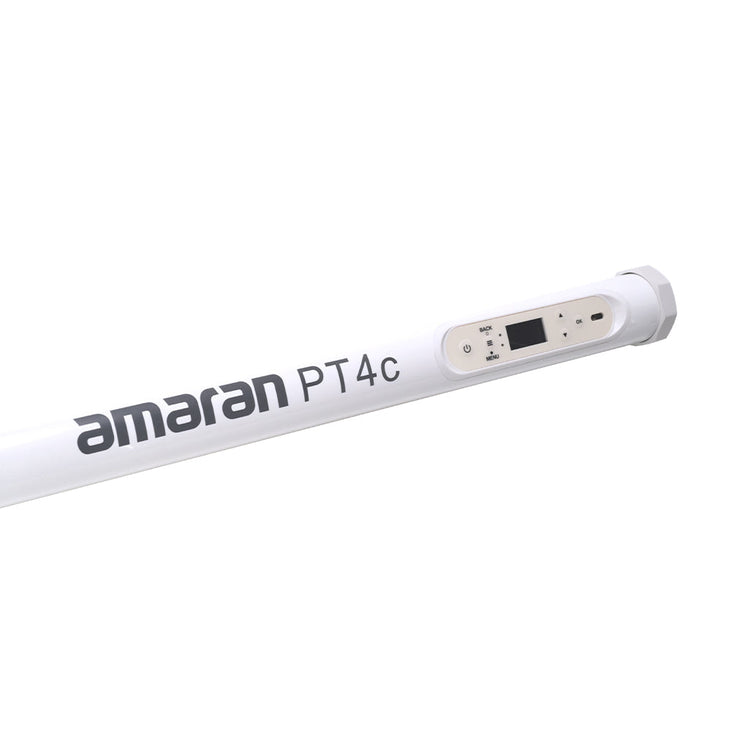

The PT4c can be controlled from the new interface on the back of the tube, featuring the latest UI, or via the Sidus Link Bluetooth app that powers the rest of the Aputure and amaran product lines. This ultracapable application can control all the lights in the scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, a Wired USB-C to 5-Pin XLR In & Out DMX Dongle unlocks DMX control for the entire Pixel Tube product line, like the amaran T2c/T4c and F-Series products.

Combining layers of functionality, battery power, high-quality colour, and a high transmittance diffuser that produces a wide 180° beam angle, the versatile mid-sized Pixel Tube from amaran shines as an effect, fill, accent light, and so much more. Lastly, for that extra touch of lighting control, the 45º Fabric Light Control Grid2 will hone the quality of the light to perfection.

The amaran PT4c 2-Light Production Kit is ideal for filmmakers and lighting designers who need a pair of full-size battery-powered tube lights that are capable of producing unique pixel effects and enough output to light a scene, but do not need the ultra-high pixel density, ultra-thin bezels, and LumenRadio CRMX available in products like the Aputure MT Pro.

Filmmakers who need the spread, power, and shape that only a full-size tube light can provide will appreciate the sleek design of the PT4c. Measuring 4- feet (120cm) in length, it matches the most common tube form factors and T12 housings on the market, compared to non-standard full-size variants. At twice the length of the PT2c and T2c, the PT4c is a better tool for casting light across wider areas or acting as a larger in-camera practical to add life to a scene and can match the PT2c’s 170-minute runtime at maximum output.

The 4-foot tube light has been an industry standard for years and is a popular form factor for lighting designers who want clean, linear reflections and soft, wrapping light. As such, the PT4c shine as an all-in-one practical, key, fill, and edge light for their subjects.

A 2-light kit of these lights gives filmmakers the ability to utilize more lights for in-camera practicals, symmetrical lighting for one or multiple subjects, and twice the output of a standalone fixture.

Particularly for filmmakers who want more unique FX or who specialize in product cinematography and photography, the PT4c’s multi-pixel array is one of its standout features. Each of the PT4c’s 16 pixels can be independently controlled and assigned HSI values via the free Sidus Link mobile app or DMX with the USB-C to DMX Adapter with USB-C Input.

CCT

0.5m

1.0m

2,700K

lux / 81 fc

lux / 28 fc

3,200K

lux / 81 fc

lux / 28 fc

4,300K

lux / 83 fc

lux / 29 fc

5,600K

lux / 89 fc

lux / 31 fc

6,500K

lux / 89 fc

lux / 31 fc

7,500K

lux / 84 fc

lux / 30 fc

10,000K

lux / 78 fc

lux / 28 fc

Red

lux / 48 fc

lux / 18 fc

Green

lux / 71 fc

lux / 26 fc

Blue

lux / 16 fc

lux / 6 fc


Its clean construction & interface, built-in battery, multiple pixels, and accessories & Sidus Link app ecosystems make the PT4c a strong addition to any filmmaker or lighting designer's toolkit.

Features

  • 2-Light Kit with 4ft (120cm) Battery Powered RGBWW Color
  • LED Pixel Tubes
  • 16 Independently Controllable Pixels (LED Engines)
  • Built-In 77Wh Lithium-Ion Battery (Approx. 170 min. Runtime @
  • Max Power)
  • Supports USB PD 32W Fast Charging
  • 5-Sided Endcaps for Quick Positioning
  • 3/8-16in Mounting Points on Each End Cap for Additional
  • Rigging Options
  • Fully Tunable CCT from 2,700K to 10,000K
  • CRI: 95, TLCI: 98, TM-30 Rf (ave.): 92, TM-30 Rg (ave.): 100, SSI
  • (D56): 75, SSI (Tungsten): 85
  • Fully Tunable Green-Magenta Adjustment (Full Plus/Minus
  • Green)
  • Advanced HSI with White Point CCT Control
  • Sidus Link Bluetooth App Control
  • DMX Control via USB-C with 14 Built-In DMX Profiles & DMX Loss
  • Behaviors1
  • 9 System FX: Fireworks, Fire, Paparazzi, Faulty Bulb, TV, Pulsing,
  • Cop Car, Lightning, Party Lights
  • 7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel
  • Chase, Three Pixel Chase, Rainbow, Pixel Fire
  • Smooth Diffusion for High-Output Blended Color
  • Included Threaded Magnetic Brackets, Mini Tripod Floor
  • Stands, & Eyebolts for Additional Mounting Options
  • Included 2x amaran USB-C to DMX Adapter with USB-C Input
  • Included Carrying Case

Specifications

CCT

2,700K – 10,000K

CRI (@ 5,600K)

95

TLCI (@ 5,600K)

98

CQS (@ 5,600K)

96

SSI (D56)

75

SSI (Tungsten)

85

TM-30 RF (@5,600K)

92

TM-30 RG (@5,600K)

100

Max Power Output

23W

Max Power Consumption

32W

Pixel Mapping

Pixels

Lumens

1402lm

Beam Angle

180º

Charging Input

USB Type-C PD 32W

Power Supply

Voltage

USB PD 5V/9V/12V/15V/20V

Cable Length

1.8m

Battery Voltage

14.8V

Battery Capacity

5200mAh, 77Wh

Battery Runtime

Approx. 170 Mins @ 100% Output Approx. 228 Mins @ 75% Output

Approx. 321 Mins @ 50% Output

Approx. 776 Mins @ 10% Output

Charge Time

Approx. 190 Mins (20V/1.6A)

Operating Temperature

-10°C ~ 40°C / 14°F ~ 104°F

Control Methods

On-board, Sidus Link App, DMX via USB Type-C*

Firmware Upgradeable

Sidus Link

Wireless Operating Range (Bluetooth)

≤80m / ≤262.5ft

Screen Type

TFT

IP Rating

IP20

Cooling Method

Passive Cooling

Dimensions

Fixture

φ42 x 1200 mm / φ1.65 x 47.24in

Magnetic T12 Bracket

x 46 x 42mm / 2.12 x 1.81 x 1.65in

Power Adapter

x 58 x 29mm / 2.28 x 2.28 x 1.14in

Eyebolt

x 20 x 40mm / 1.42 x 0.79 x 1.57in

Mini Tripod

φ35 x 177 mm / φ1.38 x 6.97in

USB-C to DMX Adapter Cable

mm / 19.3in

Carrying Case

x 139 x 139mm / 49.2 x 5.5 x 5.5in

Weight

Fixture

1.375kg / 3.03lbs

Magnetic T12 Bracket

54g / 0.12lbs

Power Adapter

185g / 0.41lbs

Eyebolt

41g / 0.09lbs

Mini Tripod

g / 0.38lbs

USB-C to DMX Adapter Cable

95g / 0.21lbs

Total with Case

5.608kg / 12.36lbs

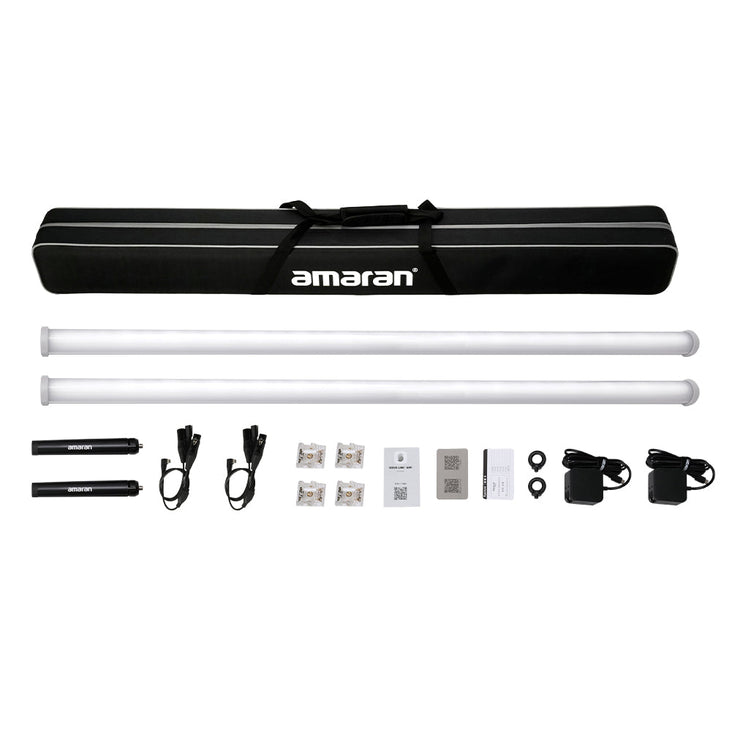

What's Included
2 x Amaran PT4c
2 x 45W Power Adapter with USB-C PD Power Cable (1.8m)
2 x USB-C to DMX Adapter with USB-C Input
4 x Magnetic T12 Bracket
2 x 3/8-16in Eyebolt
2 x Floor Stand
1 x Carrying Case
