Zhiyun-Tech Smooth-Q4 Smartphone Gimbal Stabiliser

Backorder

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

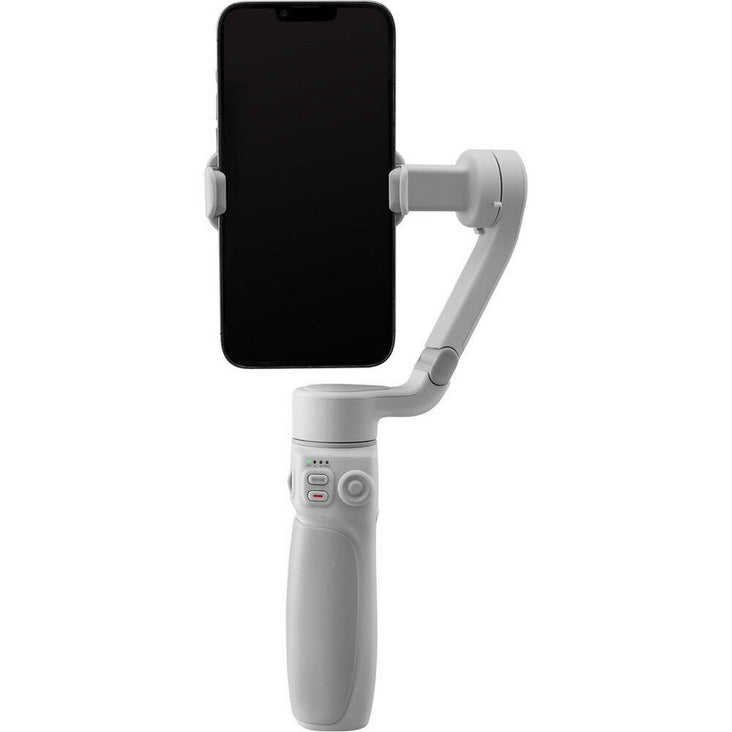

The Smooth-Q4 Smartphone Gimbal Stabiliser from Zhiyun-Tech offers many of the same gimbal modes and recording functions as its predecessor with the added benefit of a built-in extension rod for content creators who are on the move.

The Smooth-Q4 can support smartphones up to 9.9 oz, and its companion Android/iOS smartphone app features a slew of templates, editing tools, and control functions to fulfil your creative vision. Switching between landscape and portrait modes is as easy as pressing a button, so you can transition from filming panoramic scenery to filming a TikTok.

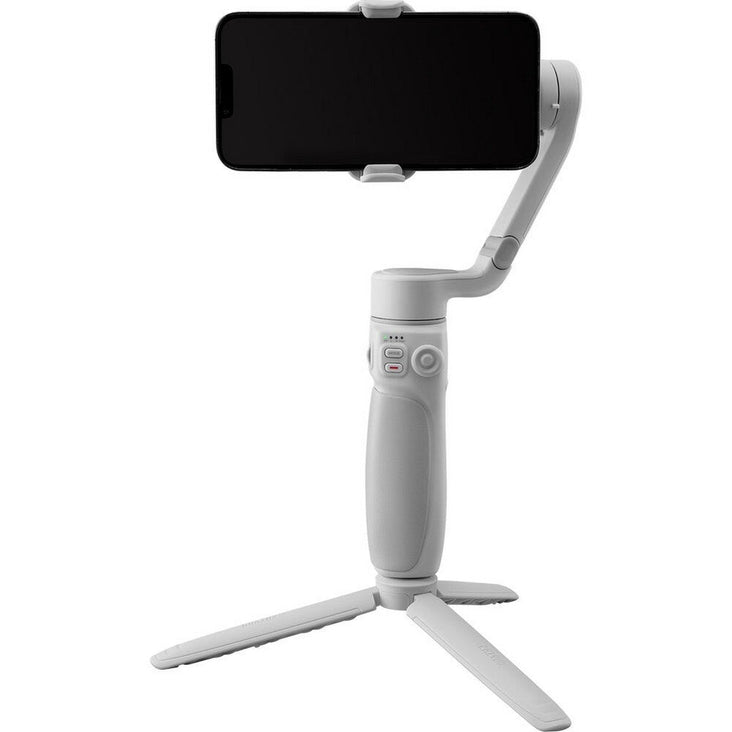

Operate the Smooth-Q4 with just one hand, thanks to the improved onboard controls and comfortable handgrip. Joysticks, buttons, and wheels control functions like gimbal mode and video recording. Various indicator lights on the gimbal display the current mode or power level. A mini tripod can be attached to the bottom of the Smooth-Q4 for stabilised, hands-free setups. The built-in battery supply powers the device for up to 15 hours and a single USB Type-C input can recharge it in 2.5 hours or serve as a firmware update port.


Smartphone Compatibility
The gimbal can accommodate smartphones up to 9.9 oz and 3.5" wide.

ZY Cami Smartphone App
The app supports Android 7.0 and iOS 10.0 operating systems and above.

SmartFollow 3.0
A single tap in the companion app ensures your subject remains in the centre of the frame.

Gesture Control
The gimbal can start shooting with simple hand gestures directed toward the camera.

SMART Templates and Shooting
Editing templates, background music, special effects, and other tools can enhance your video. Split-screen comparisons and BTS camera movement can show you how to best move the camera to mimic the template format.

Other Advanced Features
MagicClone Pano and Livestream Master are also available in the app's interface.

Gimbal Modes

  • Lock
  • Follow
  • Pan Follow
  • Point of View
  • Vortex

Onboard Controls and Indicators
  • Power button
  • Photo/Video button
  • MODE button
  • Trigger button
  • Gimbal mode indicator lights
  • Joystick

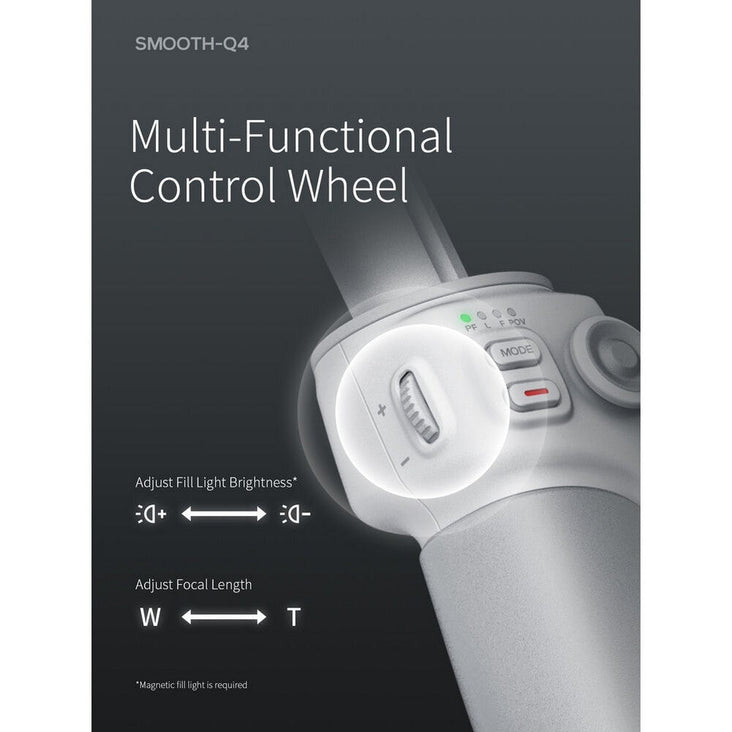

  • Control wheel

Features

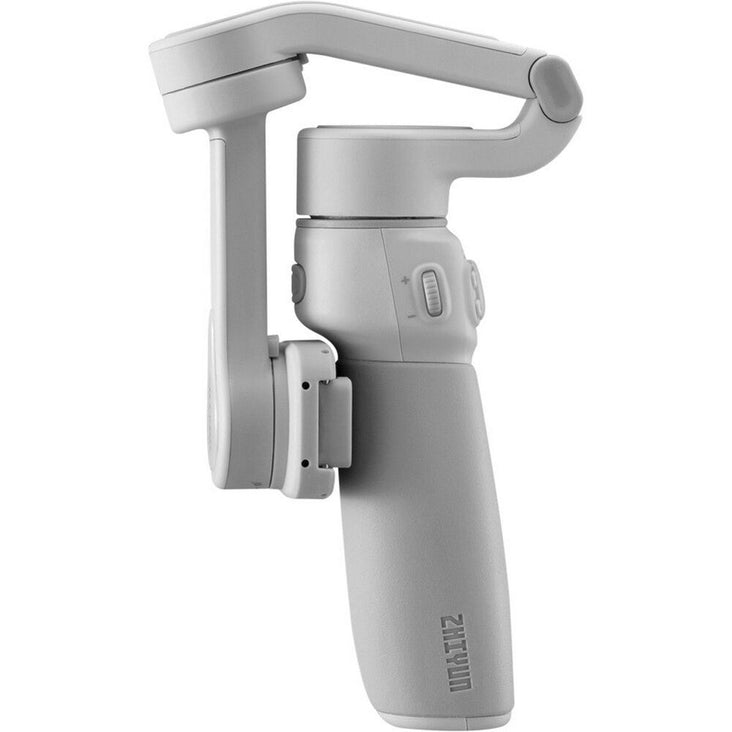

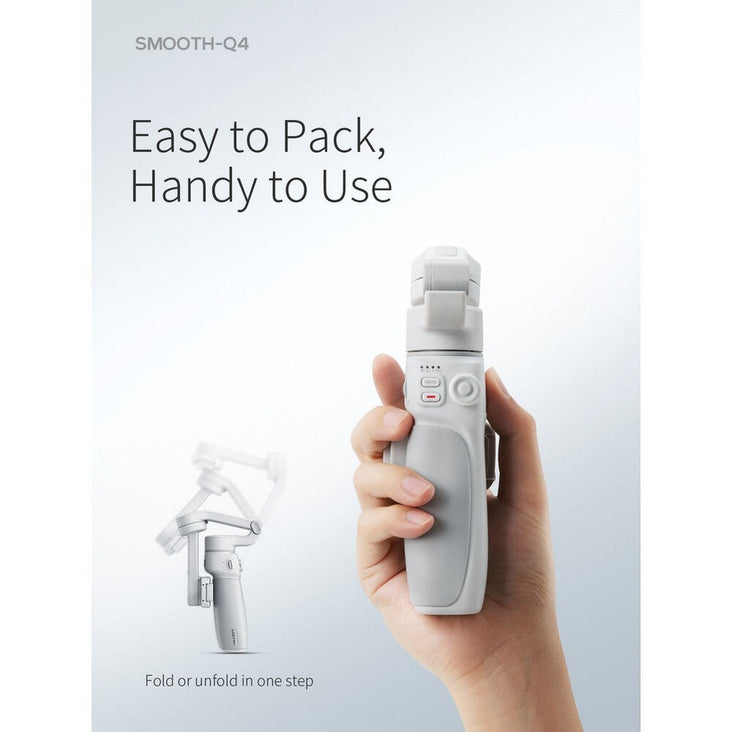

  • Compact Folding 3-Axis Stabiliser

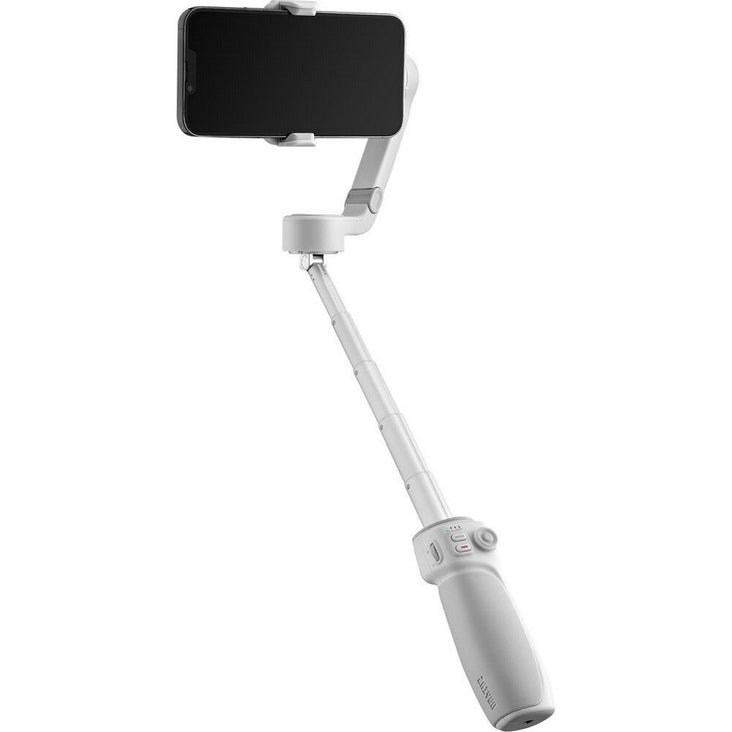

  • Built-In Extension Rod up to 8.5"
  • Landscape & Portrait Modes
  • Livestreaming via Companion Mobile App
  • Supports Smartphones up to 9.9 oz
  • Various Templates & Gimbal Modes
  • 15-Hour Runtime
  • Tripod Accessory, Wrist Strap, VIP Card
  • USB Type-C Port for Charging & Firmware

Specifications

Grip Design

Handheld Ring

Load Capacity

9.9 oz / 280 g

Number of Axes

3-Axis (Pitch, Roll, Yaw)

Rotation Range

Yaw (Pan): 331°
Pitch (Tilt): 338°
Roll: 338°

Camera Control

No

Smartphone Dimensions

Thickness: 0.3 to 0.4" / 7 to 10 mm
Width: 2.2 to 3.5" / 55 to 90 mm

Inputs/Outputs

1 x USB Type-C (Power / Control) Input

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 4.2

Battery Type

1 x Built-In

Battery Capacity

1200 mAh

Battery Runtime

15 Hours

Battery Charging Time

2.5 Hours

Operating Voltage

6.5 to 8.8 VDC

Operating Current

100 to 3300 mA

Operating Temperature

14 to 113°F / -10 to 45°C

Display Type

None

Mounting

1 x 1/4"-20 Female

Dimensions

7.2 x 4.2 x 2.2" / 181.7 x 107.7 x 56.3 mm (Folded)

Weight

13.1 oz / 370 g



*Please note: Smartphone not included, shown for illustration purposes only. Please see 'What's Included' section for full product inclusions.

What's Included

1 x Zhiyun-Tech Smooth-Q4 Smartphone Gimbal Stabilizer
1 x Tripod
1 x USB Type-A to USB Type-C Charging Cable
