ZGCine VM-HS2 Sharkfin V Mount Plate - Hot Swap
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

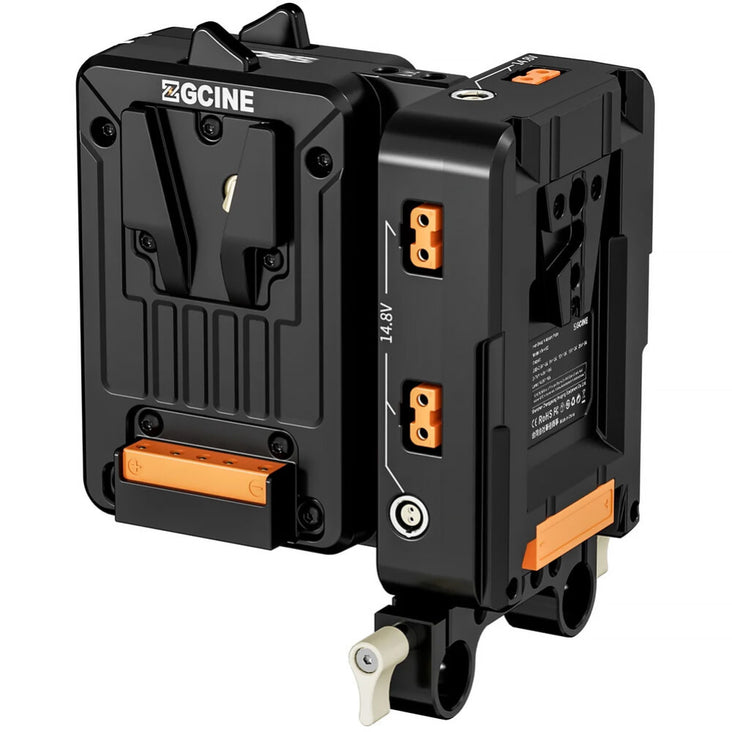

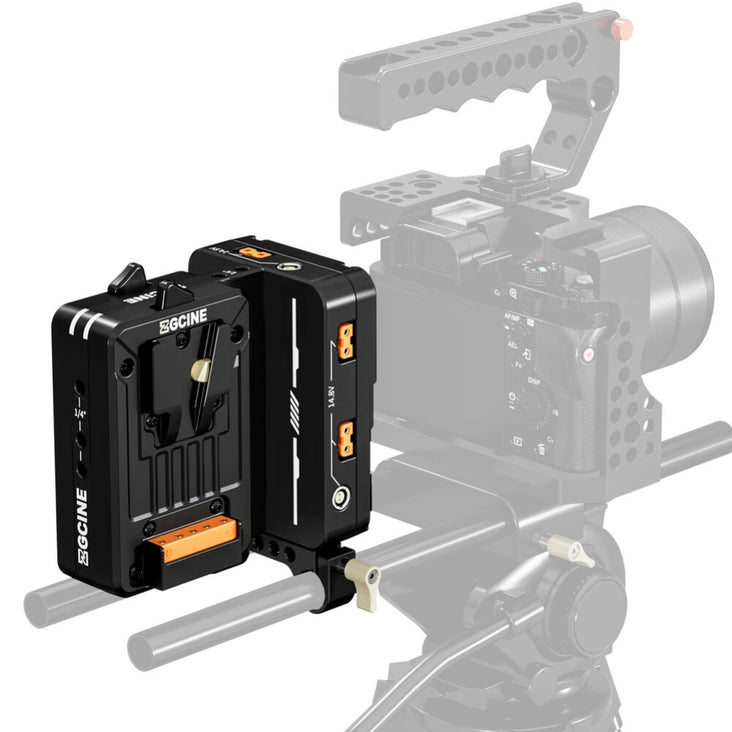

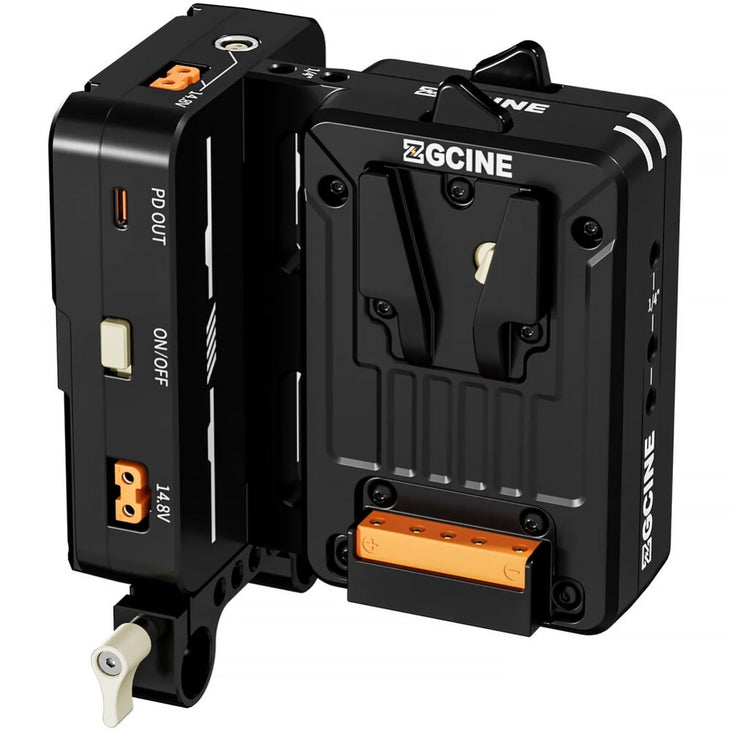

12 Month Warranty*Power your camera configuration with two V-mount batteries with this VM-HS2 Dual V-Mount Battery Adapter Plate from ZGCINE. The plate secures to your camera via a V-mount plate and then offers two V-mount battery slots that supply power to your camera and any additional accessories. The batteries can also be hot-swapped to keep your equipment running without interruption. Multiple output ports, including USB-C, D-Tap, and LEMO 2-pin, can be used to connect to peripheral accessories like fill lights, external monitors, mobile devices, and wireless transmitters. The plate can be mounted on the back of your rod-based rig with the included 15mm dual-rod clamp and 1/4"-20 mounting threads.
Specifications
- Two V-Mount Battery Plates
- USB-C, D-Tap, LEMO 2-Pin Outputs
- 15mm Dual-Rod Bracket
- Supports Hot-Swapping
- 1/4"-20 Mounting Threads
| Power Input |
V-Mount: VDC
|
| Power Output |
USB-C: 5 to 15 VDC
|
| LEMO 2-Pin: 14.8 to VDC at 10 A | |
| D-Tap: 14.8 to VDC at 10 A | |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Inputs/Outputs |
x USB-C
|
| 2x LEMO 2-Pin Female | |
| 5x D-Tap | |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
2
|
| Accessory Mounting |
1/4"-20 Female, 15 mm LWS Mount
|
| Hot-Swap Support |
Yes
|
| Operating Conditions |
-7 to 131°F / -22 to 55°C
|
| Dimensions |
12.19 x 12.19 x 8.13 cm
|
| Weight |
0.52 kg
|
What's Included
1 x ZGCine ZG-X160 Smart V Mount Battery 160W
1 x USB-C Charging Cable
1 x 15mm Dual-Rod Clamp
1 x Allen Key
