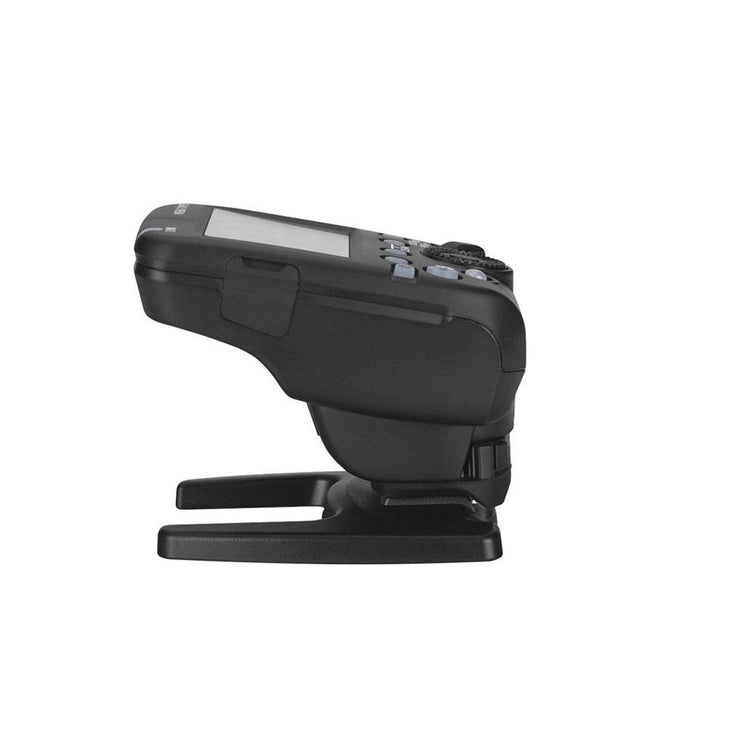

Yongnuo YN560-TX PRO Flash Controller for Canon


Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

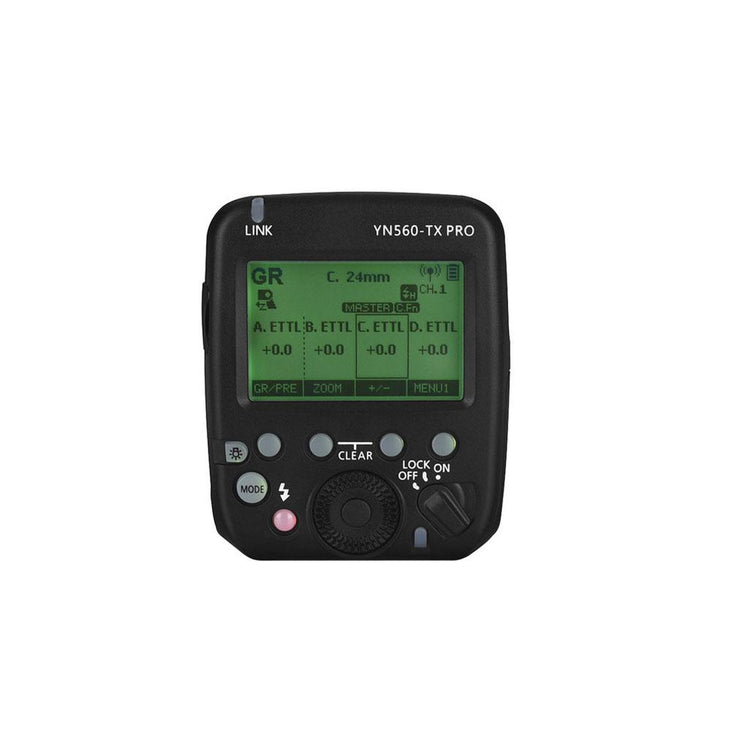

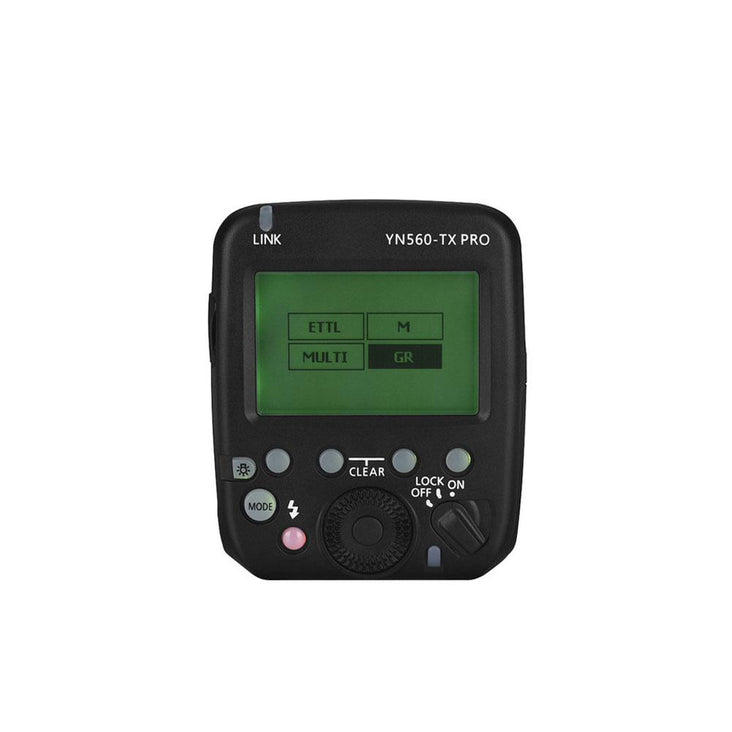

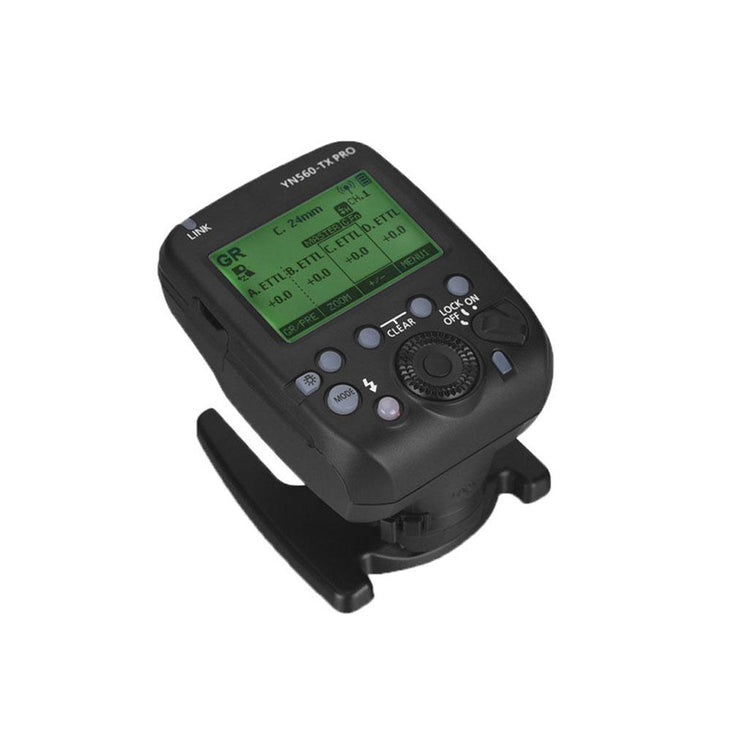

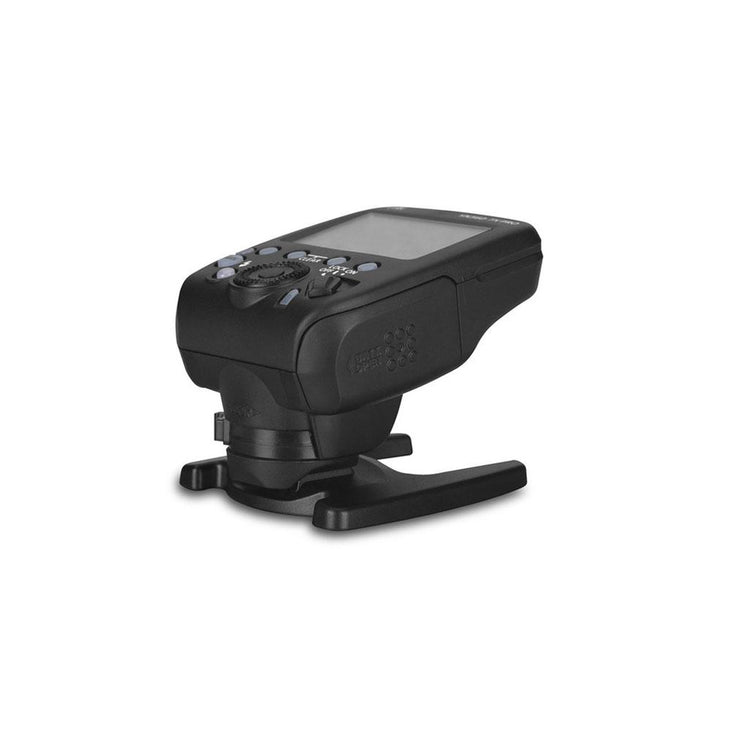

Remotely control and trigger a variety of flashes and radio receivers with the YN560-TX II PRO Flash Controller for Canon from Yongnuo. Designed to work with Canon cameras, this transmitter is compatible with a variety of equipment, including YN200 and YN862-series Speedlites and the 560/660/720/860/603/605 triggers.

This updated model is equipped with an LCD menu and supports E-TTL II/E-TTL with choice of 16 channels, that allow you to control power and flash exposure compensation without interference at impressive distances up to 328'


  • YN560-TX PRO can control, trigger YN200/YN862 series and the models which have been upgraded to the latest firmware such as YN622C(N) II/YN685/YN968C/YN968N(II) (in 560RX mode) to realise ETTL/M/Multi flash, high speed sync, focal length control functions.
  • Compatible with radio flash and flash trigger models such as YONGNUO YN560III/IV/YN660/YN720/YN860Li/RF603 series /RF605 series directly, realise M/Multi flash functions.
  • 16 channels, customisable photographer ID, A/B/C/D/E 5 flash groups; Fully supports ETTL/M/Multi/GR flash mode. Supports front-curtain sync, second curtain sync(M mode),high speed sync
  • Supports ETTL ratio, flash exposure compensation, flash exposure Lock, flash exposure bracketing, modelling flash functions. 2.4G radio Maximum communication distance is over 100m.

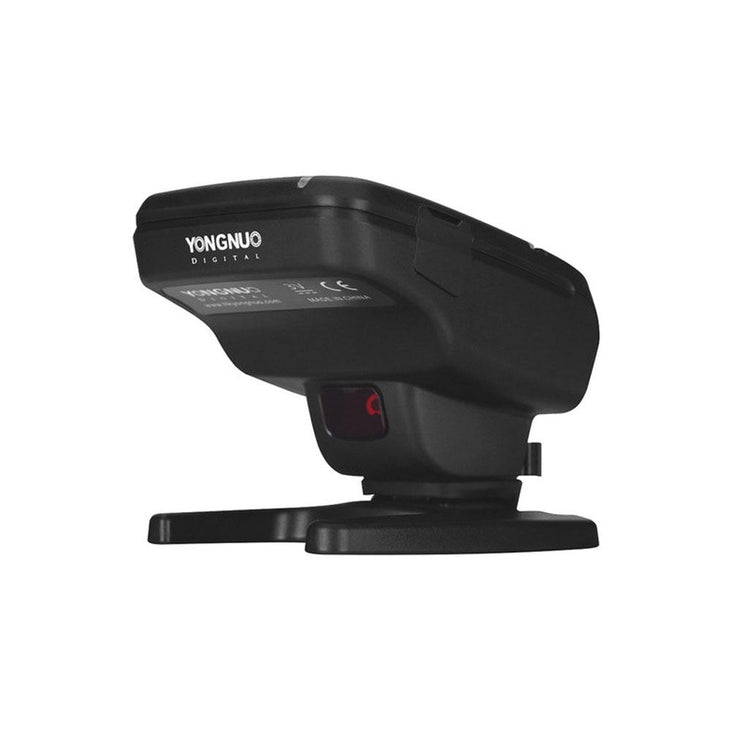

  • Supports remote control focal settings of slave unit flash (only for YONGNUO compatible flashes); Firmware can be upgraded via USB(Micro-USB); High resolution dot-matrix LCD, backlight for keys; Fast lock mechanism; Built-in AF assist beam emitter.


Channels 16
Groups 5
Wireless Range 328' / 100 m
Radio Frequency 2.4 GHz
Control Modes Auto, E-TTL/E-TTL II, Manual, Strobo
Power Settings 1/1 to 1/128 (1/3-Stop Intervals)

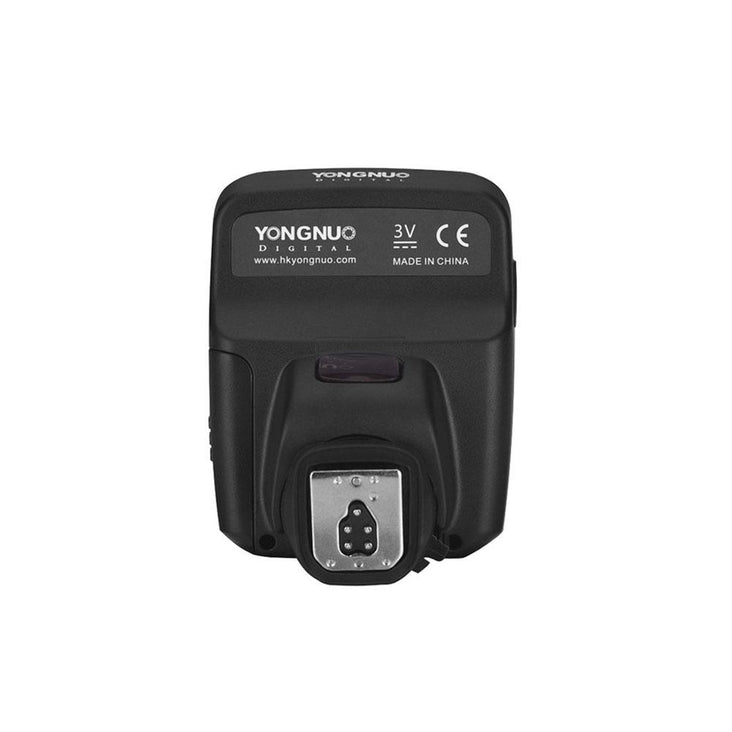

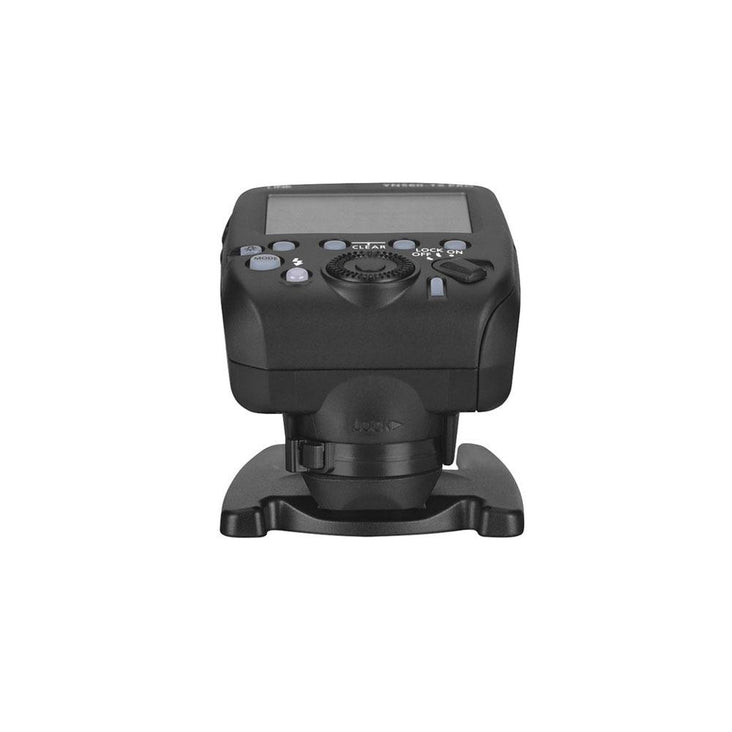

Bottom Mount Hot Foot (Locking)

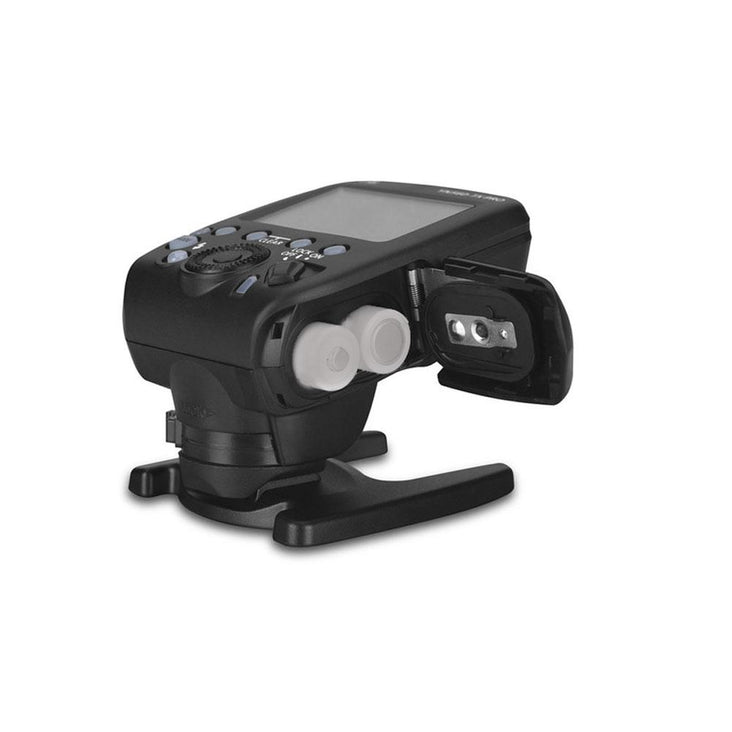

Battery Type 2 x AA (Not Included)
Dimensions Transmitter: 2.67 x 2.63 x 3.2" / 67.7 x 66.7 x 81.3 mm
Weight 3.88 oz / 110 g

**Batteries not included
