Saramonic TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

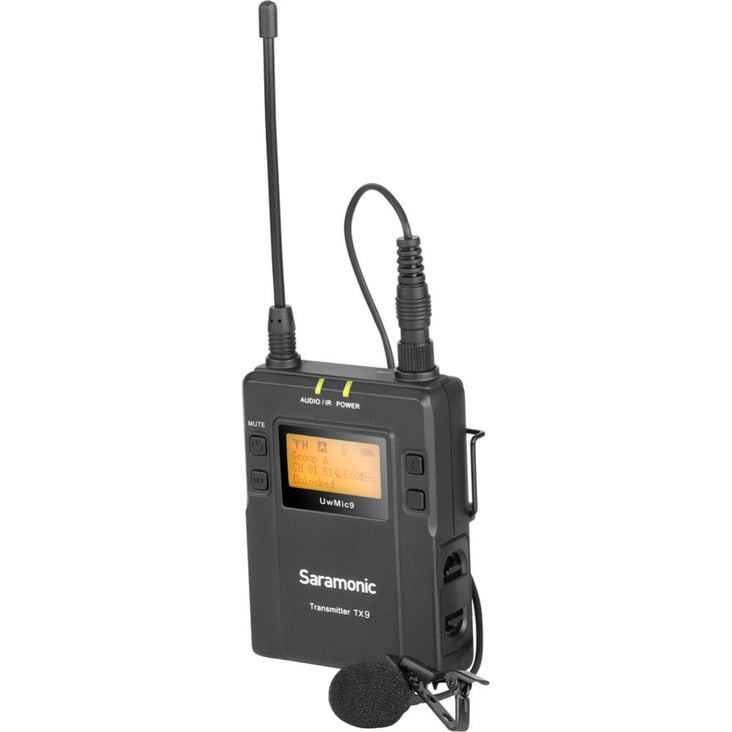

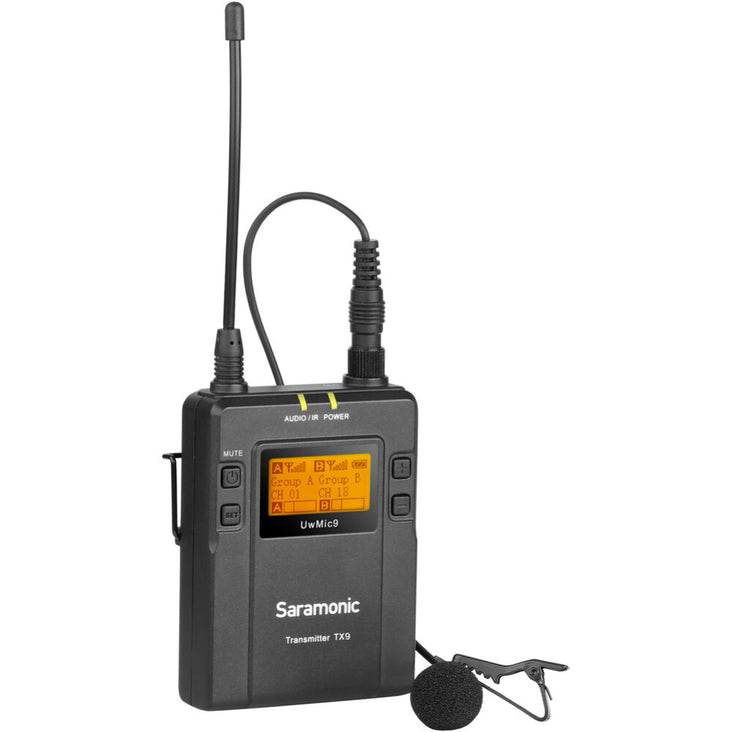

12 Month Warranty*The TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic from Saramonic offers a compact and efficient solution for capturing high-quality audio in various professional settings. Utilising a crystal-controlled PLL synthesiser, this transmitter ensures reliable performance and precise audio transmission. Paired with an RX9 receiver (sold separately), it enables seamless audio capture for interviews, broadcast TV, electronic news gathering (ENG), and other audio broadcasting and recording applications, providing versatility and flexibility for your audio needs.
Featuring 96 channels in two groups, an easy-to-read LCD display, over 330' operating range, a mute function, and a BMP-type 1/8" mic input, the bodypack transmitter has an RF power output that can be switched among high, middle, and low settings. It is designed to capture rich, crystal-clear sound and includes a lapel clip, and a windscreen.
Specifications
- Reliable, Broadcast-Quality Audio
- Compatible with RX9 Receiver
- 96 Selectable Channels in 2 Groups
- Over 330' Operating Range
- Easy-to-Read LCD Display
| RF Frequency Band |
514 to 596 MHz
|
| Max Operating Range |
328.1' / 100 m
|
|
Transmitter
|
|
| Transmitter Type |
Bodypack
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Input (Locking)
|
| Muting |
Off/On Switch
|
| Audio Input Level |
-60 dBV (at 0 dB Gain)
|
| Frequency Response |
40 Hz to 18 kHz
|
| Sync Method |
IR
|
| Antenna |
1x 1/4 Wave External
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Not Included)
|
| Display & Indicators |
1x LCD (Audio Level, Battery Status, Channel, Group, High-Pass Filter)
|
| 2x LED (Audio Level, Peak) | |
| Dimensions |
17.09 x 6.35 x 3 cm
|
| Weight |
210 g (without Batteries)
|
|
Microphone
|
|
| Microphone Type |
Lavalier
|
| Sound Field |
Mono
|
| Polar Pattern |
Omnidirectional
|
| SNR |
70 dB
|
| THD |
> 0.5%
|
| Output Connector |
1x 1/8" / 3.5 mm TRS
|
What's Included
1 x Saramonic TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)

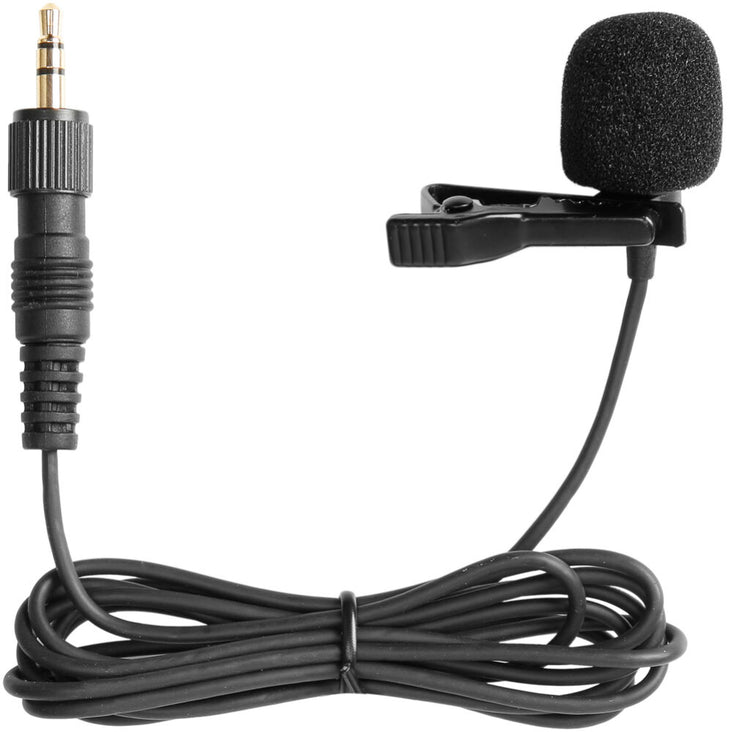

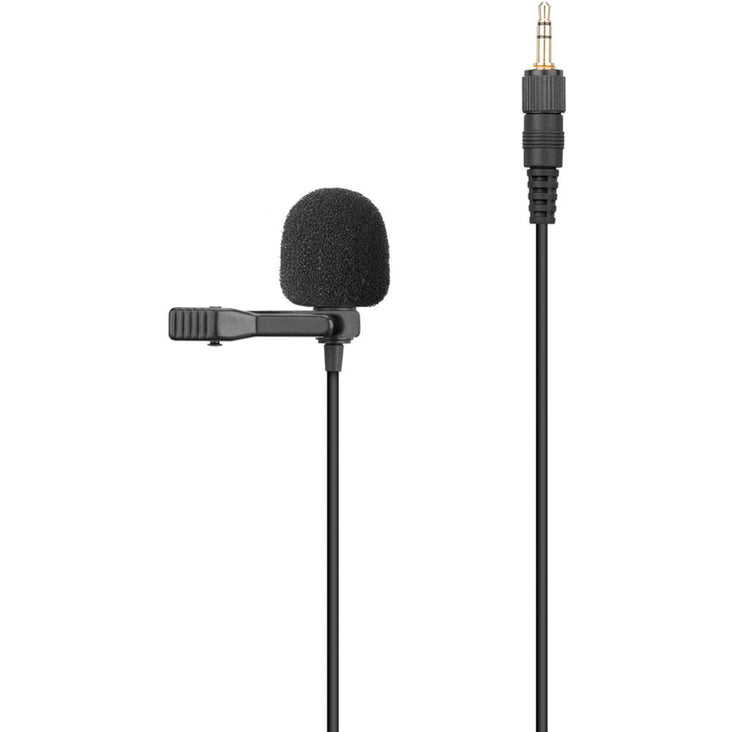

1 x Omnidirectional Lavalier Mic
1 x Lapel Clip
1 x Windscreen
1 x Belt Clip

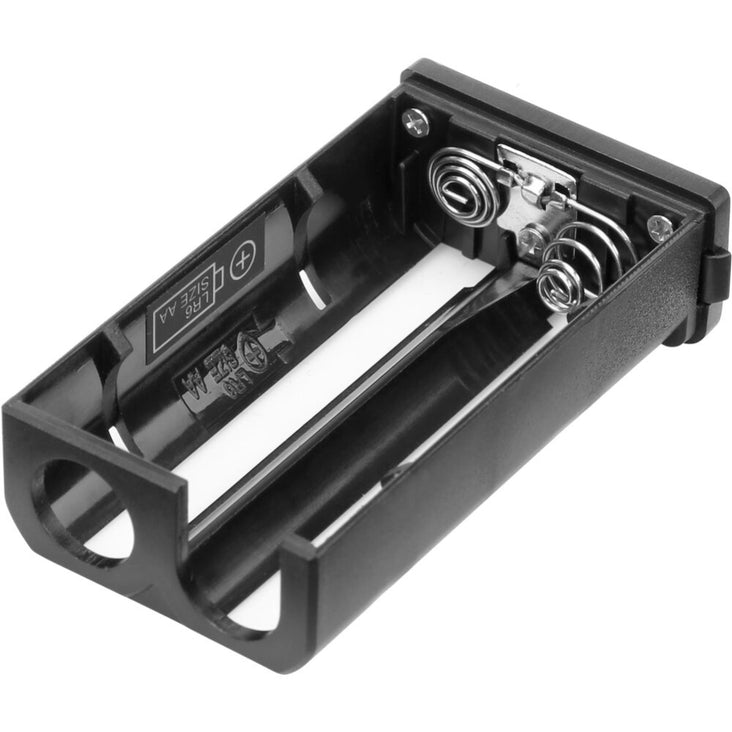

1 x Saramonic SR-UMBC1 Battery Compartment for Wireless Microphone Systems
