Saramonic SR-AX100 Passive 2-Channel Audio Adapter for DSLR Cameras
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*The SR-AX100 by Saramonic offers a compact solution for recording two signals simultaneously on any DSLR or camcorder equipped with a standard mounting shoe and built-in audio jack. With left and right trim controls for precise adjustments, this passive 2-channel audio adapter requires no power source, ensuring hassle-free recording sessions.

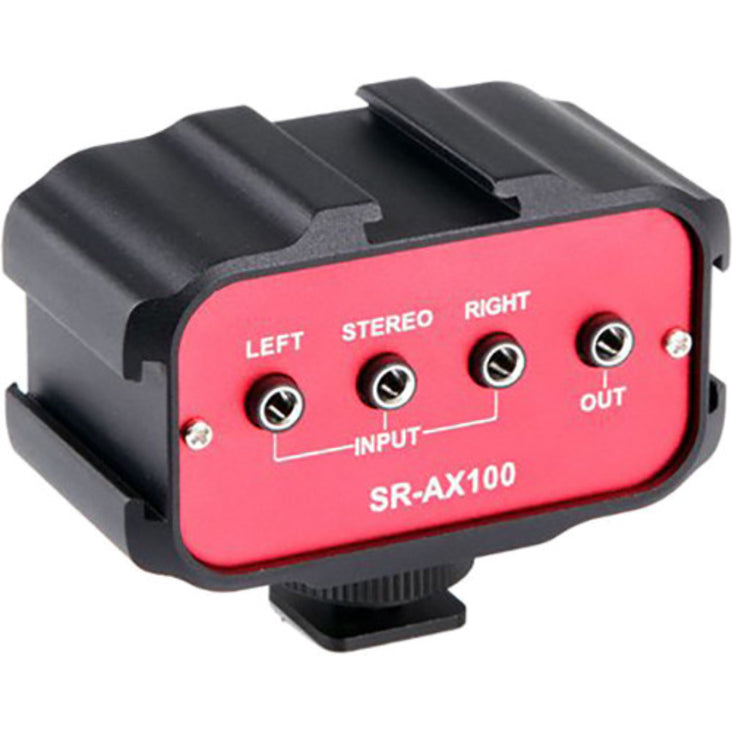

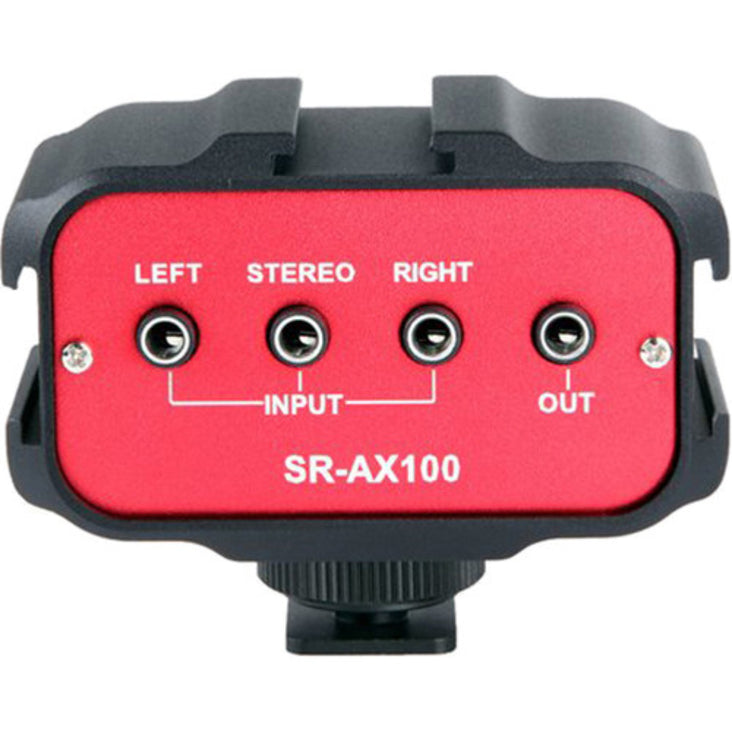

It has three integrated mounting shoes for attaching mics or wireless receivers. Connect inputs via two mono 3.5mm jacks or the single stereo 3.5mm jack. Route the stereo 3.5mm output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch.

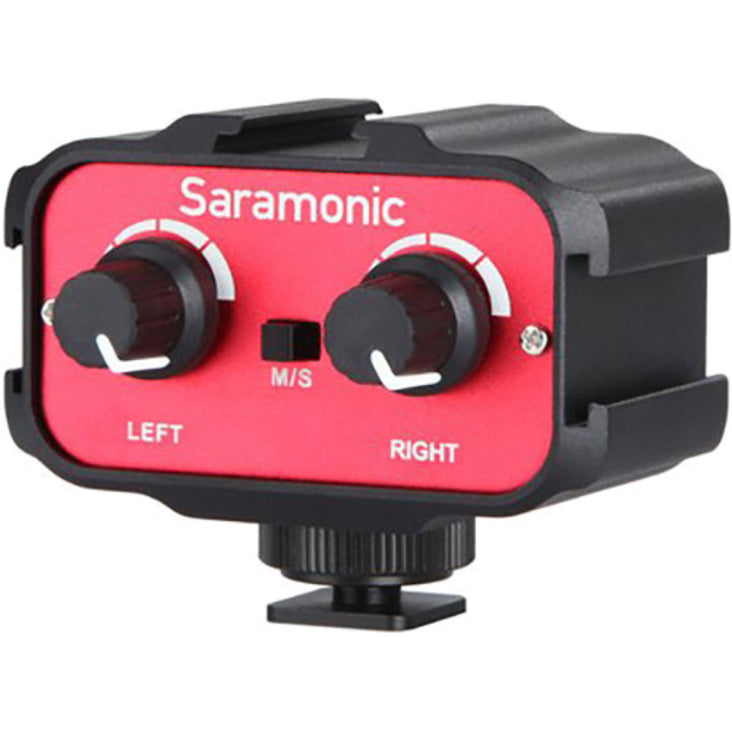

Dual Trim Control Knobs
Adjust the signal to each channel to set your optimum recording levels
Mono/Stereo Switch
Select Mono or Stereo output mode

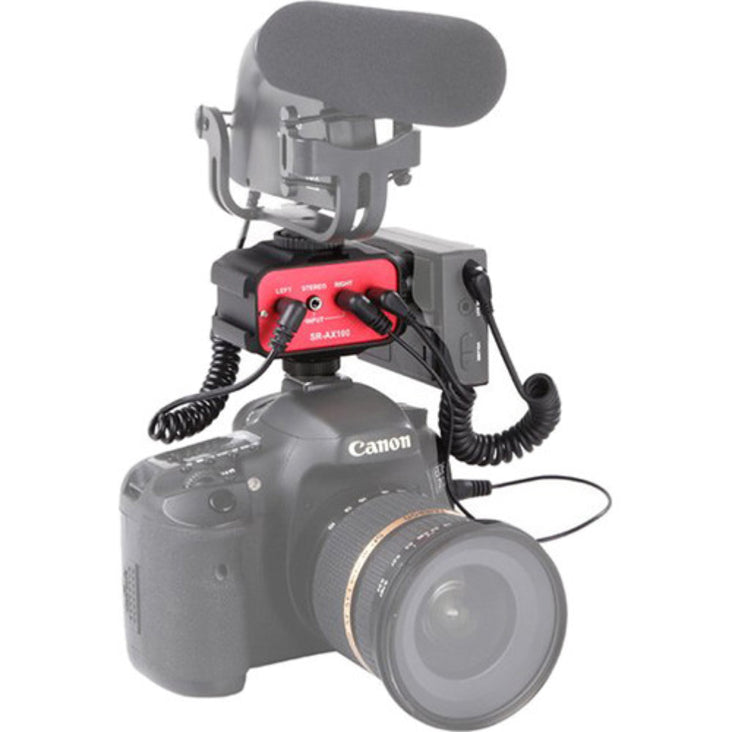

Three Integrated Mounting Shoes
Attach a variety of mics or wireless receivers
Passive Operation with No Batteries
Compact shape with die-cast aluminium chassis
Cable Included
The SR-AX100 includes a short coiled 3.5mm output cable with gold-plated connectors
Specifications
- Combine Two Mics to One Stereo Output
- Sum a Stereo Input to a Mono Output
- 3.5mm Mono and Stereo Inputs
- 3.5mm Stereo Output
- Left and Right Trim Controls
- Mono/Stereo Output Mode Switch
- Passive Design Requires No Power Source
- Includes Coiled 3.5mm Cable
| Inputs |
1 x 1/8" / 3.5 mm Stereo Mini-Jack Input
|
| 2 x 1/8" / 3.5 mm Mono Mini-Jack Inputs | |
| Output |
1 x 1/8" / 3.5 mm Stereo Mini-Jack Output
|
| Input Level |
MIC Setting: -35 dBu Minimum
|
| Gain |
Unity
|
| Frequency Response |
10 Hz to 100 kHz (±1.5 dB)
|
| Dimensions |
7.6 x 5.9 x 5.5 cm
|
| Weight |
153.1 g
|
What's Included
1 x Saramonic SR-AX100 Passive 2-Channel Audio Adapter for DSLR Cameras
1 x Coiled 3.5mm Output Cable
