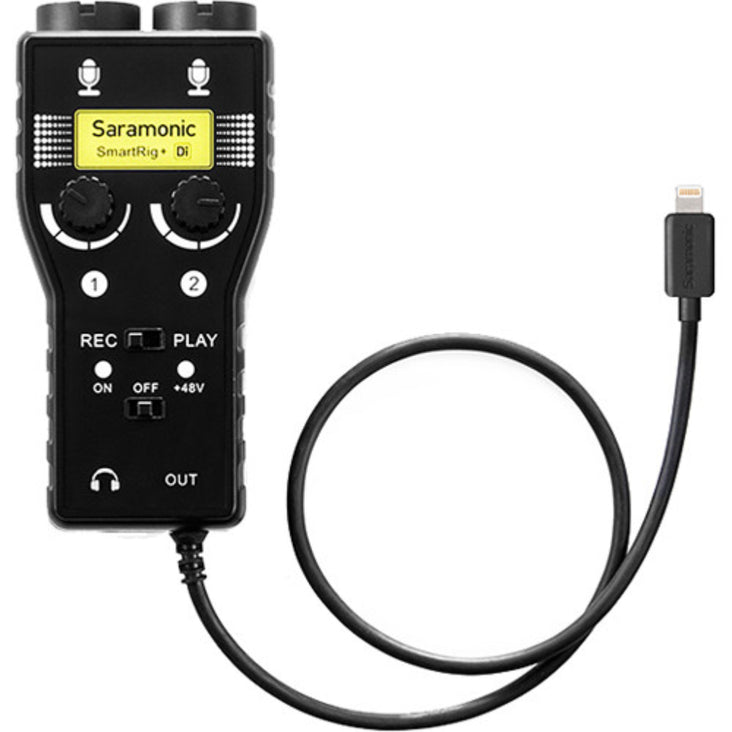

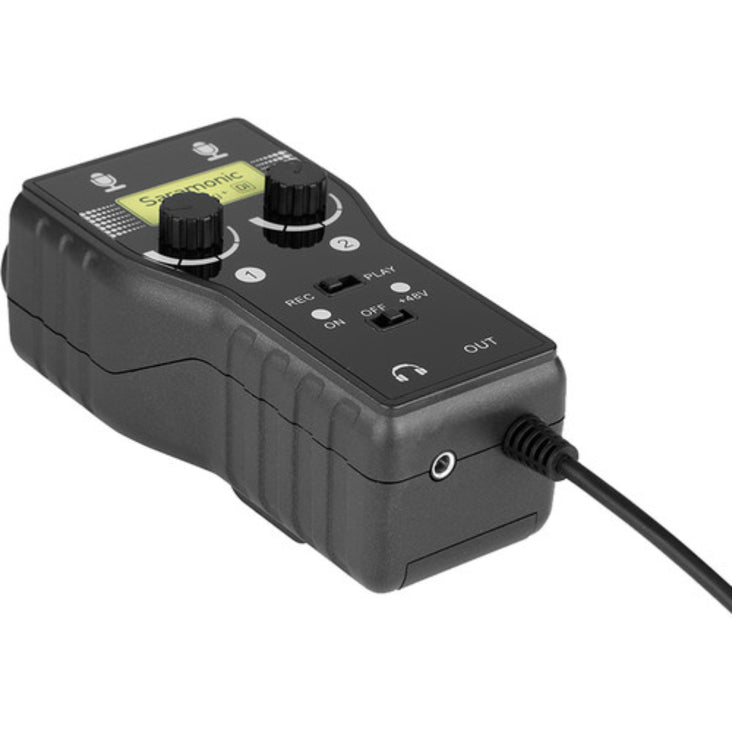

Saramonic SmartRig+ Di, Two-Channel Mic and Guitar Interface with Lightning Connector
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

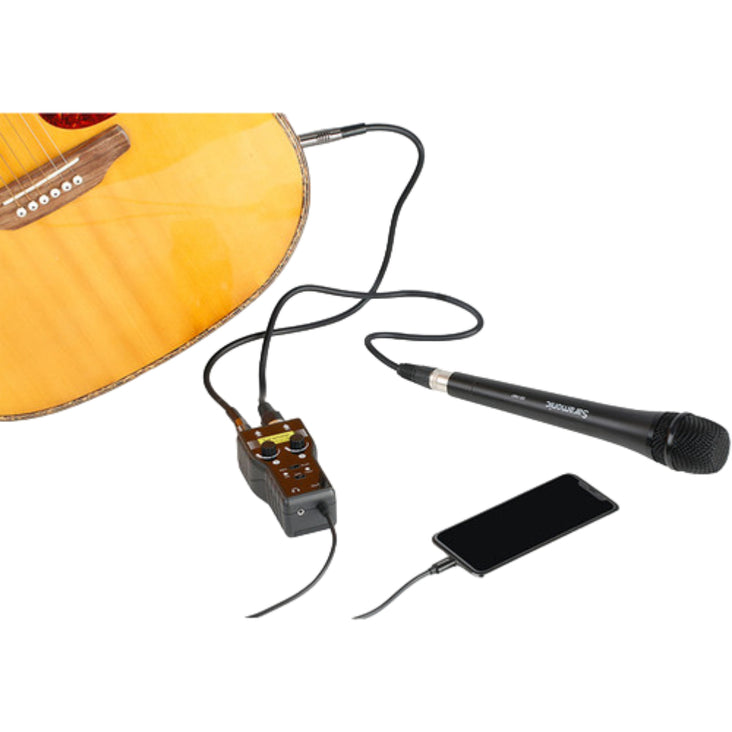

12 Month Warranty*The SmartRig+ Di from Saramonic is a versatile two-channel audio interface designed to connect professional microphones or guitars to your iPhone, iPad, and iPod touch devices. Featuring a lightning connector output, this interface enables seamless recording of stereo sound or music directly to your iOS portable device, offering convenience and flexibility for various audio recording needs.

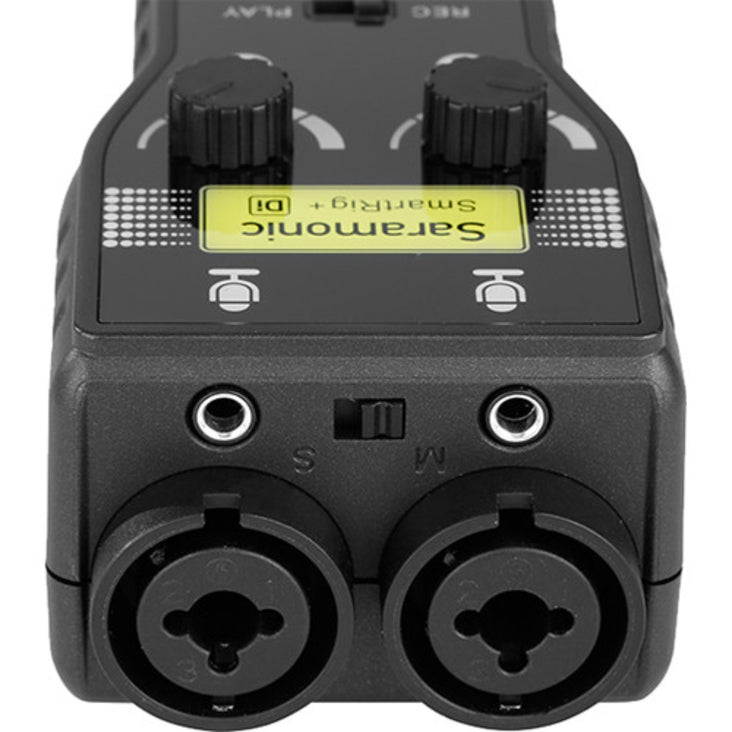

The SmartRig+ Di provides 48V phantom power for condenser microphones and is equipped with two XLR inputs, two 1/8" inputs, and two 1/4" inputs, and an 1/8" headphone output for real-time monitoring. There are two gain-control thumbwheels that make it easy to set levels for each channel separately.
Specifications
- 2 x 1/8" Mic Inputs
- 2 x XLR Mic Inputs
- 2 x 1/4" Guitar Inputs
- Lightning Output Connector
- Mono/Stereo Switch (M/S)
- Rec/Play Switch
- +48V Phantom Power
- 1/8" Headphone Output for Monitoring
- Gain Control
| Channels of I/O |
2 Input / 2 Output
|
| Maximum Sampling Rate |
48 kHz / 16-Bit
|
| Number of Microphone Inputs |
2 Preamps
|
| Input Level Adjustment |
2x Knob
|
| Gain/Trim Range |
Up to +25 dBu
|
| Analog Audio I/O |
1x XLR 3-Pin Mic Input
|
| 1x 1/4" TS Hi-Z Input | |
| 1x 1/8" / 3.5 mm TRS Input | |
| 1x 1/8" / 3.5 mm TRS Headphone Output | |
| Phantom Power |
48 V
|
| Host Connection |
1x Lightning
|
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| SNR |
78 dB (-30 dBu Input, 1 kHz)
|
| THD |
< 0.01% (-30 dBu Input, 1 kHz)
|
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
24-Bit
|
| OS Compatibility |
iOS
|
| Mobile Device Compatibility |
iPhone
|
| iPad | |
| iPod Touch | |
| Required Hardware |
Lightning Port
|
| Internet Connection |
Required for Software/Driver Download
|
| Power Requirements |
Battery
|
| Current Consumption |
13 mA
|
| Battery Type |
1x 9V
|
| Dimensions |
12 x 4 x 4 cm
|
| Weight |
130.0 g
|
What's Included
1 x Saramonic SmartRig+ Di, Two-Channel Mic and Guitar Interface with Lightning Connector
