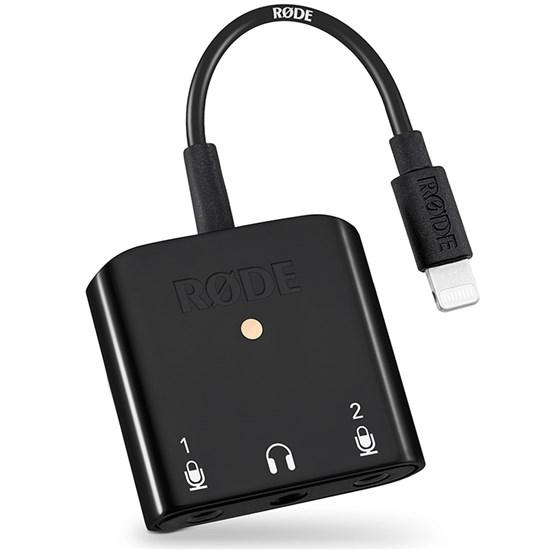

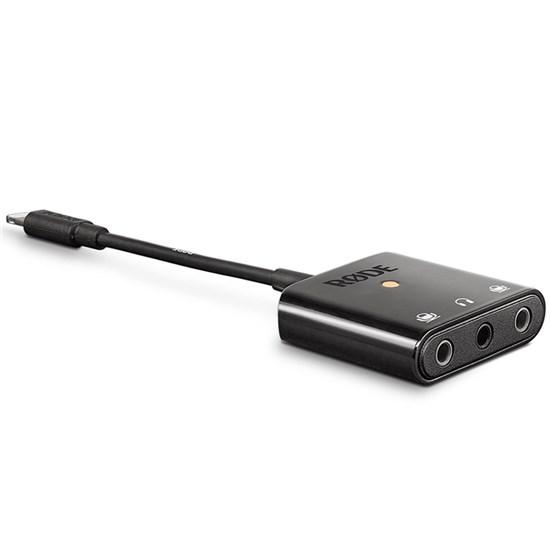

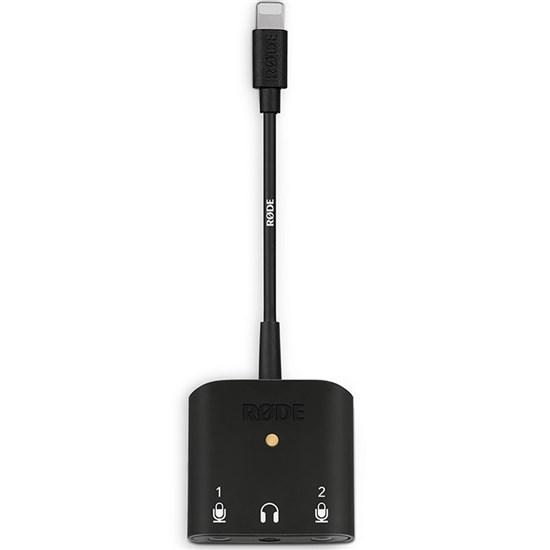

12 Month Warranty*The SC6-L is a simple input/output breakout box designed for Apple iOS devices. Inspired by the original SC6 with a 3.5mm TRRS jack, the SC6-L uses a Lightning Connector to connect directly to Apple iOS devices.
With two TRRS inputs and one stereo headphone output, the SC6-L can be used with two RØDE smartLav+ microphones and one pair of headphones, allowing audio monitoring and playback, perfect for interview scenarios. The SC6-L can also be used with RØDE’s range of VideoMics in conjunction with a TRRS adaptor, such as the SC4 and SC7.
AU-3762C3DD
The SC6-L has been optimised to work seamlessly with the easy-to-use RØDE Reporter App. Users can enable/disable direct monitoring, alter the gain boost, and choose between summed stereo and dual-mono. These features are retained within the SC6-L allowing users to use the dual-mono mode with other apps, such as the Camera app, GarageBand, Voice Memos, etc.
The SC6-L is compatible with all Apple iOS devices with a Lightning connection and running iOS 11 or higher. The SC6-L is also available as part of the SC6-L Mobile Interview Kit.
Features
- 2 x 3.5mm TRRS Micophone Inputs for Lightning connection
- 3.5mm Headphone Output
- Pairs with RØDE Reporter App
- App allows configuration of: Record Mode (Stereo/Separate), monitoring on/off and mic Pre gain
- Frequency Response: 20Hz - 20 kHz
- Bit Depth: 24-bit
- Sample Rates: 44.1/48
- Bus powered
- Requires Lightning connection and iOS 11 or higher
Specifications
- OS Requirements: iOS 11 and higher
- Bus Powered: Yes
- Direct Monitor: Yes
- Sample Rates: 44.1/48 kHz
- Bit Depth: 24-bit
- Simultaneous I/O: 2/2
- Computer Connectivity: Lightning (iPhone/iPad/iPod)
- Analog Outputs: 3.5mm TRS Headphone Output
- Output Connection: 3.5mm Headphone Output
- Power Requirements: Powered from iPhone socket (2.7V)
- Equivalent Noise: 25 dB Typical
- Frequency Range: 20Hz – 20 kHz
