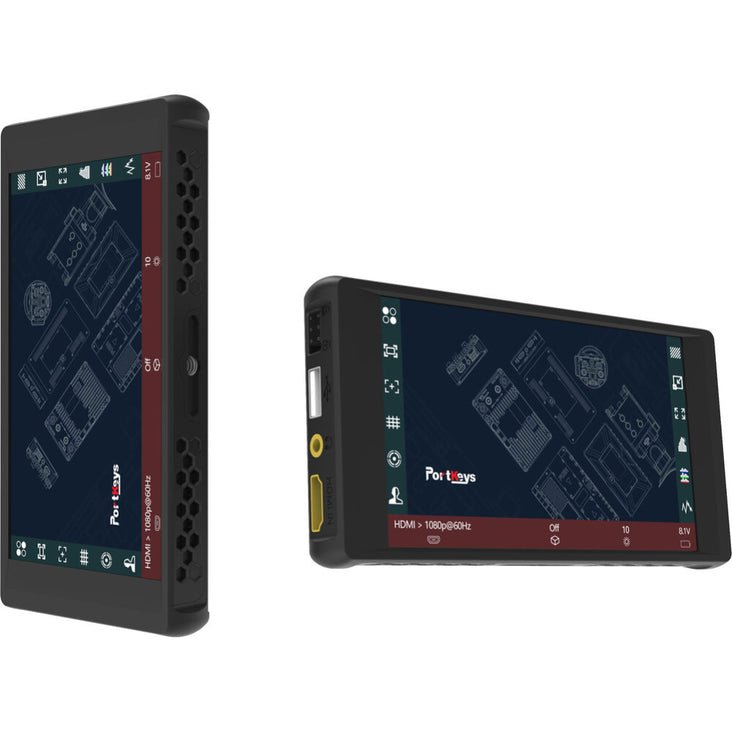

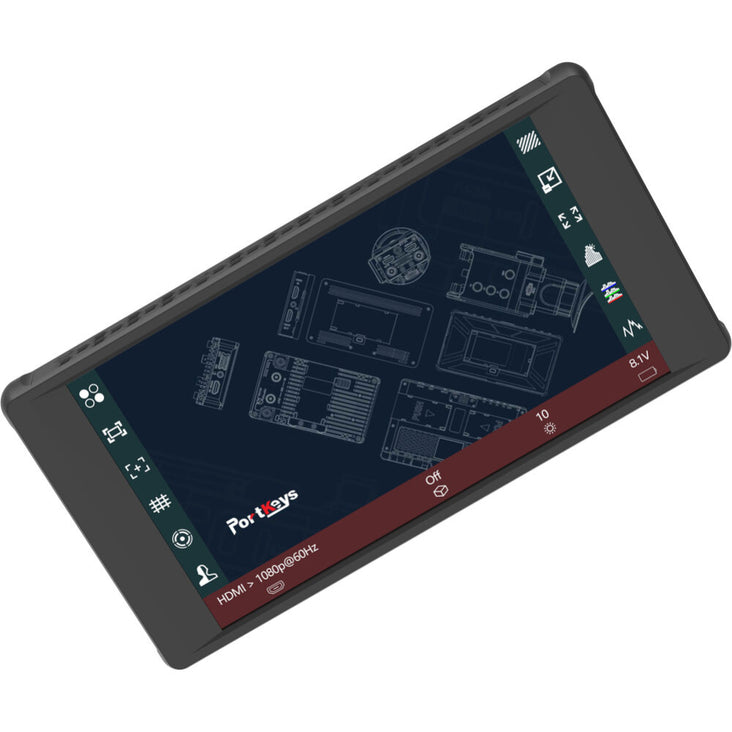

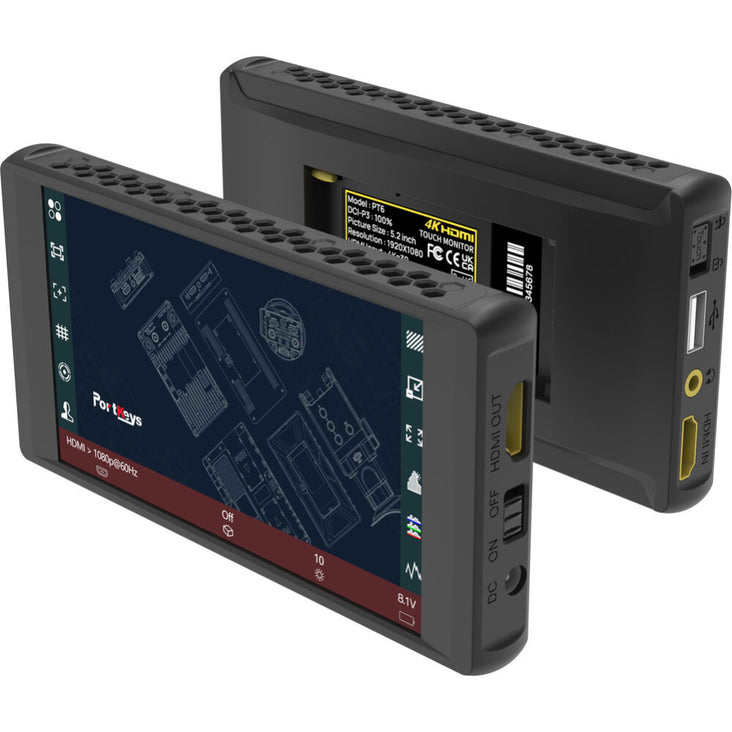

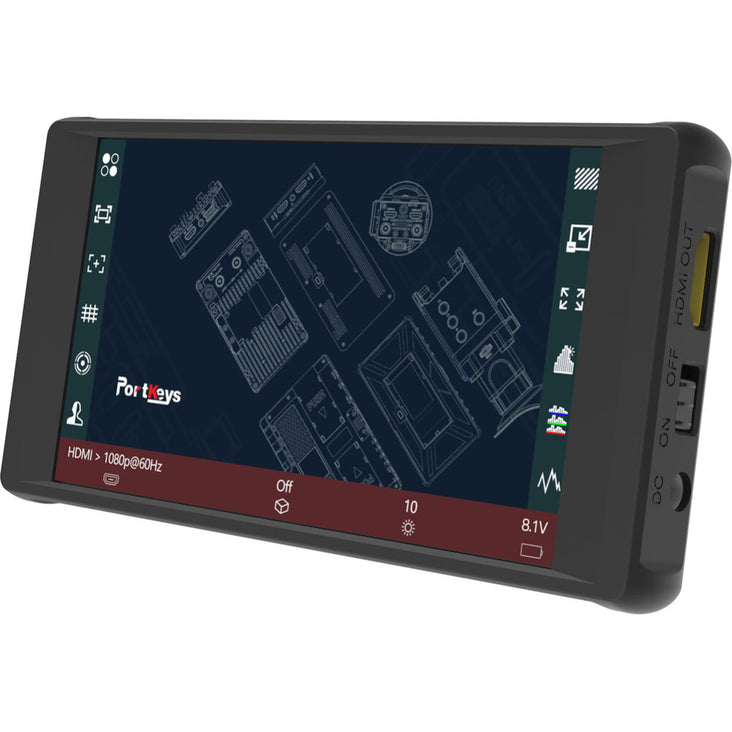

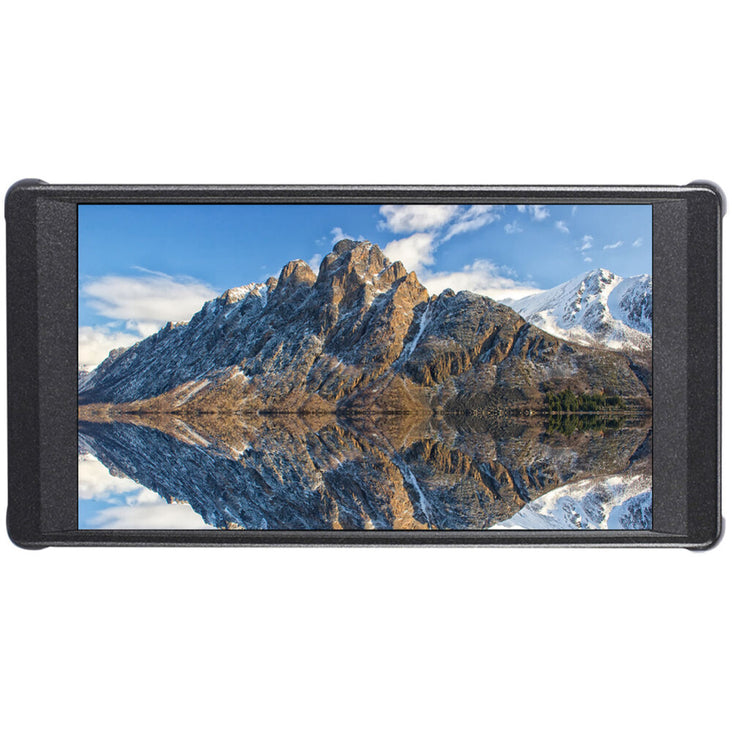

PortKeys PT6 5.2" 4K HDMI Touchscreen Monitor
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Add a touch of sophistication to your video monitoring with the Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor. This compact, 5.2" touchscreen monitor supports the DCI-P3 wide colour gamut and offers a range of imaging tools such as focus peaking, image cropping and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output and a stretch function for vertical monitoring.
3D LUT Output
Provides the ability to output 3D LUTs for customized, nuanced monitoring.
Vertical Stretch
Real-time image stretching for vertical-mode capture.
Up to 4K HDMI Input
Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.
Wide Colour Gamut
Covers 100% of the DCI-P3 wide colour gamut, producing detailed, refined images.
Anamorphic HDMI Output
Touchscreen
Bright, compact, 5.2" touchscreen for on-camera monitoring.
Imaging Tools
Specifications
- 5.2" 1920 x 1080 Touchscreen Display
- 4K30 HDMI Input/1080p60 HDMI Output
- 3D LUT Output, UI Output, DCI-P3 colour
- 600 cd/m² Bright/1500:1 Contrast Ratio
- Vertical Output with Stretch Feature
- Anamorphic Output, Brightness, Tint
- DC Input, USB-A Output Port
- Customized Peaking & Cropping
- Sunshade & Tilting Shoe Bracket
- L-Series & LP-E6 Battery Support
| Panel Type |
IPS-Type LCD
|
| Display Size |
5.2" / 13.2 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 178°
|
| Vertical: 178° | |
| Touchscreen |
Yes
|
| Maximum Brightness |
600 nits / cd/m2
|
| Contrast Ratio |
1500:1
|
| Bit Depth / Colour Support |
10-Bit (1.07 Billion Colours)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
423 ppi
|
| Colour Gamut |
100% DCI-P3
|
| 100% Rec. 709 | |
| Real-Time LUT Monitoring |
SDR, HDR
|
| Image Controls |
Anamorphic De-Squeeze, Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
|
| Video I/O |
1 x HDMI Input
|
| 1 x HDMI Output | |
| Embedded Audio |
HDMI
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1 x Barrel (24 VDC) Input
|
| Other I/O |
1 x USB-A 2.0 Input
|
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2)
|
| DCI 4K: 24 | |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| Gamma Curve |
HDR-HLG
|
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1 x LP-E6, L-Series
|
| Power Consumption |
6 W (Maximum)
|
| Mounting |
1 x 1/4"-20 Female
|
| Material of Construction |
Plastic, Polycarbonate
|
| Dimensions |
15.07 x 7.78 x 0.85 cm
|
| Weight |
170 g
|
What's Included
1 x Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor
1 x Sunshade
1 x HDMI Cable
1 x Micro-HDMI to HDMI Cable
2 x Rubber Cover
1 x MH-2 Mount
1 x Storage Box
