PortKeys OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

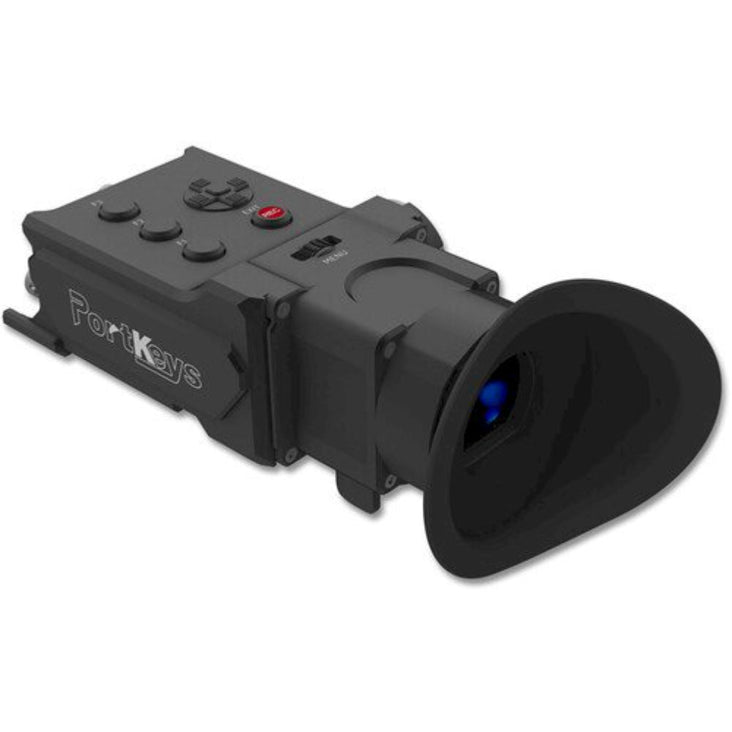

12 Month Warranty*If you're after a display to make your RED camera rig easier to use, the OEYE 4K 3G-SDI/HDMI EVF from PortKeys is the perfect choice. This electronic viewfinder offers a bright, sharp OLED microdisplay with a comfortable eyepiece to view your camera video. Plus, you can view and control the menu navigation and overlays on your RED DSMC2 or KOMODO camera right from the EVF.

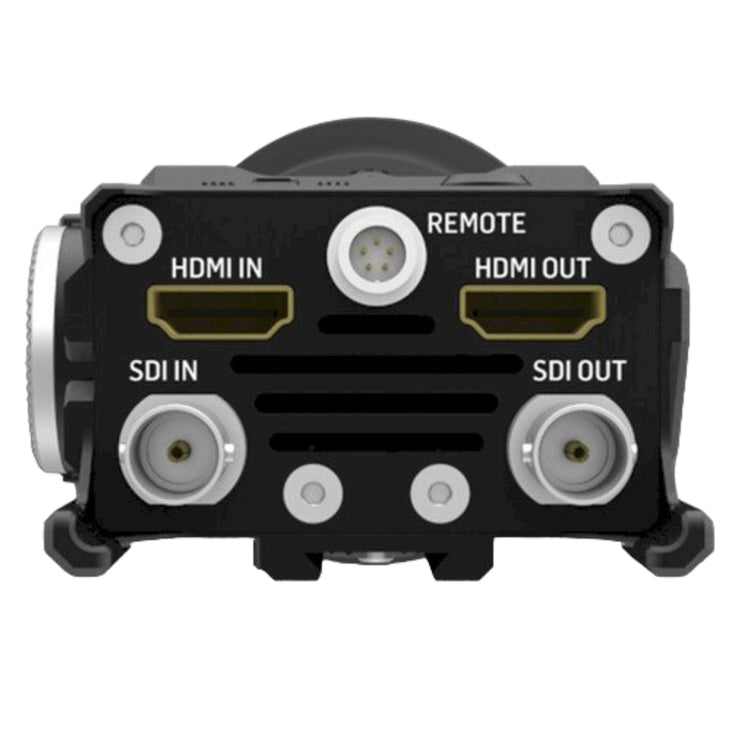

Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.

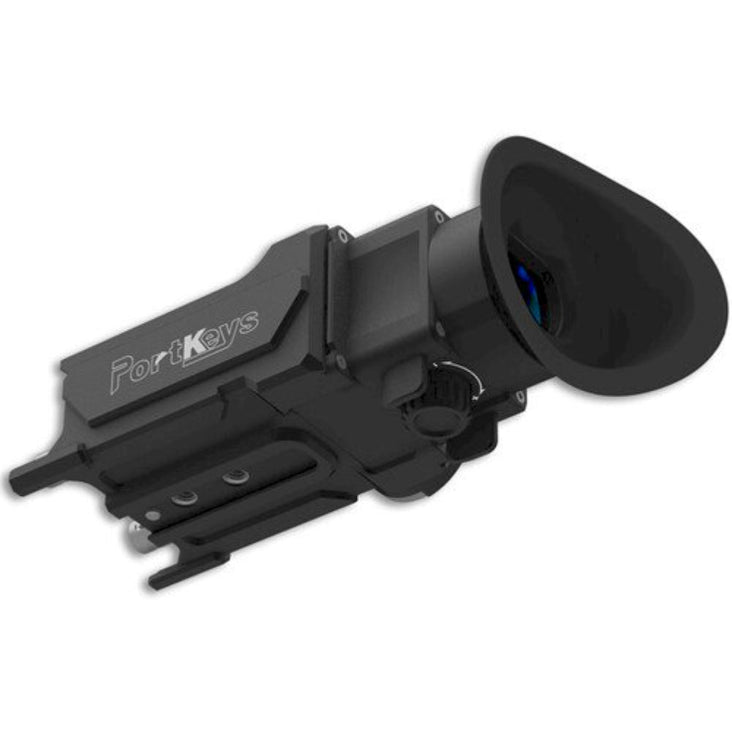

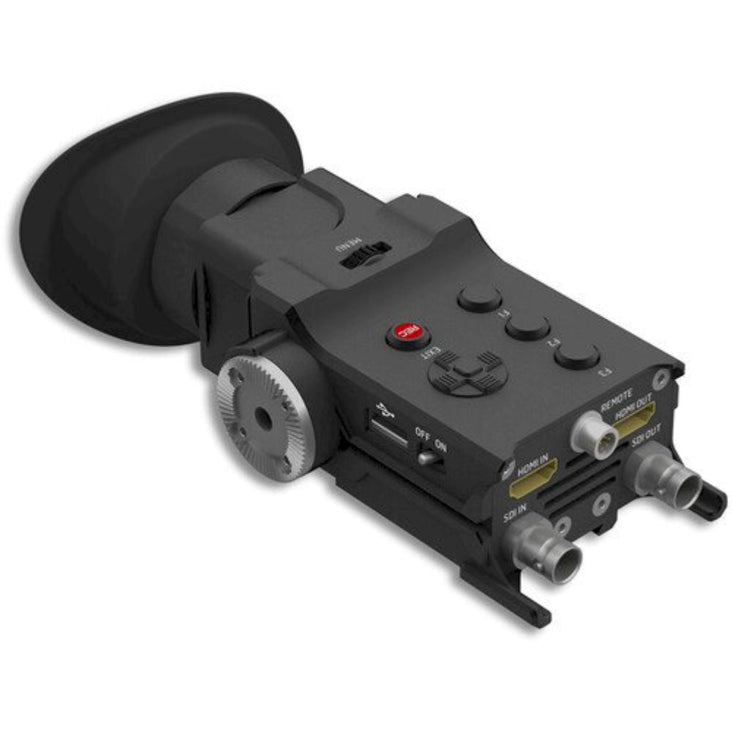

The durable aluminium chassis is lightweight at only 400g, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.
Specifications
- 1920 x 1080 Resolution Micro-OLED EVF
- Allows RED DSMC2/KOMODO Menu Control
- 3G-SDI and HDMI Inputs/Loop Outputs
- Built-In +8 to -3 Adjustable Diopter
- 100,000:1 Contrast, 200 cd/m Squared Brightness
- Rosette Mount Allows Rotation
- Synchronization with RED Fan Mute
- Waveform, 3D LUTs, Audio Meters, Zoom
- False Colour, Peaking, Grids, HSD Flip
- Durable Aluminium Construction
| Colour/Monochrome | Colour |
| Panel Type | OLED |
| Display Size | 0.71" / 1.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Maximum Brightness | 200 cd/m2 |
| Contrast Ratio | 100000:1 |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| Pixels Per Inch (ppi) | 3102 ppi |
| Image Controls | Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra |
| Video | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output 1 x HDMI Type A Input 1 x HDMI Type A Loop Output |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI (8-Bit 4:2:2 YUV) 1080p: 60/59.94/50 SDI (8-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Camera Connection | 5-Pin |
| Power | 1 x 4-Pin LEMO Input |
| Diopter Correction | -3.0 to +8.0 |
| DC Input Power | 7 to 24 VDC |
| Power Consumption | 10 W |
| Mounting | 1 x Rosette |
| Material of Construction | Aluminium |
| Dimensions | 18 x 7.24 x 6.97 cm |
| Weight | 400 g |
What's Included
1 x PortKeys OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
1 x 4-Pin to D-Tap Power Cable
1 x 5-Pin to 5-Pin Power Cable
1 x 4-Pin to 3-Pin Control Cable
1 x 9-Pin to 3-Pin Control Cable
1 x SDI Cable
1 x Mounting Clamp
1 x Allen Wrench
1 x Plastic Storage Case
