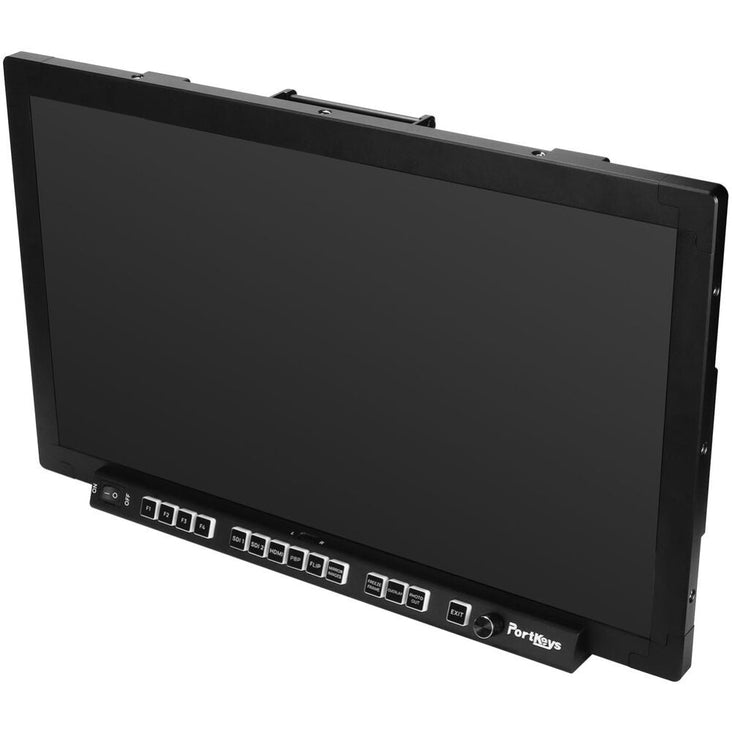

PortKeys MT22DS 21.5" PBP Dual-Screen Production Monitor
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Compare video input signals on a split screen with the MT22DS 21.5" PBP Dual-Screen Production Monitor from PORTKEYS. This monitor has a resolution of 1920 x 1080, a brightness of 1000 cd/m², and it supports up to 1080p60 HD input. There are HDMI and 3G-SDI inputs and outputs, and they allow for cross-conversion between HDMI and SDI signals. You can view PBP (Picture-by-Picture) input signals side by side on the display, and even view vertical and horizontal versions of the image on different sides.
There are 3-pin XLR inputs to add audio from a mic or mixer, and a headphone jack provides audio output. Whether you prefer to use histograms, waveforms, false colours, or zebras, this monitor has the right tool. Packaged with a dual V-mount battery plate, folding mount, and power adapter, this production monitor is ready to go in just about any production environment.

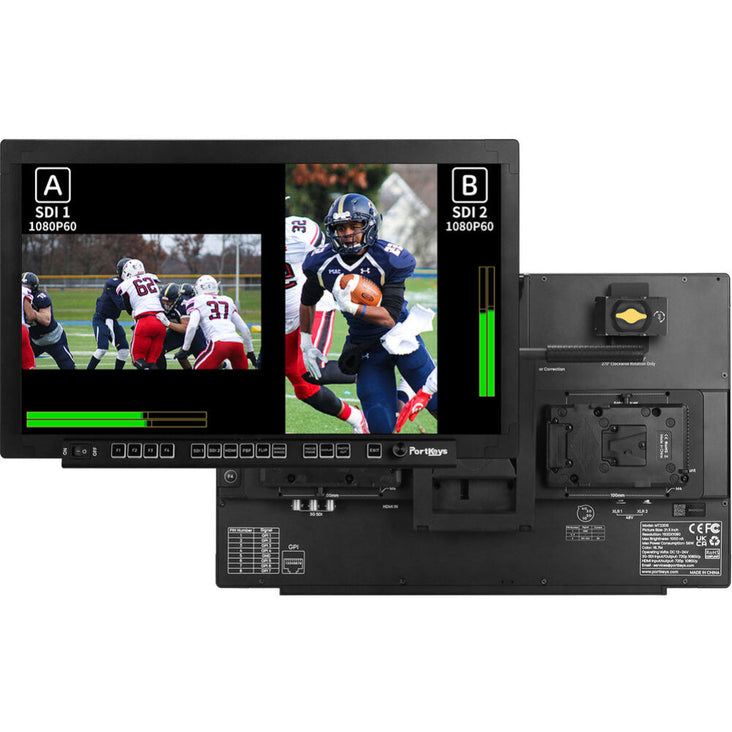

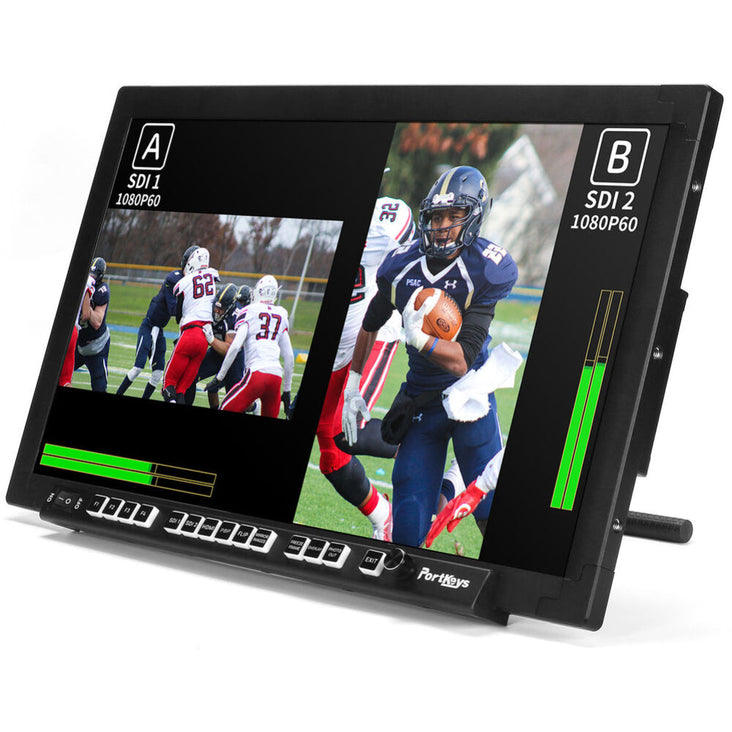

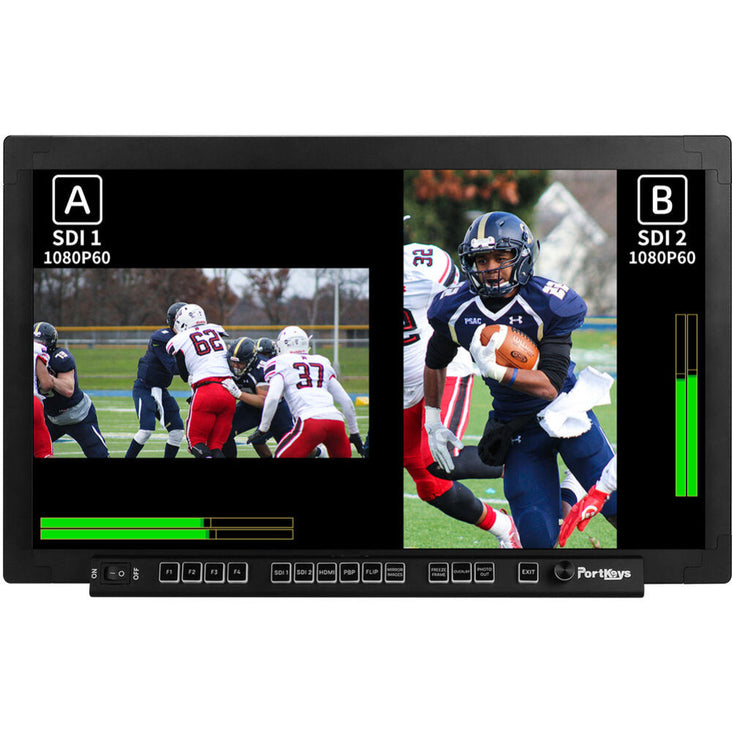

Split Screen Monitoring
Two screens can load the same 3D LUT file and support dual horizontal/dual vertical/left horizontal, right vertical/left vertical, right horizontal/left horizontal, and right vertical cropping of the same source
3D LUT HDMI Output
The HDMI and 3G-SDI ports can output video after loading 3D LUTs from a USB flash drive
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition using a 16:9 1920 x 1080 jpg image
Aluminium All-Metal Chassis
The aluminium chassis features fast heat dissipation and high durability
HDMI to SDI Output
The monitor features built-in signal conversion, with no external signal conversion box required
48V Phantom Audio
The two 3-pin XLR inputs feature 48V phantom power
Image Tools
Specifications
- 1920 x 1080 2-Screen Production Display
- View Split Screen Images
- 1000 cd/m² Brightness
- HDMI and 3G-SDI Input/Output
- Signal Cross-Conversion Support

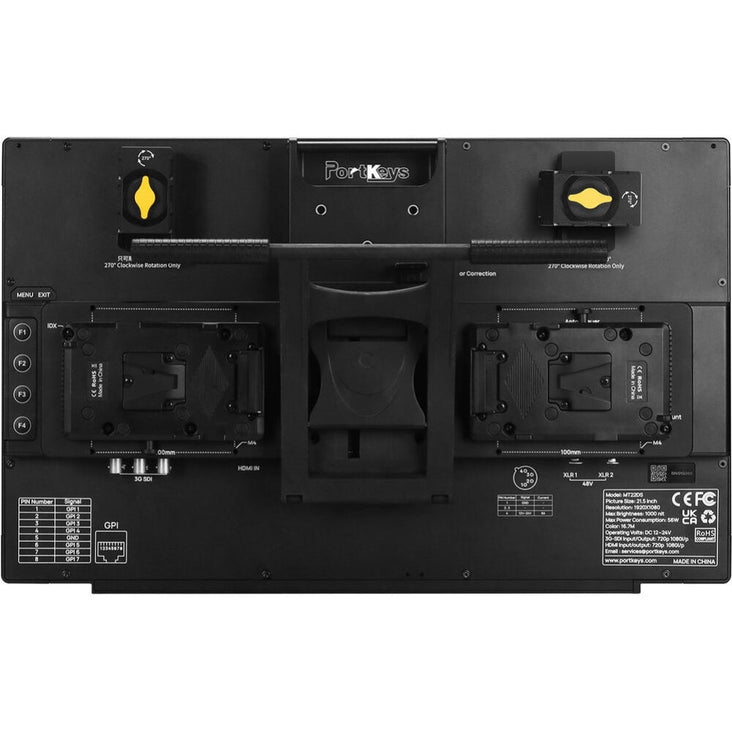

- Dual V-Mount Plates, Optional Gold Mount
- Various Built-In Imaging Tools
| Display Size |
21.5" / 54.6 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 160° (80/80)
|
| Vertical: 150° (80/70) | |
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Dot Pitch |
0.2479 x 0.2479 mm
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
102 ppi
|
| Colour Gamut |
100% Rec. 709
|
| Image Controls |
Anamorphic De-Squeeze, Colour Temperature Selection, False Colour, Histogram, Image Flip, Underscan, Vectorscope, Waveform
|

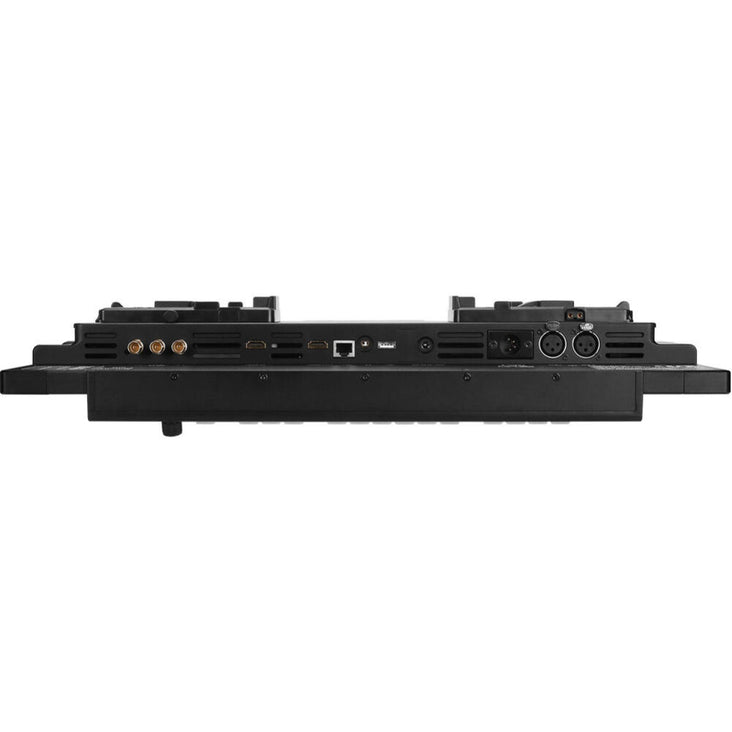

| Video I/O |
2 x BNC (3G-SDI) Input
|
| 1 x BNC (3G-SDI) Output | |
| 1 x HDMI (Unspecified Signal) Input | |
| 1 x HDMI (Unspecified Signal) Output | |
| Embedded Audio |
SDI Output
|
| Audio I/O |
2 x XLR Input
|
| 1 x 1/8" / 3.5 mm Headphone Output | |
| Power I/O |
1 x XLR 4-Pin (24 VDC) Input
|
| 1 x USB-A (5 VDC) Output | |
| Other I/O |
1 x USB-A (Firmware), (LUT Upload) [Shared with USB-A Power Output]
|
| Video Format |
HDMI
|
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| SDI (4:4:4/4:2:2 YUV) | |
| 1080p: 30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (4:2:2 YUV) | |
| 1080p: 60/59.94/50 | |
| 576i: 50 | |
| 480i: 59.94 | |
| Gamma Curve |
Rec709
|
| Video Signal Conversion |
HDMI to SDI
|
| SDI to HDMI | |
| DC Input Power |
12 to 24 VDC
|
| Battery Type |
2 x V-Mount
|
| Power Consumption |
60 W
|
| Mounting |
9 x 1/4"-20 Female
|
| Material of Construction |
Aluminium
|
| Dimensions |
52.36 x 32.06 x 6.58 cm
|
| Weight |
5.8 kg
|
What's Included
1 x Portkeys MT22DS 21.5" PBP Dual-Screen Production Monitor
1 x Power Adapter
1 x Folding Monitor Mount
2 x V-Mount Battery Plate
1 x Allen Wrench
1 x USB Flash Drive
