PortKeys LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)


Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

Add pro monitoring tools and control to your camera rig with the PORTKEYS LH7P 7" High-Bright Touchscreen Monitor. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. The monitor comes in a sleek black colour.

Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, colour temperature, waveform, histogram, and more.

Wireless Camera Control Functions

  • Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III.
  • Control functions include iris, shutter, zoom, frame rate, ISO, colour temperature, focus, and more.

  • High-Bright 7" Touchscreen Monitor

    This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.

    DCI/UHD 4K Video

    Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

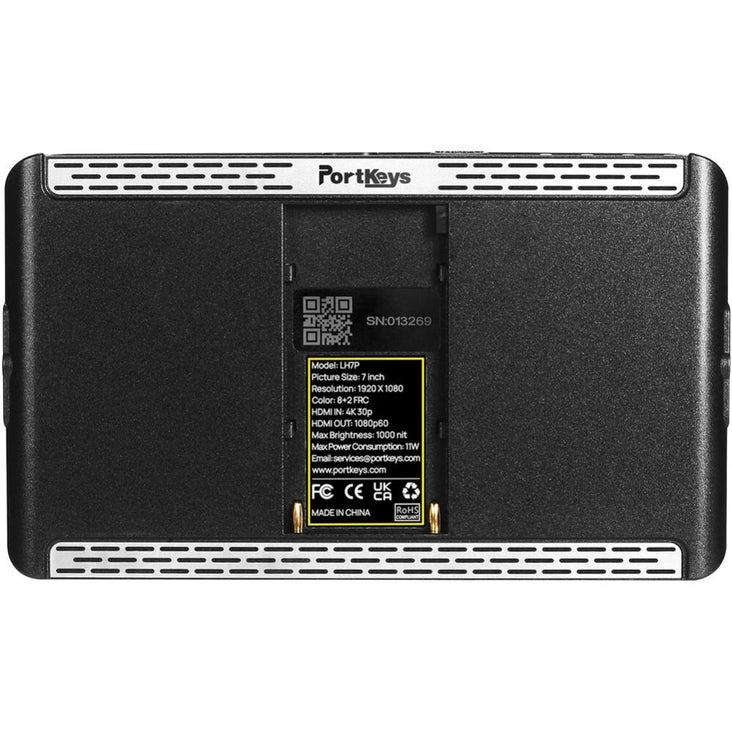

    Sony L-Series Battery Plate

    Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

    Image Tools

  • 3D LUT support with custom LUTs via USB
  • Peaking
  • False colour
  • Luma
  • Waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Anamorphic lens calibration
  • Frame guides, crosshairs, grids
  • Colour temperature
  • Brightness
  • Sharpness
  • Cropping
  • Check field
  • Zebra
  • Luma histogram
  • Custom RGB
  • Audio meters
  • HDR/HLG support

  • Specifications

    • 7" HDMI 1920 x 1080 Touchscreen
    • Sony/BMD Wireless Camera Control
    • Up to DCI 4K24 Video Input Support
    • 1000 cd/m² Brightness, HDR Preview
    • HDMI Input & Output, Headphone Jack
    • Anamorphic Correction via HDMI Output
    • 3D LUT Support, L-Series Battery Plate
    • Control Record, Shutter, Focus & More
    • HDMI Cable Included
    Panel Type
    Display Size
    7.0" / 17.8 cm
    1920 x 1080
    Aspect Ratio
    Viewing Angle
    Horizontal: 170° (85/85)
    Vertical: 170° (85/85)
    Maximum Brightness
    1000 nits / cd/m2
    Contrast Ratio
    Bit Depth / Colour Support
    8-Bit+FRC (1.07 Billion Colours)
    HDR Compatibility
    Pixels Per Inch (ppi)
    314 ppi
    Real-Time LUT Monitoring
    Image Controls
    Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra

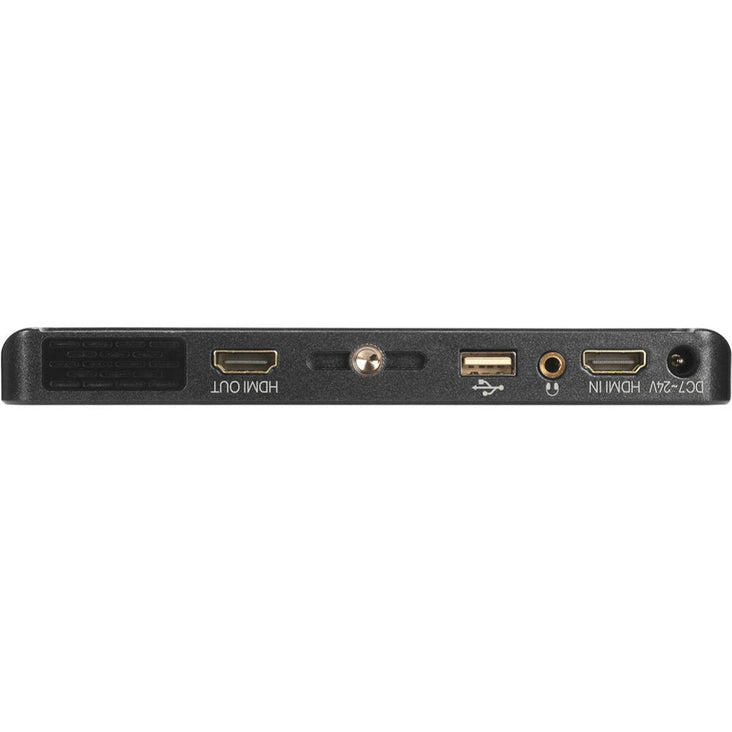

    Video I/O
    1 x HDMI 1.4 Input
    1 x HDMI 1.4 Output
    Embedded Audio
    Audio I/O
    1 x 1/8" / 3.5 mm Headphone Output
    Power I/O
    1 x Barrel (24 VDC) Input
    1 x USB-A (2 A / 5 VDC) Input
    Other I/O
    1 x USB-A (Firmware), (LUT Upload) [Shared with USB-A Power Input]
    Video Format
    DCI 4K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94/50
    480i: 60/59.94/50
    DC Input Power
    7 to 24 VDC
    Battery Type
    1 x L-Series
    Power Consumption
    9 W
    2 x 1/4"-20 Female
    Material of Construction
    17.62 x 10.38 x 1.84 cm
    245 g

    What's Included

    1 x Portkeys LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
    1 x Micro-USB Flash Drive
    1 x HDMI Cable
    1 x Cleaning Cloth
    1 x Storage Box
