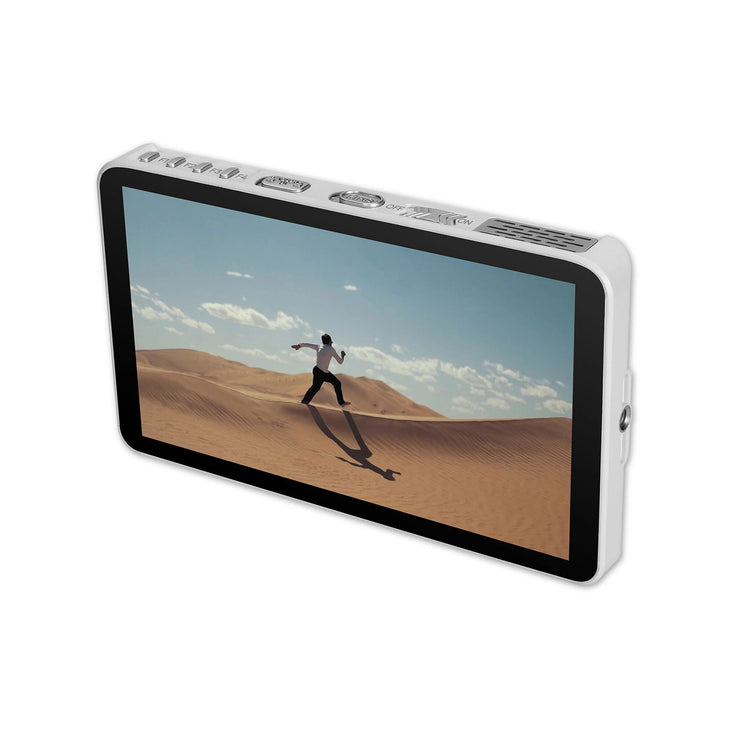

Portkeys LH7H 7" 1000nits Full HD Touchscreen Field Monitor (White)
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Add professional monitoring capabilities to your camera setup with the sleek, white Portkeys LH7H Touchscreen Monitor. Finished in an elegant white housing that perfectly complements modern camera rigs, this entry-level 7-inch monitor is designed to enhance your filmmaking experience by ensuring you capture every detail with absolute precision.
Don't let the compact and lightweight form factor fool you—weighing only 245g, this professional monitor is packed with a comprehensive suite of advanced monitoring tools, a daylight-viewable 1000-nit touchscreen, and robust 4K HDMI I/O capabilities.
Features
- Daylight-Viewable Touchscreen: Features a maximum brightness of 1,000 nits, a 1000:1 contrast ratio, and a FullHD 1920 x 1080 resolution, making it incredibly easy to see your image outdoors.
- True-to-Life Colour: The 10-bit (8+2 FRC) panel delivers accurate colour reproduction with rich detail and no colour banding.
- 4K HDMI I/O with Oversampling: The 4K HDMI input accepts signals up to 4K DCI at 24p or UHD 4K at 30p, and supports 4K oversampling to 1080p, resulting in exceptionally detailed, high-resolution 1080p video.
- Advanced Image Tools: Includes 3D LUT monitoring (with HDMI output), ARRI False Colour, customizable Peaking, Anamorphic de-squeeze, Framing guides, Image Capture/Overlay for continuity matching, and a Stretch Leg tool specifically for vertical shooting.
- Flexible Power Options: Operates on an extremely low 8W power draw. Power it for hours via the built-in Sony L-Series (NP-F) battery plate, or run it indefinitely using the 5.5mm (7-24V) DC barrel input from a V-Lock or Gold Mount battery.
- Lightweight & Sleek: Constructed from durable Polycarbonate and ABS in a stylish white finish, featuring multiple 1/4"-20 mounting points for seamless rig integration.
Specifications
| Feature | Details |
| Display Size & Type | 7.0" (17.8 cm) LCD Touchscreen |
| Resolution | 1920 x 1080 (Full HD) |
| Maximum Brightness | 1000 nits / cd/m² |
| Colour Depth | 8-Bit+FRC (1.07 Billion Colours) |
| Video I/O | 1x HDMI 1.4 Input, 1x HDMI 1.4 Output |
| Max Video Input | Up to DCI 4K: 24p / UHD 4K: 30p |
| Audio I/O | 1x 3.5 mm Headphone Output |
| Power Input | 1x L-Series Battery Plate, 1x Barrel (7-24 VDC), 1x USB-A (5V/2A) |
| Power Consumption | 8 W |
| Mounting Points | 1x 1/4"-20 Female (Bottom), 1x 1/4"-20 Female (Right) |
| Dimensions | 17.62 x 10.38 x 1.84 cm |
| Weight | 245 g (without battery) |
What's Included
1 x Portkeys LH7H 7" High-Bright Touchscreen Monitor (White)
1 x Micro-USB Flash Drive
2 x Screen Protectors
1 x HDMI Type-A Cable
1 x MH-2 Monitor Shoe Mount
1 x Cleaning Cloth
1 x Storage Box
