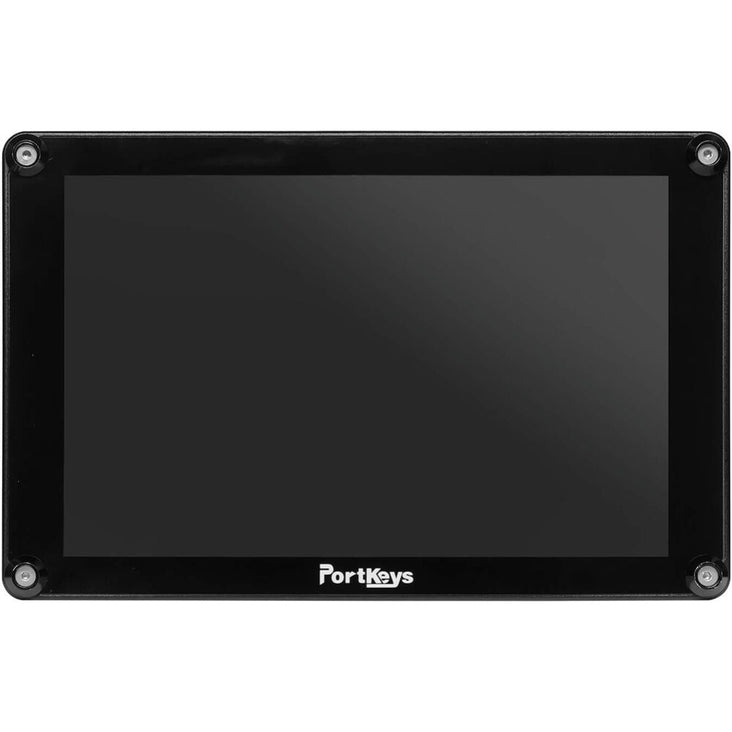

Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit colour, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

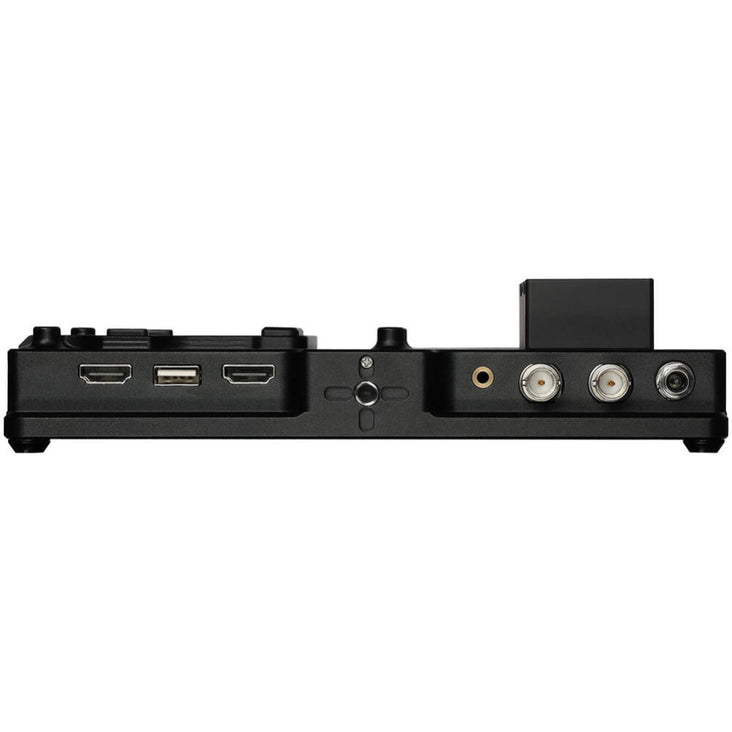

HDMI and 3G-SDI Input/Output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs.
3D LUT Support
3D LUTs for colour grading and monitoring can be applied to both the HDMI and SDI outputs.

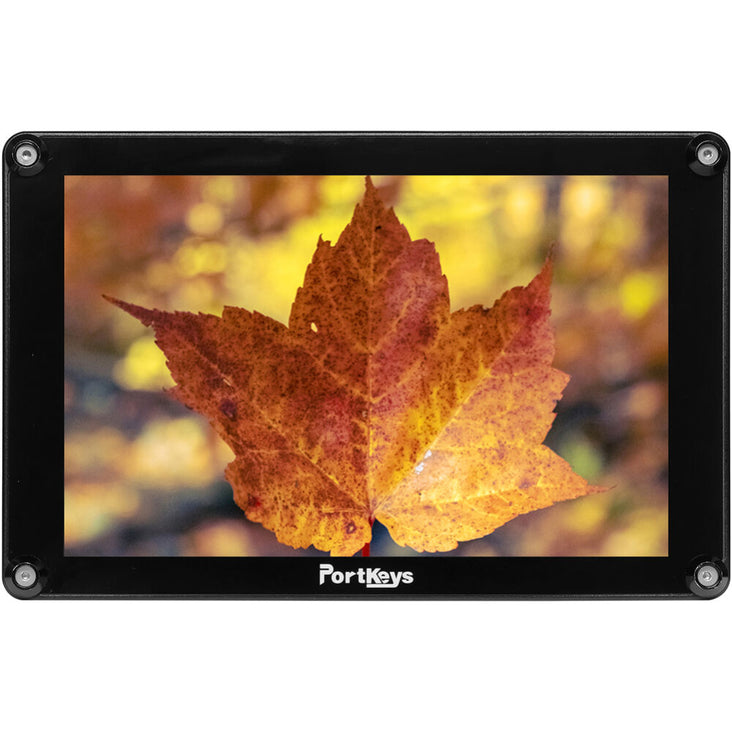

Hi-Bright Monitor
8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio.

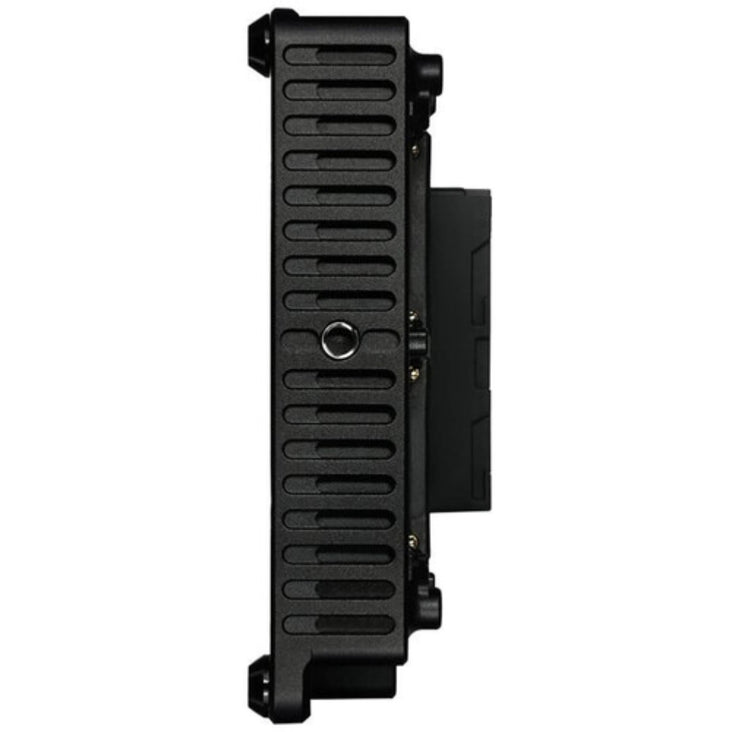

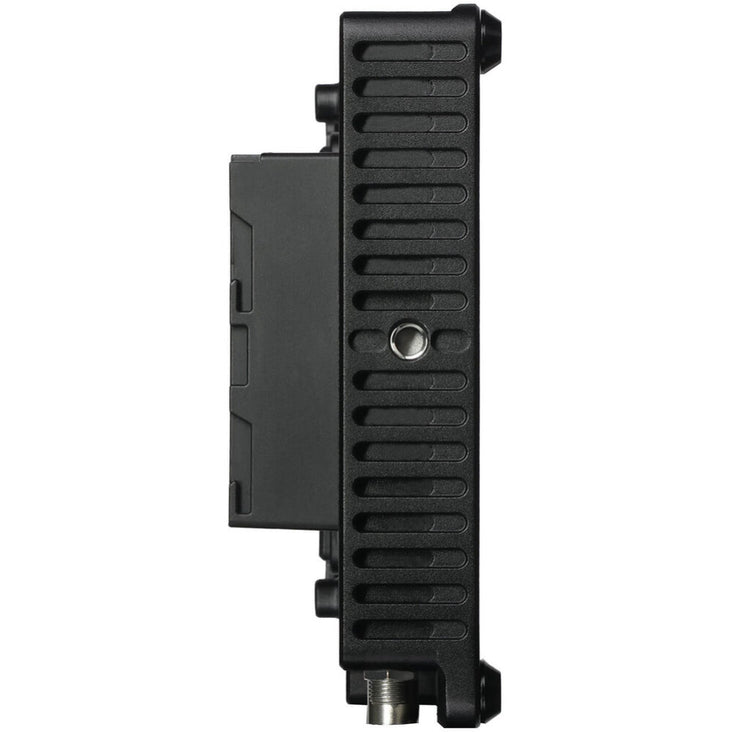

Durable Housing
Rugged, heat-dissipating CNC-machined aluminium alloy housing.
Top and bottom 1/4"-20 thread mounts

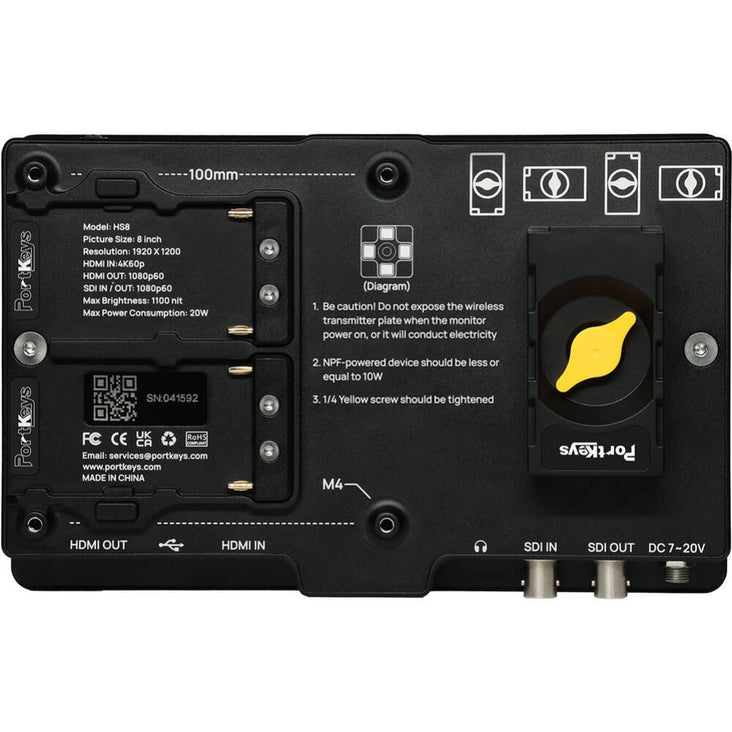

Hot-Swappable Battery Plates
Hot-swappable, dual Sony L-series-type battery plates.
DC input port for power supply
Optional Wireless Video Transmitter
Comes with a detachable cover for the wireless video transmitter mount.
Specifications
- 8" HDMI & 3G-SDI 1920 x 1200 Monitor
- Supports up to DCI 4K24 Input
- 1100 cd/m² Bright, 1000:1 Contrast Ratio
- 10-bit Colour, 3D LUT Out on HDMI & SDI
- 4K HDMI/3G-SDI Input & Loop-out
- HDMI to SDI & SDI to HDMI Conversion
- Heat-dissipating Aluminium Housing
- Peaking, Histogram, Waveform, Zebra
- Mount for Select Video Transmitters
- Dual L-Series Battery Plates & DC Port
| Panel Type |
LCD
|
| Display Size |
20.3 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 178°
|
| Vertical: 178° | |
| Maximum Brightness |
1100 nits / cd/m2
|
| Contrast Ratio |
1000:01:00
|
| Colour Support |
1.07 Billion colours (8-Bit+FRC)
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
283 ppi
|
| colour Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Blue Only, Check Field, colour Temperature Selection, Customisable Aspect Ratios, False colour, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x BNC (3G-SDI) Input
|
| 1x HDMI (Unspecified Signal) Input | |
| 1x BNC (3G-SDI) Output | |
| 1x HDMI (Unspecified Signal) Output | |
| Embedded Audio |
HDMI
|
| SDI | |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel (20 VDC) Input
|
| Other I/O |
1x USB-A (LUT Upload)
|
| Video Format |
HDMI
|
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (4:2:2 YUV) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| SDI (4:4:4/4:2:2/4:2:0 RGB, YUV) | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| SDI (4:4:4/4:2:2) | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Video Signal Conversion |
HDMI to SDI
|
| SDI to HDMI | |
| Input Power |
7 to 20 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
20 W (Maximum)
|
| Mounting-Hole Pattern |
100 x 100 mm
|
| Mounting |
2x 1/4"-20 Female
|
| Material of Construction |
Aluminium
|
| Dimensions |
208 x 133.7 x 50.5 cm
|
| Weight |
0.675 kg
|
What's Included
1 x Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
1 x D-Tap to DC Barrel Power Cable
1 x Screen Cleaning Cloth
1 x M2 Allen Key
4 x M3 Allen Screw
4 x Cup Head Gasket
1 x Micro-USB Flash Drive
