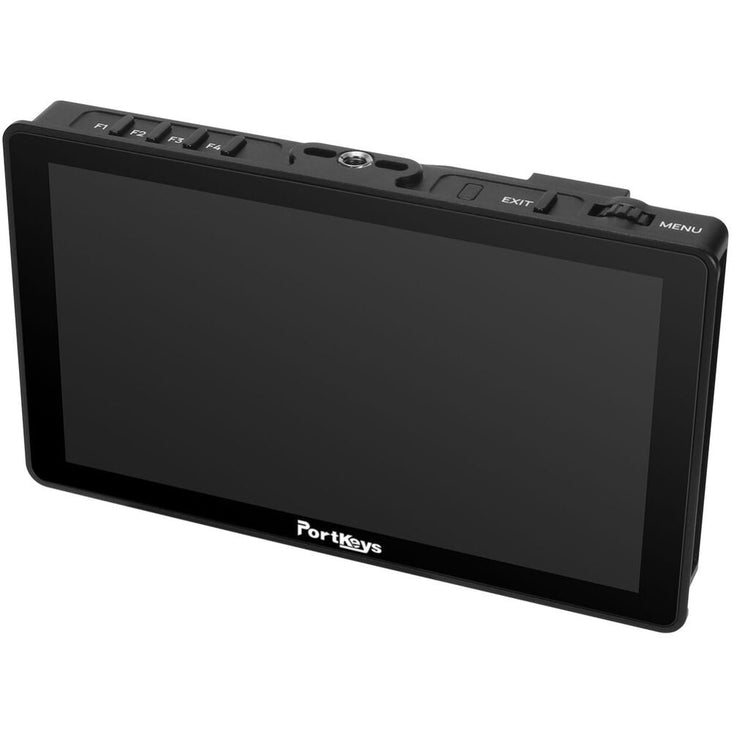

PortKeys BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*The BM7 II DS 7" High Bright Monitor with Wireless Camera Control from PORTKEYS is ideal for outdoor use, boasting a 1920 x 1080 display with support for up to 1080p resolution video. It has a maximum brightness of 2200 cd/m², a contrast ratio of 1000:1, and a durable aluminium frame. The standout feature is the ability to control your camera remotely via Wi-Fi, Bluetooth, or an optional control cable, depending on your camera's model. It can also be used to control lens motors such as Tilta's Nucleus M/N.

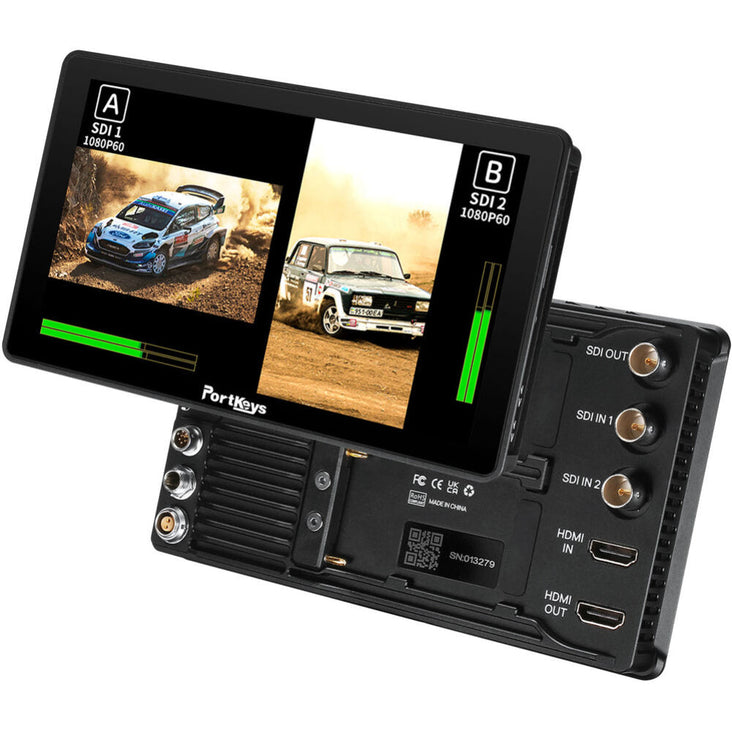

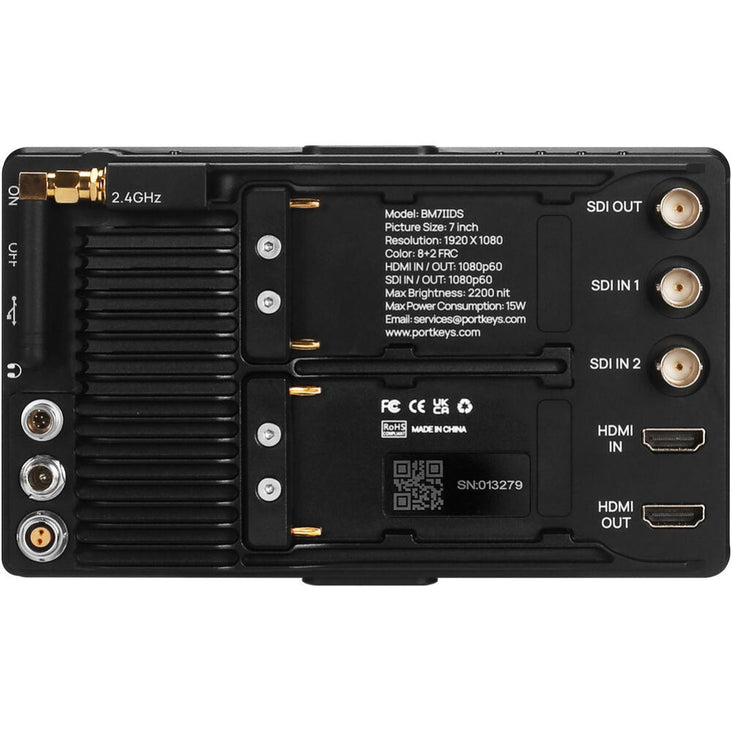

Support for 3D LUTs enables you to view your log footage in your chosen colour space or palette. This monitor incorporates one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output, and a USB-A port used to load 3D LUTs or upgrade firmware. A 170° viewing angle enables off-axis viewing without colour and contrast shifts.
Integrated image display tools include a waveform, a histogram, focus peaking, false colour, 3G-SDI-to-HDMI cross conversion, image flip, and selectable aspect ratios. You can power this super bright monitor via its dual Sony L-series type battery plate or from a D-Tap power source using the included DC cable. Four 1/4"-20 threads enable you to support the monitor from whichever side works best for each setup.
Compatible Camera Control Models
Wi-Fi
RED V-RAPTOR, KOMODO 6K
Sony a9 II, a1, a7C, FX3, FX30, RX10, a7S III, a7 IV, RX0, a7 III
Bluetooth
Blackmagic Pocket Cinema Camera 4K
Blackmagic Pocket Cinema Camera 6K
Blackmagic Pocket Cinema Camera 6K Pro
Wired
Various camera models from Sony, Canon, RED, Panasonic, Z CAM
Tilta Nucleus-N and Nucleus-M lens motor
Specifications
- 7" 1920 x 1080 Touchscreen Monitor
- Supports up to 1080p Video / 3D LUTs
- 2200 cd/m² Brightness / 1000:1 Contrast
- Wi-Fi & Wired Camera Control Options
- Dual L-Series Battery Plates
- 1 HDMI & 2 SDI Inputs, HDMI/SDI Outputs
- 170° Viewing Angle
- Focus Peaking, False Colour, Image Flip
- Waveform, Histogram, Zebra
- Durable Aluminium Frame
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 170° (85/85)
|
| Vertical: 170° (85/85) | |
| Touchscreen |
Yes
|
| Maximum Brightness |
2200 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Colour Support |
8-Bit+FRC (1.07 Billion Colours)
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Colour Gamut |
85% DCI-P3
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra
|
| Video I/O |
2 x BNC (3G-SDI) Input
|
| 1 x HDMI Input | |
| 1 x BNC (3G-SDI) Output | |
| 1 x HDMI Output | |
| Embedded Audio |
HDMI: 2-Channel
|
| SDI: 8-Channel | |
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1 x LEMO 2-Pin Input
|
| 1 x Barrel 2.1 mm Input | |
| Other I/O |
1 x Mini-USB (Camera Control)
|
| 1 x Unspecified 5-Pin (Motor Control) | |
| 1 x USB-A (Firmware), (LUT Upload) | |
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Video Format |
SDI (4:4:4/4:2:2 YUV)
|
| 1080p: 30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI | |
| 1080p: 60/59.94/50 | |
| HDMI | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94/50 | |
| 480i: 60/59.94/50 | |
| Video Signal Conversion |
HDMI to SDI
|
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
2 x L-Series
|
| Power Consumption |
15 W (Maximum)
|
| Mounting |
2 x 1/4"-20 Female
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Material of Construction |
Aluminium
|
| Dimensions |
17.93 x 10.68 x 3.1 cm
|
| Weight |
460 g
|
What's Included
1 x PortKeys BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
1 x USB Drive
1 x DC Barrel to D-Tap Power Cable
1 x Carrying Case
