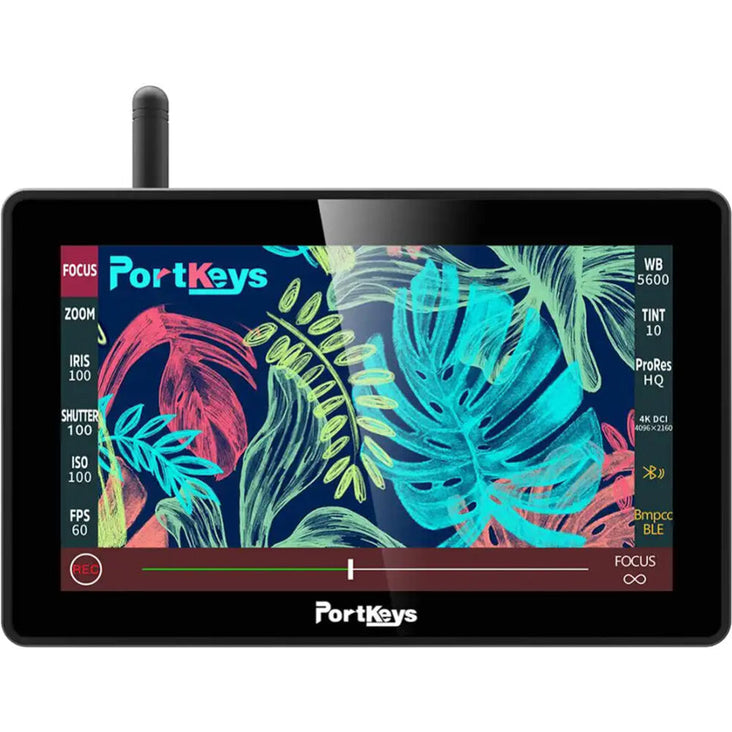

PortKeys BM5 III 5.5" HDMI Touchscreen Monitor with Wireless Camera Control
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
- 12 Month Warranty*
- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
Get the perfect shot every time with the PORTKEYS BM5WR 5.5" HDMI Touchscreen Monitor. This ultra-bright onboard monitor has a wide colour gamut, a durable aluminium build, and both HDMI and 3G/SDI video inputs and SDI output. The included wireless control module provides Wi-Fi control for the RED KOMODO and Bluetooth control for BMPCC 6K/6K Pro and 4K cameras. You can also get wired control for select Canon, Blackmagic Design, Panasonic, Sony, and ZCAM E2 cameras. The BM5WR with Camera Control maintains the same reliable BM5 clarity, vivid colour details, and dynamic touch screen camera control, and it offers touch focus for the KOMODO, the Panasonic BGH1, and the ZCAM E2.
Wired Camera Control
Wired control of select Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras.
Wired Motor Control
The BM5WR can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale.
Touchscreen Control Focus
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2.

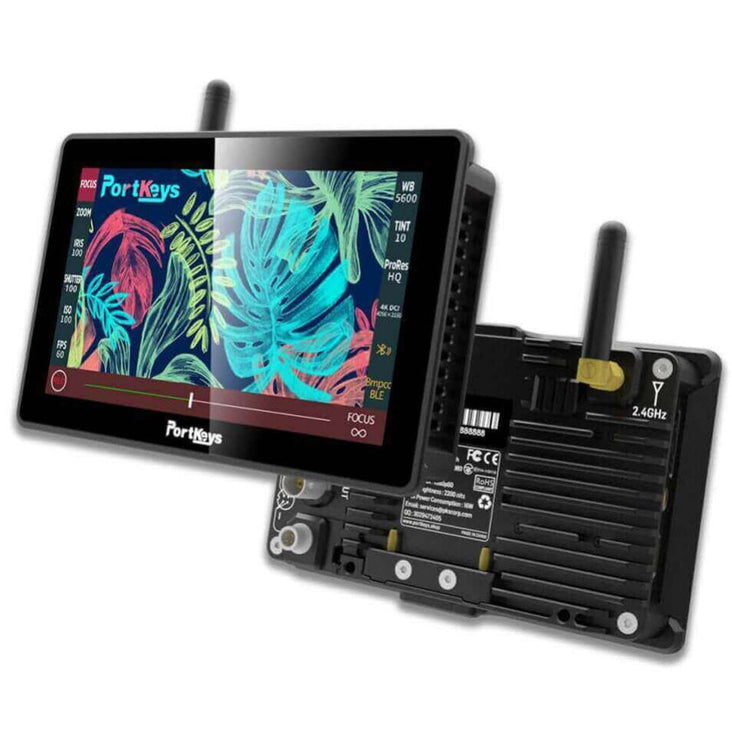

Robust Design
The rugged aluminium alloy shell design is durable and lightweight, weighing only 13.3 oz, yet able to withstand heavy daily operations.
HDMI In/SDI In/Loop Out
HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3DLUT and peaking via the SDI output.
2200 cd/m² Superbright Monitor
The BM5WR offers a 2200 cd/m² ultrabright 5.5" display with excellent colour, resolution, contrast, and precise image control.
Colour Calibration
Each BM5WR has passed strict hardware colour calibration before shipping to ensure the widest colour gamut and the most accurate colours.
10-Bit (8+2 FRC) Colour
A 10-bit colour depth for more accurate, richer colour reproduction.
New Focus Peaking
The optimized new peaking algorithm can accurately capture subtle facial focus.
ARRI False Colour Mode
Expose your image using ARRI false colour mode and user-defined modes with the ability to freely set the IRE in user-defined mode.
Precision Waveform
Equipped with five kinds of precise oscilloscope functions, including vectorscope, RGB waveform, brightness waveform, RGB histogram, and brightness histogram, the monitor allows for quick switching among these in different display modes and in real time, offering you the most detailed and accurate image information.
Image Capture and Image Overlay
Image Capture takes a snapshot of the video feed being sent through SDI or HDMI (combined with a LUT if desired) and saves it to memory; great for shot matching (continuity) or a quick overview of the day's shots.
Specifications
- 5.5" Wide Colour Gamut Monitor
- Ultrabright Touchscreen, Image Overlay
- Focus Peaking, ARRI False Colour
- HDMI In, SDI In/Loop Out
- SDI Output with New 3D LUTs
- Histogram, Fullscreen Waveform
- Low 13W Power Consumption
Panel Type |
LCD
|
Display Size |
5.5" / 14.0 cm
|
Resolution |
1920 x 1080
|
Aspect Ratio |
16:09
|
Viewing Angle |
Horizontal: 178°
|
Vertical: 178° | |
Touchscreen |
Yes
|
Maximum Brightness |
2200 nits / cd/m2 (Sustained)
|
Contrast Ratio |
1000:1
|
Bit Depth / Colour Support |
10-Bit (1.07 Billion Colours)
|
HDR Compatibility |
Hybrid Log Gamma
|
Pixels Per Inch (ppi) |
401 ppi
|
Real-Time LUT Monitoring |
SDR
|
Image Controls |
Anamorphic De-Squeeze, Check Field, False Colour, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Underscan, Waveform
|
Video I/O |
1 x BNC (3G-SDI) Input
|
1 x BNC (3G-SDI) Loop Output | |
1 x HDMI Input | |
Embedded Audio |
SDI
|
HDMI | |
Power I/O |
1 x Unspecified 4-Pin (24 VDC) Input
|
1 x Unspecified 4-Pin (7.4 VDC) Output | |
Other I/O |
1 x USB-A 2.0
|
1 x USB-B 2.0 | |
1 x Proprietary | |
Video Format |
HDMI (10-Bit)
|
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94 | |
480i: 60/59.94 | |
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) | |
1080p: 60/59.94/50/30/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
Gamma Curve |
HDR-HLG
|
DC Input Power |
7.4 to 24 VDC
|
Power Consumption |
13 W (Maximum)
|
Mounting |
1 x 1/4"-20 Female
|
Material of Construction |
Aluminium
|
Dimensions |
14.54 x 12.09 x 4.55 cm
|
Weight |
376 g
|
What's Included
1 x PortKeys BM5 III 5.5" HDMI Touchscreen Monitor with Wireless Camera Control
1 x 4-Pin Aviation to D-Tap Power Cord (39")
1 x 4-Pin Aviation to DC Power Cord (16")
1 x L-Type Antenna
1 x LANC Control Cable (16")
1 x USB-C Control Cable (16")
1 x USB Flash Drive
