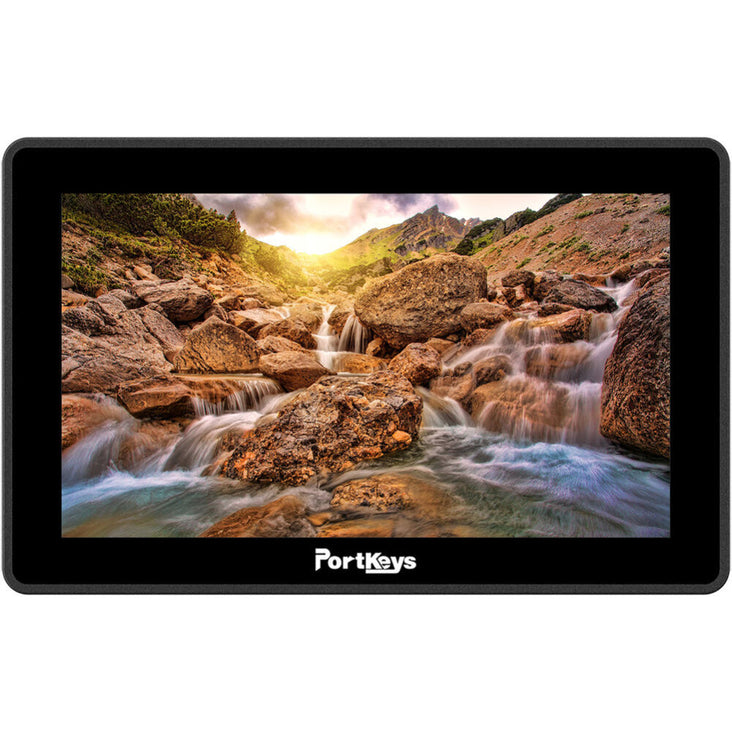

PortKeys BM5 III 5.5" HDMI Touchscreen Monitor with Wired Camera Control
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Make sure your exposure and focus are spot on when shooting video with the PORTKEYS BM5 III 5.5" HDMI Touchscreen Monitor with Wired Camera Control. This ultra-bright onboard monitor has a 2200 cd/m² brightness, a 1920 x 1080 resolution display, a robust aluminium construction, HDMI and 3G/SDI video inputs, and an SDI loop output. It can handle input up to 1080p60 from your camera.
The monitor features a 4-pin power output, an L-series battery plate, and a 5-pin focus control port for direct control of a focus motor such as a Tilta Nucleus-N or Nucleus-M using an optional cable. The mini-USB port can be used to control multiple camera functions using a separately available control cable on a variety of Canon, Panasonic, Z CAM, Sony, and Blackmagic Design cameras.
Wired Camera Control
Wired control of select Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras
Wired Motor Control
The BM5 III can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale
Touchscreen Control Focus
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2
2200 cd/m² High-Bright Monitor
The BM5 III offers a 2200 cd/m² ultrabright 5.5" display with excellent colour, resolution, contrast, and precise image control
Robust Design
The rugged aluminium alloy shell design is durable and lightweight, weighing only 12.6 oz yet able to withstand heavy daily operations
HDMI In/SDI In/Loop Out
HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3D LUT and peaking via the SDI output
Image Tools
Specifications
- 5.5" High-Bright 1920 x 1080 Monitor
- 2200 cd/m² Ultrabright Touchscreen
- HDMI Input, SDI Input/Loop Output
- Wired Camera Control
- 4-Pin Power Output, 5-Pin Motor Control
- 3D LUT Support, Multiple Image Tools
- Durable Aluminium Chassis
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 178°
|
| Vertical: 178° | |
| Touchscreen |
Yes
|
| Maximum Brightness |
2200 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Colour Support |
8-Bit+FRC (1.07 Billion Colours)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Real-Time LUT Monitoring |
HDR
|
| Image Controls |
Anamorphic De-Squeeze, Histogram, Image Flip, OSD Flip, Underscan, Vectorscope, Waveform
|
| Video I/O |
1 x BNC (3G-SDI) Input
|
| 1 x HDMI 1.4 Output | |
| 1 x BNC (3G-SDI) Output | |
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1 x Unspecified 4-Pin (7.4 VDC) Input/Output
|
| Other I/O |
1 x Mini-USB (Camera Control)
|
| 1 x USB-A (Firmware), (LUT Upload) Input | |
| Video Format |
HDMI
|
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| SDI (4:4:4/4:2:2 RGB, YUV) | |
| 1080p: 30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (4:2:2 YUV) | |
| 1080p: 60/59.94/50 | |
| DC Input Power |
7.4 to 24 VDC
|
| Battery Type |
1 x L-Series
|
| Power Consumption |
16 W
|
| Mounting |
1/4"-20 Female
|
| Material of Construction |
Aluminium, Glass
|
| Dimensions |
14.54 x 9.14 cm
|
| Weight |
351 g
|
What's Included
1 x Portkeys BM5 III 5.5" HDMI Touchscreen Monitor with Wired Camera Control
1 x 4-Pin Aviation to D-Tap Power Cable (39")
1 x 4-Pin Aviation to DC Power Cable (16")
1 x LANC Control Cable (16")
1 x USB-C Control Cable (16")
1 x Safety Case
1 x USB Flash Drive
