IDX System Technology DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery

Backorder

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

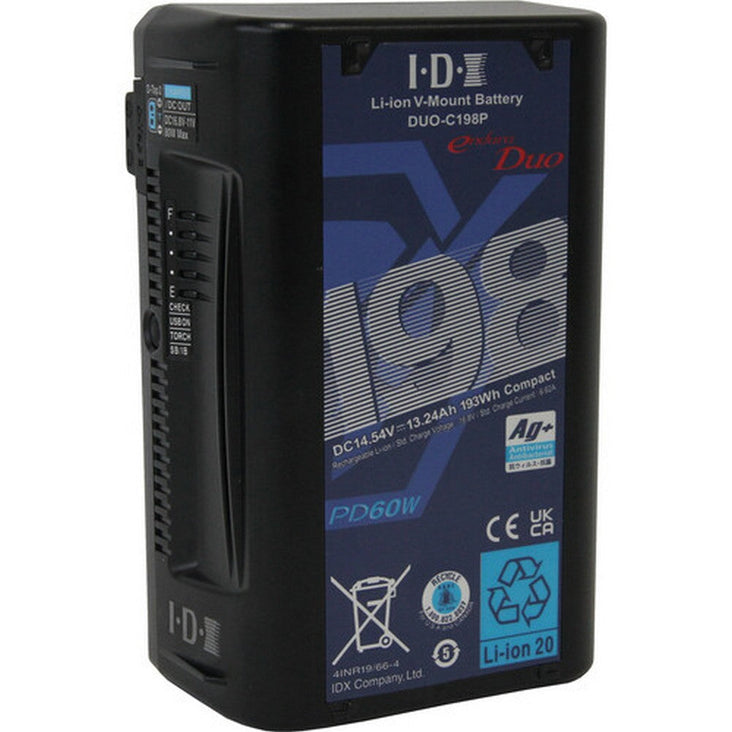

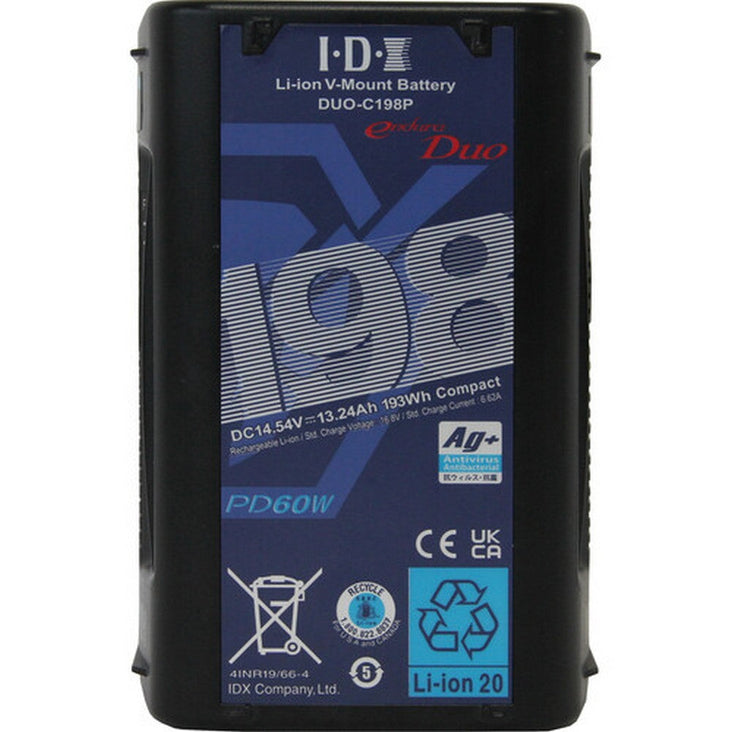

Power your professional V-mount cameras such as the RED WEAPON or ARRI ALEXA Mini along with other professional devices with this DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery from IDX System Technology. Featuring a V-mount, the compact battery is only 2.3" thick, but packs a large 193Wh, 9.9Ah capacity, providing 14.54V to your gear with a 14A maximum draw. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required, and its battery data information displays in most cameras' viewfinders.

The DUO-C198P can output power via its V-mount, two D-Tap outputs, and USB Type-C port. One of the D-Tap ports is an Advanced port that can also be used to charge the battery with an optional D-Tap charger such as the UC-PD1. The USB Type-C is also a PD Fast Charging input that allows you to fast-charge the battery using up to 60W.

Designed with battery circuit protection against overcharge, overdischarge, overcurrent, and exposure to high temperatures, it protects your battery from the rigors of production. A 5-LED battery life indicator on its side provides a quick visual indication of the charge state of your battery, and its housing is designed with antimicrobial, antiviral materials.

Key Features
  • Suitable for cinema camera productions that need a high-capacity battery in a small package
  • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
  • V-Torch light for easy attachment to the plate
  • Handles up to 14A loads
  • Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
  • USB Type-C output port with 60W PD fast charging input
  • Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
  • 5-LED battery life indicator
  • Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
  • Antiviral and antimicrobial body for hygienic peace of mind

Features
  • 14.54V 193Wh V-Mount Battery
  • SMBus Data Info Displays in Viewfinder
  • Handles up to 14A Loads
  • Two 80W D-Tap Accessory Outputs
  • D-Tap & USB PD Fast Charging Port
  • Battery Circuit Protection
  • V-Torch 5-LED Battery Life Indicator
  • Compatible with UC-PD1 & VL-DT1 Chargers

Specifications

Mount / Series Type

V-Mount

Chemistry

Lithium-Ion

Battery Capacity

9900 mAh / 193 Wh

Output Voltage

14.5 VDC

Maximum Load

154 W, 14 A (Peak)

Accessory I/O

1 x D-Tap Input/Output 80 W Regulated
1 x D-Tap Output 80 W Regulated
1 x USB Type-C Input/Output 60 W Regulated

Maximum Load (Accessory I/O)

80 W (D-Tap)
60 W (USB-C)

USB Output

5 V, 3 A

Storage Temperature

-4 to 122°F / -20 to 50°C

Charging Temperature

32 to 104°F / 0 to 40°C

Discharging Temperature

-4 to 113°F / -20 to 45°C

Dimensions (W x H x D)

3.74 x 5.75 x 2.32" / 9.5 x 14.61 x 5.89 cm

Weight

2.42 lb / 1.1 kg

Package Weight

2.68 lb

Box Dimensions (LxWxH)

7.4 x 4.5 x 3.1"



Whats Included
1 x IDX System Technology DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery
