Hollyland Syscom 421S 4-Transmitter 1800' A/V Transmission System
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

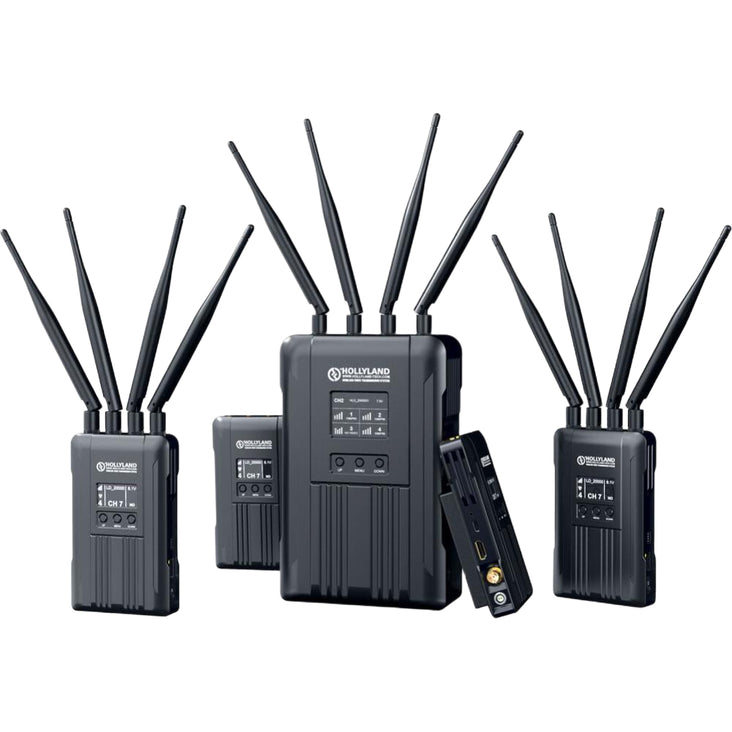

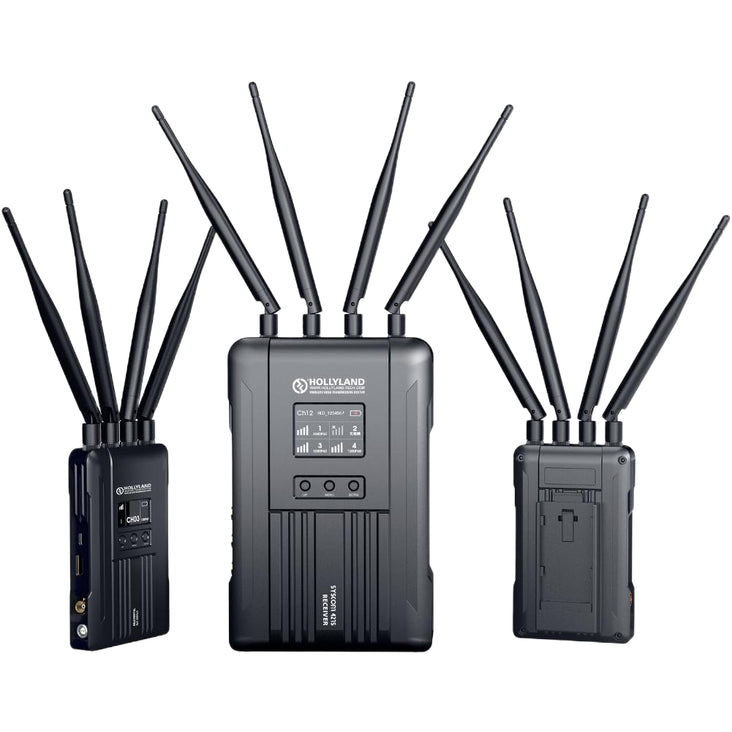

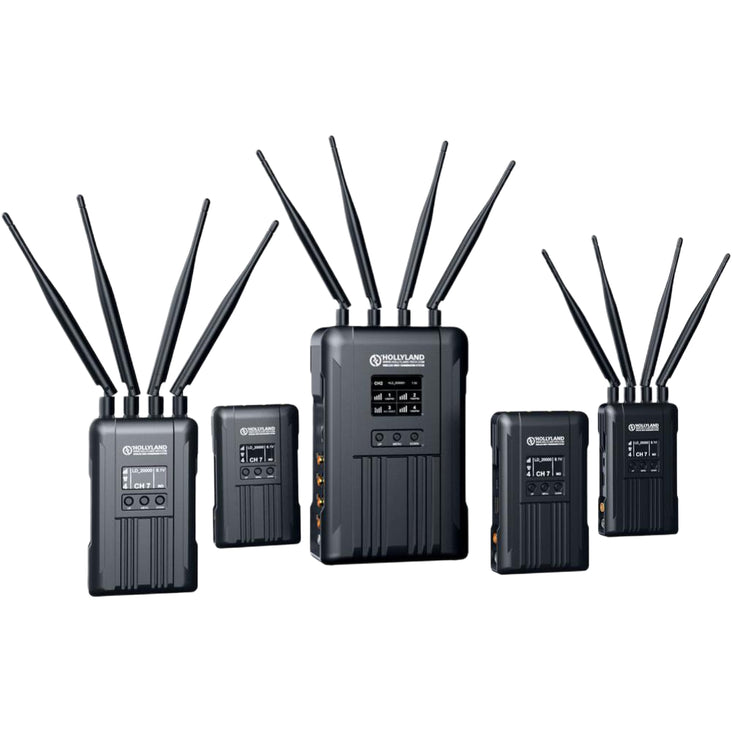

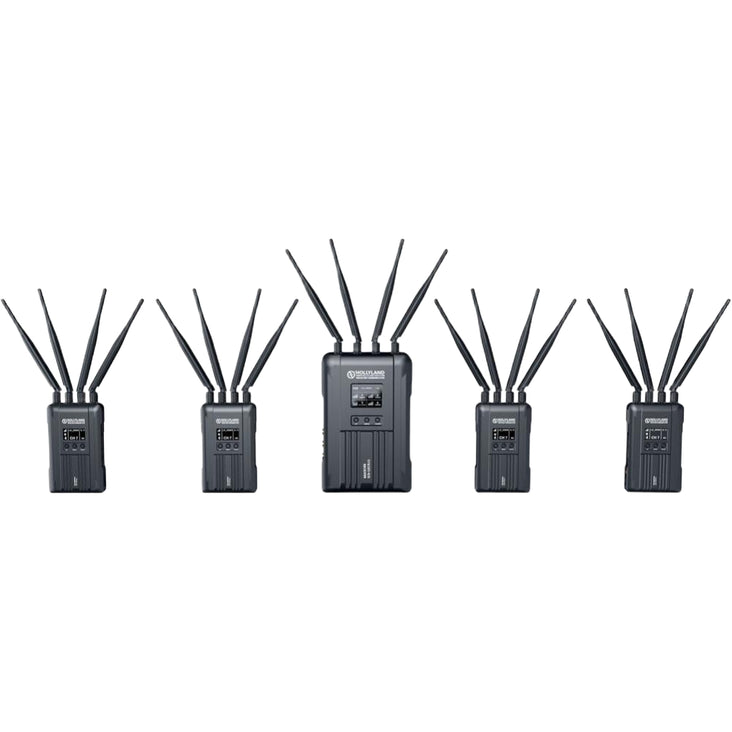

12 Month Warranty*The Syscom 421S 4-Transmitter 1800' A/V Transmission System with Carry Case provides a complete multi-camera wireless video transmission solution. The system supports communication with up to four cameras through a single receiver with PTZ control and tally support. Featuring HDMI and SDI connectivity, it transmits video signals up to 1080p60 over line-of-sight distances of up to 1,800' with low 0.07-second latency. It also supports Ethernet pass-through, allowing direct RTSP streaming to the internet, while the included carry case offers convenient storage and transport.

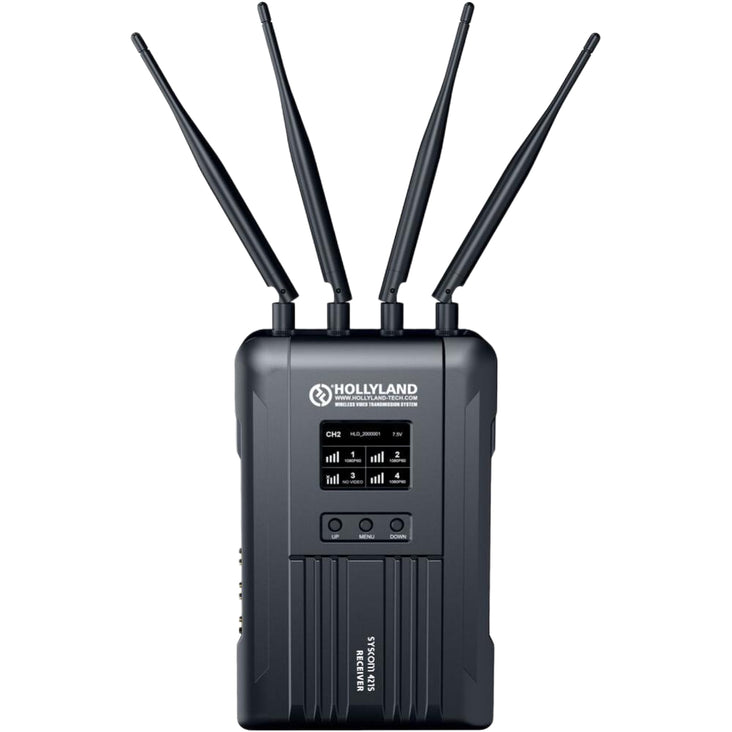

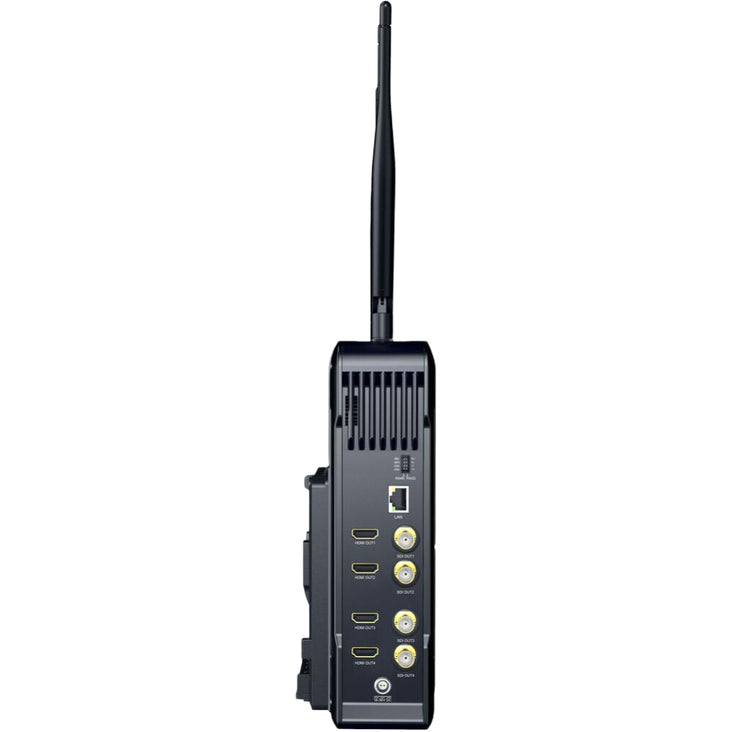

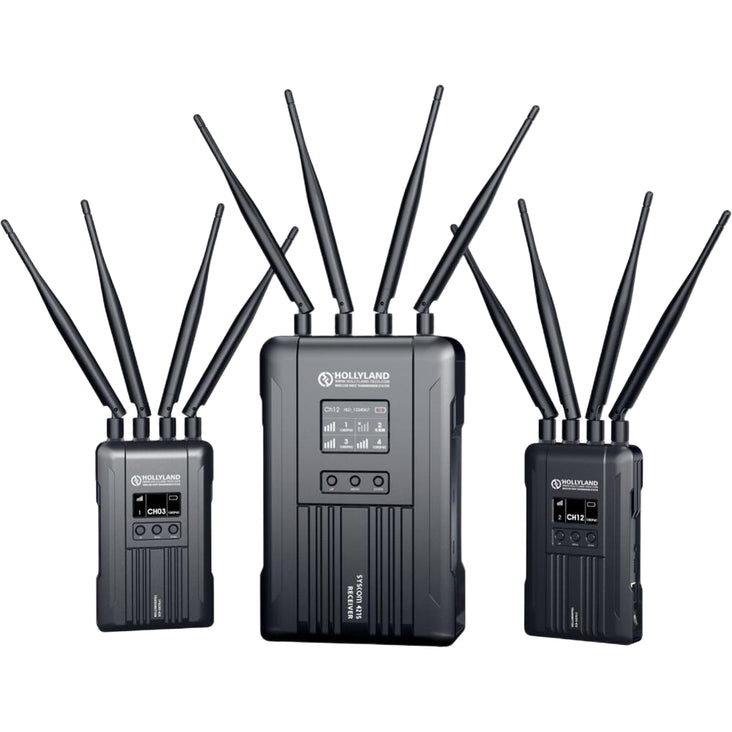

The receiver features four SDI and four HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can control PTZ cameras via IP or RS-422/485 serial connections. The transmitters have a dedicated tally output port that support optional tally lights. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. Each transmitter has an L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitters and receiver also feature a 2-pin power input for alternate DC power options.
Specifications
- Multi-Camera Wireless Transmission System
- Transmits 1080p60 Video up to 1800 ft
- Supports Four Transmitters to One Receiver
- PTZ Camera Control with Tally Support
- HDMI, SDI and RTSP Connectivity
| Antenna I/O |

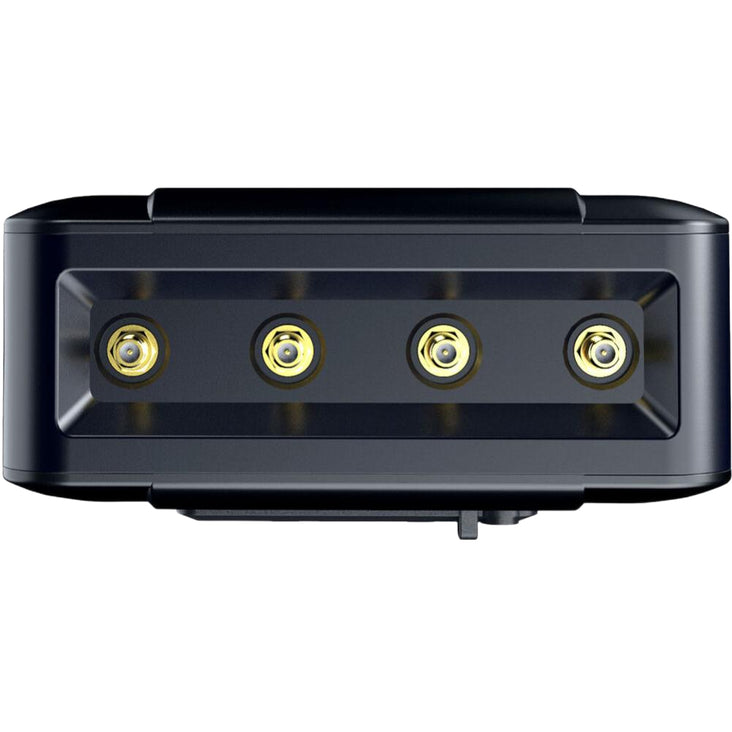

Transmitter/Receiver: 4x RP-SMA Female
|
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
|
| Transmitter: 1x BNC (3G-SDI) Input | |
| Receiver: 4x HDMI (Unspecified Signal) Output | |
| Receiver: 4x BNC (3G-SDI) Output | |
| Embedded Audio |
SDI
|
| HDMI | |
| Power I/O |
Transmitter/Receiver: 1x LEMO 2-Pin (36 VDC) Input
|
| Other I/O |
Transmitter: 1x USB-C Input
|
| Receiver: 1x USB-A Input | |
| Transmitter/Receiver: 1x RJ45 (LAN) Input/Output | |
| Transmitter/Receiver: 1x Proprietary (RS-422/RS-485) Input/Output | |
| Wireless |
5G
|
| Wireless Range |
1800' / 548.64 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
US: 5.1 to 5.9 GHz
|
| Latency |
< 70 ms
|
| RF Power |
≤ 22 dBm
|
| RF Sensitivity |
-90 dBm
|
| Wi-Fi |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Video Format |
HDMI
|
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| 576p: 50 | |
| 480p: 60 | |
| SDI | |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| 576p: 50 | |
| 480p: 60 | |
| Timecode Support |
Yes
|
| Input Power |
36 VDC
|
| Battery |

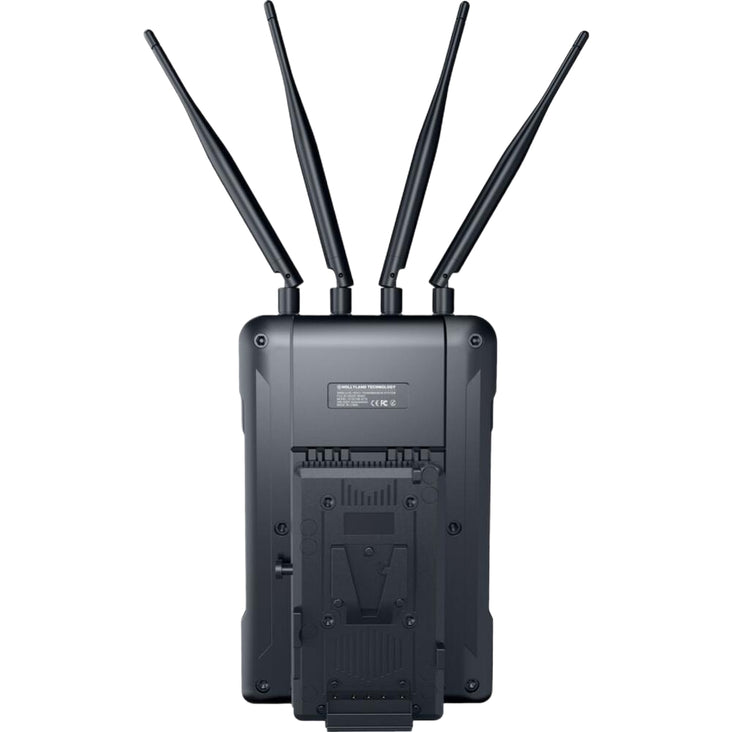

Receiver: 1x V-Mount on Fixed Plate
|
| Transmitter: 1x L-Series Mount on Fixed Plate | |
| Power Consumption |
Transmitter: 12 W
|
| Receiver: 32 W | |
| Tripod/Accessory Mounting |
1x 1/4"-20 Female
|
| 1x 3/8"-16 Female | |
| Material of Construction |
Metal
|
| Dimensions |
Transmitter: 14.4 x 8.8 x 3.0 cm
|
| Receiver: 24.2 x 14.8 x 6.2 cm | |
| Weight |
Transmitter: 0.43 kg, Including Antenna, Battery Plate
|
| Receiver: 0.1621 kg, Including Antenna, Battery Plate |
What's Included
4 x Transmitter
1 x Receiver
25 x 5 GHz Antenna
4 x Magic Arm (7")
1 x OTG Cable
4 x DC Conversion Cable
5 x RS485/RS422 Interface Cable
1 x Power Adapter
