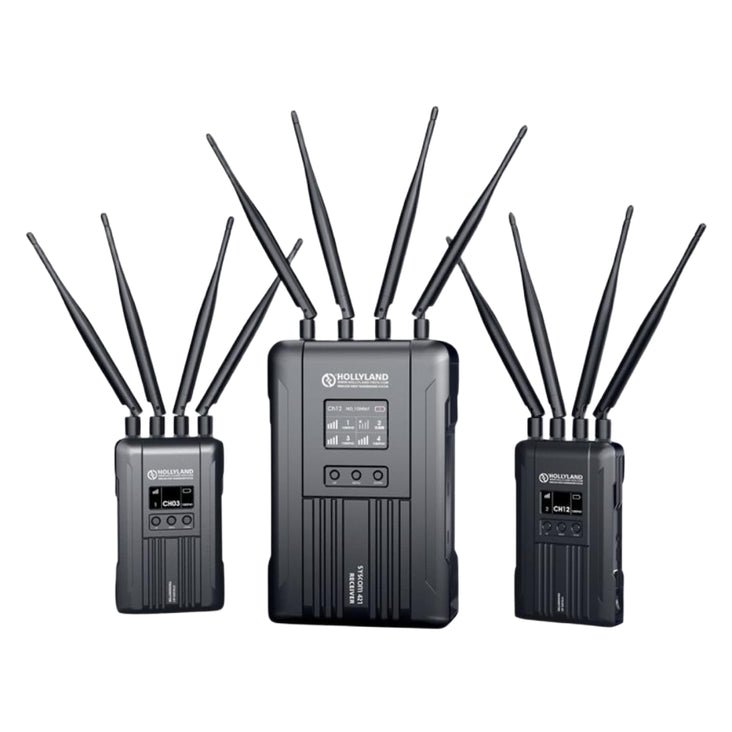

12 Month Warranty*The Syscom 221 540m/1800' Wireless Video & Audio Transmission System is a multi-camera wireless video solution that communicates with up to four cameras using a single receiver with PTZ control and tally support. It supports up to 1080p60 video signals via SDI and HDMI, and delivers line-of-sight transmission up to 1,800' with ultra-low 0.07-second latency, making it well suited for professional video production workflows.

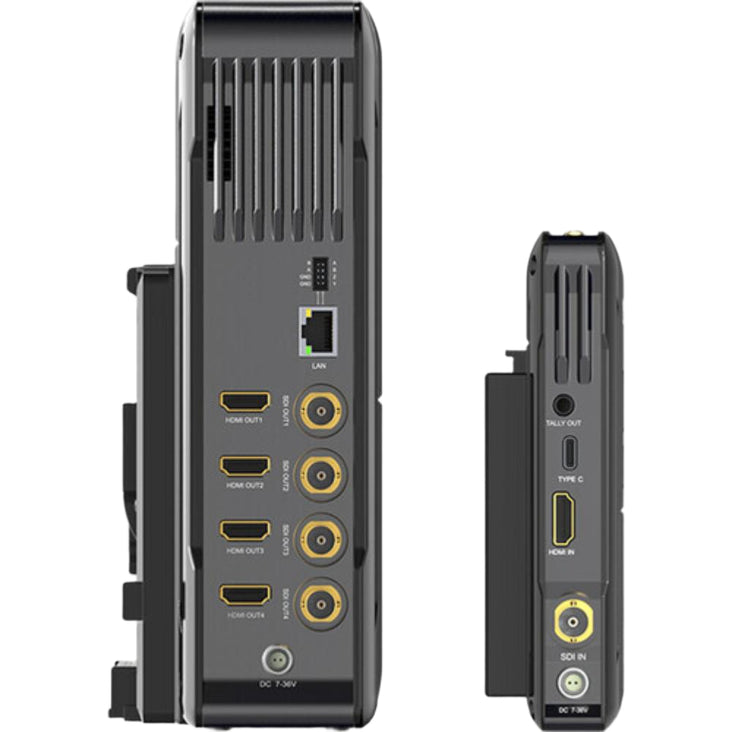

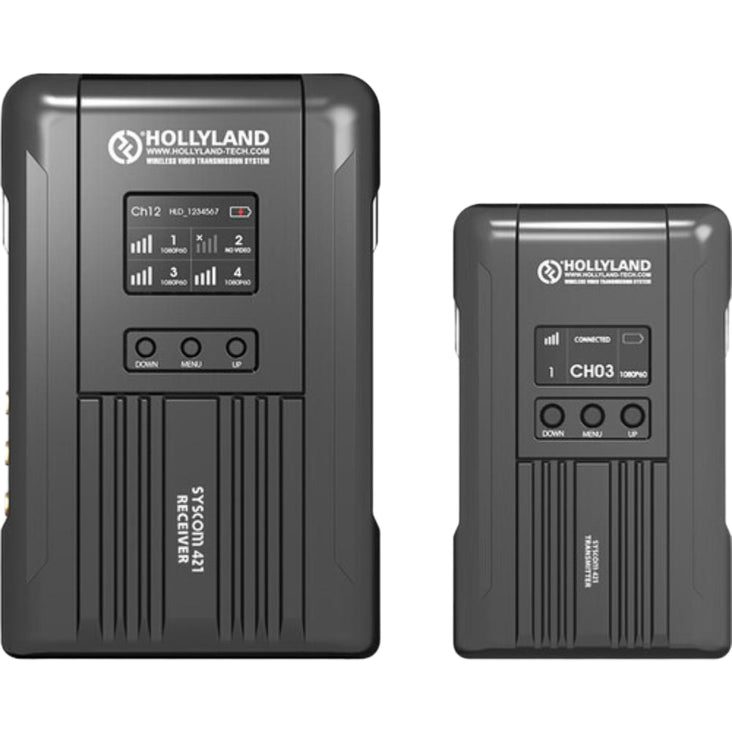

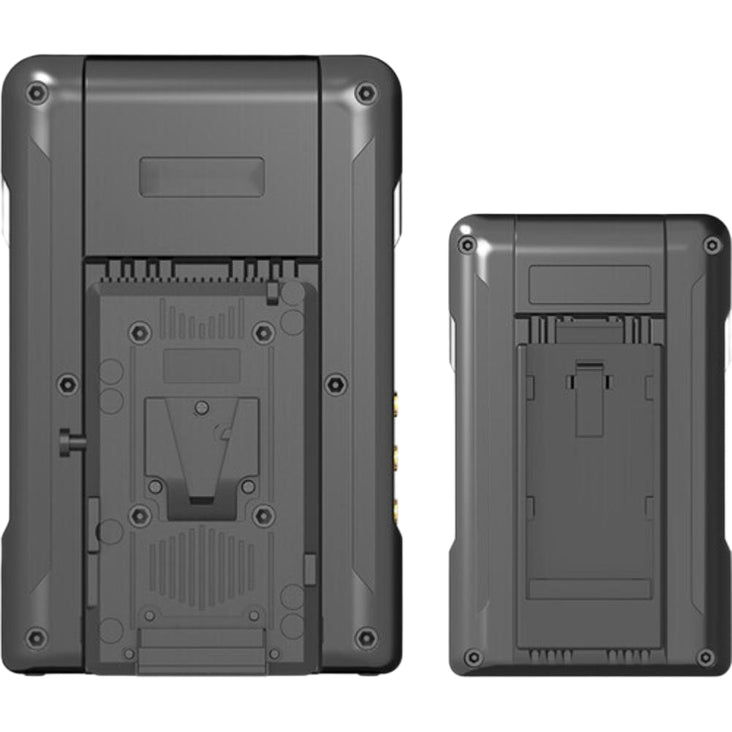

The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters. This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.
Specifications
- Up to 1080p60 Transmitter/Receiver System
- 1800' line-of-sight Transmission
- SDI and HDMI Input
- SDI and HDMI Output
- Passes Control and Tally
- OLED Display
| Wireless Range | 1800' / 548.64 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | US: 5.1 to 5.9 GHz |
| Latency | < 0.07 sec |
| RF Power | ≤ 22 dBm |
| RF Sensitivity | -90 dBm |

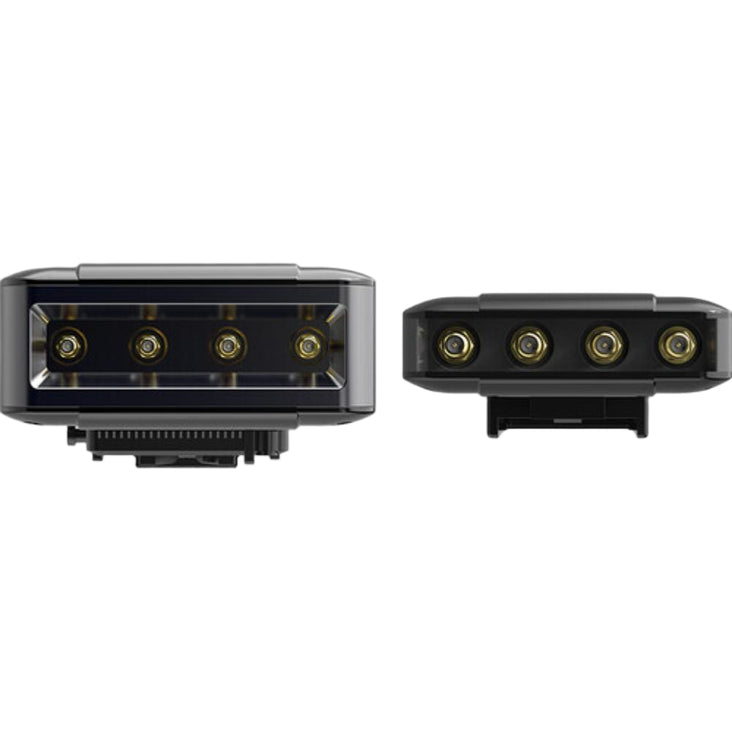

| Transmitter Antenna Ports | 4 x RP-SMA Male |
| Receiver Antenna Ports | 4 x RP-SMA Male |
| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input |
| 1 x HDMI Input | |
| Receiver Video Connectors | 4 x BNC (3G-SDI) Output |
| 4 x HDMI Output | |
| Transmitter Other I/O | 1 x USB Type-C |
| 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 | |
| 1 x 3.5 mm Tally Output | |
| Receiver Other I/O | 1 x USB Type-C |
| 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 | |
| Embedded Audio | SDI |
| HDMI | |
| Broadcast System Compatibility | NTSC, PAL |
| Video Format | SDI/BNC: |
| 1080p at 23.98, 24, 25, 30, 50, 60 fps | |
| 1080i at 50, 60 fps | |
| 720p at 50, 60 fps | |
| HDMI: | |
| 1080p at 24, 25, 30, 50, 60 fps | |
| 1080i at 50, 60 fps | |
| 720p at 50, 60 fps | |
| 576p at 50 fps | |
| 480p at 60 fps | |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x V-Mount |
| Transmitter Power Connector | 1 x 2-Pin LEMO (7 to 36 VDC) Input |
| Receiver Power Connector | 1 x 2-Pin LEMO (18 to 36 VDC) Input |
| Transmitter Power Consumption | Device: (12 W) |
| Receiver Power Consumption | Device: (32 W) |
| Transmitter Mounting | 1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Transmitter Dimensions | 14.4 x 8.8 x 3.0 cm (Excluding Antenna and Battery Plate) |
| Receiver Dimensions | 24.2 x 14.8 x 6.2 cm (Excluding Antenna and Battery Plate) |
| Transmitter Weight | 43.15 kg (Excluding Antenna) |
| Receiver Weight | 0.1621 kg (Excluding Antenna) |
What's Included
2 x Syscom421 Transmitter
1 x Syscom 421 Receiver
15 x 5 GHz Antenna
2 x 7" Magic Arm
1 x OTG Cable
2 x DC Conversion Cable
3 x RS485/RS422 Interface Cable
1 x Power Adapter
