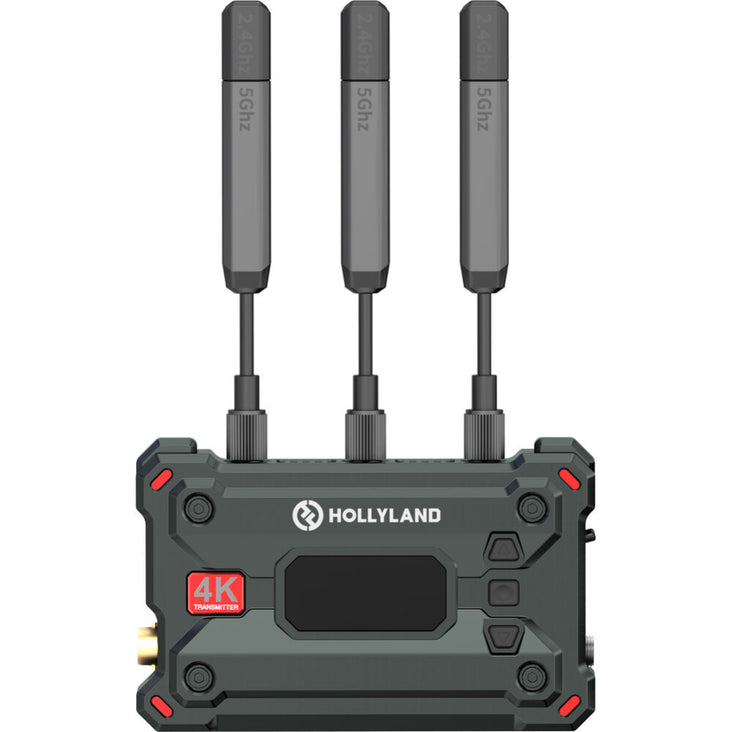

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Each Pyro S unit is equipped with a USB-C port that powers the unit and supports plug-and-play UVC operation, allowing seamless integration with computers for streaming and conferencing applications. A built-in frequency scanner helps you select the clearest frequency for your transmission, complemented by a bright LCD for easy configuration. In addition to the multifunction USB-C port, each unit can also be powered using a separately available locking DC power adapter or an L-series type battery with an optional battery plate.
Long Distance, High Quality
The Pyro S Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.
Strong Signal Strength
At a stable transmission range of up to 1300', the Pyro S features latency as low as 50ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro S excels with increased transmission distance while preserving video quality and minimising latency. The transmitter also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.
Crisp and Sharp Images
With up to 4K30 transmission capabilities via HDMI and 1080p60 via SDI, the Pyro S transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.
USB Video Class
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP
Input your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.
Smart Channel Scan
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimising the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Easy Setup
The Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter.
Continuous Power, Multiple Options
In addition to DC input and NP-F batteries, the Pyro S also supports a USB-C power supply (5-12V). A USB power supply option provides convenience, especially when using stabilisers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.
Specifications
- Transmit UHD 4K30 Video up to 1300'
- HDMI/SDI Inputs and Outputs
- 2.4 and 5 GHz Frequency Bands
- Supports UVC and RTMP for Streaming
- 650' Transmission in Broadcast Mode
- Smart Channel Scanning, Bright LCD
- Low 50 ms Latency, 12 Mb/s Bit Rate
- DC, L-Series, and USB-C Power Options

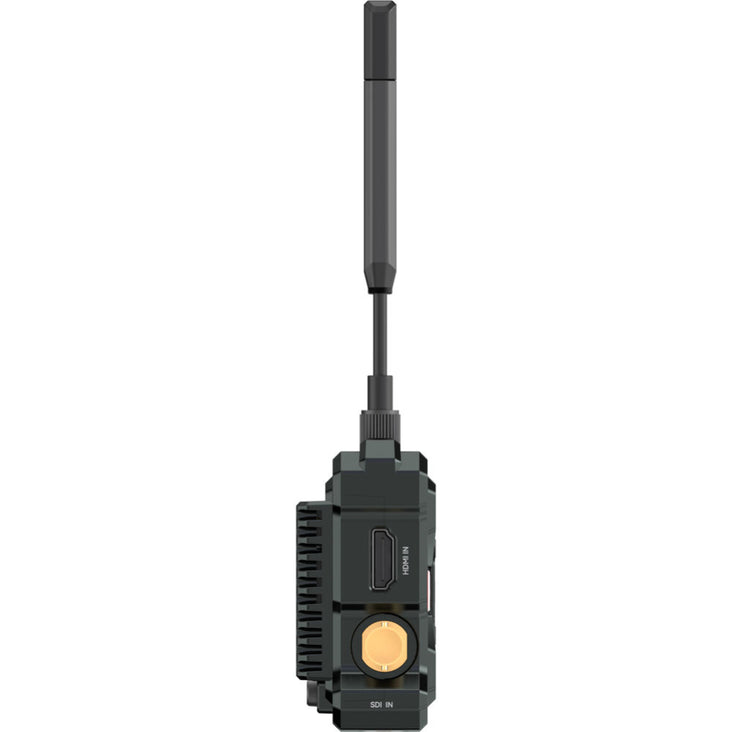

| Video I/O | Transmitter: 1 x HDMI 1.4b Input |
| Transmitter: 1 x BNC (3G-SDI) Input | |
| Receiver: 1 x HDMI 1.4b Output | |
| Transmitter: 1 x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI/SDI |
| Latency | 50 ms |
| Video Format | HDMI |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Power Consumption | Transmitter: 11 W |

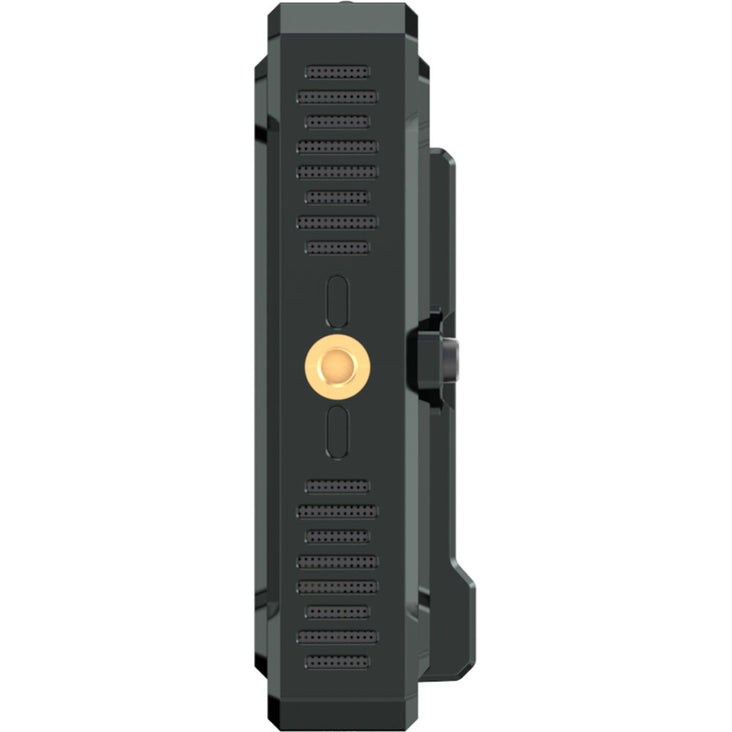

| Mounting | 1/4"-20 Female |
| Display Panel Type | Transmitter: LCD |
| Power I/O | Transmitter: 1 x Barrel Input |

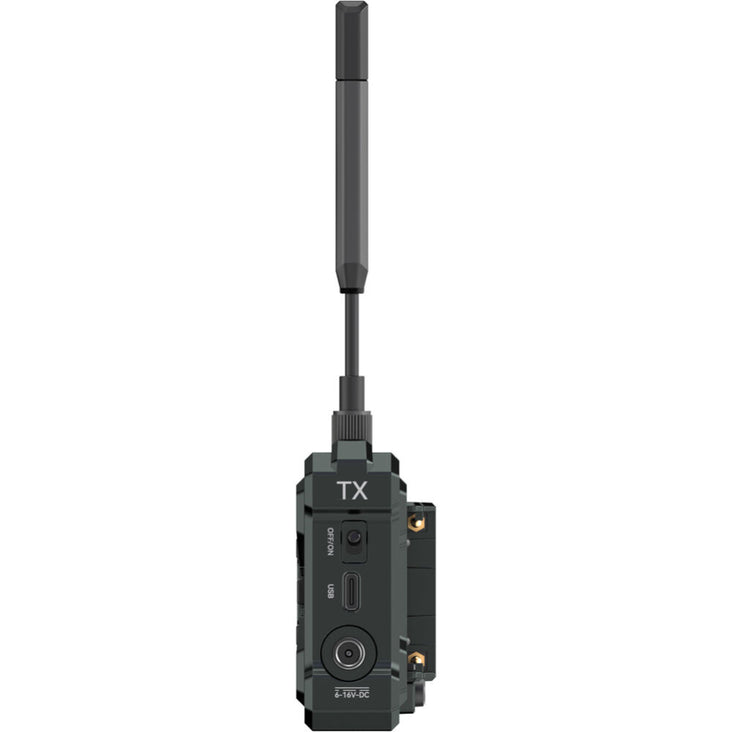

| Other I/O | Transmitter: 1 x USB-C |
| Wireless Range | 1300' / 396.2 m (Line-of-Sight) |
| 650' / 198.1 m (Line-of-Sight) | |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | 5.15 to 5.25 GHz |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.725 GHz | |
| 5.725 to 5.85 GHz | |
| 2.412 to 2.484 GHz | |
| RF Sensitivity | -85 dBm |
| Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Mobile App Compatible | Yes: Android & iOS |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 6 to 16 VDC |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Material of Construction | Magnesium |
| Dimensions | Transmitter: 11.2 x 7.12 x 3.41 cm |
| Weight | 207 g |
What's Included
1 x Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
7 x Pyro-S Antenna
1 x Power Adaptor
1 x Cold Shoe Adaptor
