Godox WMicS2 Dual-Channel Wireless Receiver (514 to 596 MHz)

Preorder
Preorder: Contact for Availability

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

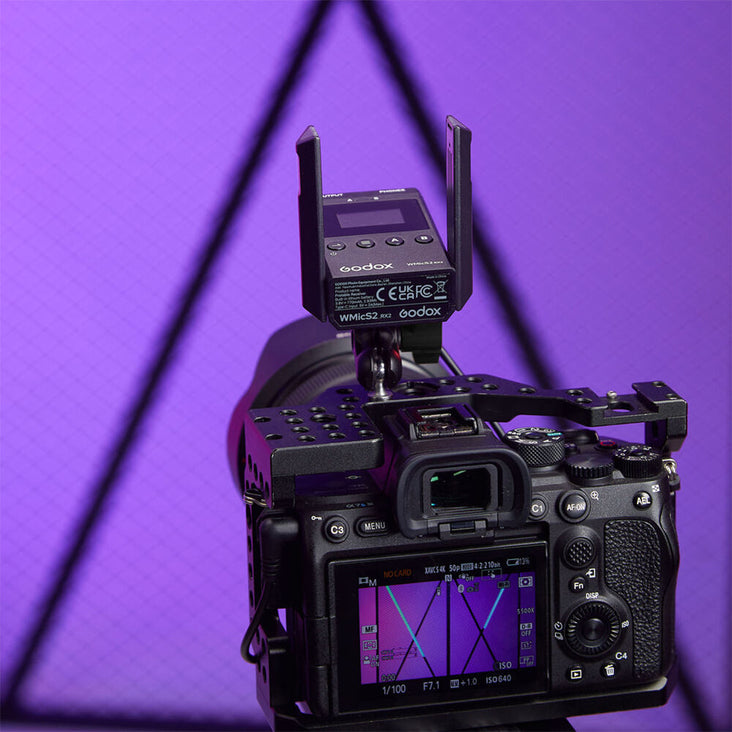

Compatible with your DSLR/mirrorless camera or smartphone with 3.5mm TRS or TRRS port, this WMicS2 Dual-Channel Wireless Receiver from Godox is a clip-on, camera-mountable wireless receiver, perfect for your vlogs or run-and-gun interviews. This dual-channel unit is designed to be used with one or two WMicS2 clip-on microphone/transmitter (available separately) to create a portable solution for your one- or two-person interviews from up to 656' away.

The receiver plugs into your device's 3.5mm TRS or TRRS port and features an additional 3.5mm headphone port to monitor your audio in real time. An integrated 770mAh lithium battery keeps the receiver going. Attach the receiver to your camera via its 1/4"-20 thread or onto your person with the included back clip and magnet mount. An OLED display shows your connectivity, mode, battery level, frequency signal, and volume.

Features at a Glance
  • Designed for use with one or two WMicS2 transmitters (available separately)

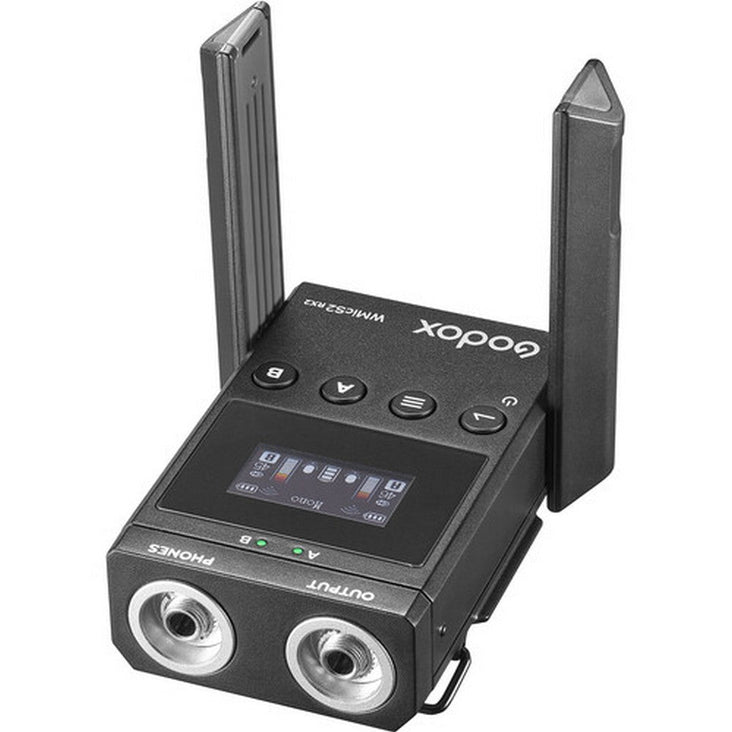

  • Two foldable antennae
  • Dual-channel receiver plugs into camera or smartphone 3.5mm TRS or 3.5mm TRRS port for single- or two-person shoots
  • 3.5mm headphone port for real-time monitoring
  • UHF wireless frequency range from 514 to 596 MHz
  • 656' line-of-sight range, 197' range with barriers
  • Toggle between mono and stereo output modes

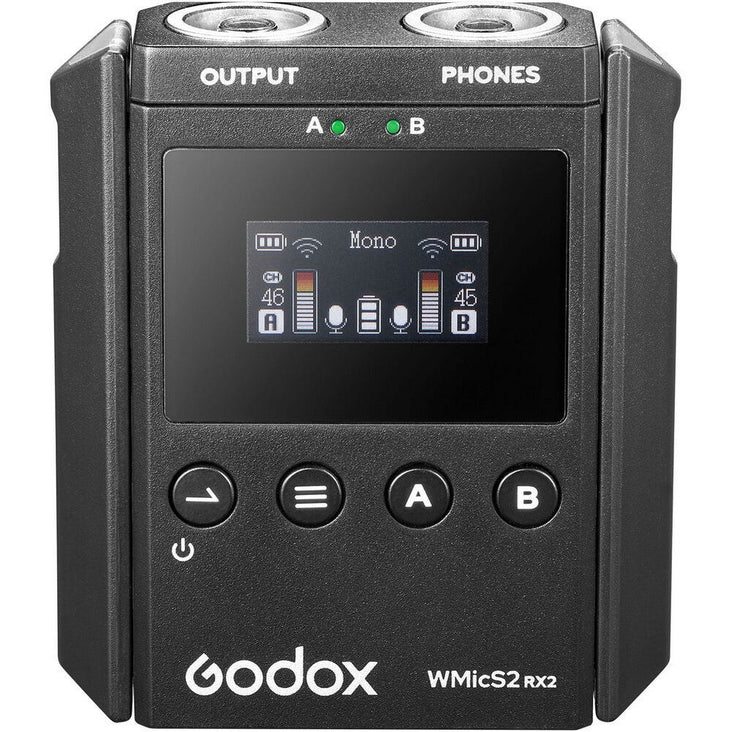

  • OLED display, volume adjustment

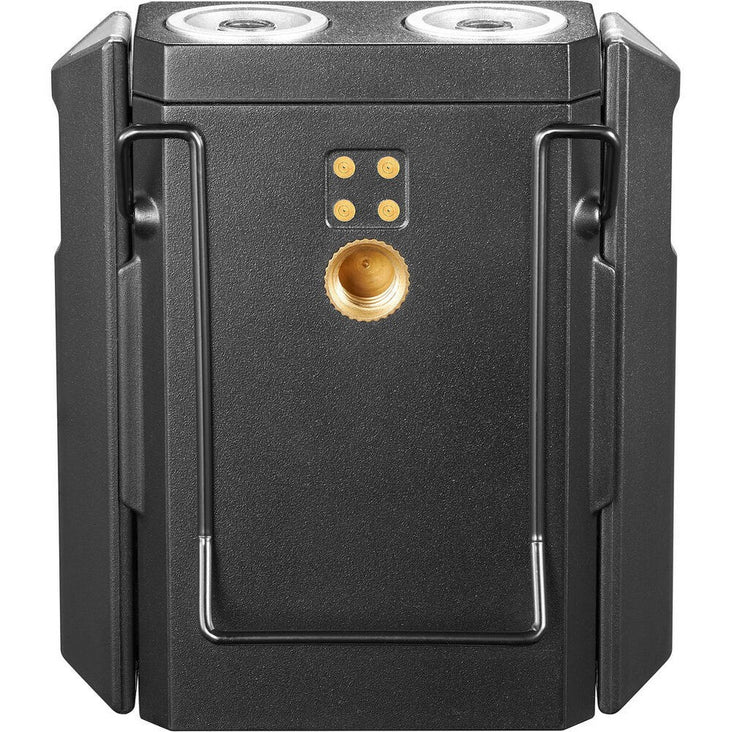

  • Included body clip, magnet mount, 1/4"-20 thread for camera mounting

Key Features
  • For Vlogs, Mobile Journalism
  • Works with WMixS2 Transmitters
  • 96 Manually Selectable UHF Frequencies
  • Record up to 2 Wireless Mics to Camera
  • 656' Maximum Range, OLED Screen
  • Mono/Stereo Modes, Headphone Port
  • Foldable Antennae, Body Clip
  • Built-In Lithium Battery, USB-C Input

Specifications

Wireless Technology

Analog UHF

Number of RF Channel Frequencies

96

Diversity

Non-Diversity

RF Frequency Band

514 to 596 MHz

RF Bandwidth

81 MHz

RF Channel Scanning

Manual

Max Operating Range

656.2' / 200 m (Line of Sight)
196.9' / 60 m (with Obstruction)

Max Transmitters per Band

1

Timecode Support

No

Mobile App Compatible

No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Latency

12 ms

SNR

70 dB

THD

<3 %

Receiver Type

Camera-Mount / Beltpack

Mounting Options

Belt Clip, Shoe-Mount (with Included Hardware)

Antenna

2 x External

Number of Audio Channels

2

Audio I/O

1 x 1/8" / 3.5 mm TRS Unbalanced Output

Phantom Power Protection

None

Frequency Response

40 Hz to 18 kHz

Network I/O

None

Network Protocols

None

Word Clock I/O

None

USB/Lightning Connectivity

1 x USB-C Female (Charging)

Standalone Audio Interface Capable

No

Approximate RF Sensitivity

-95 dBm

Power Requirements

Battery

Battery Type

1 x Built-In Rechargeable

Internal Battery Capacity

770 mAh

Display & Indicators

OLED (Battery Status, Channel, Metering, Power, Sync, Transmitter Battery Status)

Operating Temperature

14 to 113°F / -10 to 45°C

Dimensions

2.6 x 2.3 x 0.8" / 65.8 x 58.4 x 20.5 mm

Weight

2.3 oz / 66 g

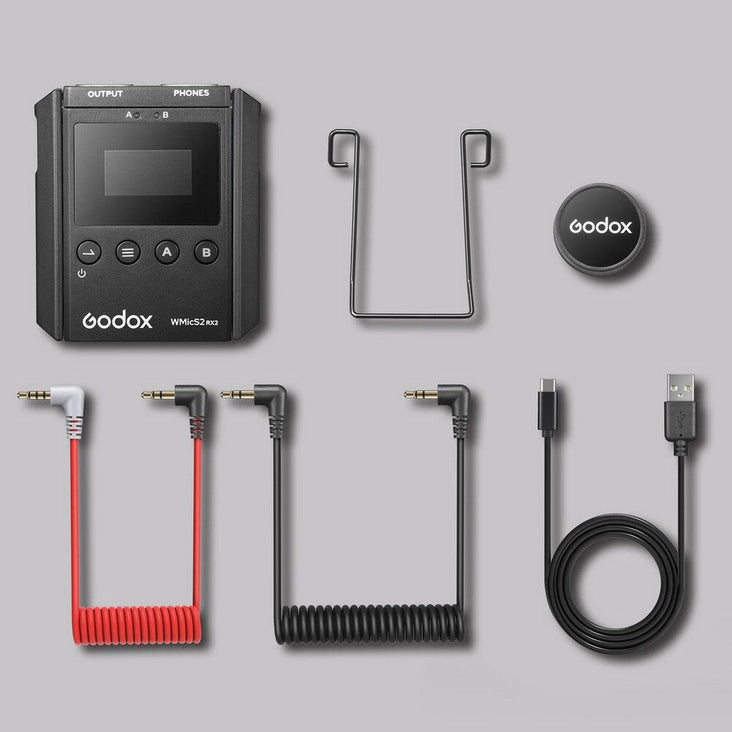

What's Included
1 x Godox WMicS2 Dual-Channel Wireless Receiver (514 to 596 MHz)
1 x USB-C Cable
1 x Back Clip
1 x Magnetic Mount
1 x 3.5mm TRS to TRRS Audio Cable
1 x 3.5mm TRS to TRS Audio Cable
