Explorer VX-UN Vertical Explorer Universal L Bracket

Backorder
🤩 New Brand 🤩

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

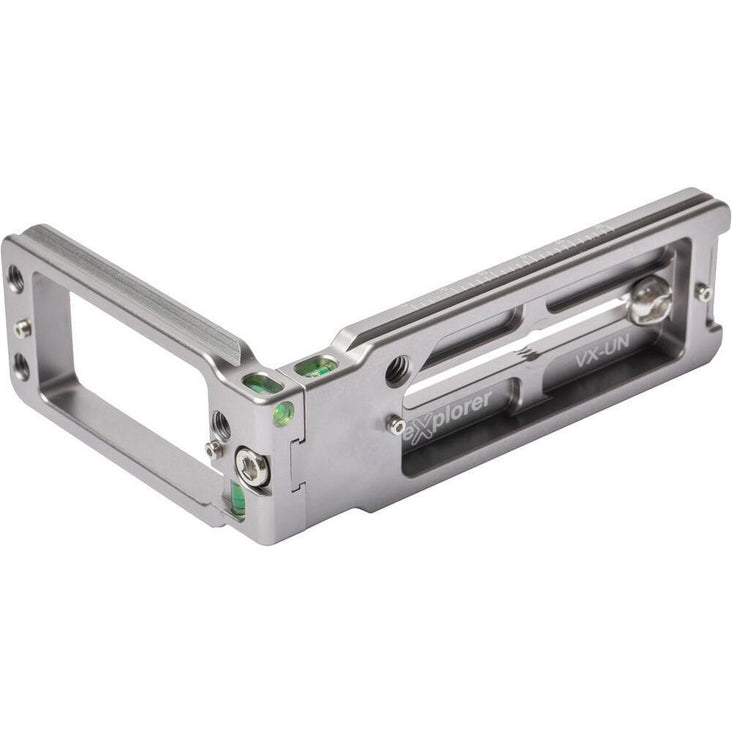

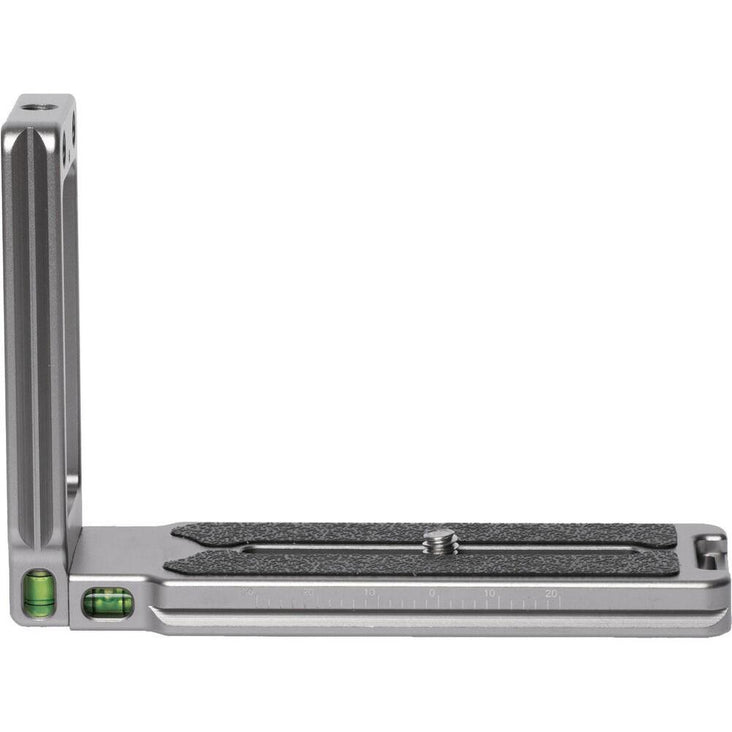

The Explorer VX-UN Vertical Explorer Universal L Bracket is designed to fit a large range of DSLR / Mirrorless cameras to provide flexibility between horizontal and vertical shooting positions and to help maintain balance through the centre column of a tripod. The CNC machined aluminium design has been finished with a black anodized coating for durability and weighs just 99g (3.5oz). The VX-UN is fully compatible with is compatible with both Arca-type and Really Right Stuff lever clamp.

Multiple 1/4” mounting threads are located on the bracket’s bottom and side to support accessories such as video lights or microphones connected via mounting arms or cold shoe adaptors. Anti-slip rubber pads and dual safety stops minimising lateral movement for security and help to prevent the camera from accidentally sliding out of compatible ARCA / RRS quick-release clamps.

The two-piece design allows the bracket to be disassembled, with each piece can be used independently as a standard quick release plate. When inverted vertically and used with a ball head with a panning clamp, the Explorer VX-UN can be used as a panning tilt head for video purposes.

WHY USE AN L-BRACKET?

The ability to quickly change your camera’s orientation from landscape to portrait is one of the biggest advantages when using an L bracket over a standard quick-release mounting plate. This can provide multiple options for compositions while still maintaining balance and even weight distribution on a tripod.

Advantages of using an L-Bracket
  • Better weight distribution and balance through the tripod
  • Maintain composition when changing from horizontal to vertical orientation
  • Great for panoramic shots in both vertical and horizontal orientation
  • Allows for a full range of motion in portrait / vertical orientation when using a ball-head
  • Maintain access to the accessory ports on your camera (custom-fitted L-Brackets)
  • Acts as a protective shell around the camera body

Features
  • Quickly change the orientation of the camera between landscape and portrait
  • The VX-UN Universal L-Bracket will fit most DSLR / Mirrorless cameras without a battery grip
  • Lightweight CNC machined aluminium weighing just 99g (3.5oz)
  • 61mm of lateral screw mount adjustment range to support larger cameras
  • Protective rubber pad to increase friction and reduce movement
  • Compatible with ARCA and RRS quick release clamps
  • Maintain access to the accessory ports on your camera
  • Dual spirit levels for accuracy
  • 1/4” accessory mounting threads
  • Dual safety stops to prevent the bracket from accidentally sliding from compatible quick release plates

Specifications

Packaged Weight

0.18 kg

Packaged Dimensions

14 × 11.5 × 6.5 cm

Product Weight (kg)

0.099kg

Adjustment Range

61mm

Mounting Thread

1/4''

Length (cm)

12cm

Width (cm)

3.8cm

Height (cm)

8.5cm



*Please Note: This item is shipped directly from an external warehouse and is not available in-store from our Alexandria Showroom. If you wish to order ‘Click and Collect’, there will be an approximate 2 day lead time and you will be notified when the item is ready for collection.

What's Included

1 x Explorer VX-UN Vertical Explorer Universal L Bracket
