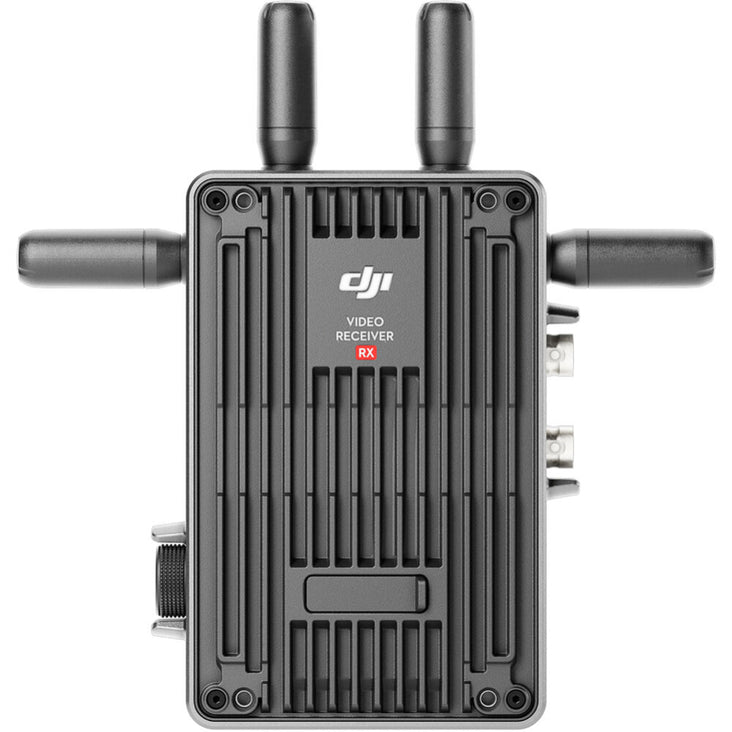

DJI Video Receiver
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*Receive high-definition video from over 3 miles (line-of-sight) with the DJI Wireless Video Receiver. Pairing with a separately available transmitter, this receiver transmits up to 1080p60 video using the efficient O3 Pro transmission technology over 2.4 and 5 GHz Wi-Fi frequencies. It also supports talkback and voice calling between devices using the USB-C ports and optional mics, making it ideal for long-distance communication and real-time video monitoring on set.
The receiver supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to simultaneously receive alongside other receivers such as the High-Bright Remote Monitor, and the separately available transmitter can transmit to unlimited receivers in broadcast mode with a slightly lower performance. The receiver can be powered via an optional L-series battery, an optional WB37 battery, or its DC power input.
Long-Distance HD Live Feed
The DJI Transmission receiver incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
Voice Call Function
After linking it with the DJI Video Transmitter in Control mode, set the USB-C function on both the transmitter and receiver to Voice Call. Connect headphones with a built-in mic to the USB-C ports on the transmitter and receiver to enable voice calls.
End-to-End Ultralow Latency
The video receiver uses the same chip solution as Ronin 4D, with every link explicitly optimised to provide end-to-end ultralow transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.
Transmission and Output
The DJI Video Receiver is suitable for use with third-party remote monitors and can directly output video signals through HDMI or SDI ports without extra expansion modules. Compared with the DJI High-Bright Remote Monitor, the DJI Video Receiver now supports metadata transmission and video output at fractional frame rates, meeting the professional, cinema-grade requirements of large production crews.
Seamless Auto Frequency Hopping
One Transmitter with Multiple Receivers for Coordinated Shooting
Encrypted Transmission
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the security of your footage.
Specifications
- Receive 1080p60 Video over 3 Miles LoS
- O3 Pro Video Transmission Technology
- Receive Video from DJI Transmitter
- HDMI and 3G-SDI Output
- AES 256-Bit Encryption
- Power via L-Series or WB37 Battery
| Antenna I/O |
2x RP-SMA Female
|
| Video I/O |
1x BNC (3G-SDI) Output
|
| 1x HDMI 1.4 Output | |
| Embedded Audio |
HDMI/SDI
|
| Power I/O |
1x USB-C Input
|
| 1x Barrel Input | |
| Encryption |
256-Bit AES
|
| Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
| # of Channels |
23
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
|
| 2.4 to 2.48 GHz | |
| 5.15 to 5.25 GHz | |
| 5.72 to 5.85 GHz | |
| DFS Frequencies | |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.6 GHz | |
| 5.65 to 5.72 GHz | |
| Latency |
70 ms
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
|
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format |
16-Bit 48 kHz PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Input Power |
6 to 18 VDC
|
| Battery Type |
1x L-Series, DJI WB37 (Interchangeable Mount)
|
| Power Consumption |
9 W
|
| Certifications |
CE, FCC
|
| Operating Conditions |
22 to 77°F / -10 to 45°C
|
| Dimensions |
12.7 x 8.7 x 2.6 cm
|
| Weight |
0.350 kg
|
What's Included
1 x DJI Video Receiver
1 x L-Series/NP-F Battery Adapter
1 x WB37 Battery Adapter
2 x Antenna
1 x USB-C Cable
1 x SDI Cable
1 x D-Tap Power Cable
1 x Installation Toolkit
