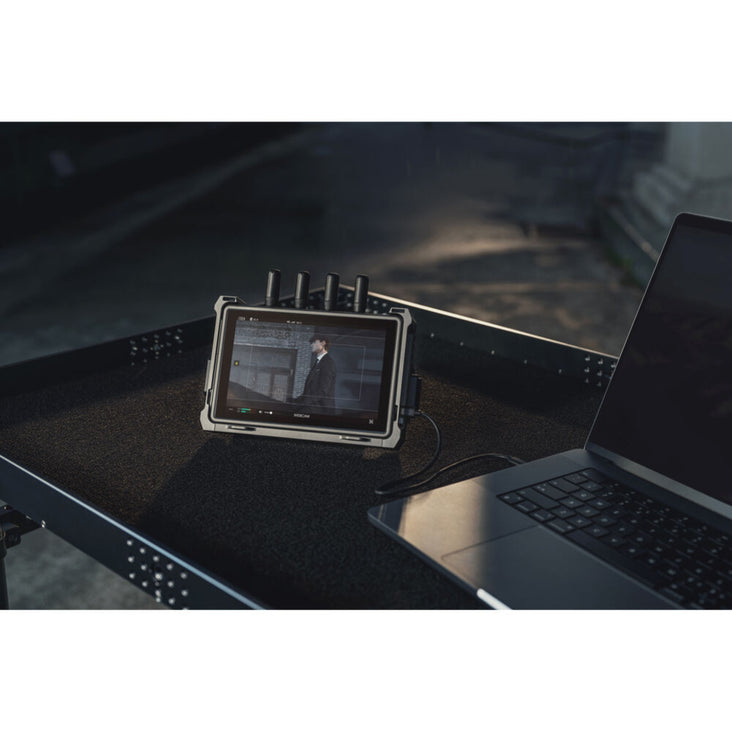

12 Month Warranty*Transmit high-definition video over distances of up to 3 miles (line-of-sight) from your DJI drone or gimbal gear with the DJI Transmission with High-Bright Monitor Combo. Featuring a transmitter and a monitor/receiver, this system delivers up to 1080p60 video using the efficient O3 Pro transmission technology over 2.4 and 5 GHz Wi-Fi frequencies. The high-bright monitor boasts 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display. Optional high-gain antennas are available to enhance signal quality and extend range.

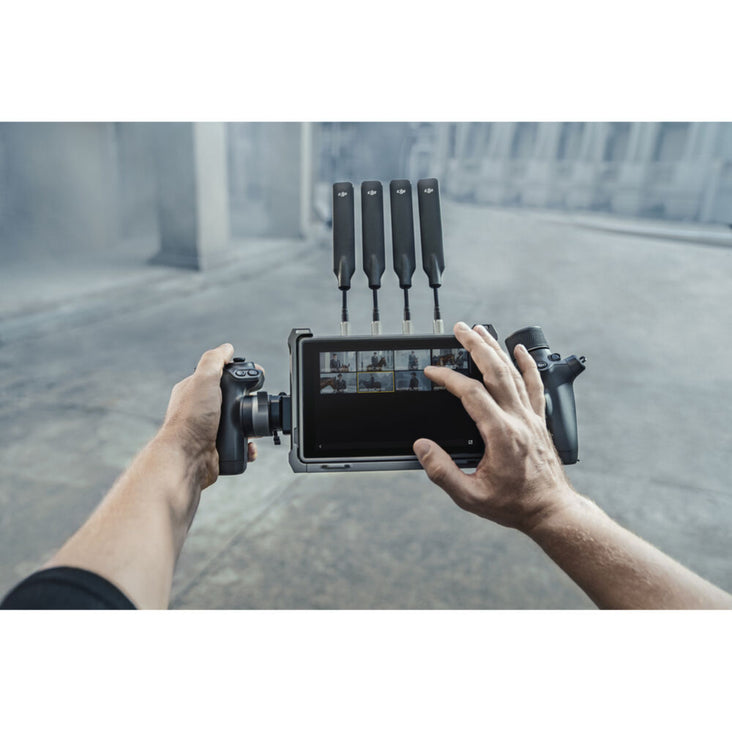

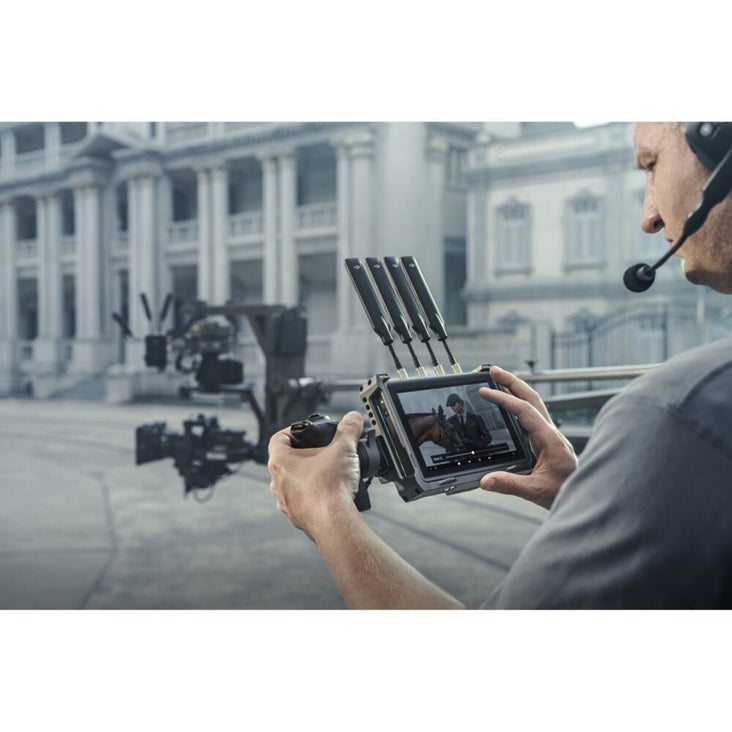

The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. Control mode allows you to control your gimbal or camera using the touchscreen or via physical gestures using the built-in gyroscopic sensor.
The units can be powered via a WB37 battery or its DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3. The monitor provides multiple imaging tools such as frame guide, waveform, and false colour, and it allows you to import custom LUTs. With an optional expansion plate, the monitor can output HDMI and SDI signals, and also adds DC input and connection to Master Wheels and Force Pro.
Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimised to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.
Seamless Auto Frequency Hopping
One Transmitter with Multiple Receivers for Coordinated Shooting
Encrypted Transmission
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.
Specifications
- Transmitter & High-Bright RX Monitor Kit
- Transmit 1080p60 Video over 3 Miles LoS
- 7" 1920 x 1200 Touchscreen Display
- Gyroscopic Sensor to Control Gimbals
- O3 Pro Video Transmission Technology
- AES 256-bit Encryption
- Power via WB37 Intelligent Batteries
- Works with Ronin 2 / RS 3 Pro Gimbals
- HDMI/3G-SDI I/O with Optional Expansion
- Custom LUTs, Built-in Image Tools
| Panel Type |
Receiver: LCD
|
| Display Size |
Receiver: 7.0" / 17.8 cm
|
| Resolution |
Receiver: 1920 x 1200
|
| Aspect Ratio |
Receiver: 16:10
|
| Touchscreen |
Yes
|
| Image Controls |
False Colour, Focus Peaking, Screen Markers, Waveform, Zebra
|
| Video I/O |
Transmitter: 1x HDMI 1.4 Input
|
| Transmitter: 1x BNC (3G-SDI) Input | |
| Transmitter: 1x BNC (3G-SDI) Loop Output | |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
Receiver: 1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
Transmitter/Receiver: 1x Barrel Input
|
| Other I/O |
Receiver: 1x USB-C 2.0 Input
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
| Encryption |
256-Bit AES
|
| Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
| # of Channels |
23
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
|
| 2.4 to 2.48 GHz | |
| 5.15 to 5.25 GHz | |
| 5.72 to 5.85 GHz | |
| DFS Frequencies | |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.6 GHz | |
| 5.65 to 5.72 GHz | |
| Latency |
68 ms
|
| RF Power |
< 33 dBm
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
|
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format |
16-Bit 48 kHz PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Timecode Support |
Yes
|
| Input Power |
6 to 18 VDC
|
| Battery Type |
Transmitter/Receiver: 1x L-Series (Interchangeable Mount)
|
| Power Consumption |
Transmitter/Receiver: 11 W
|
| Mounting |
Cold Shoe
|
| Certifications |
CE, FCC
|
| Operating Conditions |
22 to 77°F / -10 to 45°C
|
| Dimensions |
Transmitter: 12.7 x 8.7 x 2.6 cm
|
| Receiver: 21.3 x 13.5 x 5.1 cm | |
| Weight |
Transmitter: 0.350 kg, Excluding Antenna
|
| Receiver: 0.727 kg, Excluding Antenna |

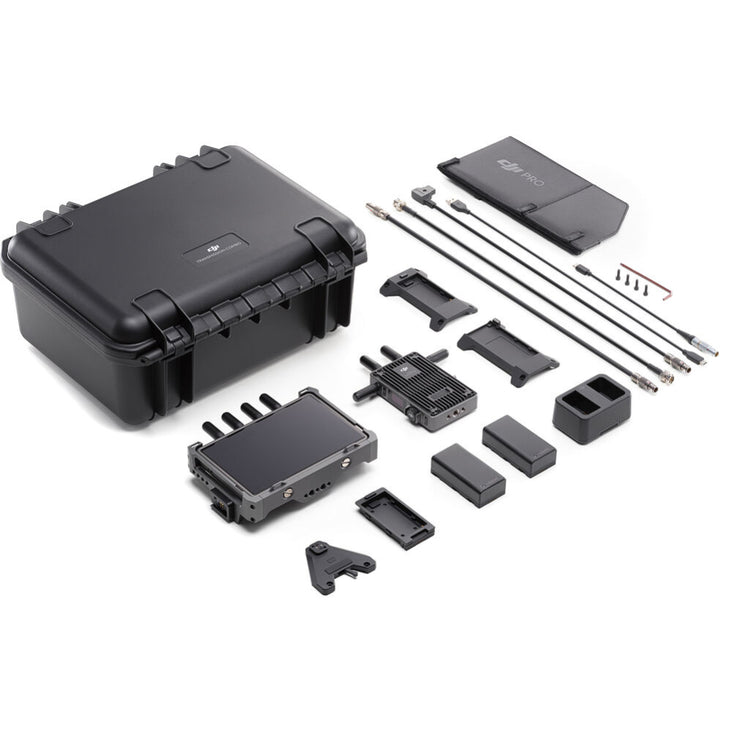

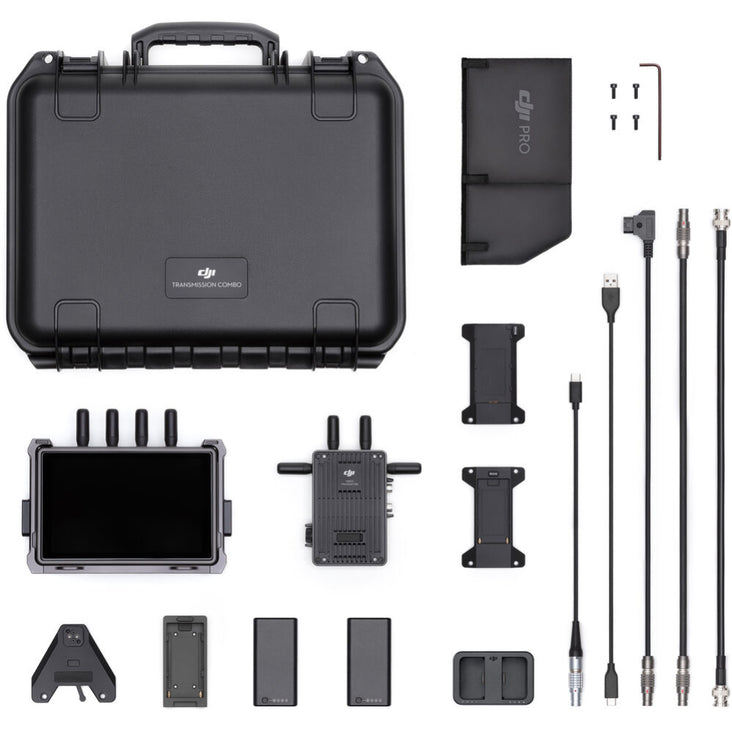

What's Included
1 x DJI Transmission Combo (High-Bright Monitor Combo)

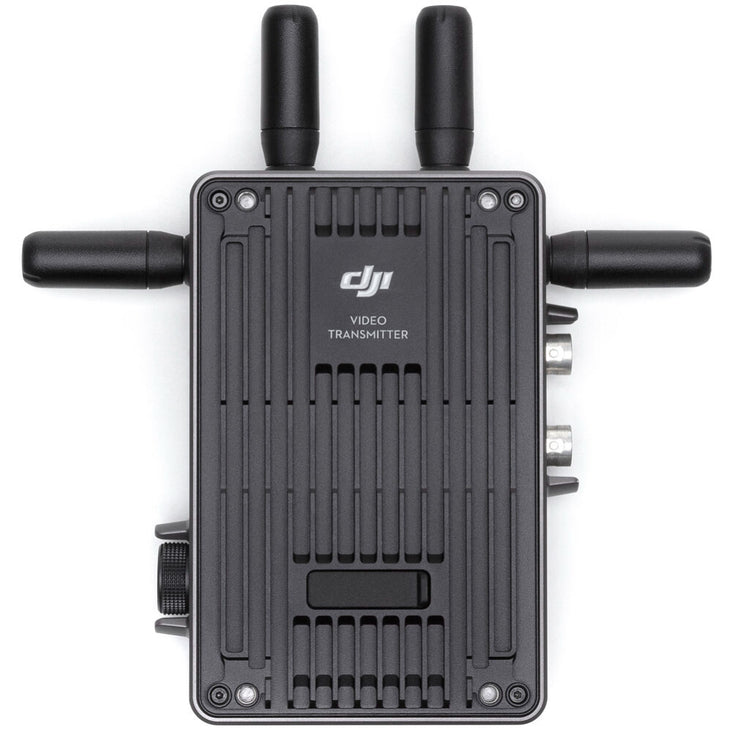

1 x DJI Wireless Video Transmitter

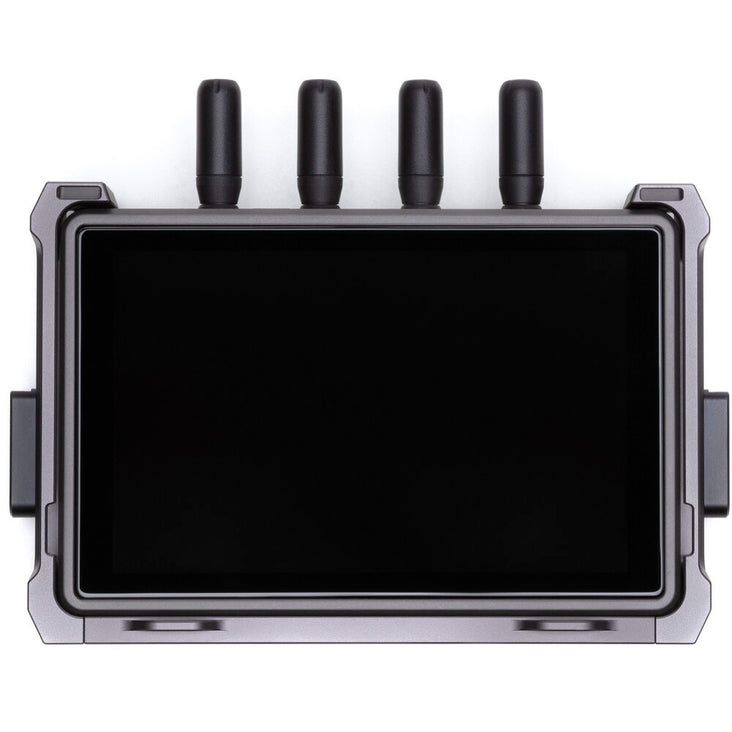

1 x High-Bright Remote RX Monitor

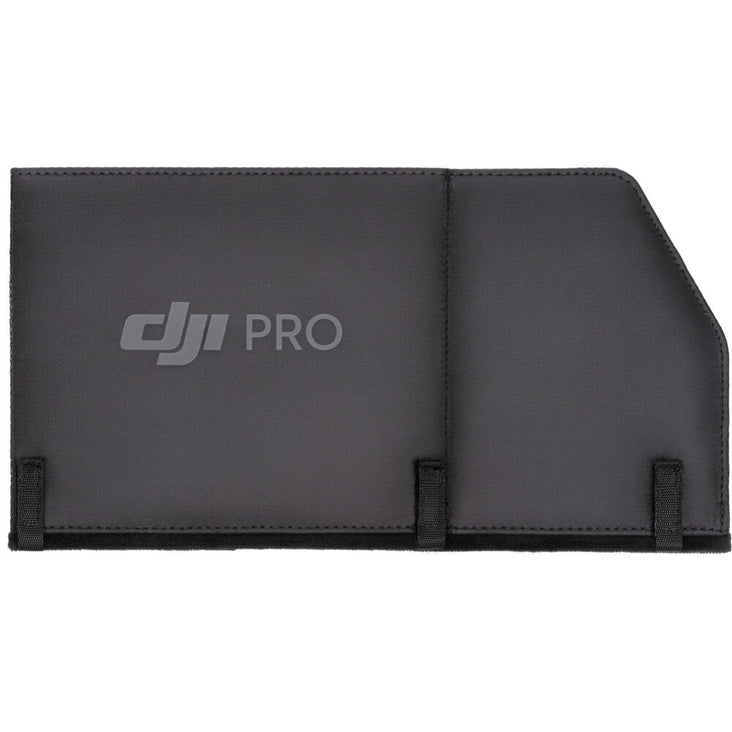

1 x Remote Monitor Hood

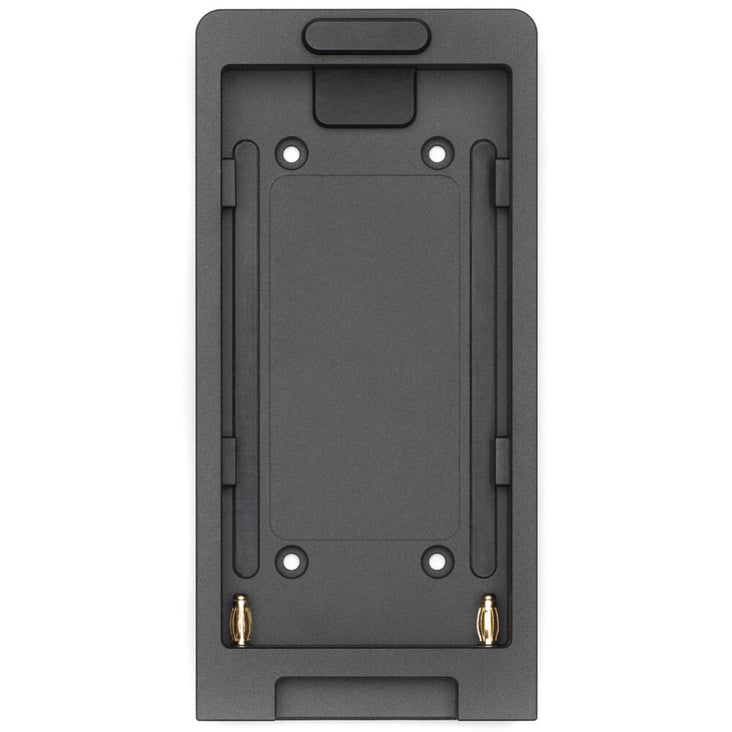

1 x WB37 Battery Adapter (TX)

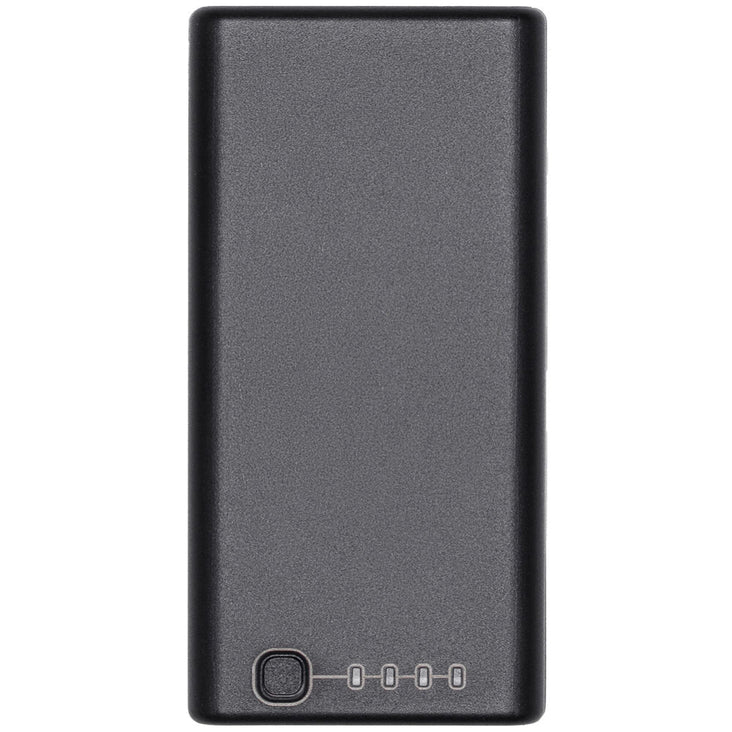

2 x WB37 Intelligent Battery

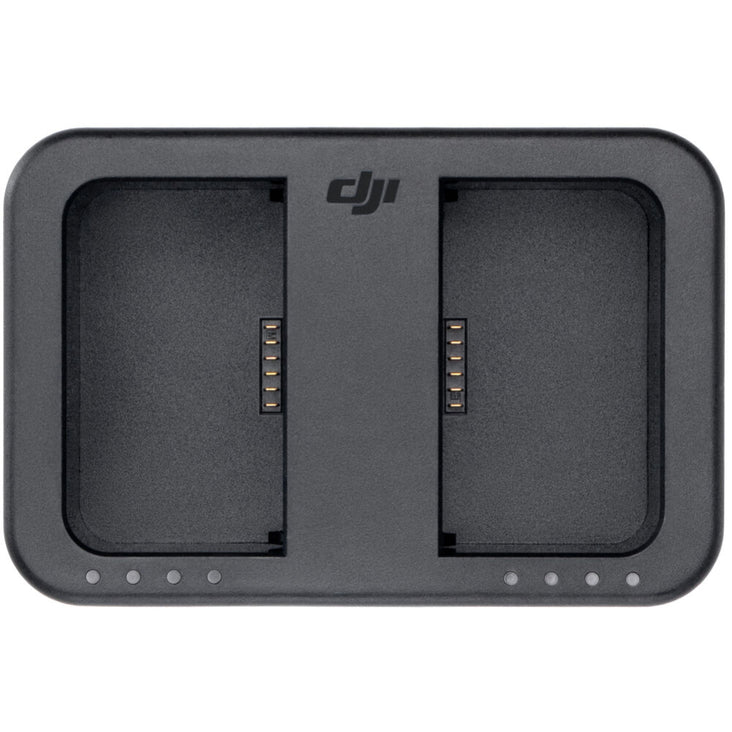

1 x WB37 Battery Charging Hub (USB Type-C)

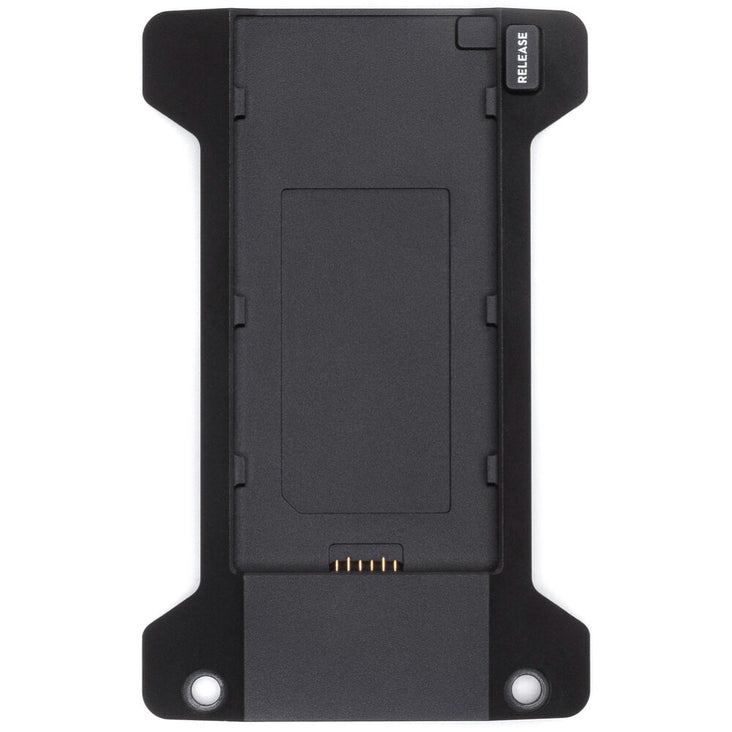

1 x L-Series Battery Adapter (TX)

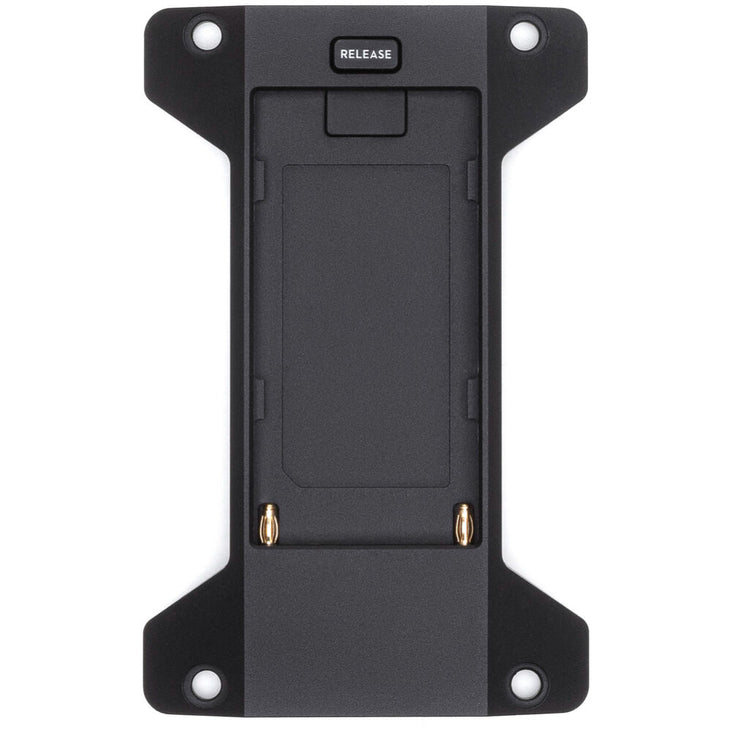

1 x L-Series Battery Adapter (RX)

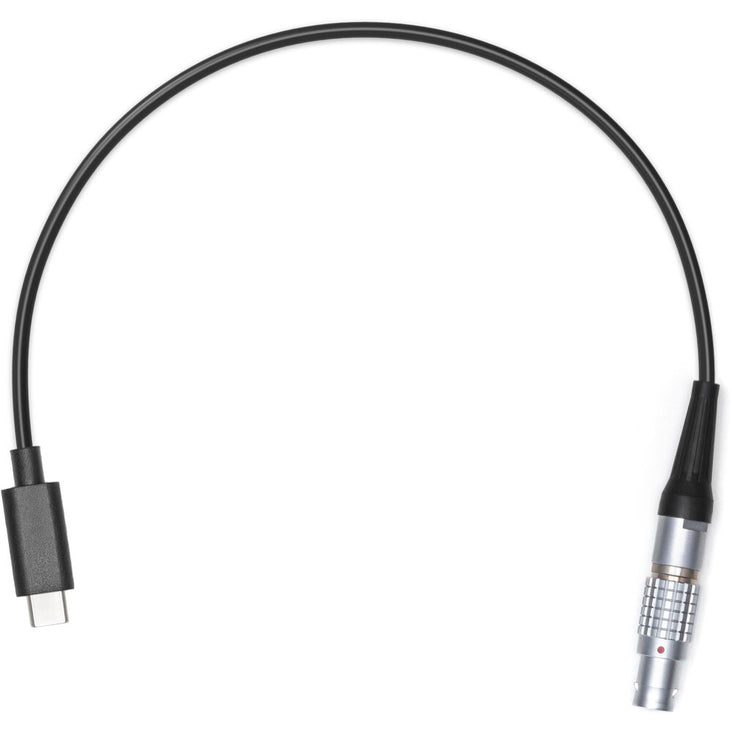

1 x USB Type-C to LEMO Power Cable

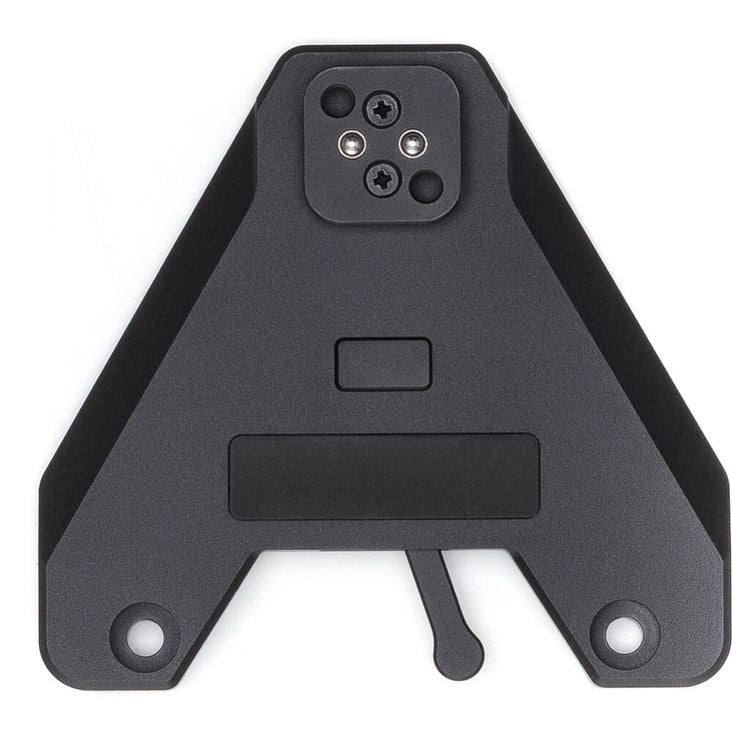

1 x RS Gimbal Mounting Plate
1 x USB Type-C Cable
1 x SDI Cable
1 x DC Power Cable

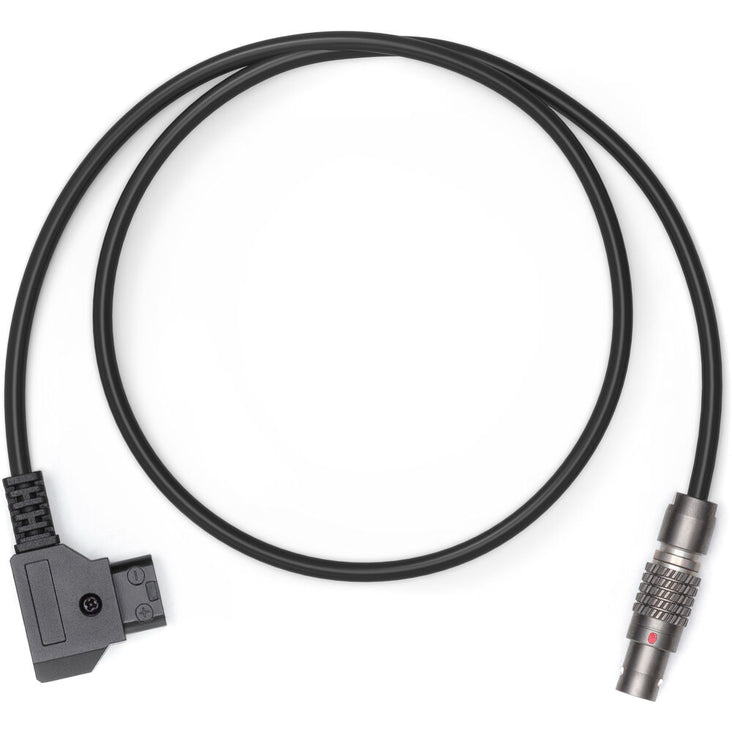

1 x DC to D-Tap Power Cable

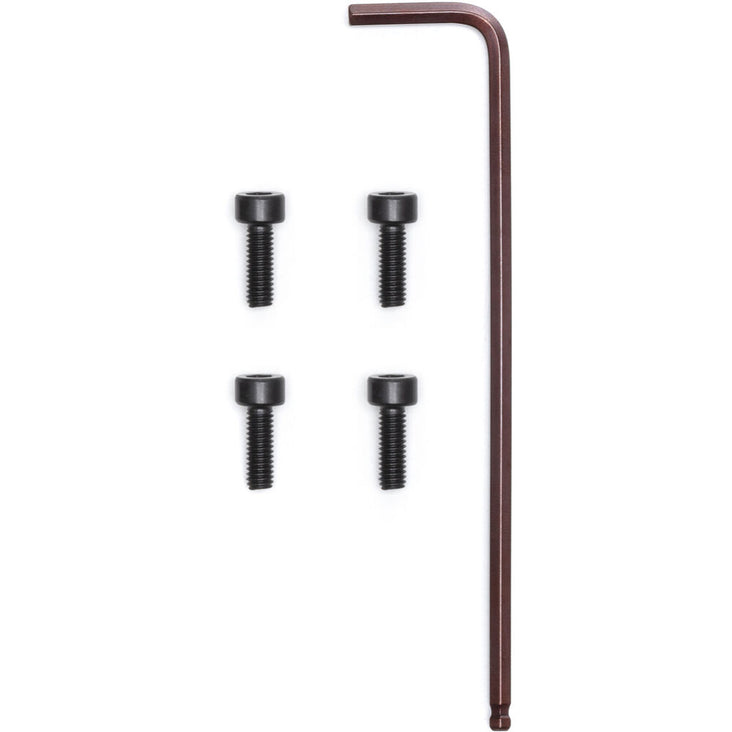

1 x Installation Toolkit
2 x Antenna

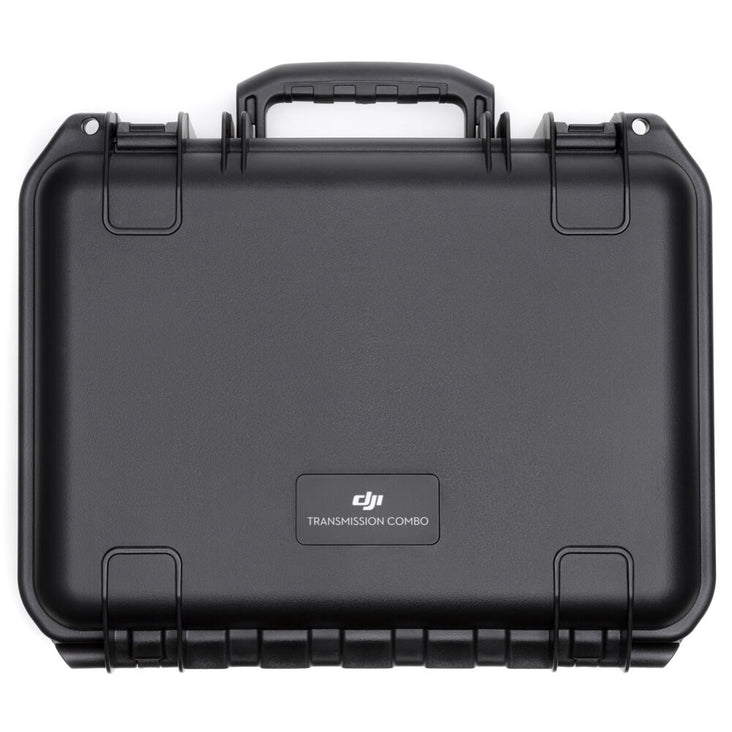

1 x Protector Case
