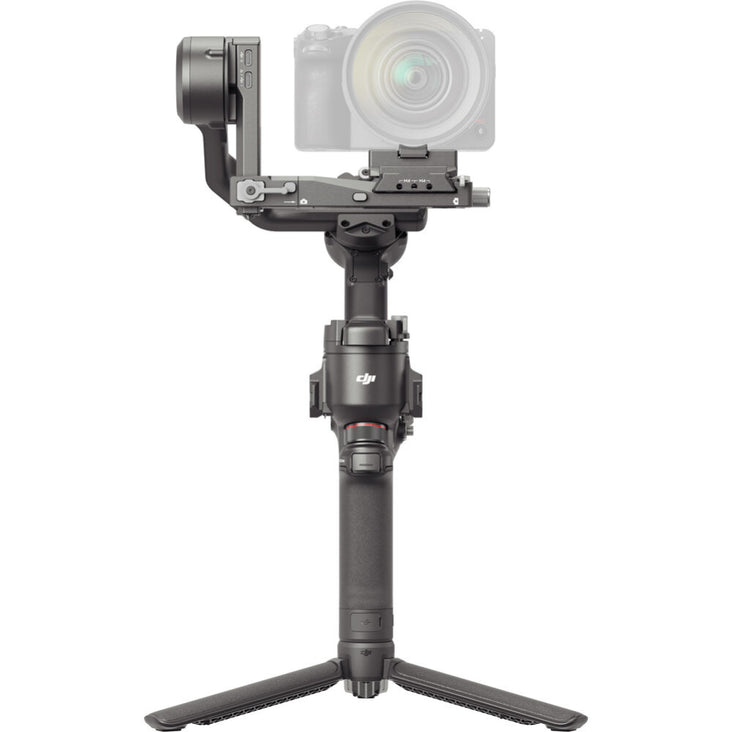

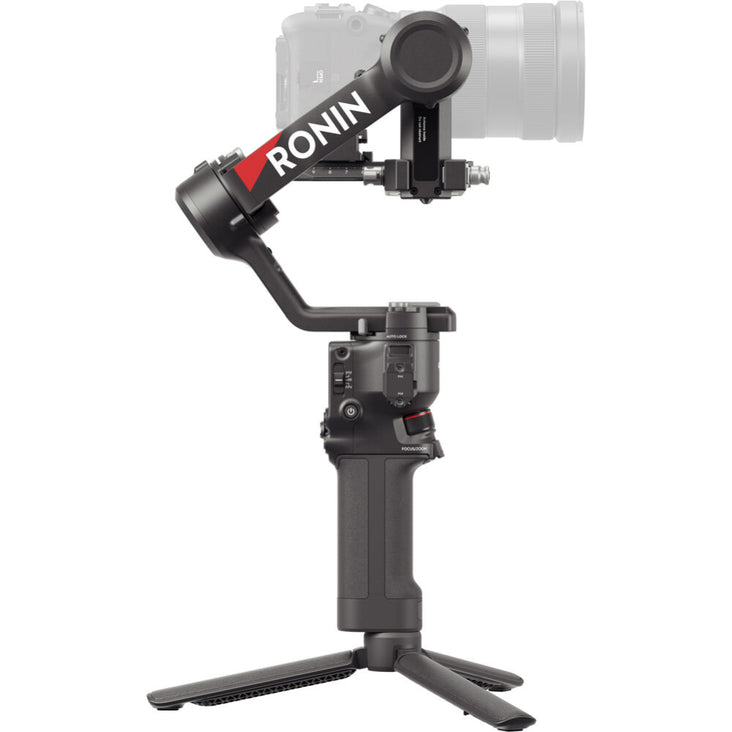

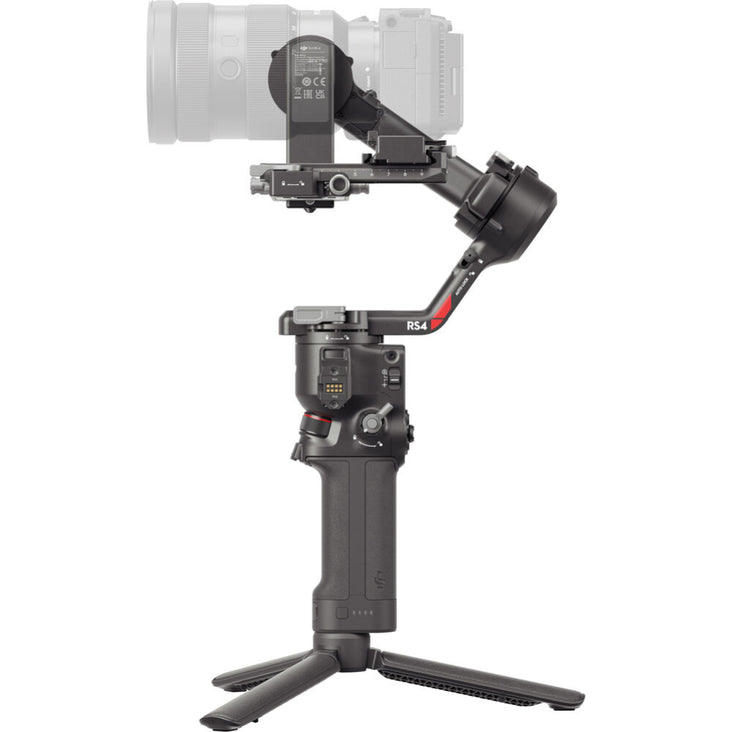

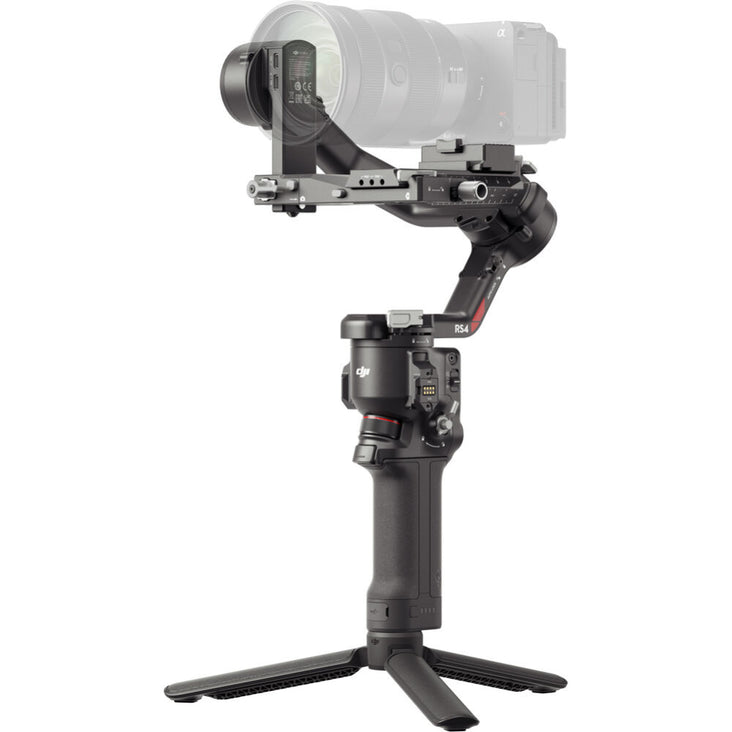

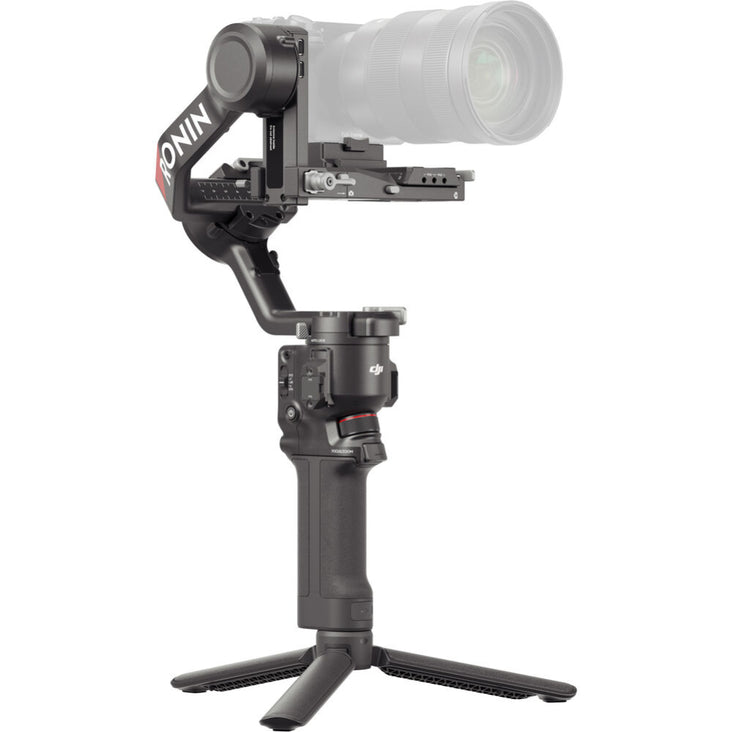

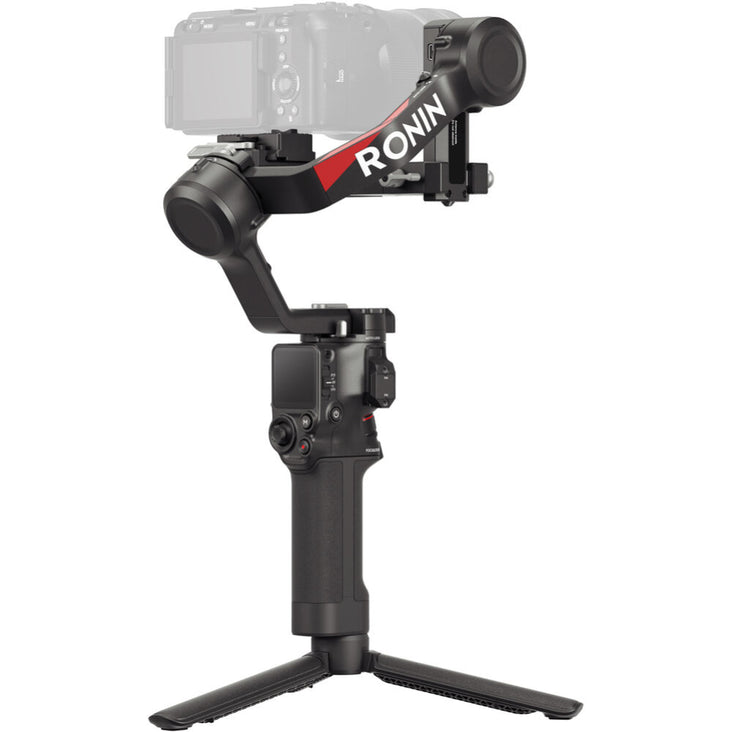

DJI RS 4 Gimbal Stabiliser

Save 1%
$789.00 AUD $799.00 AUD
In stock

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

The DJI RS 4 offers enhanced operational efficiency, native vertical shooting capability, and an expanded accessory ecosystem, making it an indispensable tool for mirrorless camera shooters. Weighing approximately 1 kg and boasting a load capacity of 3 kg, this gimbal can effortlessly support your compact camera setup. Teflon-coated axes reduce friction, ensuring smoother balancing and operation. Intuitive features such as a fine-tuning knob, auto-locking OLED screen, and RSA communication port further enhance usability and flexibility, allowing for seamless integration with expanded accessories.


Second-Generation Quick Release Plate Design

With the familiar dual-layered quick release plates of its predecessor, the RS 4 makes mounting and balancing your camera a breeze. The horizontal plate is newly designed for faster transitions to native vertical shooting. A fine-tuning knob adjusts the tilt axis to move your camera forward or backward. The upper plate has added placement guides for secure camera mounting.


Second-Generation Automated Axis Locks

When the gimbal is powered off, you can press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working in just two seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making a move or storage significantly more efficient. The second iteration of this design has created smaller gaps when locked to further reduce gimbal shake.


RSA Communication Port

The RSA communication port allows you to integrate Ronin series accessories into your gimbal configuration. Add Ronin-specific or third-party accessories with control capabilities to switch between different shooting configurations. The DJI RS SDK protocol will allow third-party manufacturers and other developers to create future customised functions for the RS 4.


Wireless Shutter Control

By implementing Dual-Mode Bluetooth, the RS 4 supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabiliser. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.


New DJI Focus Pro Motor

Pair the RS 4 with the new Focus Pro Motor using the designated USB-C port. The motor features a 30% increased speed and allows you to focus your lens via dial and zoom via joystick.


Integrated Controls

  • By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customisable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started as fast as possible. Other intelligent features include motion-lapse, track, and panorama.
  • The trigger button can be customised to FPV mode, which causes the three axes to follow the direction of the grip's movement when held down.


Fourth-Gen RS Stabilisation Algorithm

Empowered by a next-generation stabilisation algorithm, the RS 4 provided enhanced stability over the RS 3, effortlessly managing vertical shooting, fast-paced movements, and low-angle shots.


Auto-Locking OLED Screen

The RS 4 is equipped with a fixed OLED touchscreen with a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick moves at a low brightness to prevent accidental switching and conserve battery.


Integrated Monitoring and Control

Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience. With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 4 gimbal for more flexible and dynamic camera movements.


Enhanced Battery and Fast Charging

The RS 4 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage. It can even be charged separately from the gimbal. The new battery grip provides an extended runtime of up to 12 hours, enough for continuous shooting all day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 4 powered almost indefinitely.



Specifications

  • Lightweight Design with 3 kg Payload
  • OLED Touchscreen with Auto Lock
  • 2nd Gen Native Vertical Shooting
  • Automated Axis Locks
  • Joystick or Bluetooth Mode Switching
  • Supports Wireless Image Transmitter
  • Teflon-Coated Axes
  • 12-Hour Operation Time
Load Capacity
3 kg
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
  Yaw (Pan): 360°
  Pitch (Tilt): -112 to 214°
  Roll: -95 to 240°
Follow Speed
Pan/Tilt/Roll: 360°/s
Inputs/Outputs
USB-C (Control / Video)
  USB-C (Power)
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
  App Name: Ronin App
Battery Type
Built-In
Battery Capacity
3000 mAh / 21 Wh
Battery Runtime
12 Hours
Battery Charging Time
2.5 Hours
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Voltage
7.2 VDC
Operating Voltage
7.2 VDC
Operating Temperature
-4 to 113°F / -20 to 45°C
Display Type
Fixed Touchscreen OLED
Materials
Aluminium Alloy
Mounting
1/4"-20 Female
  NATO Rail
Dimensions
25.5 x 24.5 x 7.5 cm (Folded)
  37.0 x 19.1 x 18.9 cm
Weight
1.07 kg



What's Included

1 x DJI RS 4 Gimbal Stabiliser
1 x DJI BG21 Grip for RS 3 Gimbal
1 x Quick Release Plate (Arca-Type/Manfrotto)
1 x Extended Grip/Tripod
1 x Lens Support
1 x USB-C Multi-Camera Control Cable (11.8")
1 x USB-C Charging Cable (15.7")
1 x Screw Kit
