Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights


Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

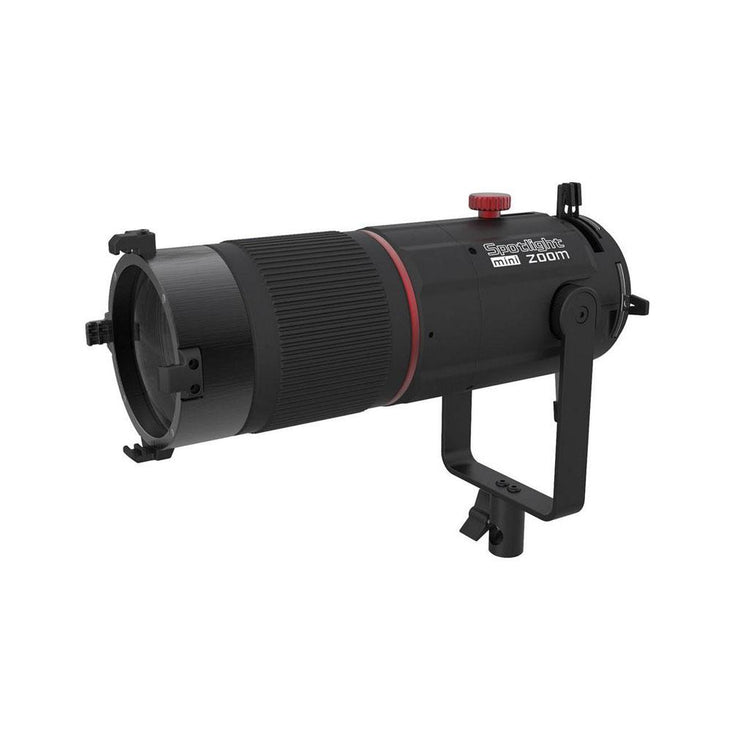

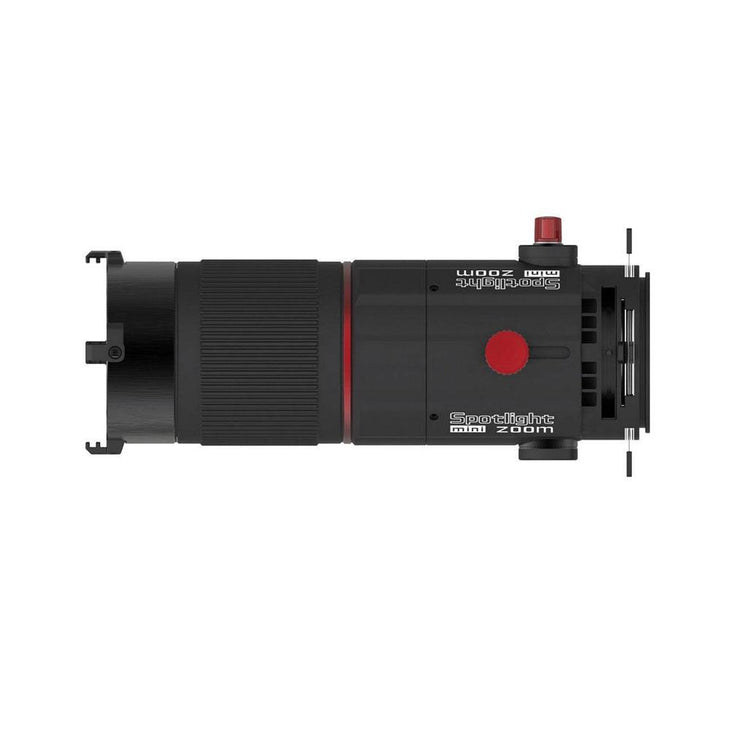

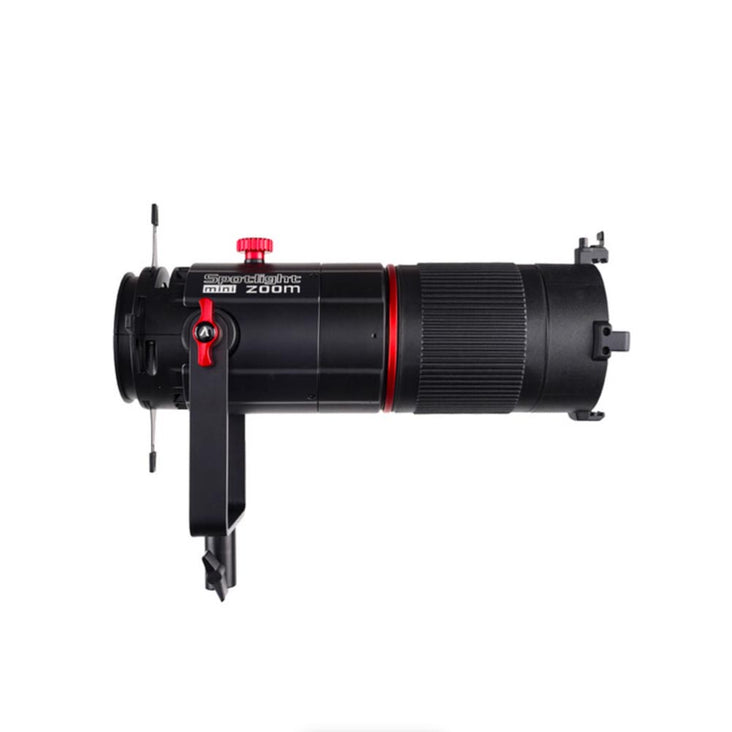

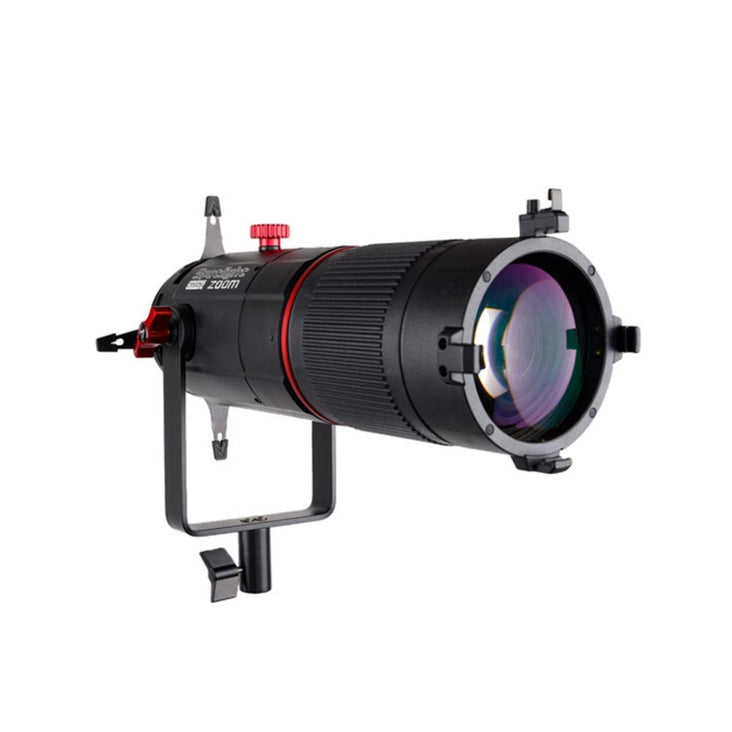

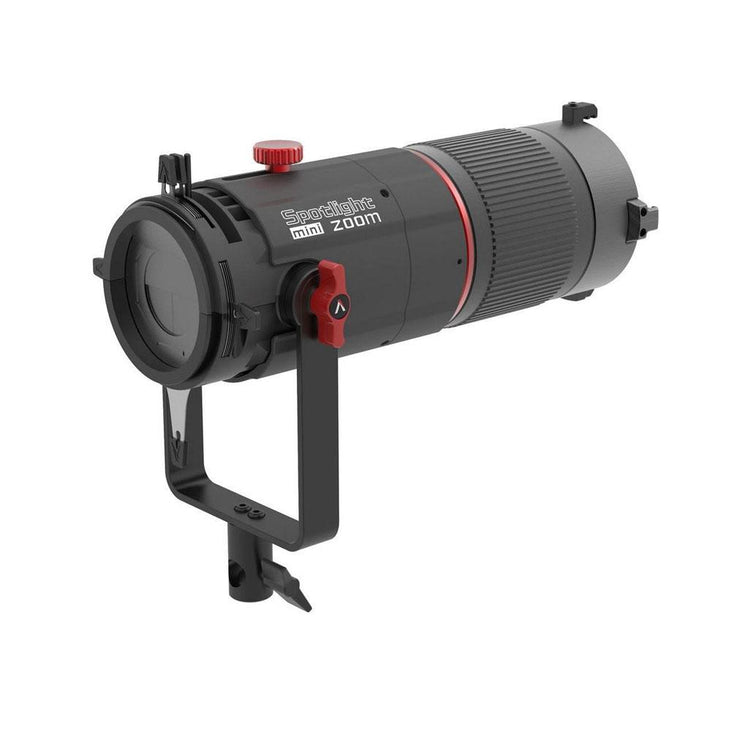

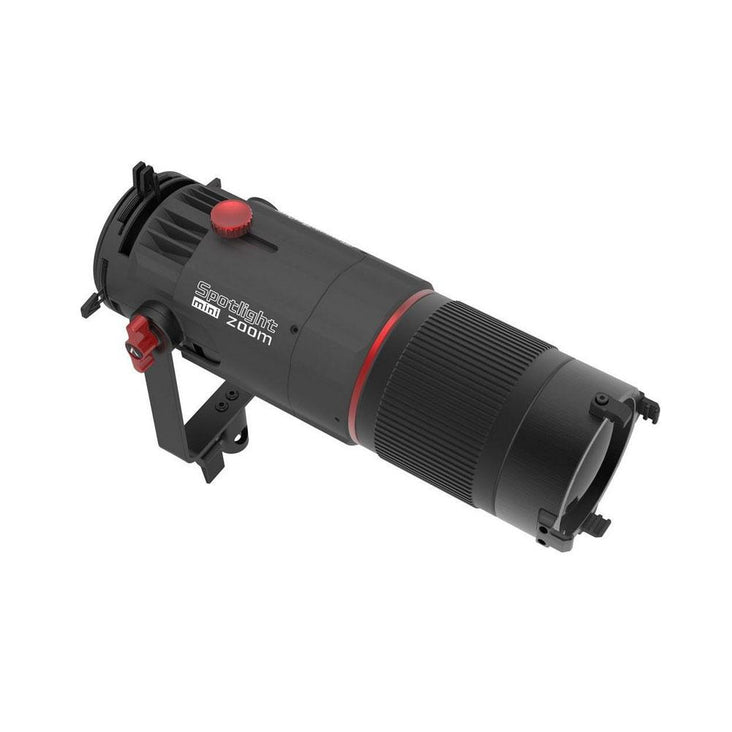

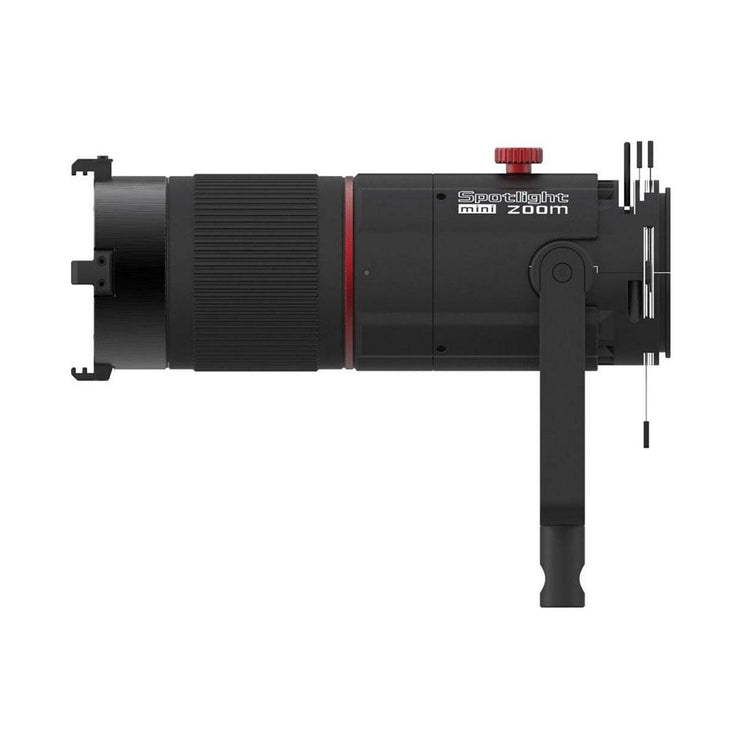

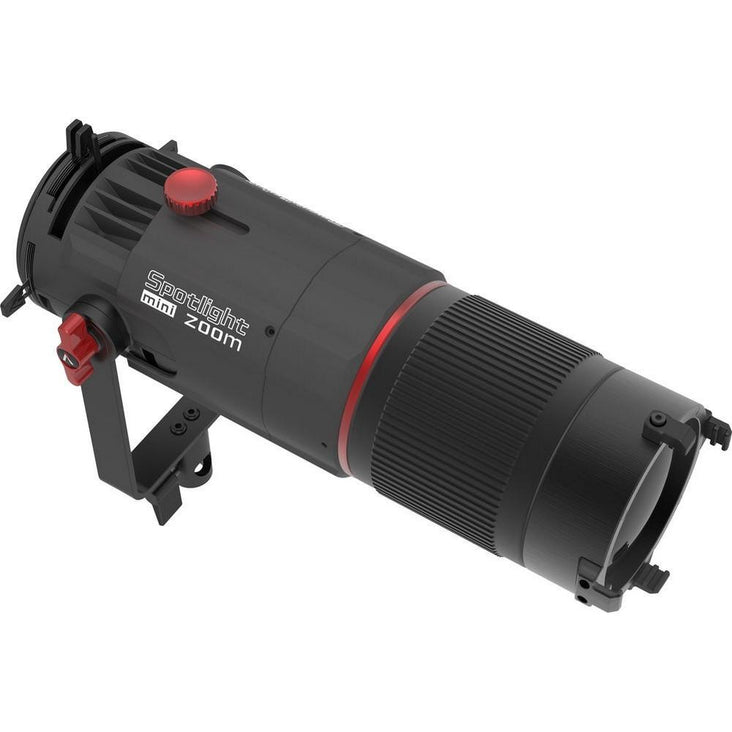

Designed for the LS 60d and 60x LED lights, this Spotlight Mini Zoom from Aputure is a 2X optical projection lens. When mounted to the LS 60d or 60x, the combined fixture gives you the ability to completely redefine the shape of the light output by using the built-in shutters and drop-in iris. The Spotlight Mini Zoom also accepts m-size gobos.

The 2X optical zoom lens can project a beam angle of 15 to 30° and provides a wide range of flexibility with a single tool. At a distance of 16.4' the Spotlight Mini Zoom can project an image circle of 4.6 to 9.2' depending on the zoom setting. The Spotlight Mini Zoom also pairs well with modern reflector technology, focusing the pin-point accuracy of the projection lens onto reflectors for unique lighting designs.


Precision Projection Lens for LS 60 Lights

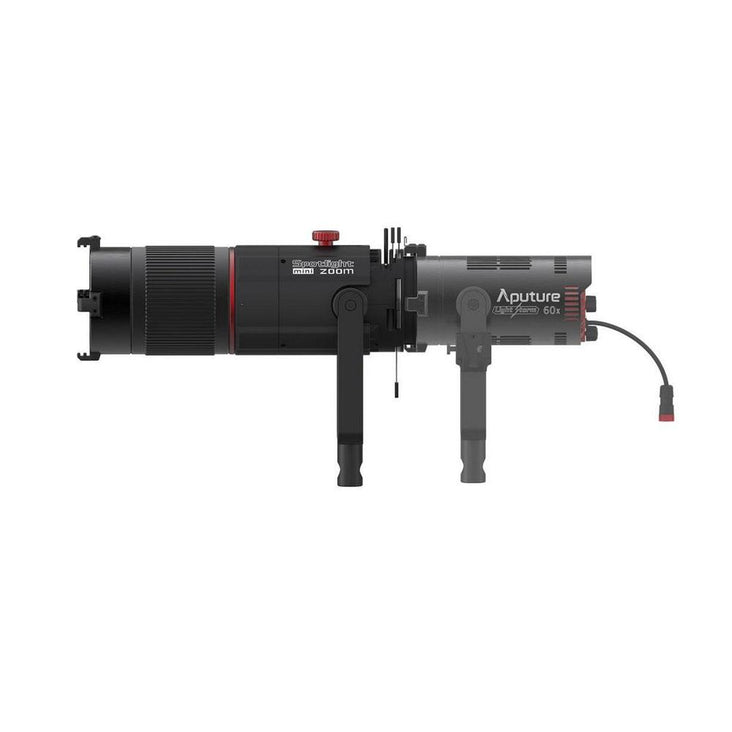

The Spotlight Mini Zoom is an adjustable beam angle projection lens designed for the LS 60d and LS 60x Focusing LEDs. By mounting the LS 60d or 60x onto the Spotlight Mini Zoom, the combined fixture gives users the ability to completely redefine the shape of their lighting.


The zoom functionality allows the Spotlight Mini Zoom to adjust between a 15° to 30° beam spread, giving users an effective 2x zoom range, with an illumination circle with a diameter of 1.4m to 2.8m from 5m away.


Featuring custom-designed Aputure precision optics, the Spotlight Mini Zoom displays immaculate projection quality, with minimal colour fringing, and an over 80% edge-to-edge homogenous light distribution.


Like any proper projection lens for lighting, the Spotlight Mini Zoom is the filmmakers' scalpel, with each blade of its 4-leaf shutter design allowing users to achieve accurate cuts and light shaping.

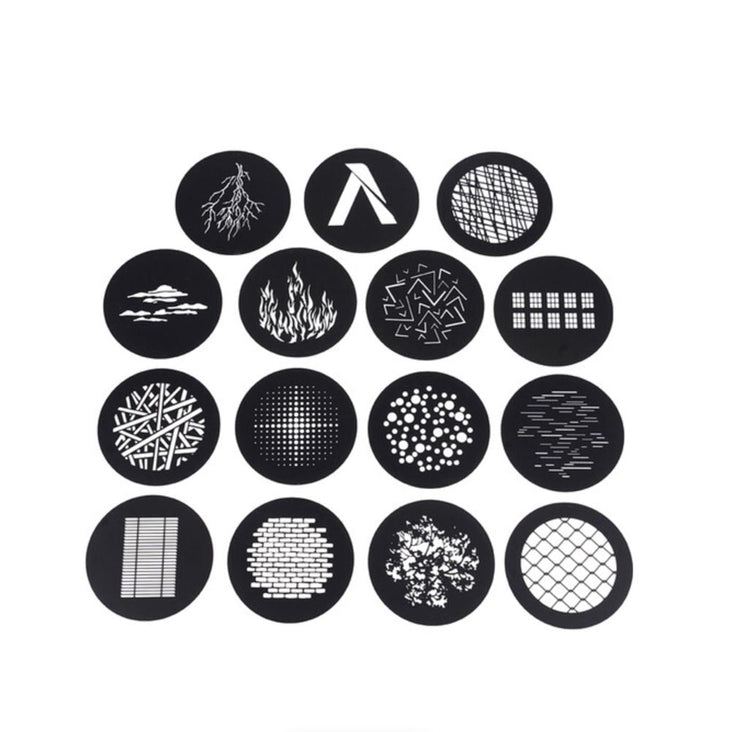

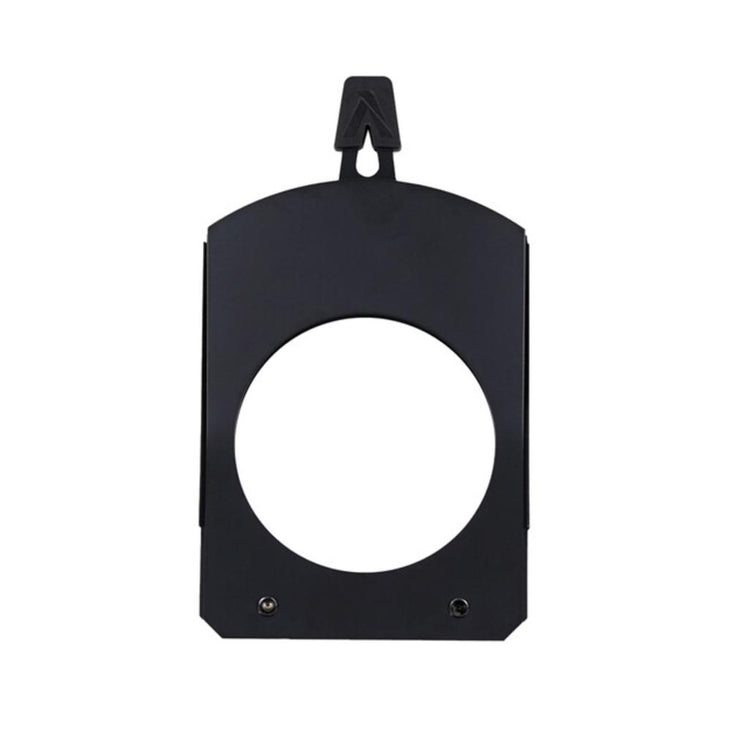

Compatible with M-Size Gobos, the Spotlight Mini Zoom, includes a Gobo holder, and 15 different gobo patterns give filmmakers ultimate flexibility and creativity in their lighting design.

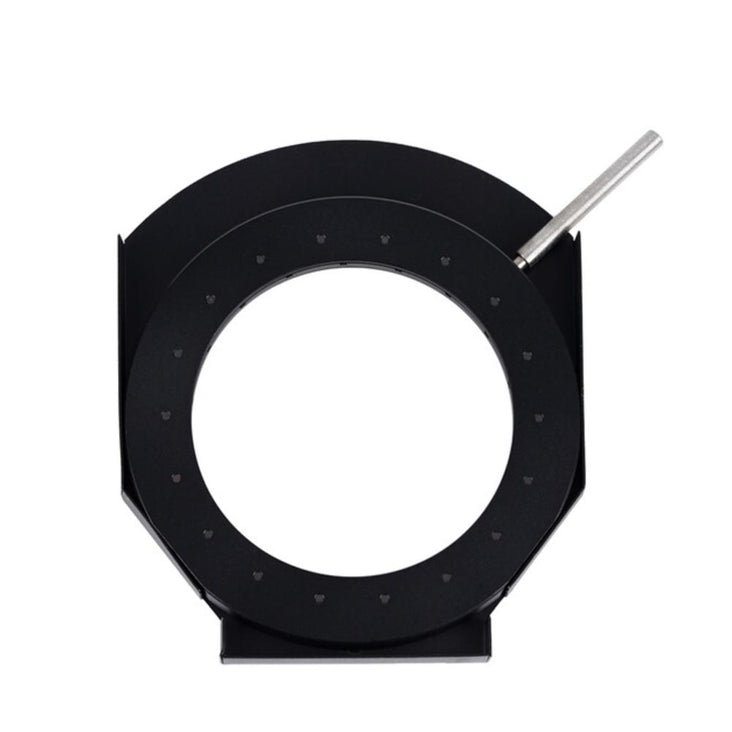

An 18-leaf Iris is an essential addition to the Spotlight Mini Zoom that allows users to further control the size of the illumination circle and tighten the beam spread with incredible ease.

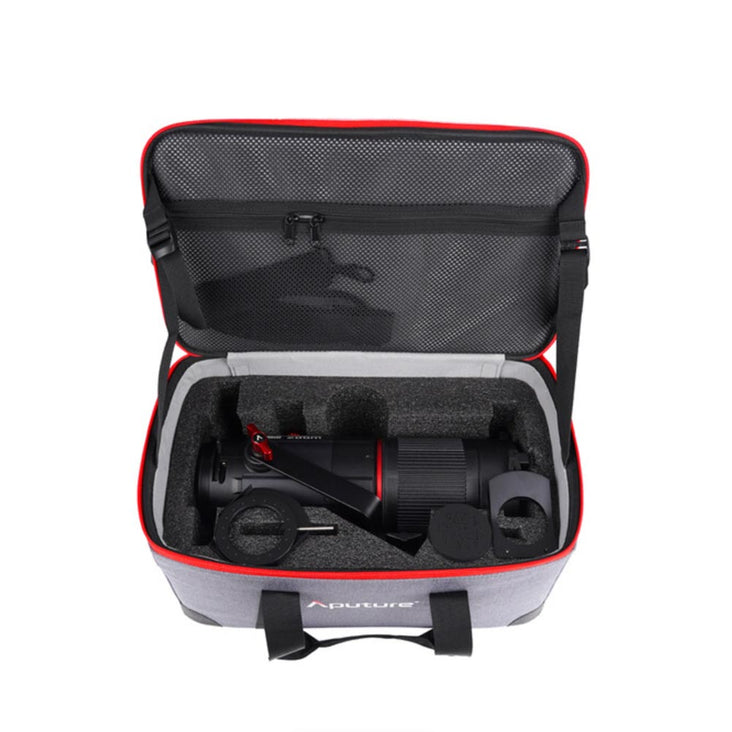

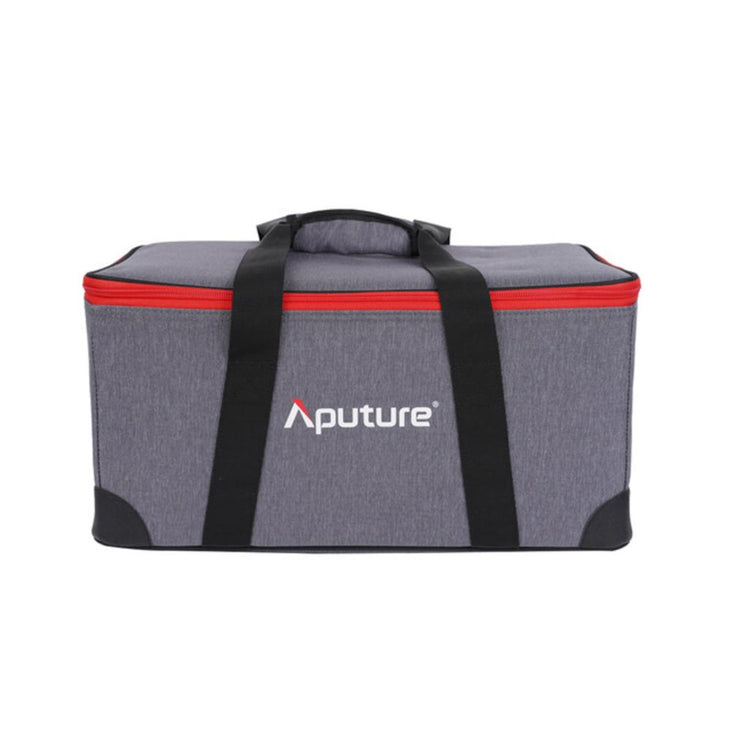

The Spotlight Mini Zoom is packed inside a durable soft carrying case that houses all of its accompanying light shaping tools, making it easy for it to travel with you to any film set.


  • Compatible with LS 60d and 60x adjustable focus LED lights
  • 15 to 30° 2X zoom lens with internal zooming mechanism
  • Precision optics free of chromatic aberration
  • Accepts m-size gobos and includes iris, gobo holder, and 15 m-size gobos
  • Even light distribution with consistent luminance
  • Rosette-style locking yoke
  • Die-cast aluminum construction and electrostatic powder spray for enhanced durability
  • illumination circle with a diameter of 1.4m to 2.8m from 5m away
  • Beam Angle: 15-30
  • Optical Zoom Range: 2X
  • Gobo: Size M-Size
  • Iris Slot Dimensions: 10*87.5*103mm / 0.4*3.4*4.1in
  • Accessory Slot Diameter: 106mm / 4.2in
  • Gel Slot Diameter: 123.5mm / 4.9in
  • Construction Material: Aluminum Alloy


  • Spotlight Mini Zoom w/o Yoke 163.5*163.5*378mm / 6.4*6.4*14.9in
  • Spotlight Mini Zoom with Yoke 170*285*378mm / 6.7*11.2*14.9in
  • Spotlight Mini Zoom Iris 126*87*8.7mm / 5*3.4*0.4in
  • Total with Carrying Case 475*295*255mm / 18.7*11.6*10in


  • Spotlight Mini Zoom w/o Yoke 4095g / 9lbs
  • Spotlight Mini Zoom with Yoke 4400g / 9.7lbs
  • Spotlight Mini Zoom Iris 77g / 0.2lbs
  • Total with Carrying Case 6580g / 14.5lbs


Beam Angle Adjustable 15 to 20°
Optical Zoom 2X
Gobo Size M
Material of Construction Aluminum
Packaging Info
Package Weight 16.135 lb
Box Dimensions (LxWxH) 18.7 x 11.7 x 10"

What's Included

1 x Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
1 x M-size Gobo Holder
1 x 18-Leaf Iris
15 x M-Size Gobos
1 x Carrying Case
