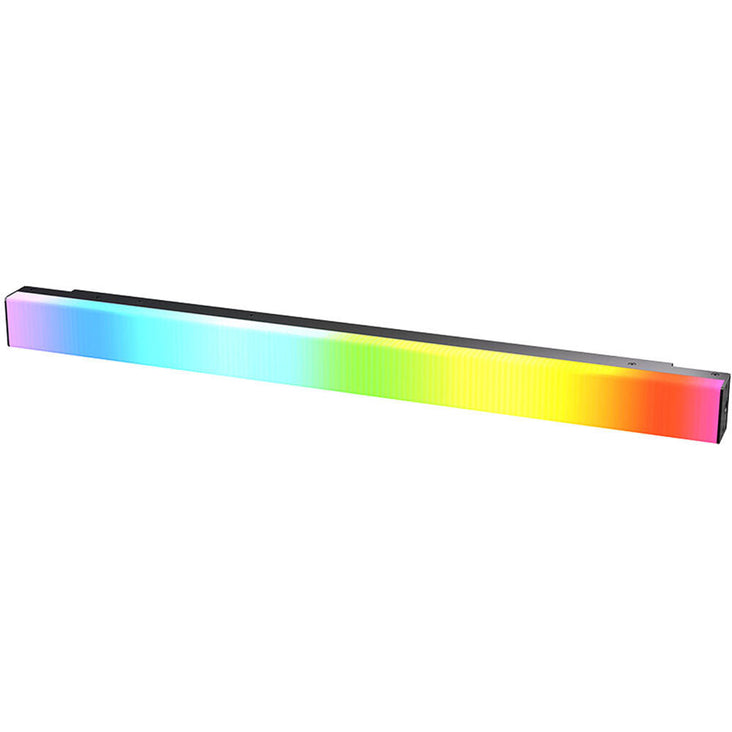

Aputure INFINIBAR PB6 RGBWW LED Light Panel (60cm / 2')


Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

The INFINIBAR PB6 RGB LED Light Panel by Aputure is a versatile and precise lighting solution that is perfect for professionals seeking dynamic and colourful lighting designs. With 48 pixels of CRI 96/TLCI 98 colour accuracy across various colour modes, the INFINIBAR is designed to be a key light, seamlessly integrated into sets, or used with its connector ecosystem to create unique shapes and designs. The unit's exclusive RGBWW chipset delivers colour temperature light ranging from 2000 to 10,000K with full green-magenta adjustment, while advanced controls for hue, saturation, and intensity allow for precise and accurate colour reproduction. Easily connect multiple INFINIBAR panels of any size using up to ten different connectors (sold separately), and synchronize them effortlessly through the Sidus Link app, LumenRadio CRMX, or wired DMX with the optional USB-C to DMX adapter.

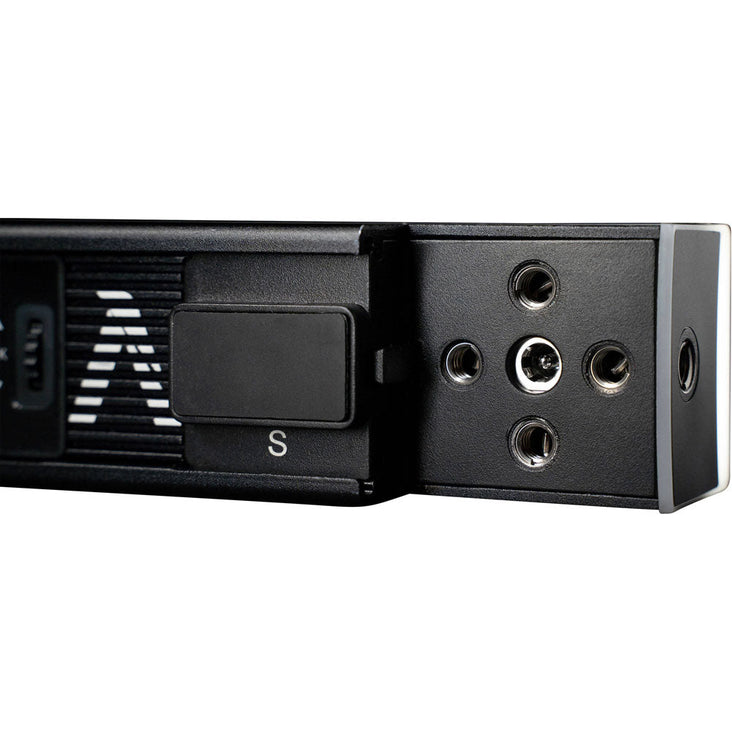

Weighing a mere 2.2 lb, the INFINIBAR features a durable aluminium housing that can be easily mounted using the included Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, or the Straight Connector for the INFINIBAR Rail system.


  • 2' (60cm) panel light with a 14W output and proprietary RGBWW chipset consisting of 48 individual pixels (or lighting zones)
  • The illuminance of 328 lux at a colour temperature of 6500K
  • Smooth and precise brightness control ranging from 0 to 100% in increments of 0.1%
  • Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
  • Seven-pixel effects: Color Fade, Color Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire

Colour Features

  • Fully adjustable correlated colour temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
  • Meets high colour standards with CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
  • Advanced HSI controls allow for precise white point CCT control, industry-standard xy (CIE 1931) colour space, RGB colour selection, 300+ gel presets, and accurate reproduction of over 90% of colours within the Rec.2020 colour space

Power Options

  • AC adapter included for continuous power supply
  • Built-in 29.6Wh lithium battery provides up to 100 minutes of operation at maximum output
  • Smart Battery Life Mode offers adjustable runtime options of 2, 4, 6, and 8 hours
  • Share AC power across multiple INFINIBARs using the connector ecosystem

Connectivity and Control

  • Enjoy multiple control methods including the Sidus Link App, LumenRadio CRMX, or DMX/RDM via a separate USB-C cable

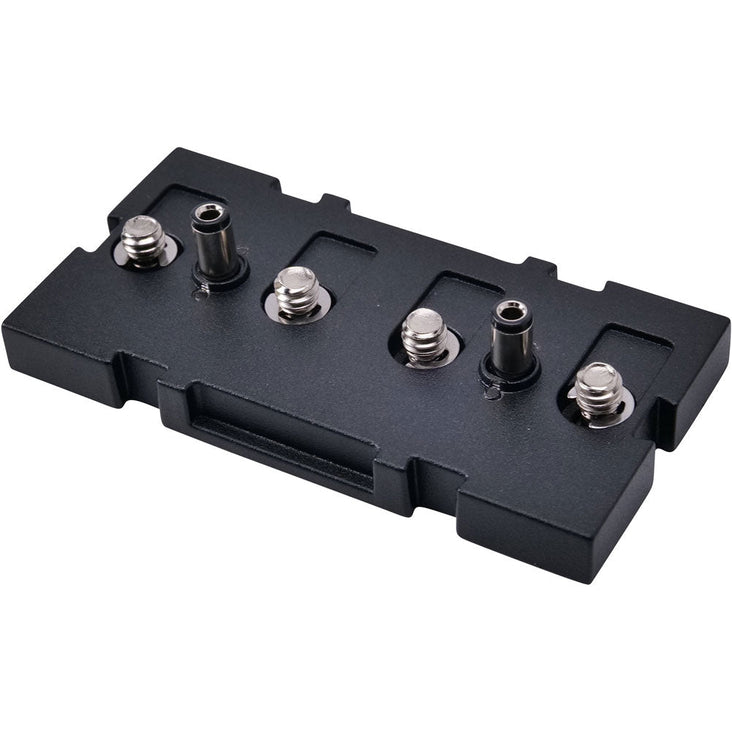

  • The package includes a Straight Connector, and additional splicing connectors (sold separately) are available, including triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D

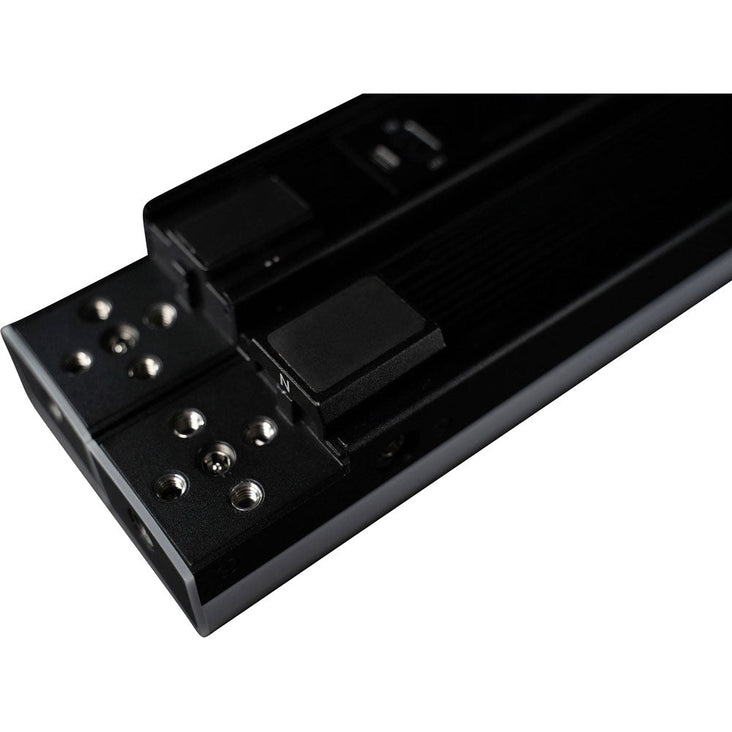

  • The infinite blending design ensures minimal visible gaps when connecting multiple lights
  • Mounting options include the Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system.
    Light Fixture
    Item Type 1 x LED Light Panel
    Included Storage Case 1 x Case
    Lumens 1110
    Photometrics 2000K
    18 fc / 200 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    26 fc / 282 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    26 fc / 288 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    27 fc / 301 Lux at 3.3' / 1 m*
    29 fc / 317 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    30 fc / 328 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    30 fc / 328 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    26 fc / 288 Lux at 3.3' / 1 m*

    *Standardized Measurement Supplied by the Manufacturer
    Colour Temperature 2000 to 10,000K
    Colour Modes RGB, Daylight, Tungsten
    Colour Accuracy Standard CRI 96
    TLCI 98
    SSI 74 at 5600K
    SSI 85 at 3000K
    TM-30 Rf 94
    TM-30 Rg 100
    Cooling System Passive
    Dimming Yes, Built-In Dimmer
    Expected Lamp Life 50,000 Hours
    Beam Angle 120°
    Built-In Flash No
    Umbrella Mount No
    Front Accessory Mount None
    Wireless Remote Control Type Bluetooth
    Wireless CRMX (LumenRadio)
    Mobile App Compatible Yes: Android & iOS
    App Name: Sidus Link
    *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
    Wireless Channels None
    Wireless Groups None
    Wireless Range 262.5' / 80 m (Bluetooth)
    Power & I/O
    Power Source AC Power (Cable Included)
    Battery (Built-In)
    Battery 1 x Proprietary Lithium (Built-In)
     • Up to 100-Minute Runtime at 100% Brightness
     • 120-Minute Charge Time
    Battery Charging AC to DC Adapter (Included)
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.5 A
    DC Input Power 24 VDC at 0.9 A
    Included Adapter / Cable 1 x Edison Plug to Barrel / Coax AC to DC Adapter
    Inline Switch No
    Power Pass-Thru No
    Power Consumption 18 W
    Fixture Mounting Support Mount
    2 x 1/4"-20 Female Thread
    Water Resistance None
    Display None
    Dimensions 23.8 x 1.8 x 1.7" / 60.4 x 4.5 x 4.3 cm
    Weight 2.2 lb / 1 kg (Fixture)

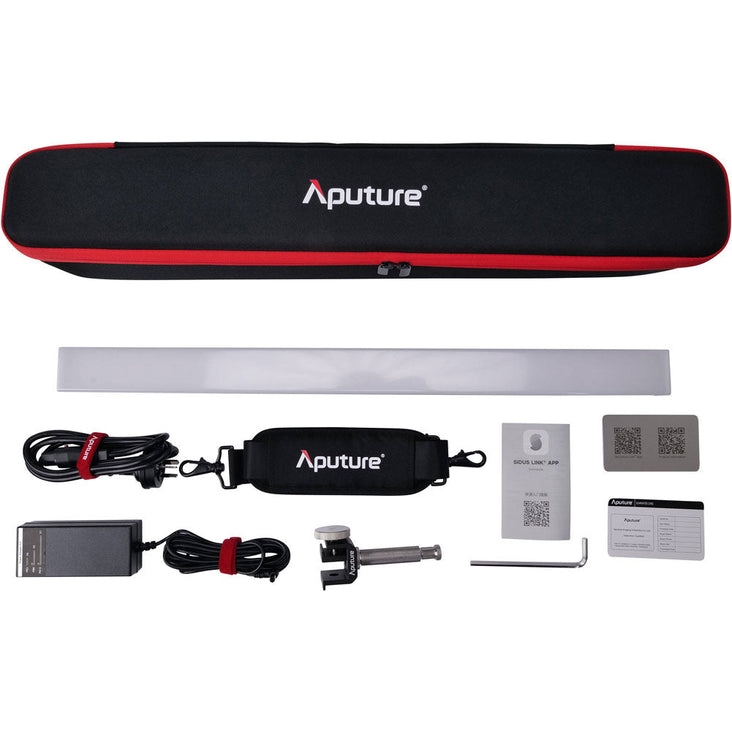

    What's Included

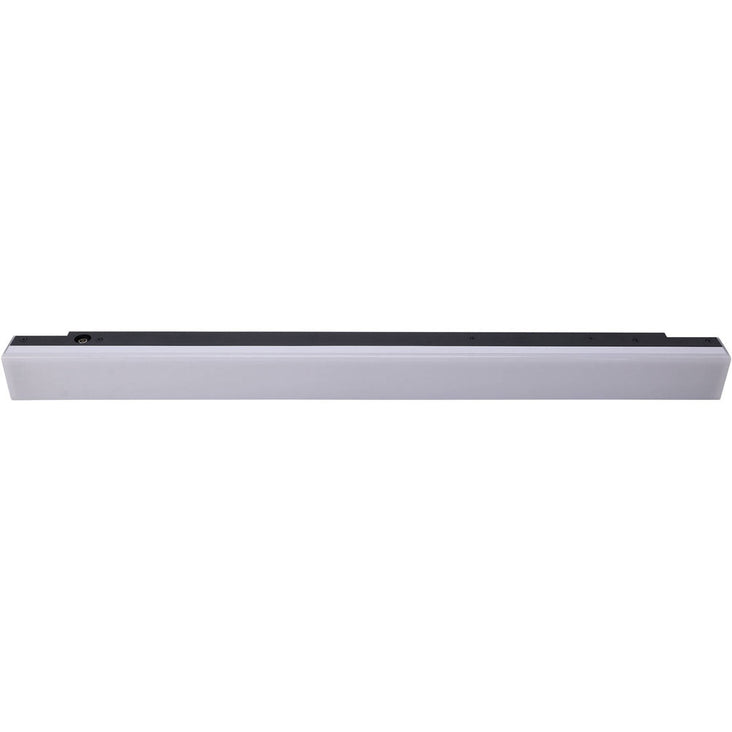

    1x Aputure INFINIBAR PB6 RGB LED Light Panel (60cm / 2')

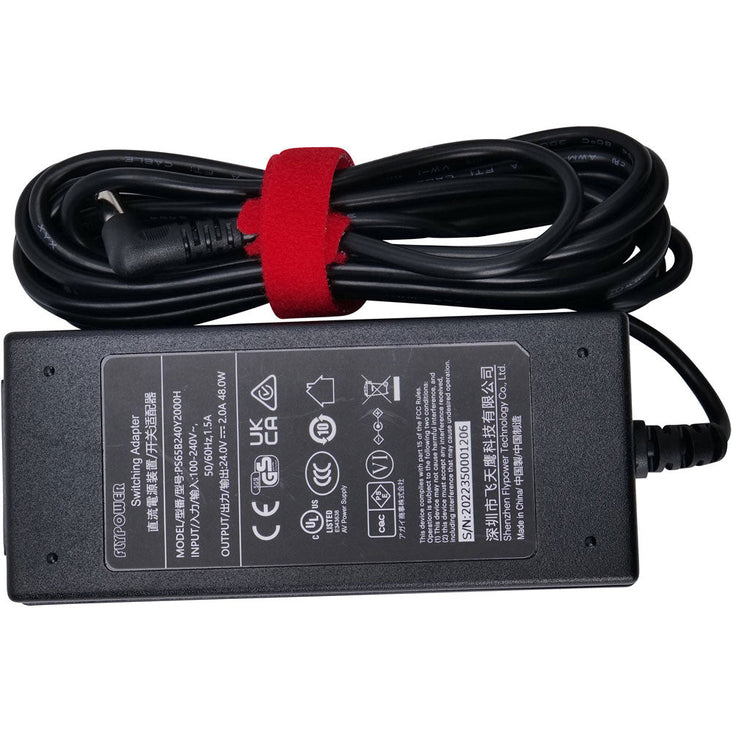

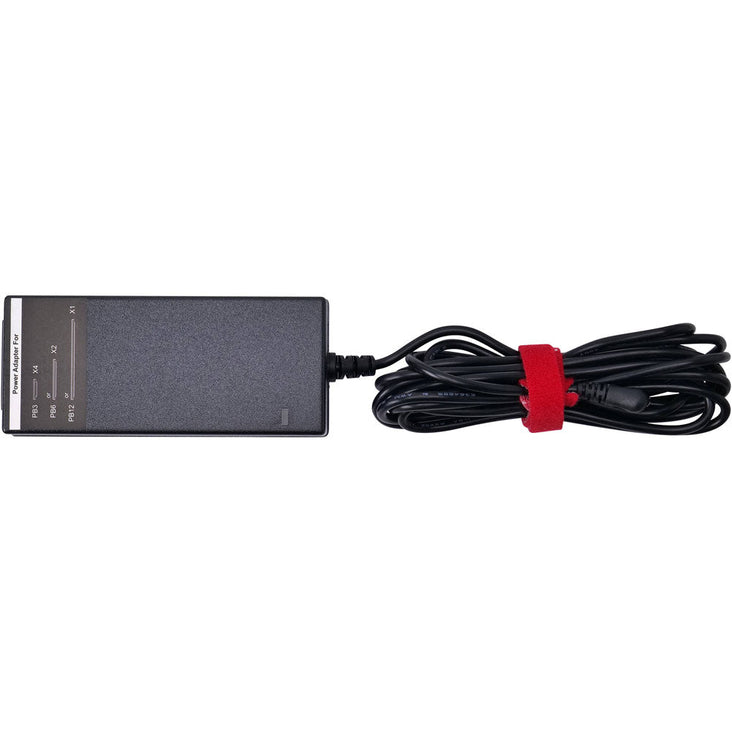

    1x DC Power Adapter (9.8')

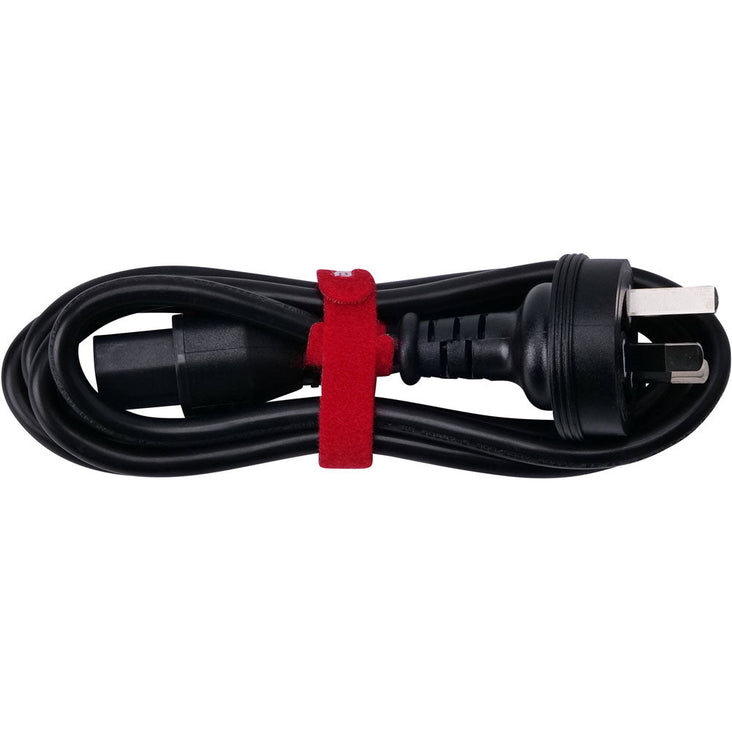

    1x AC Locking Power Cable (4.9')

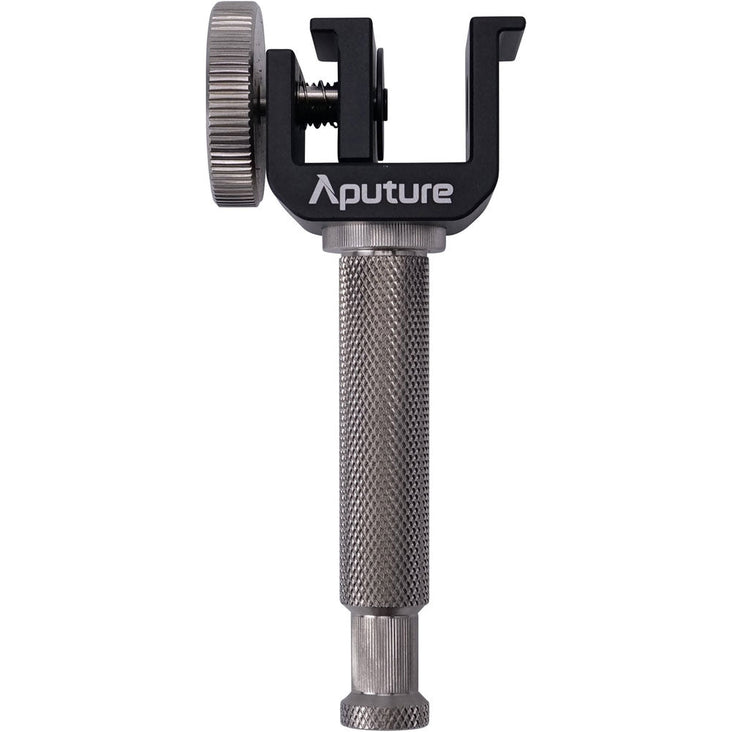

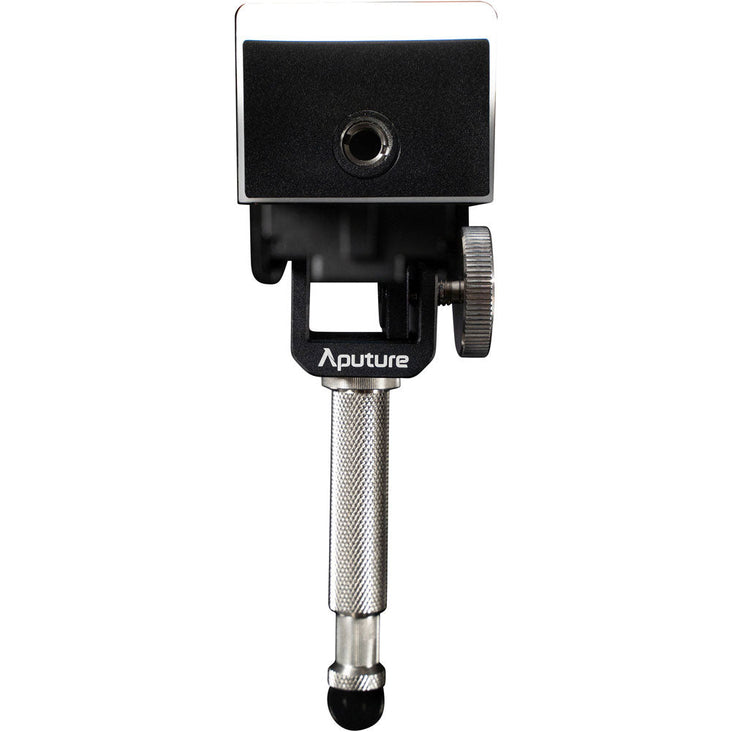

    1x Clamp to Baby Pin Adapter
    1x 2 x Magnetic Spacer

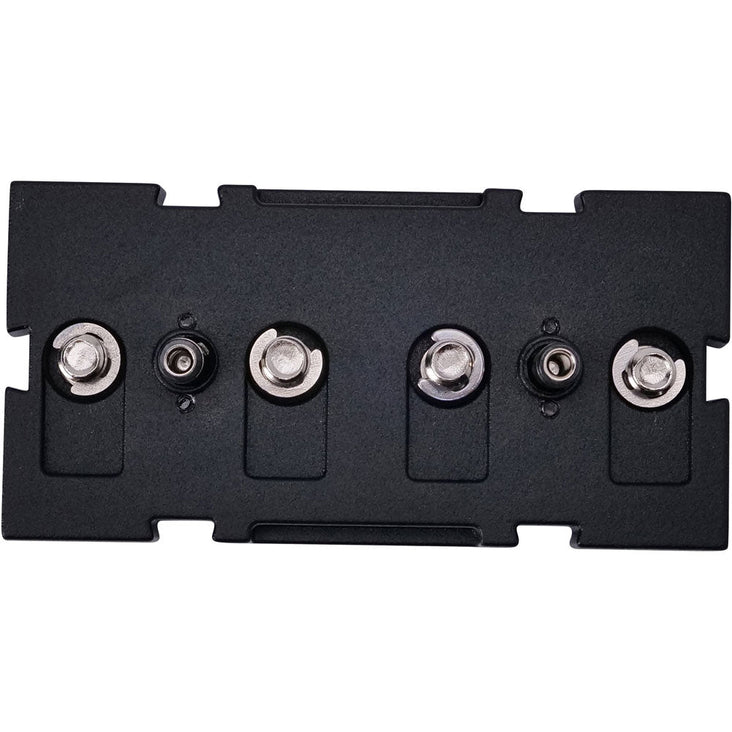

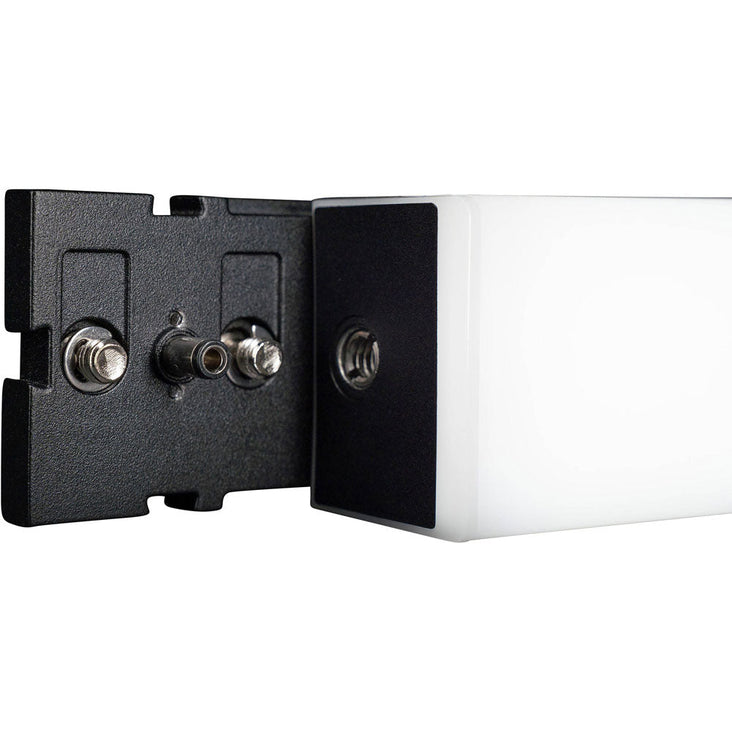

    1x Straight Connector

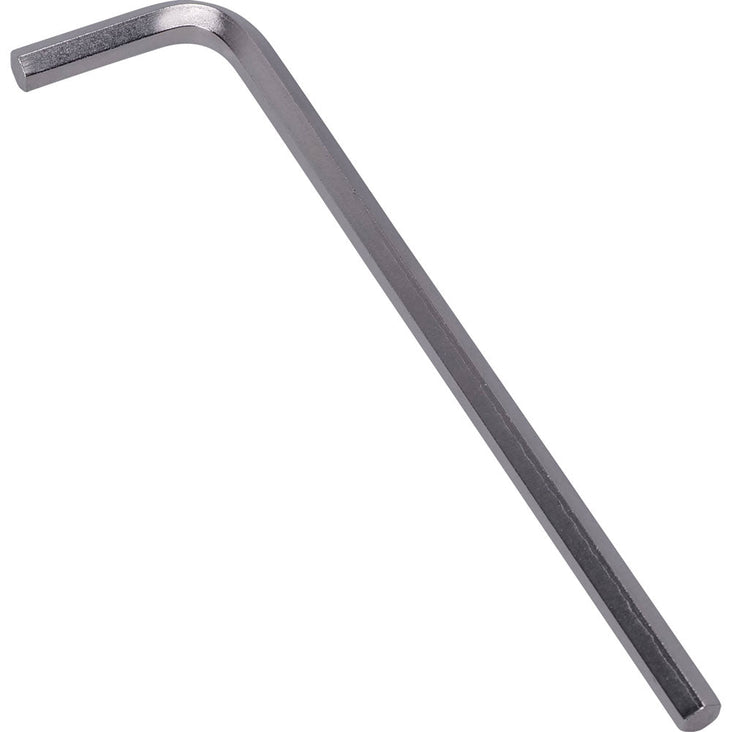

    1x Hex Wrench

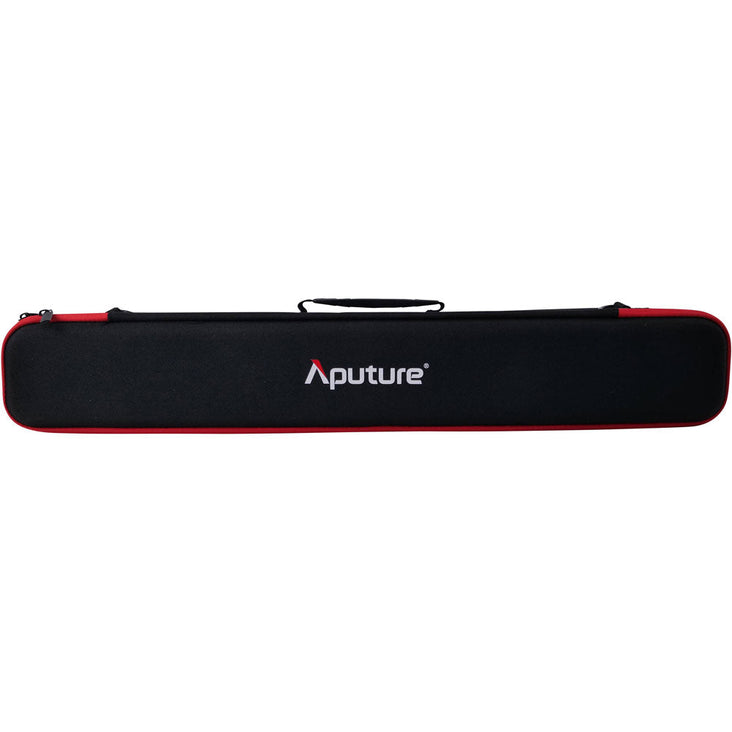

    1x Carrying Case
