Aputure INFINIBAR PB12 RGBWW LED Light Panel (120cm / 4')

Backorder
$869.99 AUD $949.99 AUD
Backorder: Expected in 10-14 days

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

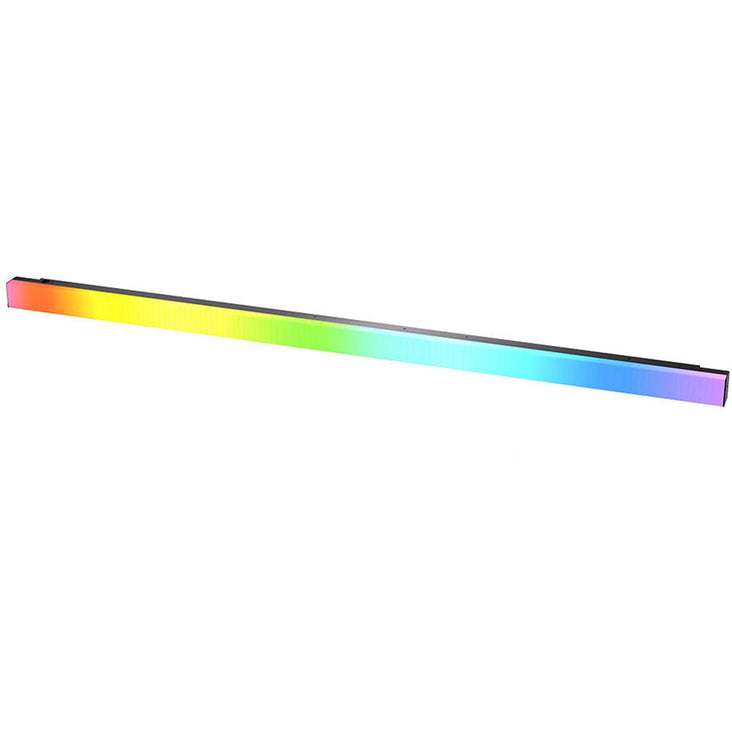

Versatile and precise, the INFINIBAR PB12 RGB LED Light Panel from Aputure is a professional choice for dynamic and colourful lighting designs. Featuring 96 pixels of CRI 96/TLCI 98 colour quality throughout its multiple colour modes, the INFINIBAR is designed to be a key light, built directly into sets, or used with its connector ecosystem to create new shapes and designs. The unit's proprietary RGBWW chipset produces colour temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colours. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronise them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.

Lightweight at 1.95 kg, the INFINIBAR features a durable aluminium housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 80 minutes or via the included AC adapter. Alternatively, multiple units can share one power supply when linked together with the power-sharing connectors.

Output

  • 120cm 27W panel light with proprietary RGBWW chipset and 96 individual pixels (or lighting zones)
  • 617 lux at 7500K
  • 0 to 100% brightness control at increments of .1%
  • Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
  • Seven-pixel effects: Colour Fade, Colour Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire


Colour

  • Fully tunable correlated colour temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
  • High colour standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
  • Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colours within Rec.2020 colour space


Power

  • AC adapter included
  • Built-in 59.2Wh lithium battery lasts up to 80 minutes at maximum output
  • Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
  • Share AC Power over multiple INFINIBARs with connector ecosystem


Connect and Control

  • Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately

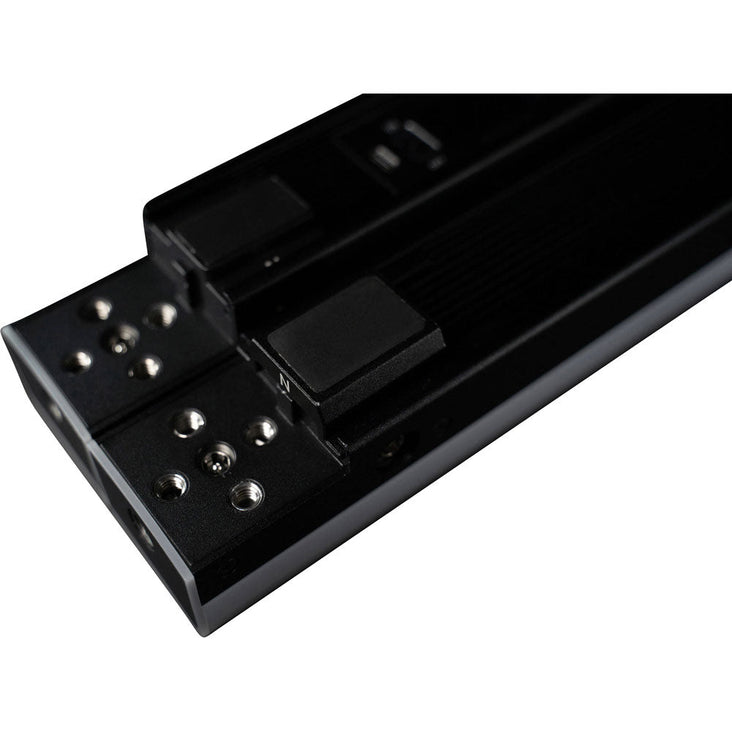

  • Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)
  • Infinite blending design to reduce visible gaps when connecting multiple lights

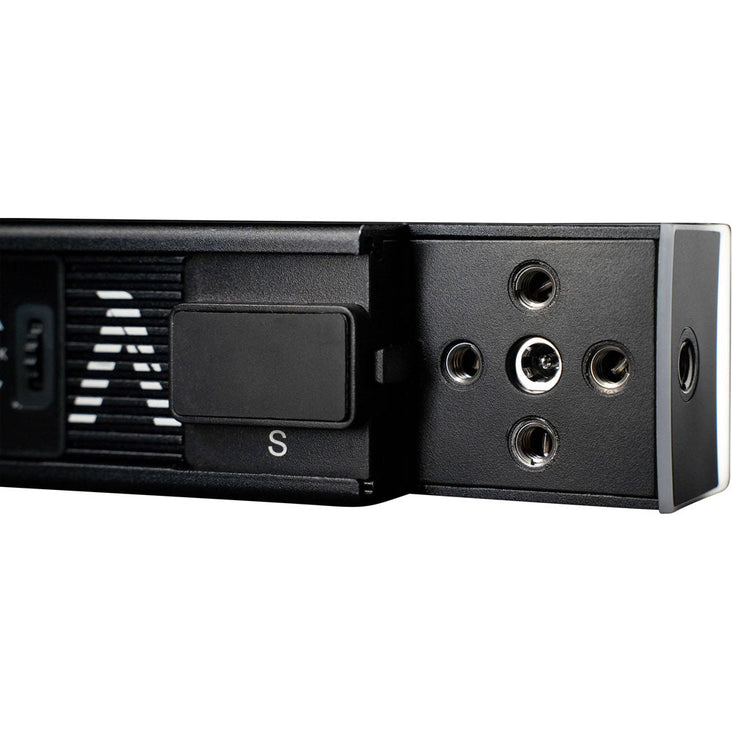

  • Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
Light Fixture
Item Type 1 x LED Light Panel
Included Storage Case 1 x Case
Lumens 2077
Photometrics 120° at 3200K:
50 fc / 542 Lux at 3.3' / 1 m
130 fc / 1410 Lux at 1.6' / 0.5 m
120° at 5600K:
55 fc / 593 Lux at 3.3' / 1 m
148 fc / 1600 Lux at 1.6' / 0.5 m
Colour Temperature 2000 to 10,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 96
TLCI 98
SSI 74 at 5600K
SSI 85 at 3000K
TM-30 Rf 94
TM-30 Rg 100
Cooling System Passive
Dimming Yes, Built-In Dimmer
Expected Lamp Life 50,000 Hours
Beam Angle 120°
Built-In Flash No
Umbrella Mount No
Front Accessory Mount None
Connectivity
Wireless Remote Control Type Bluetooth
Wireless CRMX (LumenRadio)
Mobile App Compatible Yes: Android & iOS
App Name: Sidus Link
*As of February 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels None
Wireless Groups None
Wireless Range 262.5' / 80 m (Bluetooth)
Power & I/O
Power Source AC Power (Cable Included)
Battery (Built-In)
Battery 1 x Proprietary Rechargeable Lithium (Built-In)
 • Up to 80-Minute Runtime at 100% Brightness
 • 150-Minute Charge Time
Battery Charging AC to DC Adapter (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power 24 VDC at 1.8 A
Included Adapter / Cable 1 x Edison Plug to Barrel / Coax AC to DC Adapter
Inline Switch No
Power Pass-Thru No
Power Consumption 36.5 W
Mounting
Fixture Mounting Support Mount
2 x 1/4"-20 Female Thread
Environmental
Environmental Protection None
General
Display None
Dimensions 47.4 x 1.8 x 1.7" / 120.4 x 4.5 x 4.3 cm (Fixture)
Weight 4.32 lb / 1.96 kg (Fixture)
Packaging Info
Package Weight 11.5 lb
Box Dimensions (LxWxH) 50.5 x 5.25 x 5"

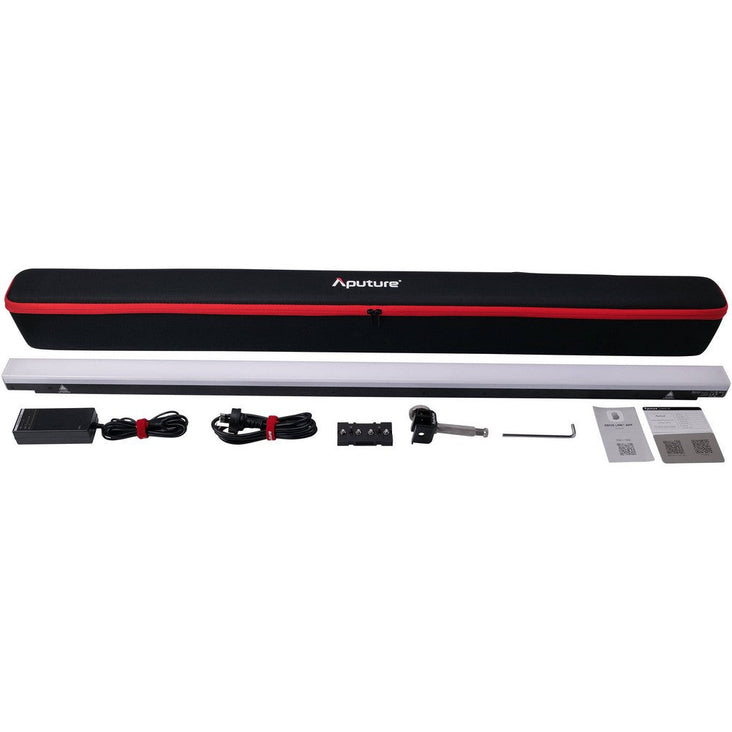

What's Included

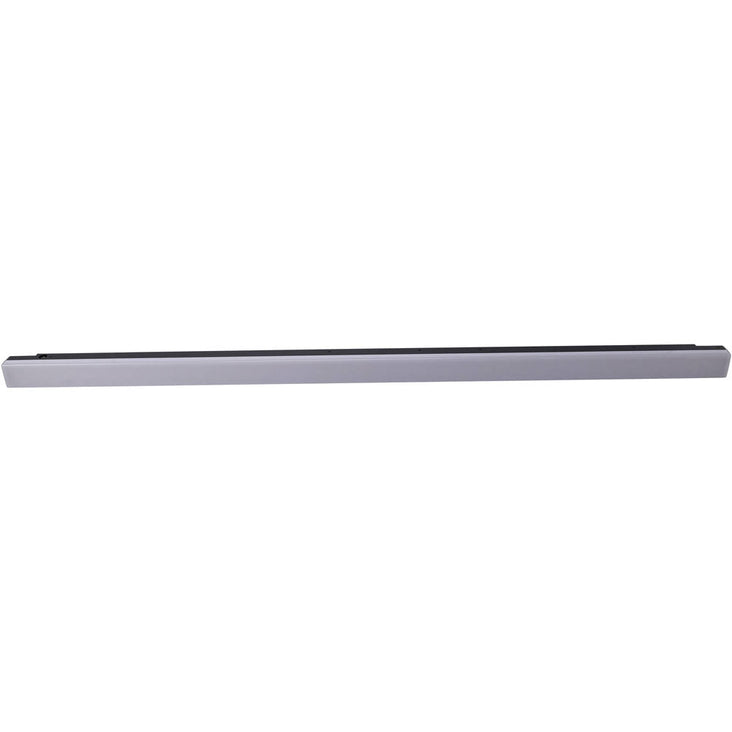

1x Aputure INFINIBAR PB12 RGB LED Light Panel (4')

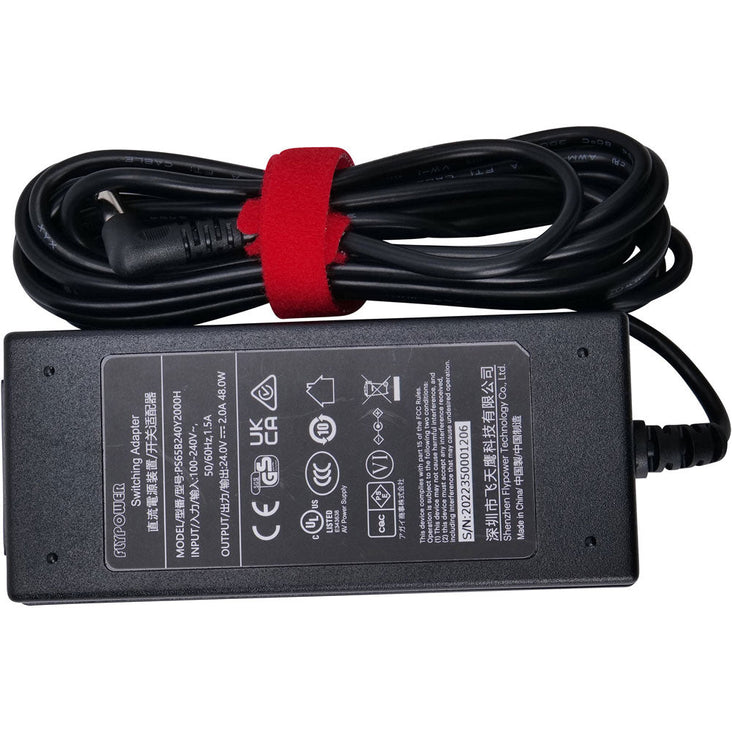

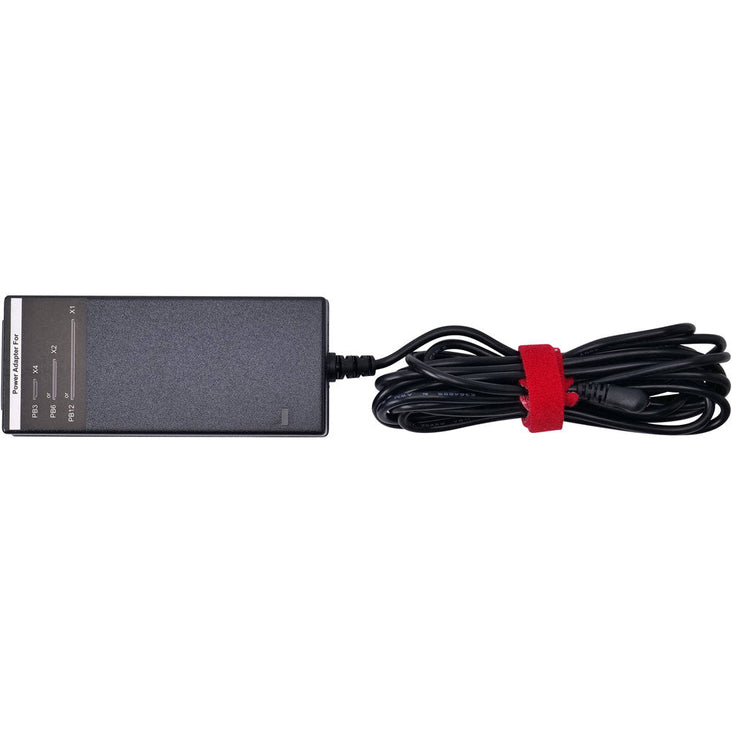

1x DC Power Adapter (9.8')

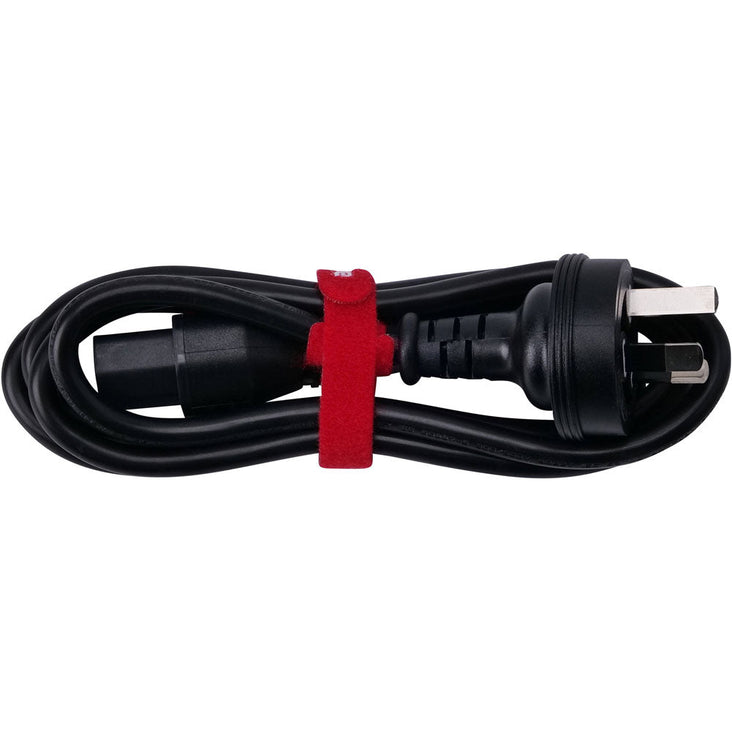

1x AC Locking Power Cable (4.9')

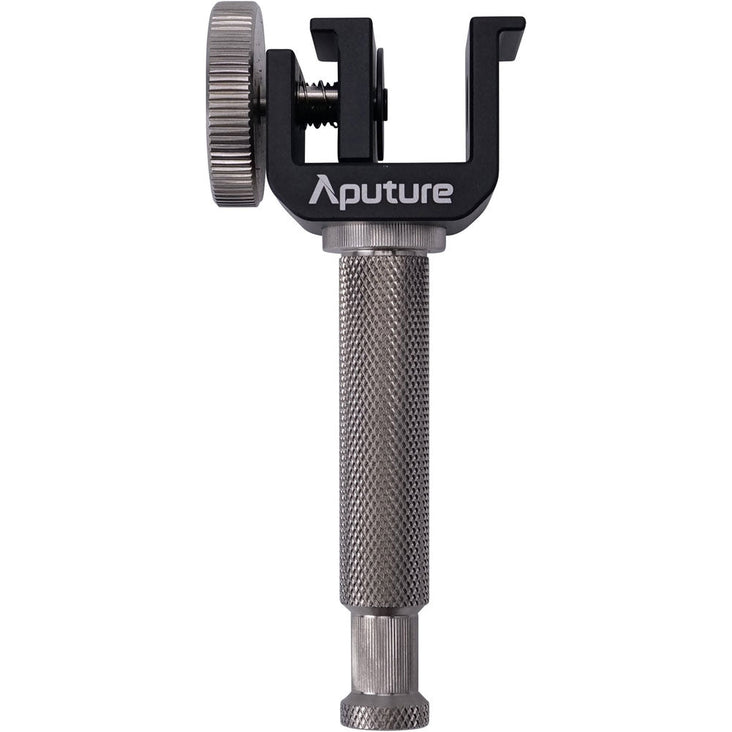

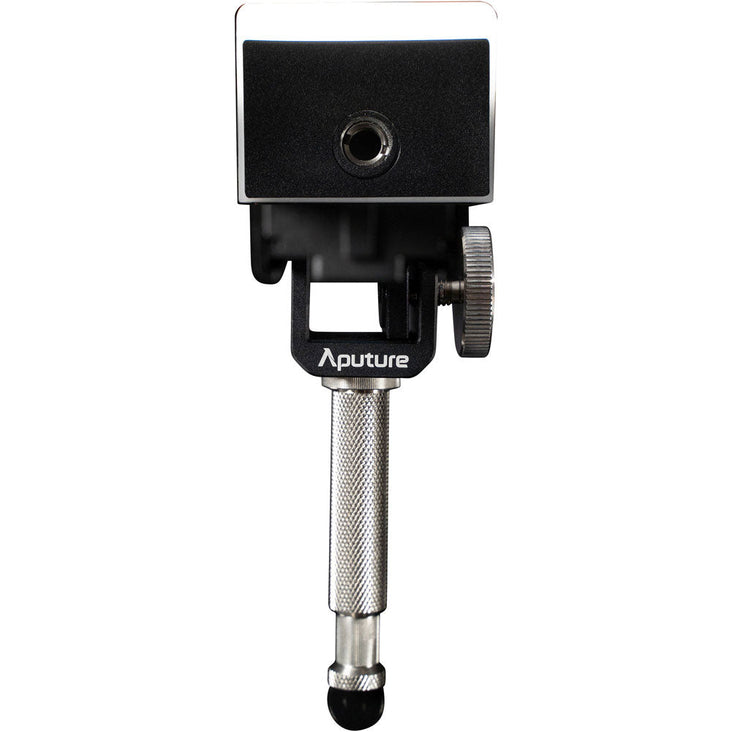

1x Clamp to Baby Pin Adapter
2x Magnetic Spacer

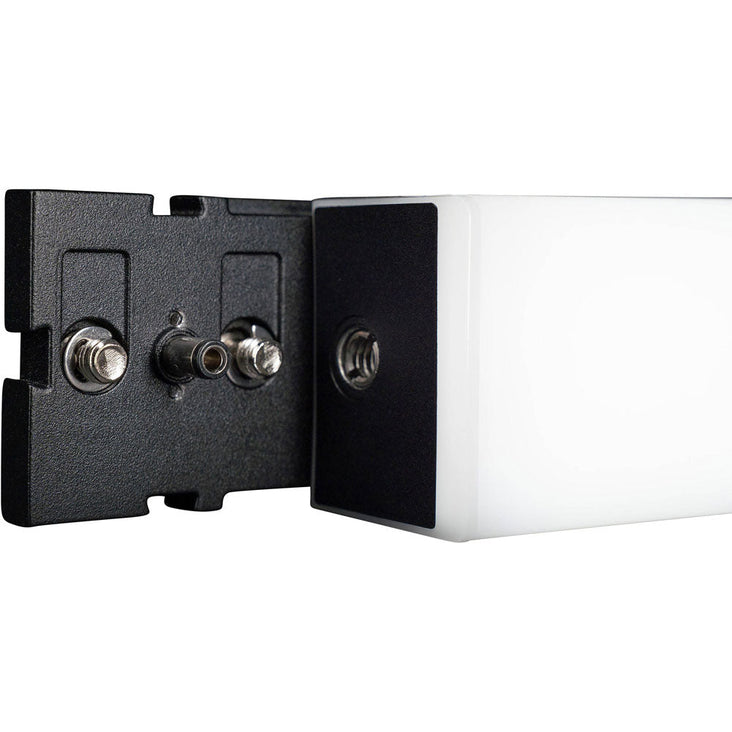

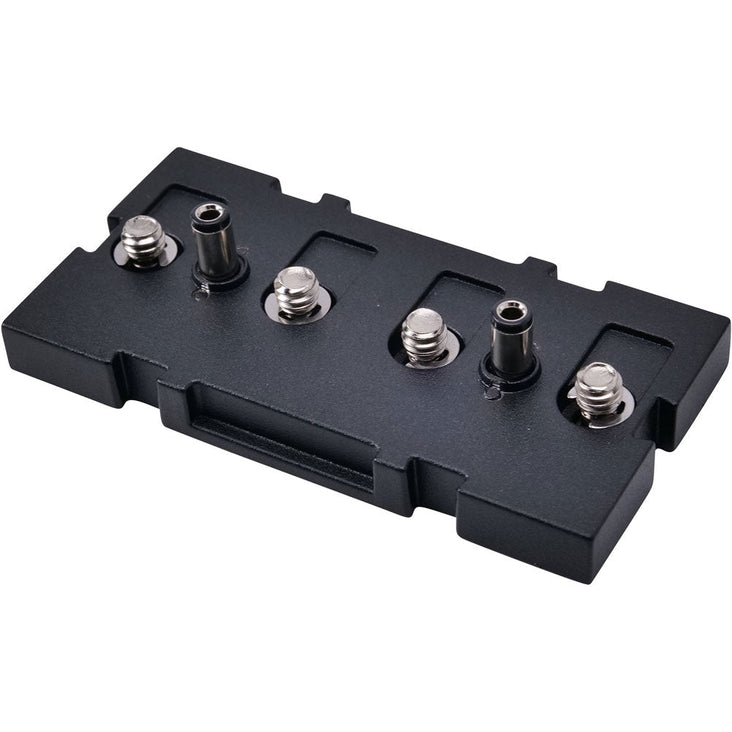

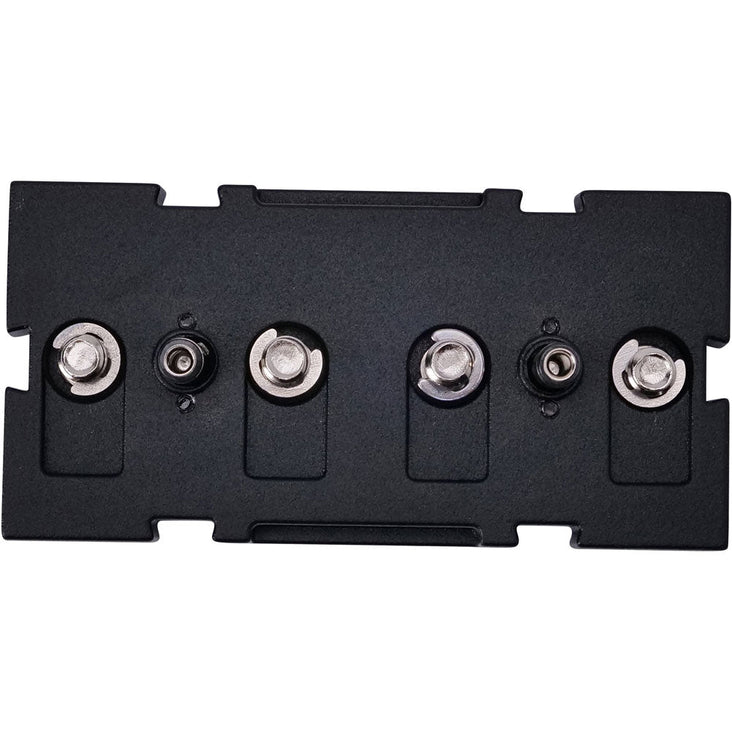

1x Straight Connector

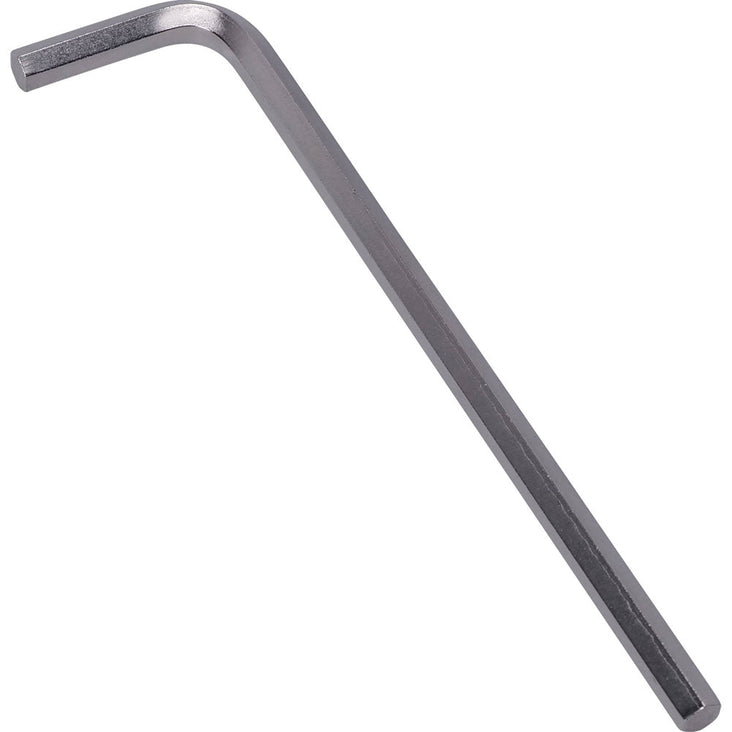

1x Hex Wrench

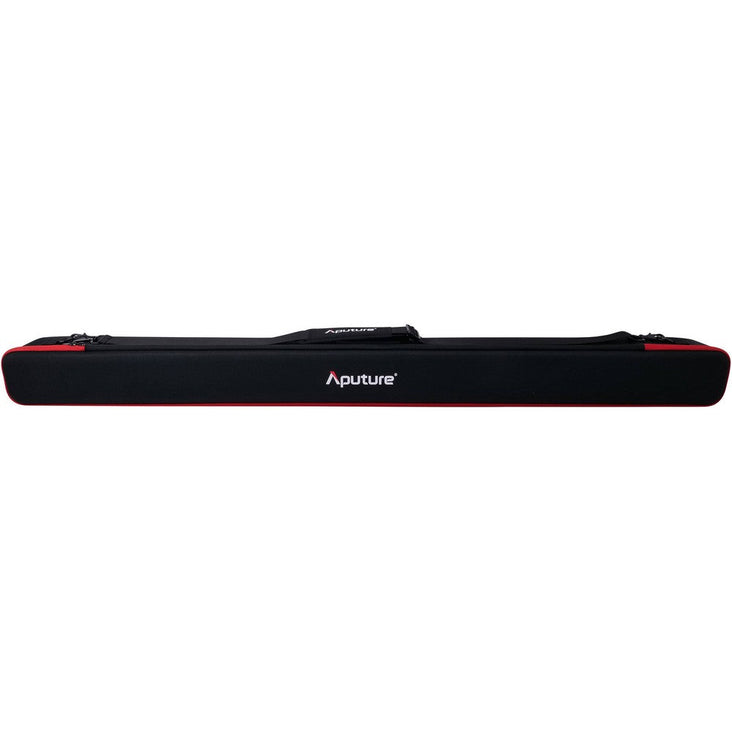

1x Carrying Case
