Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat

$1,574.99 AUD
In stock

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

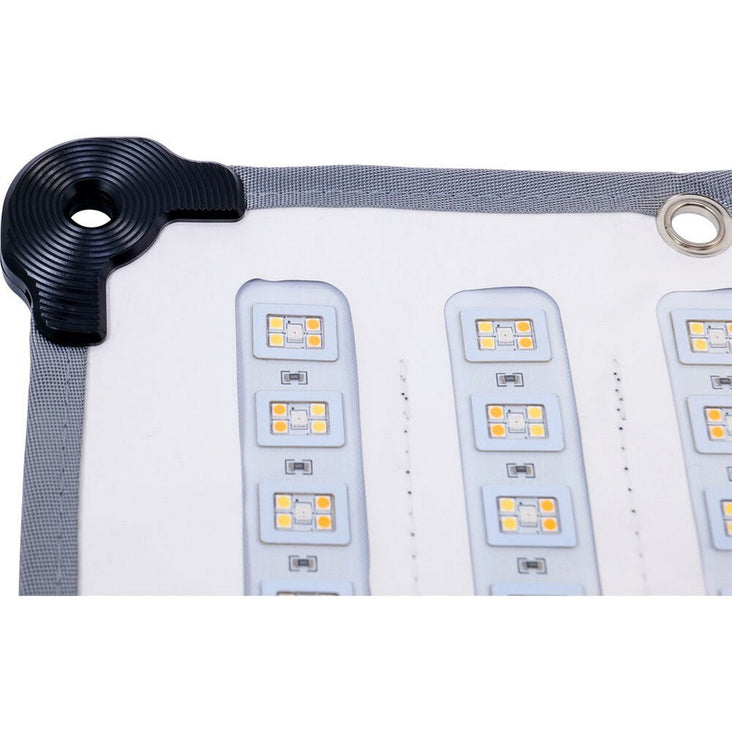

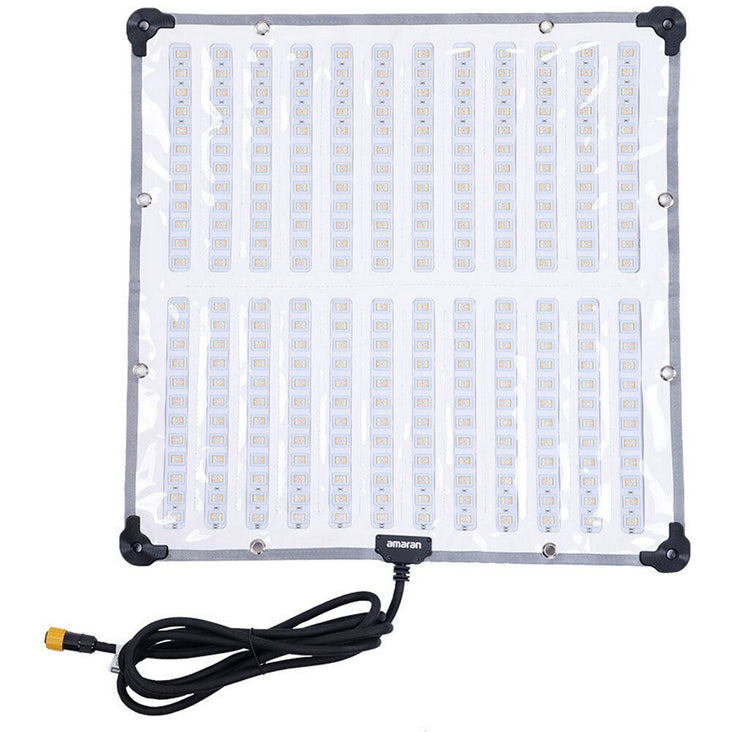

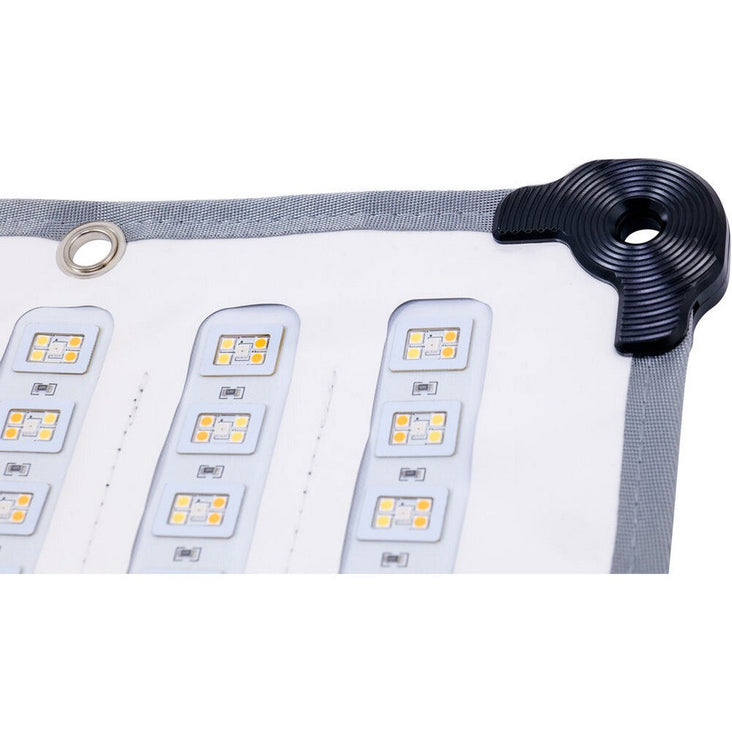

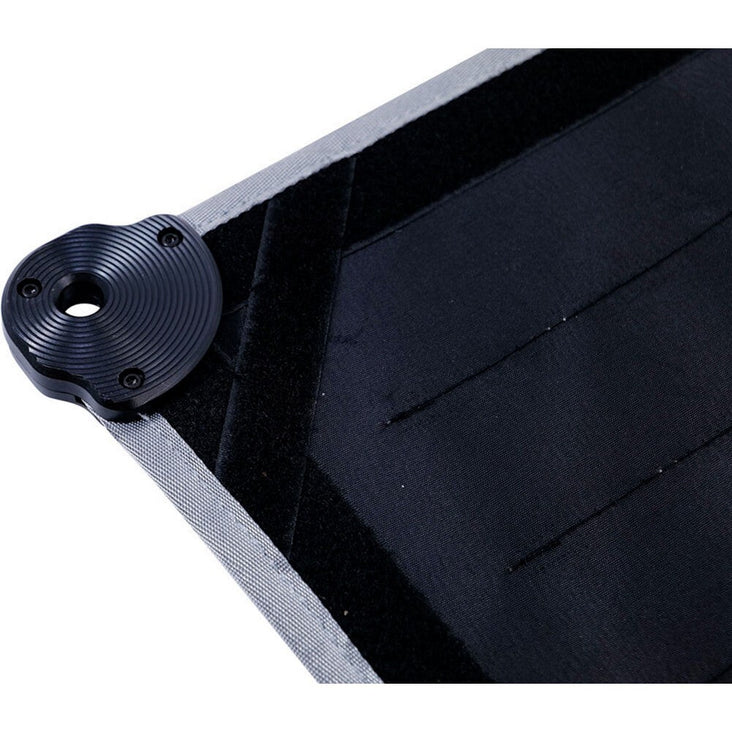

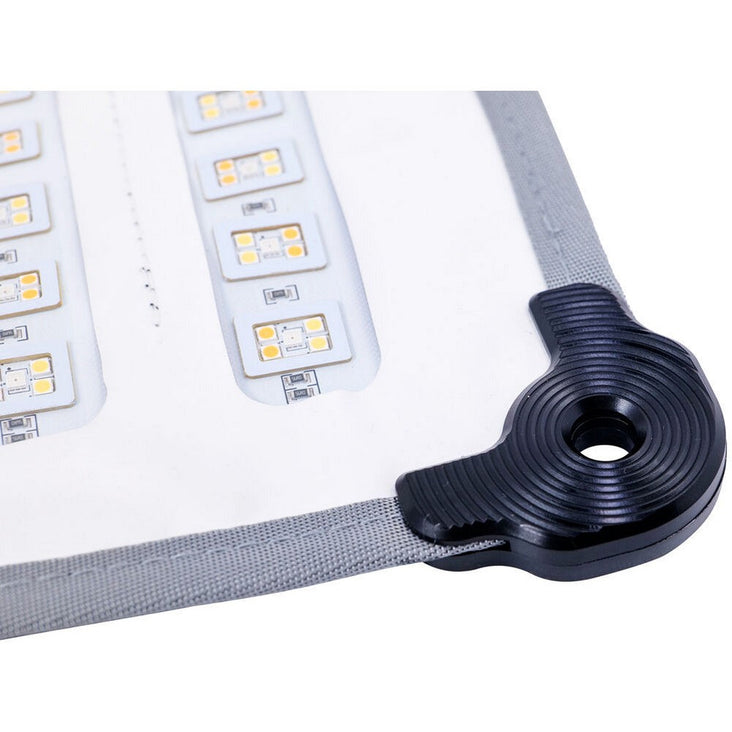

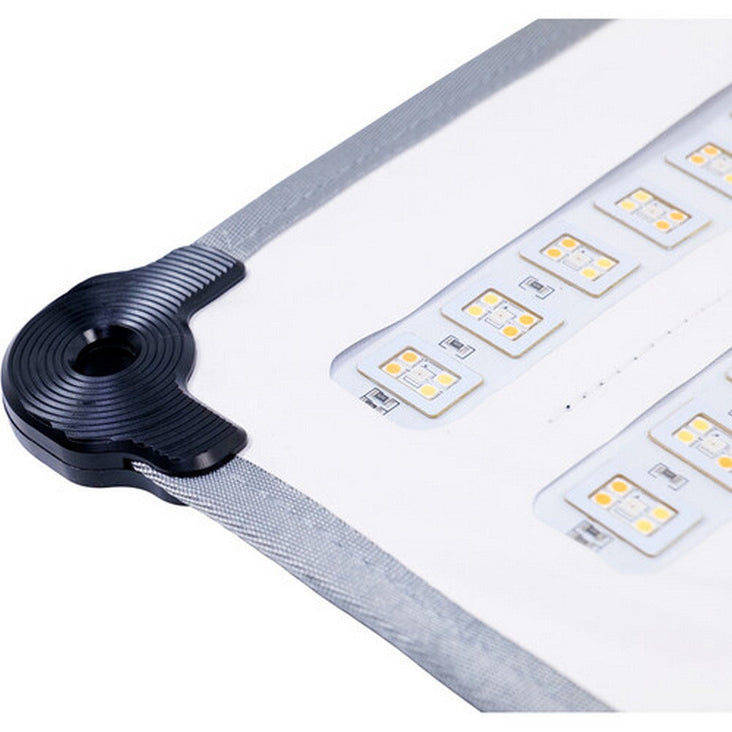

The F22c RGBWW LED Mat is a powerful, versatile, and flexible LED mat that measures 2 x 2'. It offers outstanding light output and colour rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete colour control, as well as tunable CCT from 2500K to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 colour gel presets, and 15 unique customisable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%.

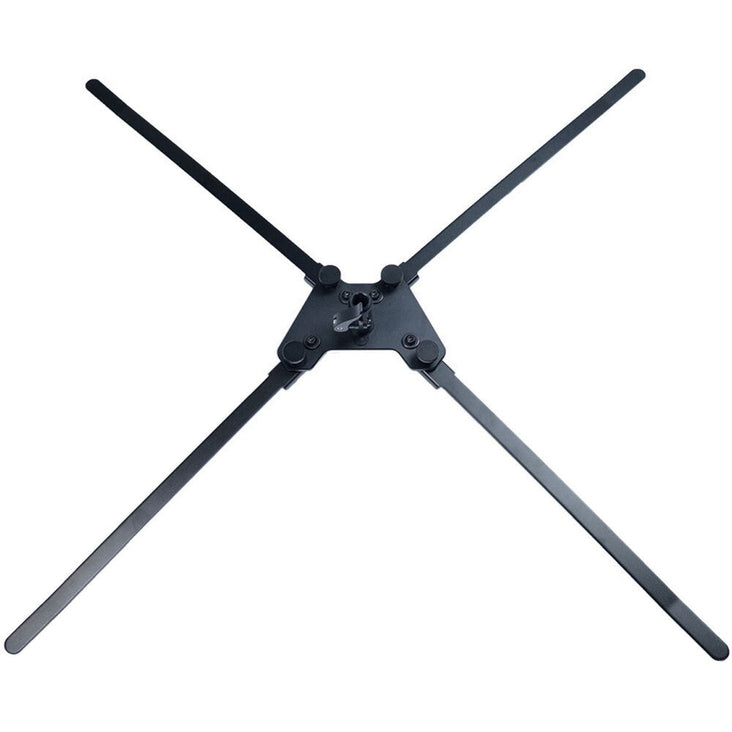

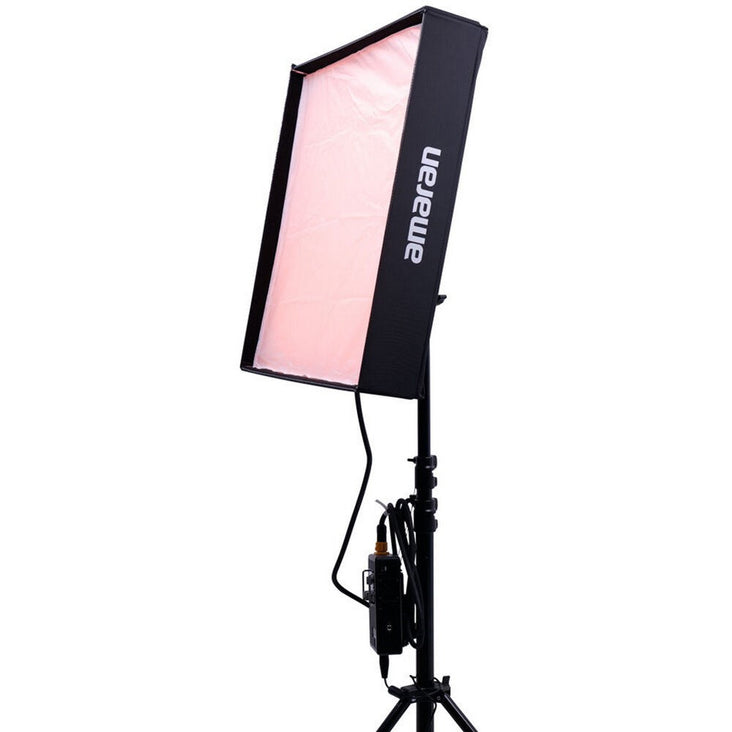

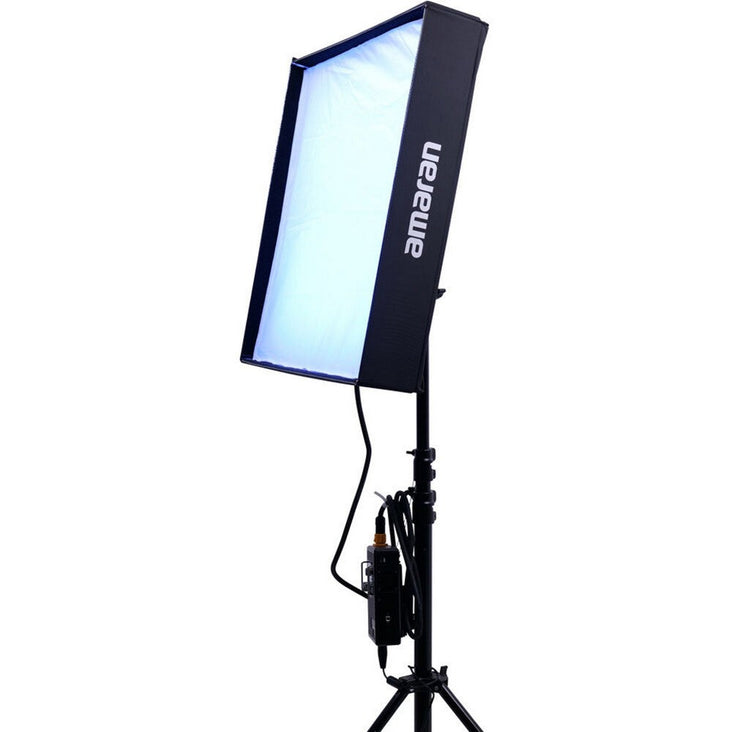

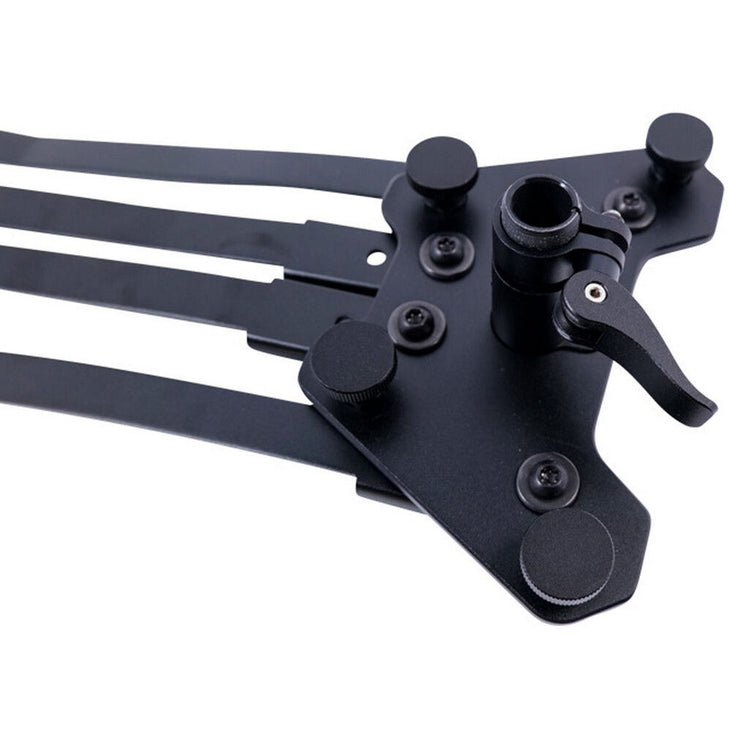

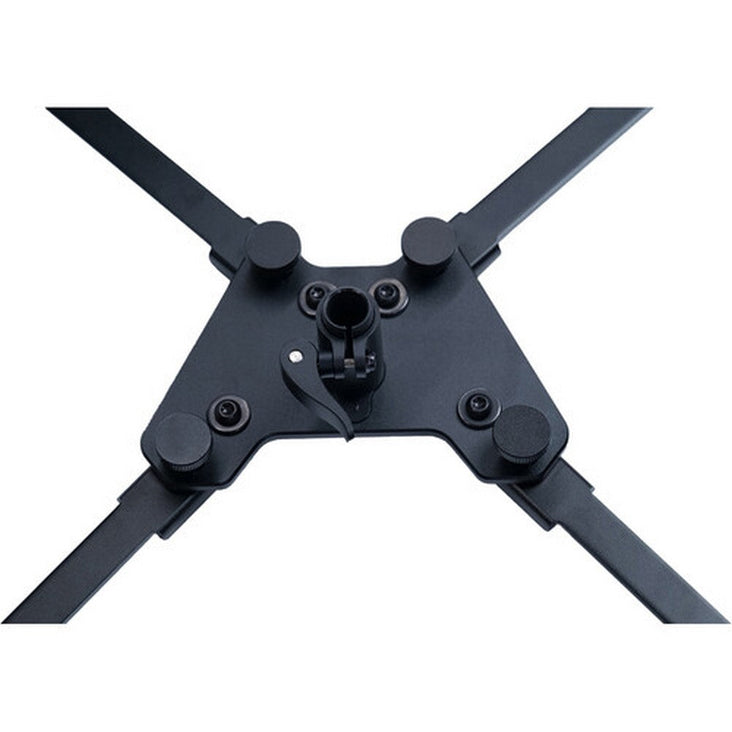

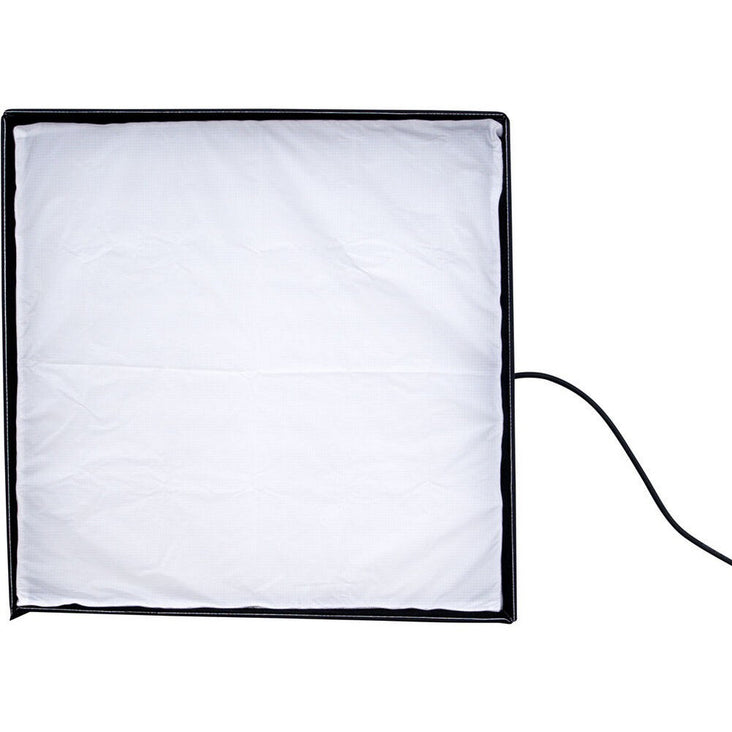

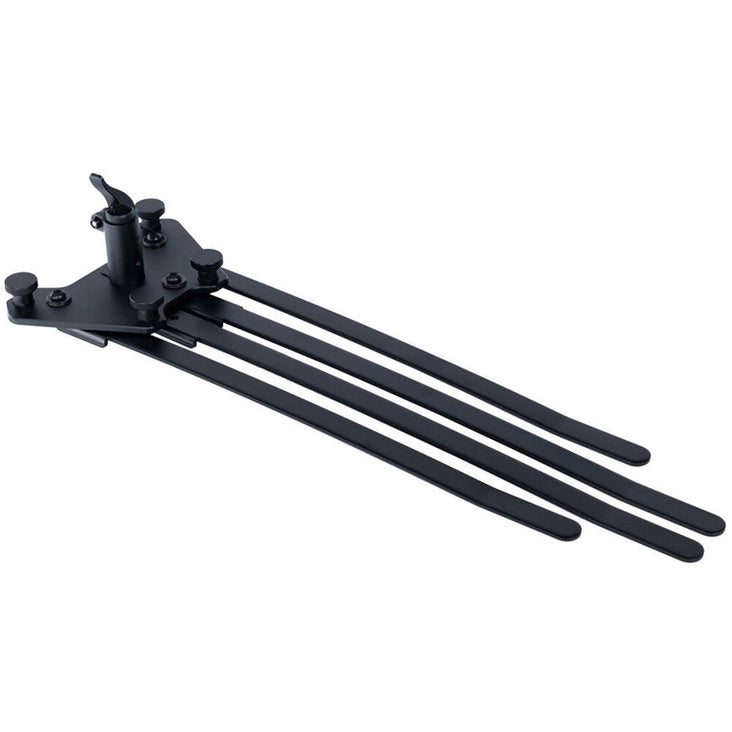

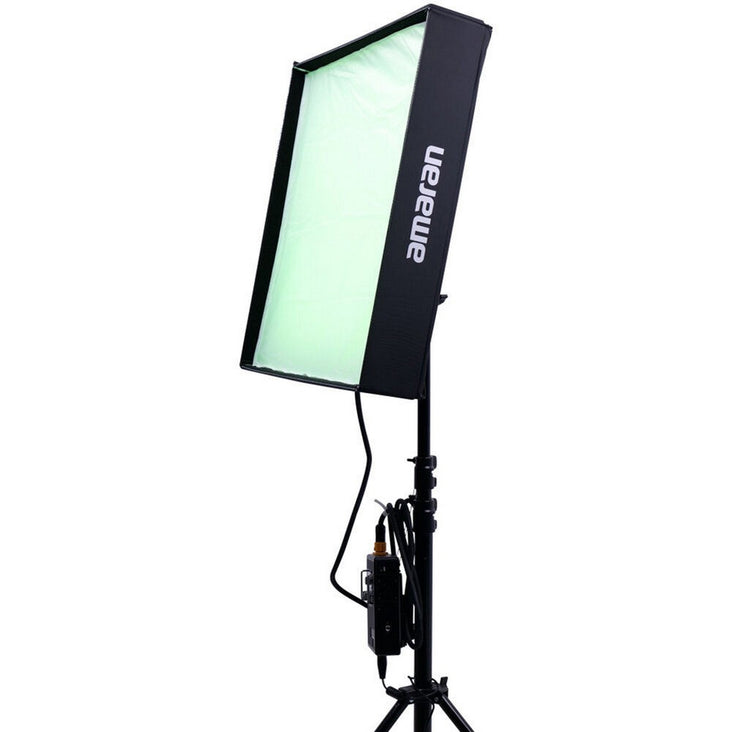

An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right-angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add a beautifully controlled soft light to a scene.

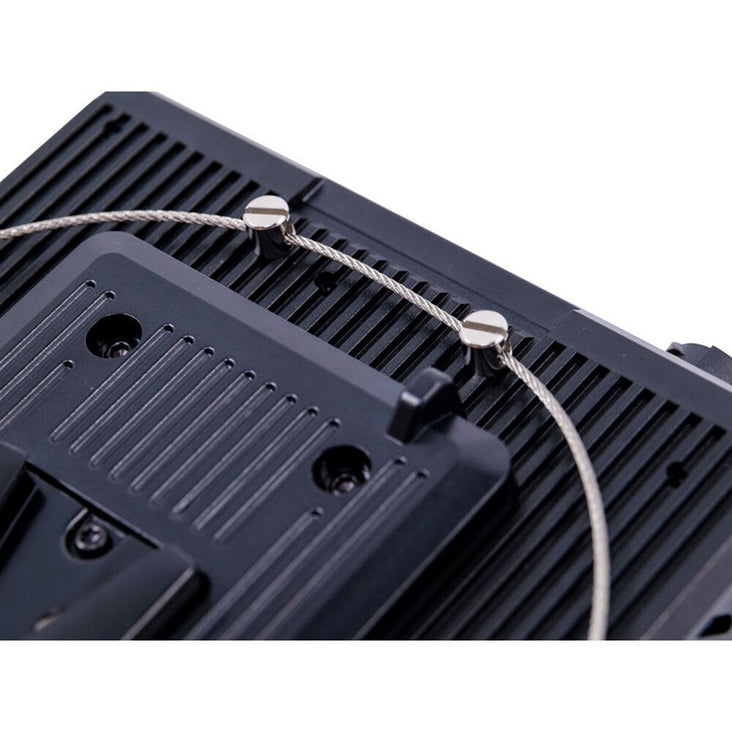

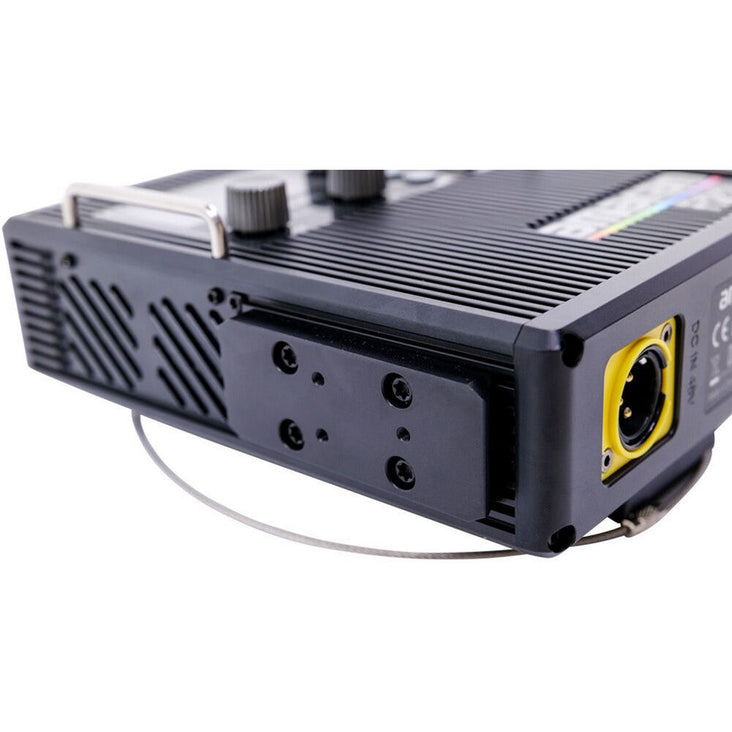

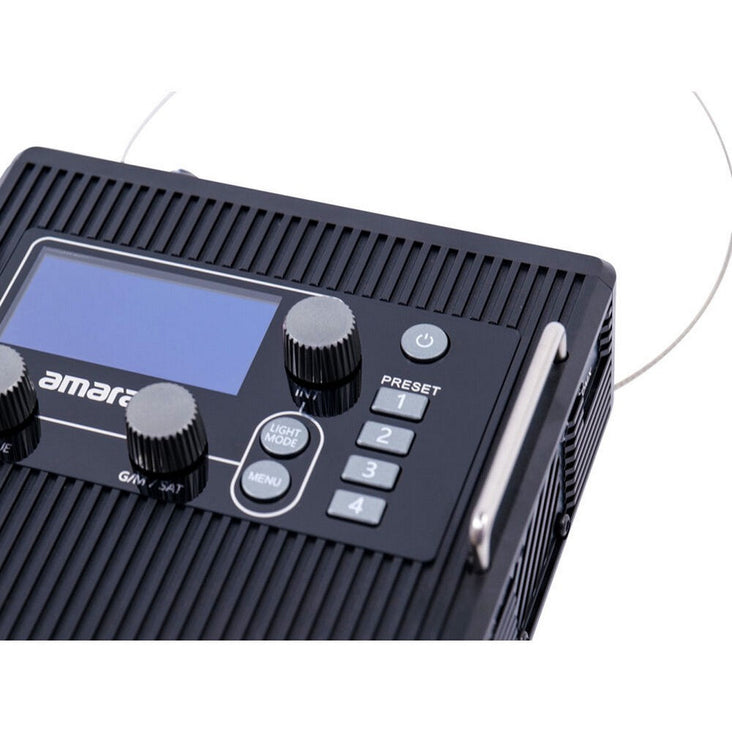

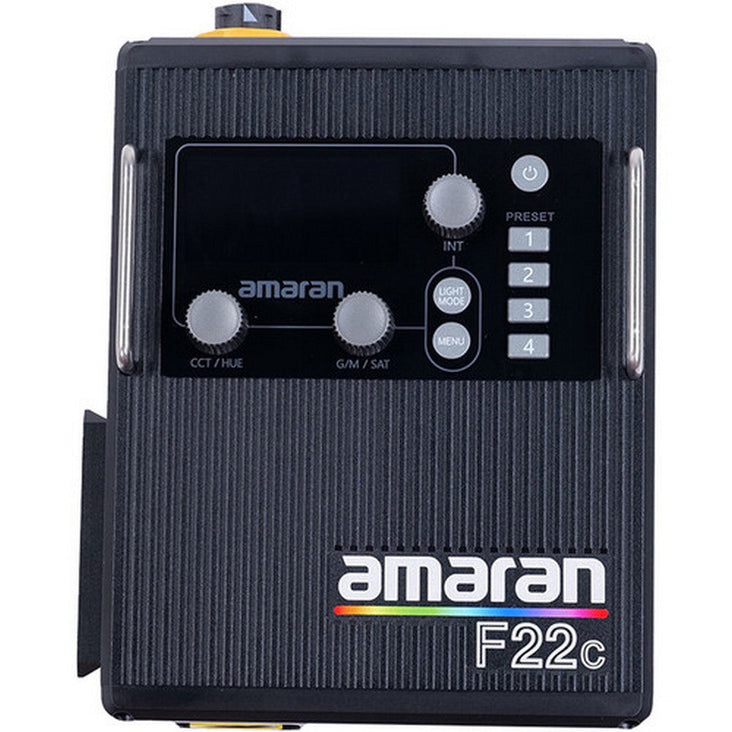

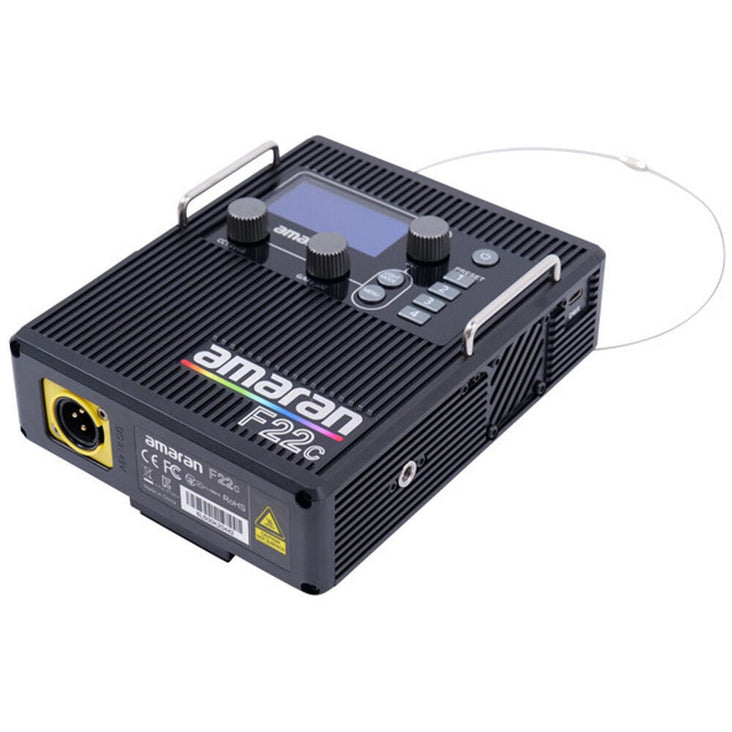

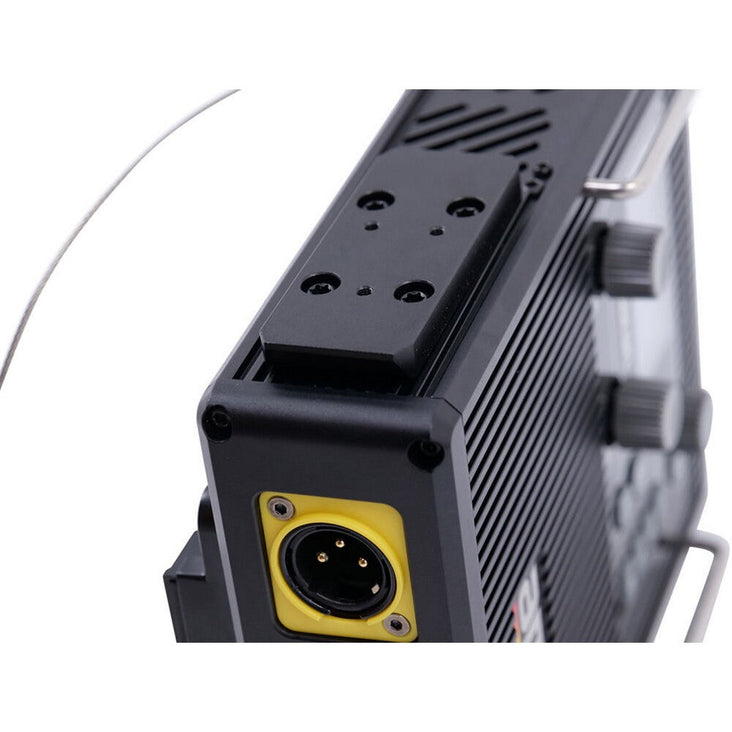

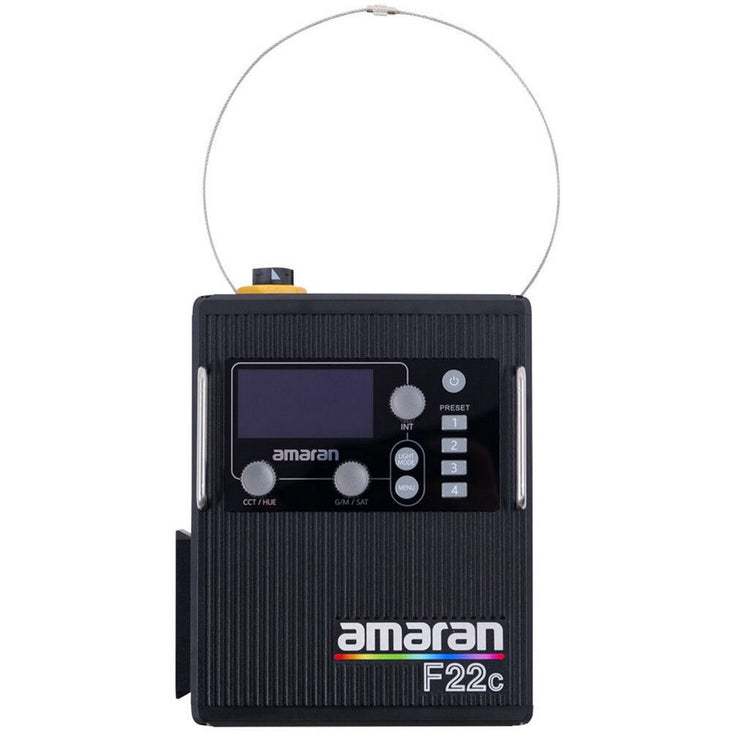

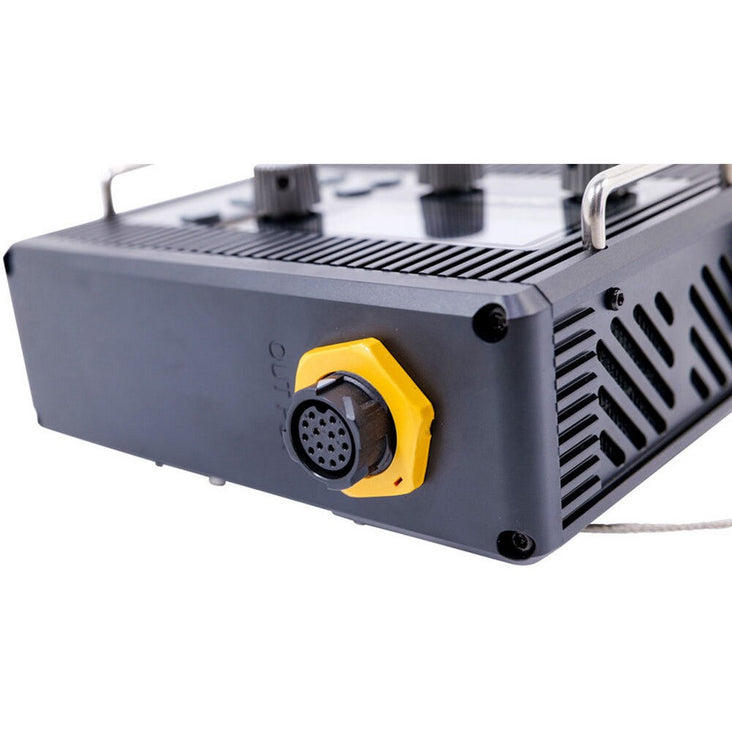

The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.

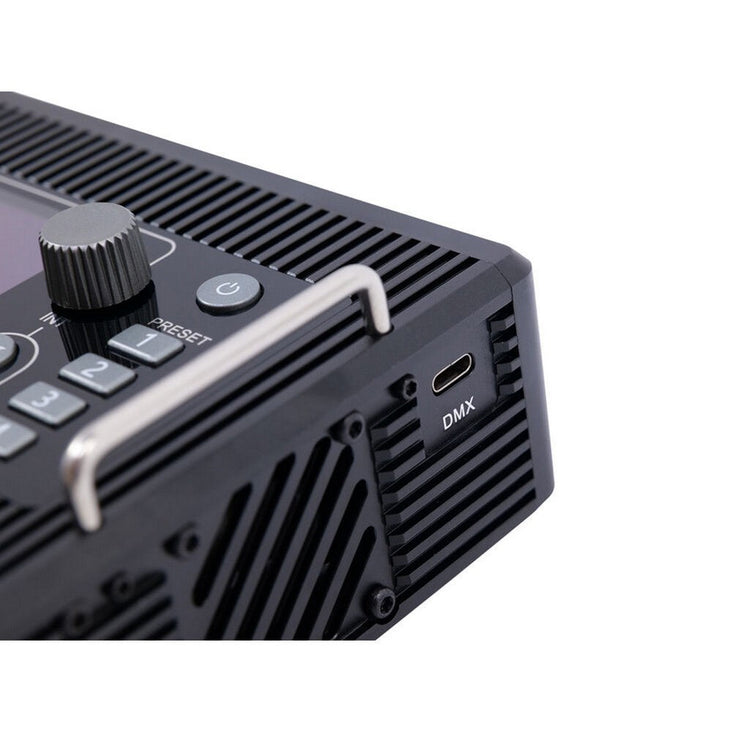

The free Sidus Link app makes it possible to utilise tools unique to the Aputure and Amaran ecosystems, such as Source Match, Colour Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The Amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

Features

  • 200W output
  • 2 x 2'' RGBWW flexible LED mat (60cm x 60cm)
  • Colour temperature from 2500-7500K
  • CRI: 95+, TLCI: 97+, CQS: 96+
  • SSI (Tungsten): 83+, SSI (D56): 74+
  • HSI Full Colour Control
  • Tunable green-magenta adjustment (plus/minus green)
  • Stepless dimming from 0 to 100%
  • Ultralight LED mat
  • Sidus Link App control for smartphones & tablets

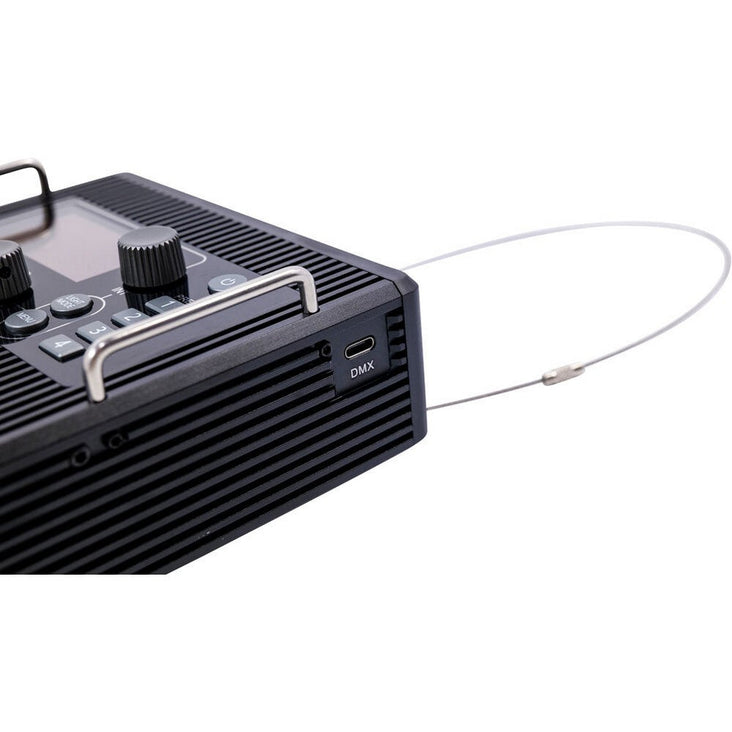

  • DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
  • 15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, colour chase, and more
  • 46 colour gel presets
  • Easy-mounting multi-voltage AC power supply with included V-mount battery mount
  • Multiple DC power solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
  • Soft carrying case

Specifications

Photometrics

2500K:
1675.9 fc / 18,040 Lux at 1.6' / 0.5 m
510.9 fc / 5500 Lux at 3.3' / 1 m
62.4 fc / 672 Lux at 9.8' / 3 m
3200K:
1742.8 fc / 18,760 Lux at 1.6' / 0.5 m
534.2 fc / 5750 Lux at 3.3' / 1 m
65.3 fc / 703 Lux at 9.8' / 3 m
4300K:
1832 fc / 19,720 Lux at 1.6' / 0.5 m
550.9 fc / 5930 Lux at 3.3' / 1 m
68.4 fc / 736 Lux at 9.8' / 3 m
5600K:
1975.1 fc / 21,260 Lux at 1.6' / 0.5 m
596.4 fc / 6420 Lux at 3.3' / 1 m
73.4 fc / 790 Lux at 9.8' / 3 m
6500K:
2067 fc / 22,250 Lux at 1.6' / 0.5 m
628.9 fc / 6770 Lux at 3.3' / 1 m
76.5 fc / 823 Lux at 9.8' / 3 m
7500K:
2159.9 fc / 23,250 Lux at 1.6' / 0.5 m
657.7 fc / 7080 Lux at 3.3' / 1 m
80.8 fc / 870 Lux at 9.8' / 3 m

Colour Temperature

2500 to 7500K

Colour Modes

RGBWW

Colour Accuracy Standard

CRI 95
TLCI 98
CQS 96
SSI 83 at 5600K

Cooling System

Passive

Dimming

Yes, 0 to 100% (Continuous)

Display

OLED

Housing Material

Plastic

Expected Lamp Life

50000 Hours

Rectangular Panel Size

23.6 x 23.6" / 60 x 60 cm

Fixture Dimensions

23.6 x 23.6 x 0.2" / 60.0 x 60.0 x 0.5 cm

Fixture Weight

1.94 lb / 0.88 kg

Battery Plate

1 x V-Mount

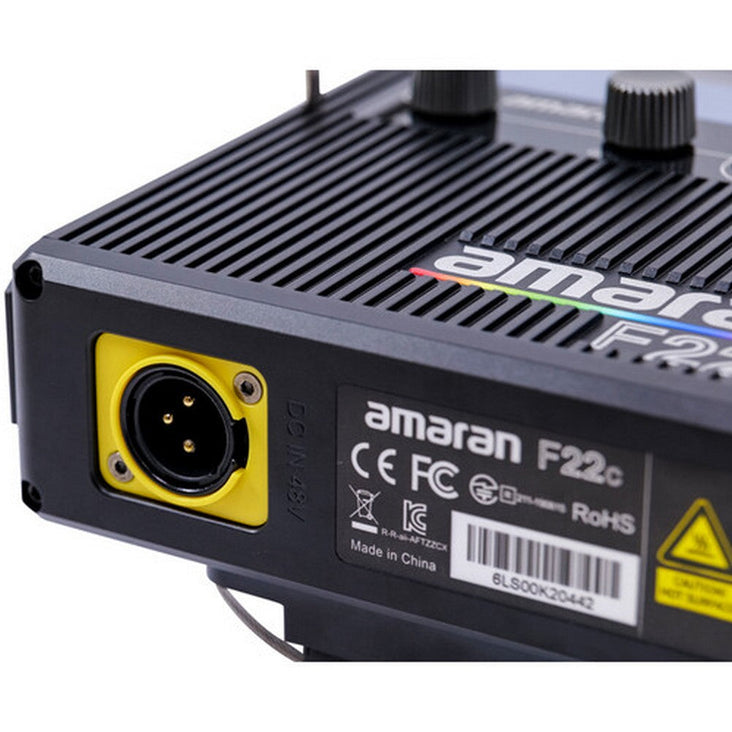

Power Input Connection

XLR 3-Pin

Fixture Mount

5/8" Stud

Remote Control Type

Bluetooth, DMX

Wireless Range

262.5' / 80 m (Bluetooth)



AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

12 to 33.6 VDC

Power Source

AC Power, External Battery

Max Power Consumption

240 W

Power Pass-Thru

No

Power Supply Output

48 VDC

Power Supply Weight

2.4 lb / 1.1 kg

Certifications

CE, FCC, RoHS, cTUVus, as per Manufacturer

Operating Temperature

14 to 104°F / -10 to 40°C (Recommended)

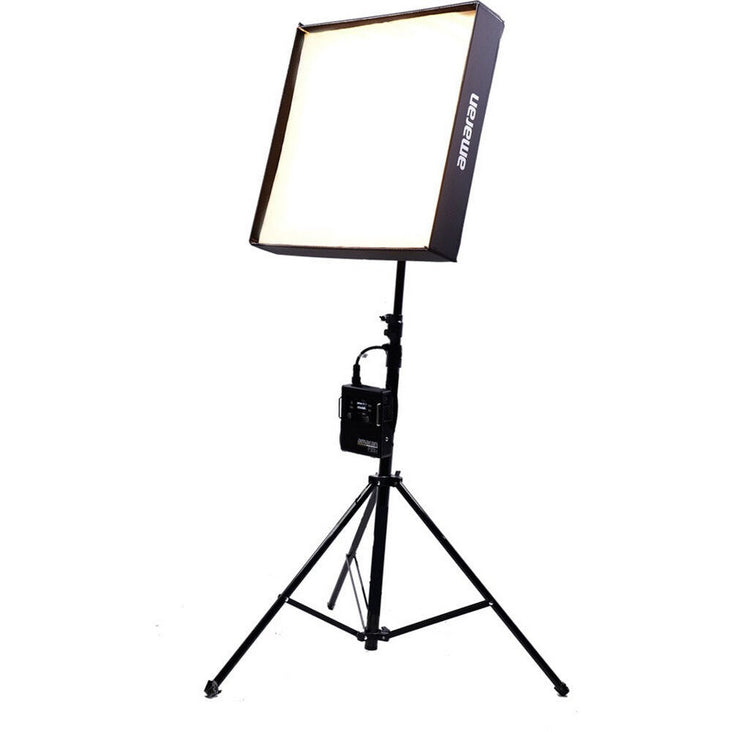

*Please note: Lifestyle images are used for illustration purposes only. Light stand is not included. Please see 'What's Included' section for full product inclusions.

What's Included

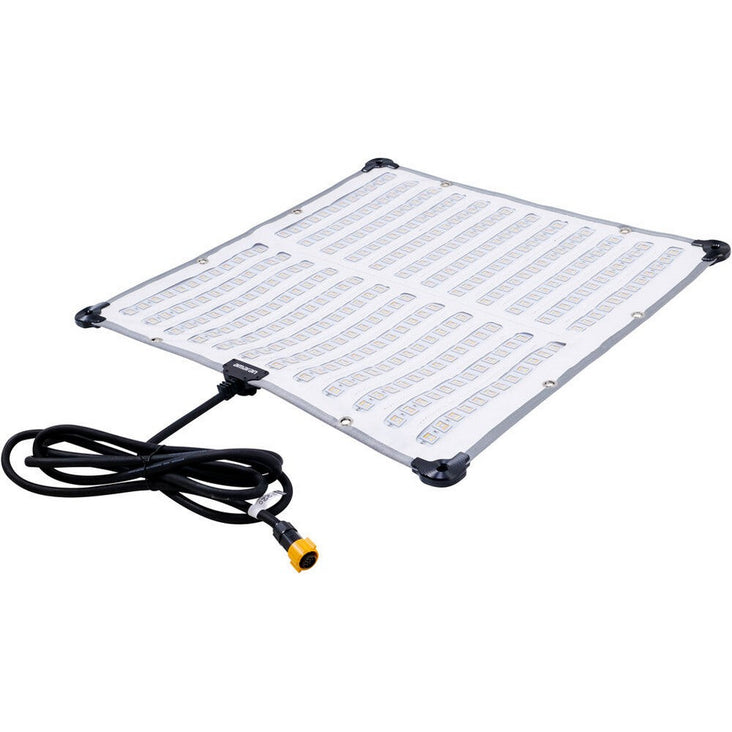

1 x Amaran F22c RGBWW LED Mat (V-Mount, 2 x 2')

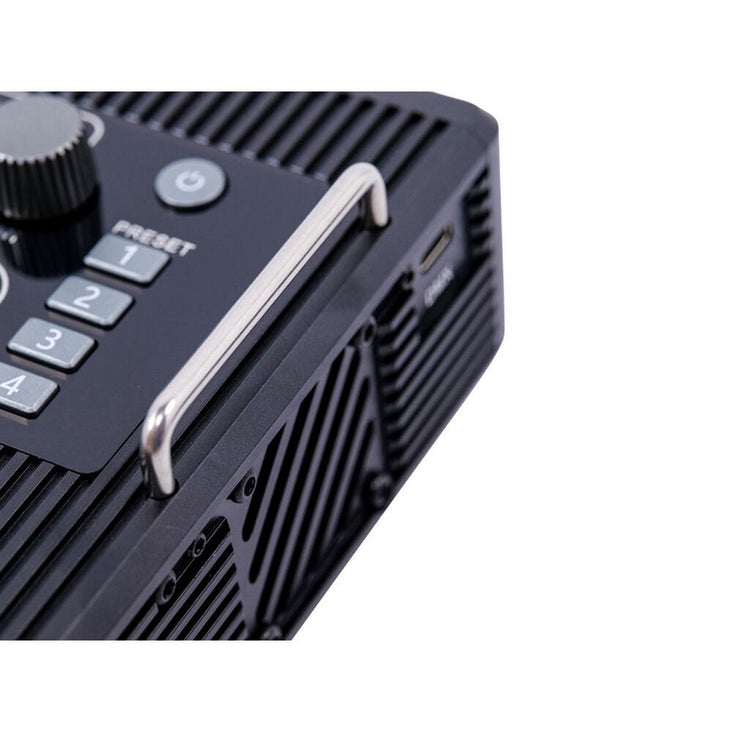

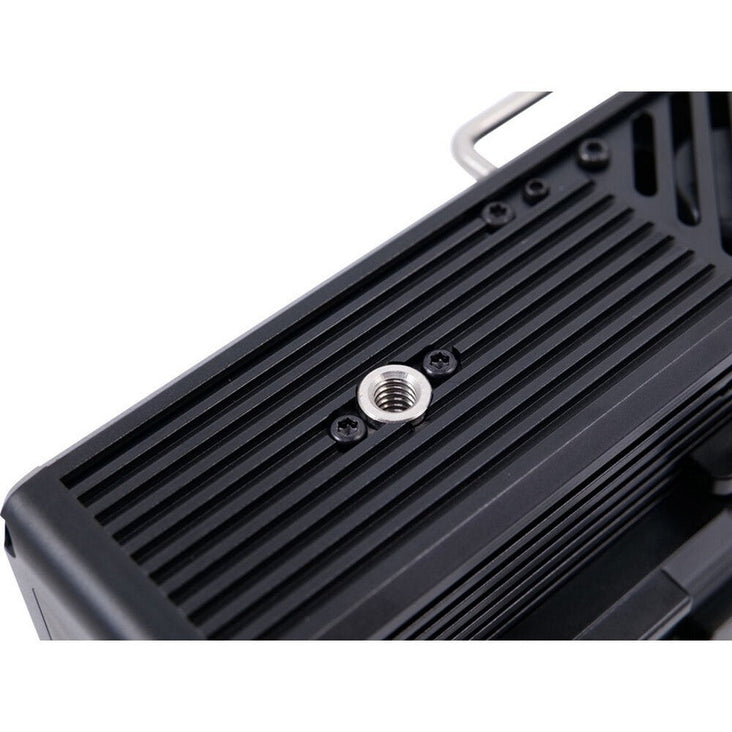

1 x Control Box with V-Mount Battery Plate

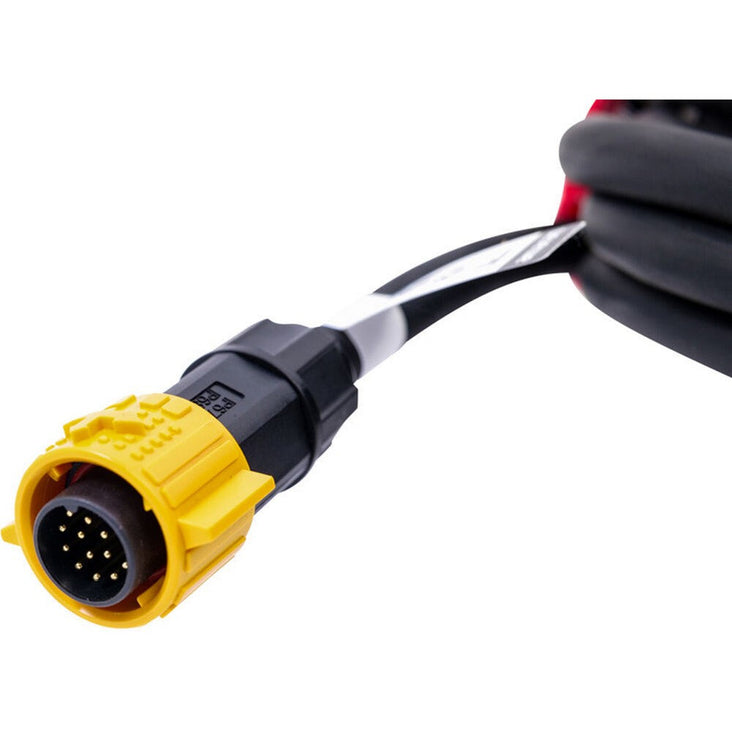

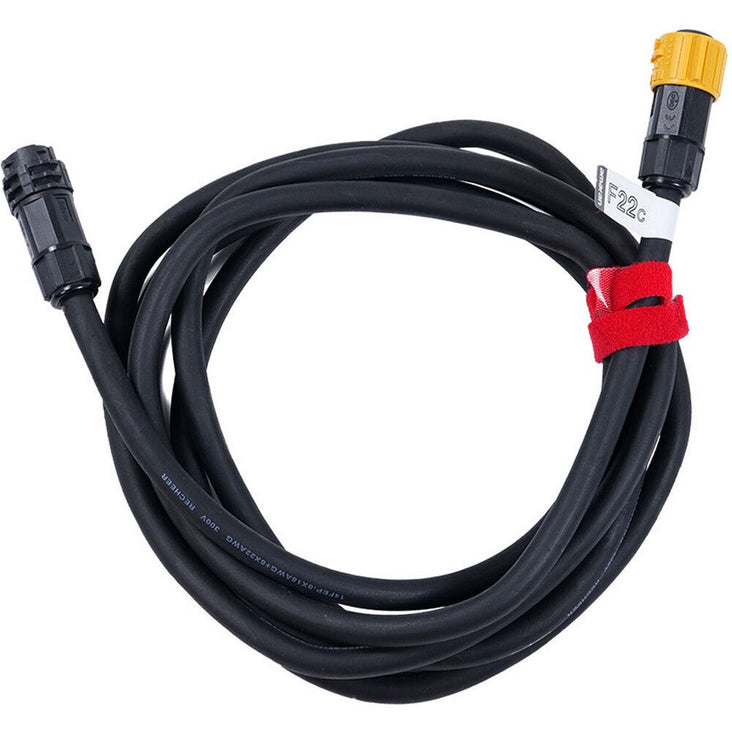

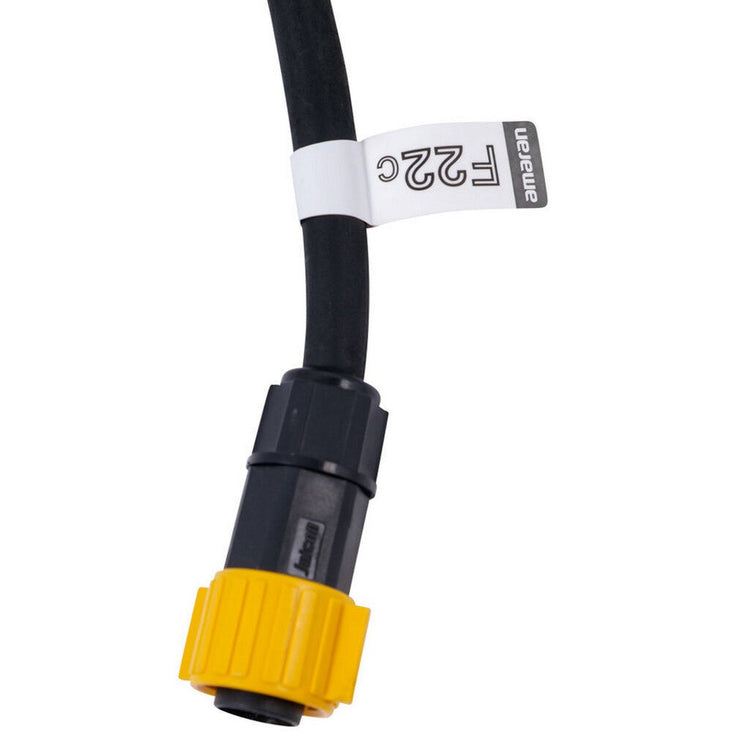

1 x 9.8' Head Extension Cable
1 x Support Bracket

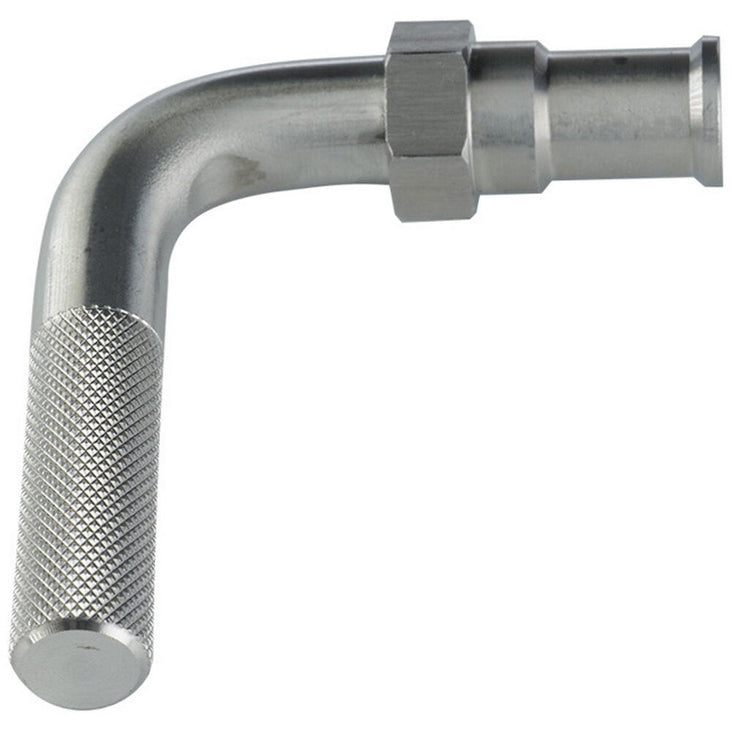

1 x Right-Angle Baby Pin Adapter

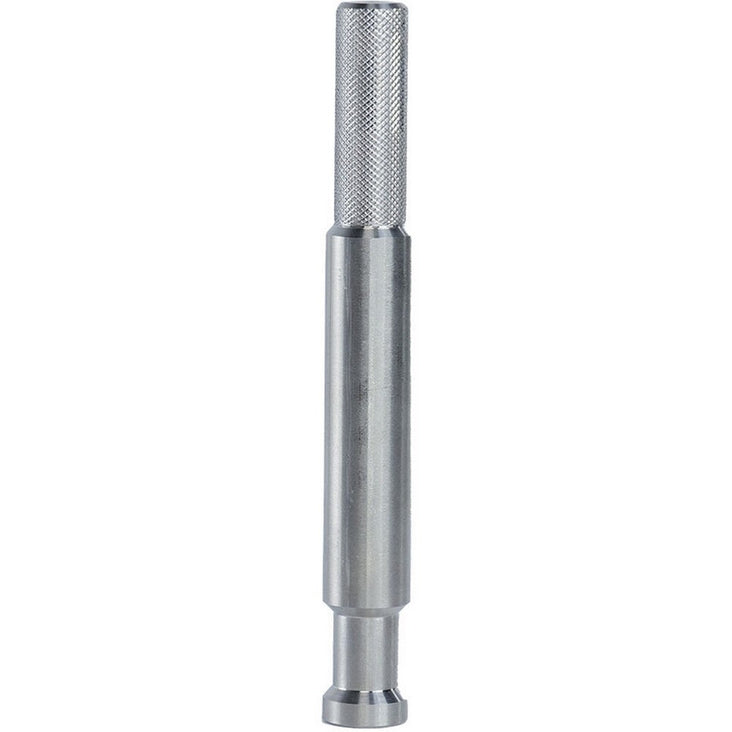

1 x Straight Baby Pin Adapter

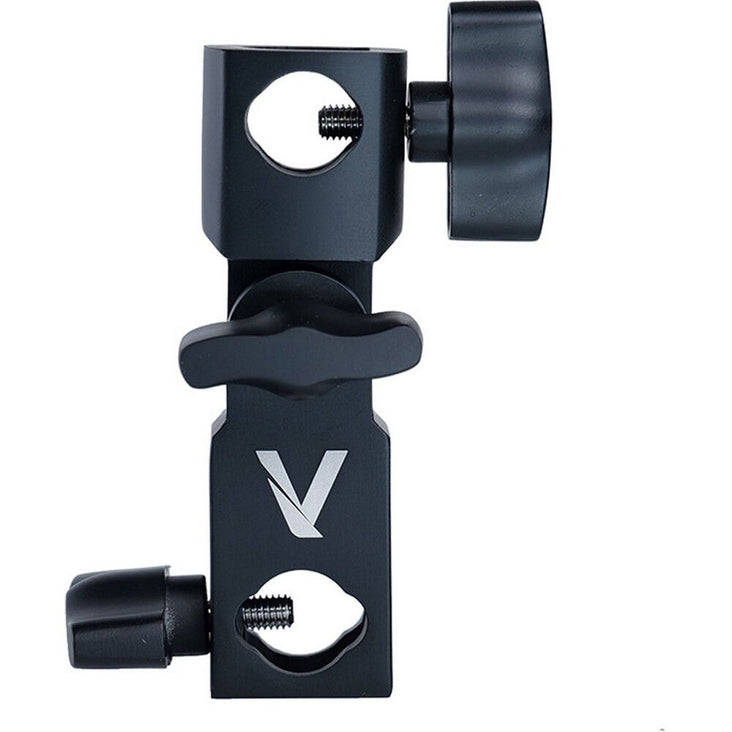

1 x Tilting Stand Mount
1 x F22 Softbox Frame
1 x F22 Diffusion Cloth 1 (1/2 Grid Cloth)
1 x F22 Diffusion Cloth 2 (2.5 Stop)

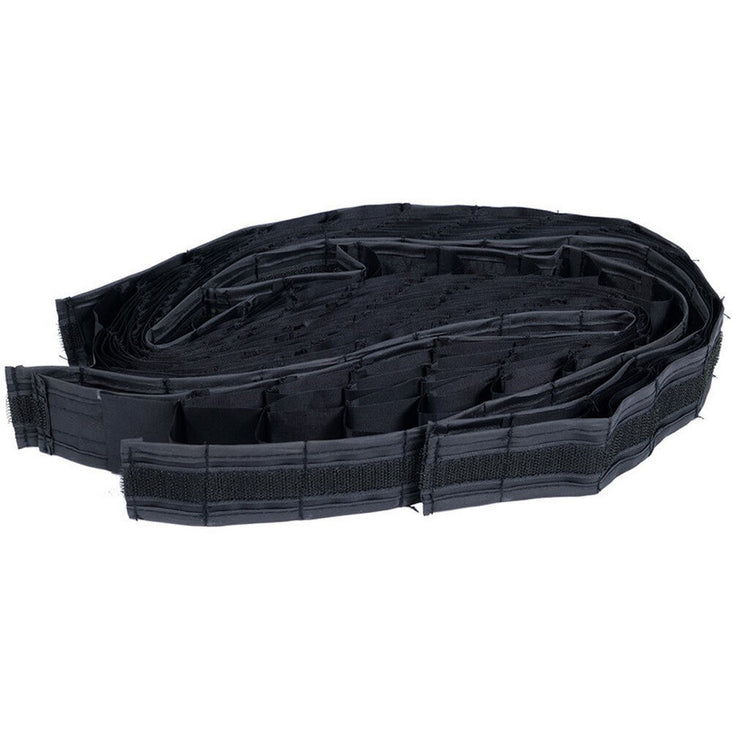

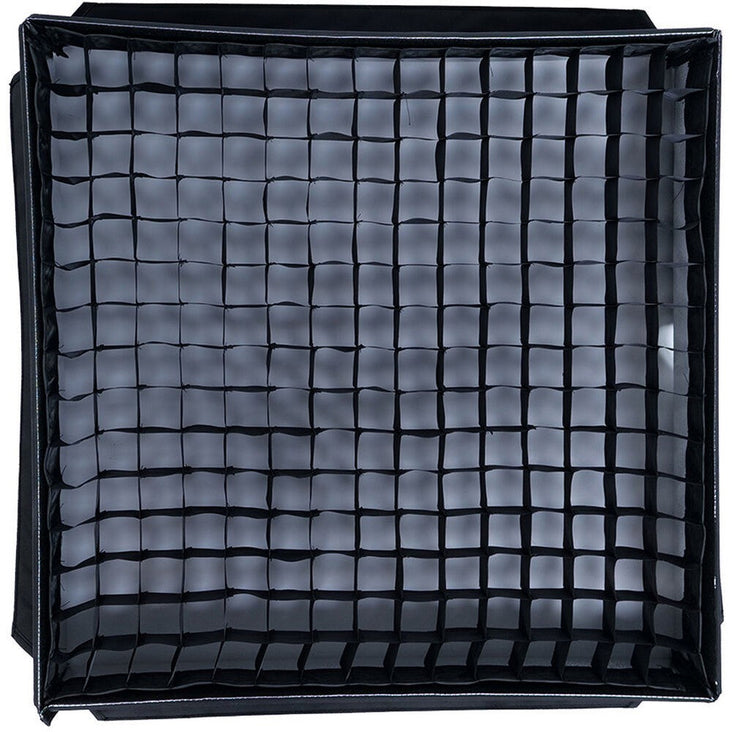

1 x F22 45 ° Light Control Grid

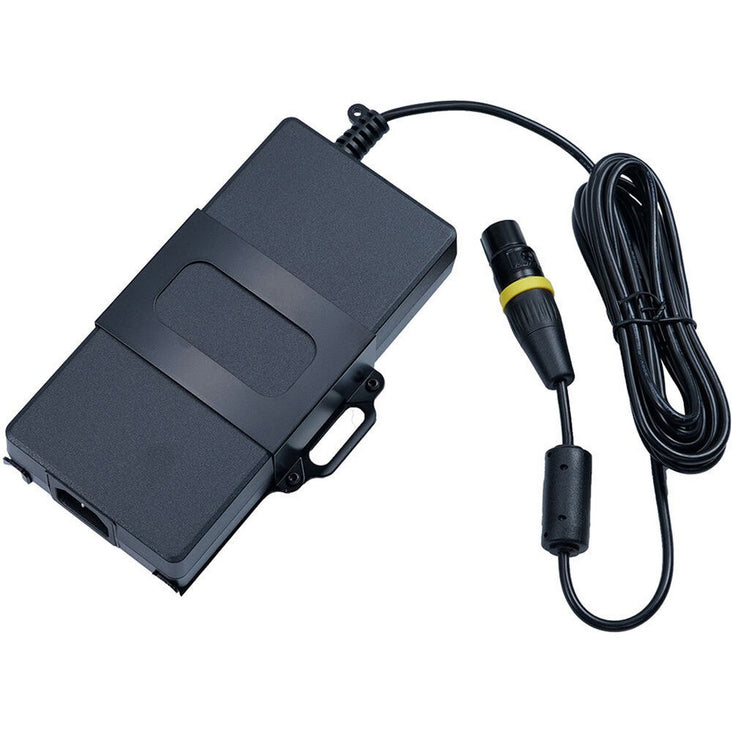

1 x Multi-Voltage AC Power Supply

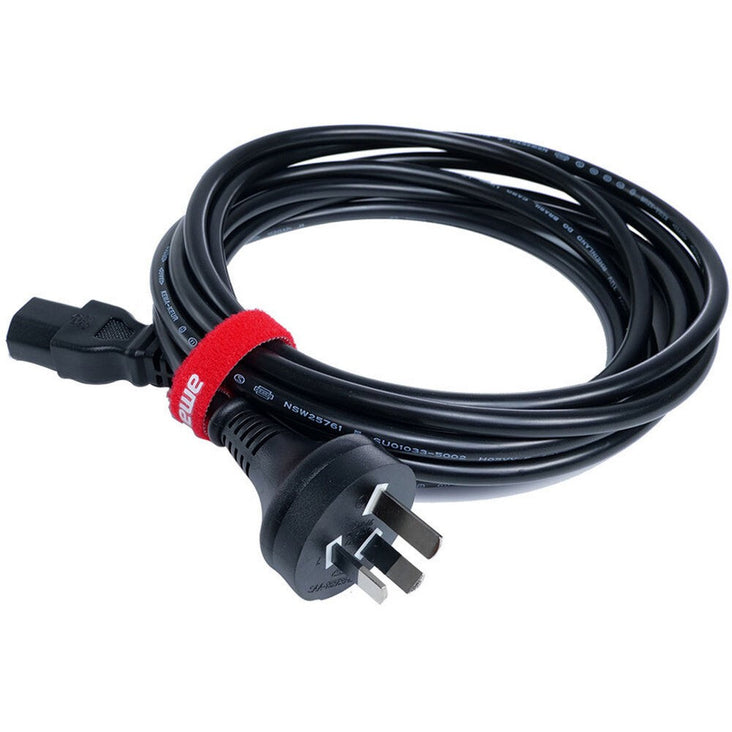

1 x AC Power Cable

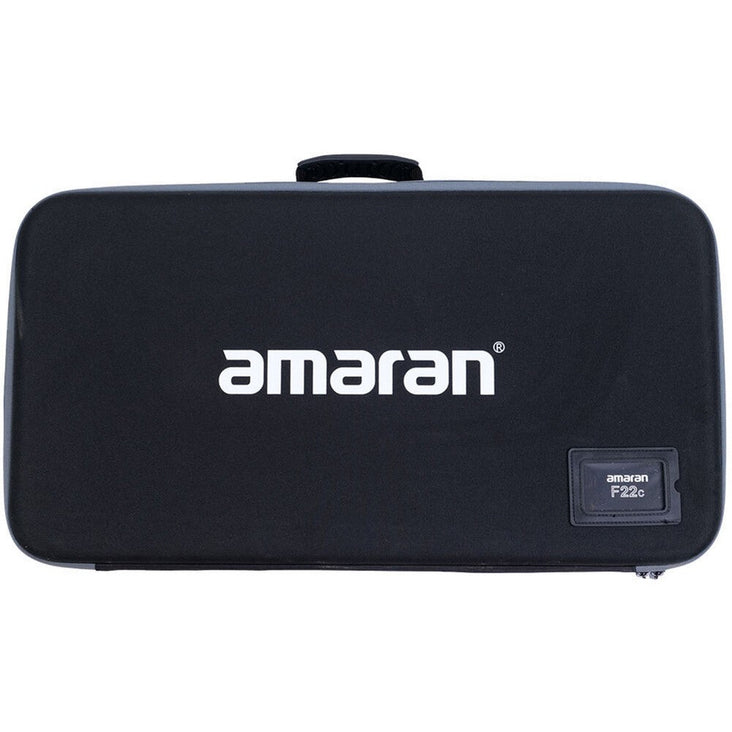

1 x Carrying Case
