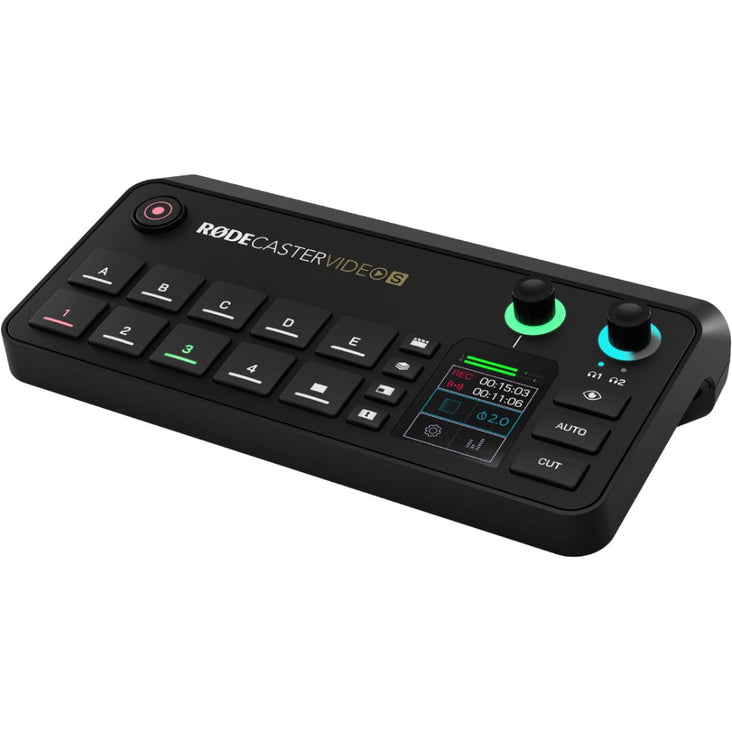

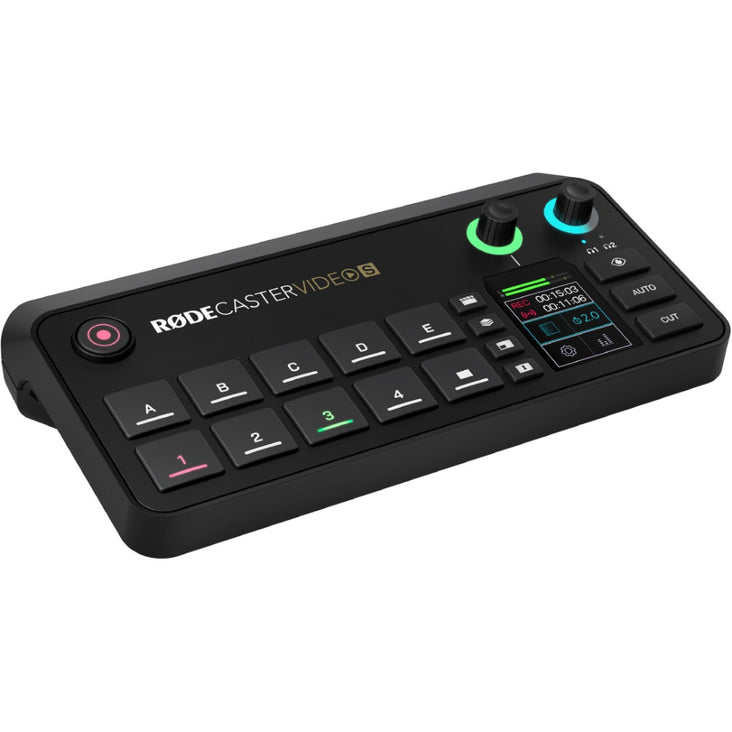

12 Month Warranty*The RODECaster Video S is a groundbreaking all-in-one console designed for effortless video and audio production. As a streamlined version of the RODECaster Video, it integrates advanced video switching, recording, and production features with a professional-grade audio mixer in a compact, desktop-friendly design. Perfect for studio shoots, video podcasts, interviews, and live streams, it delivers smooth, broadcast-quality results with complete creative control.

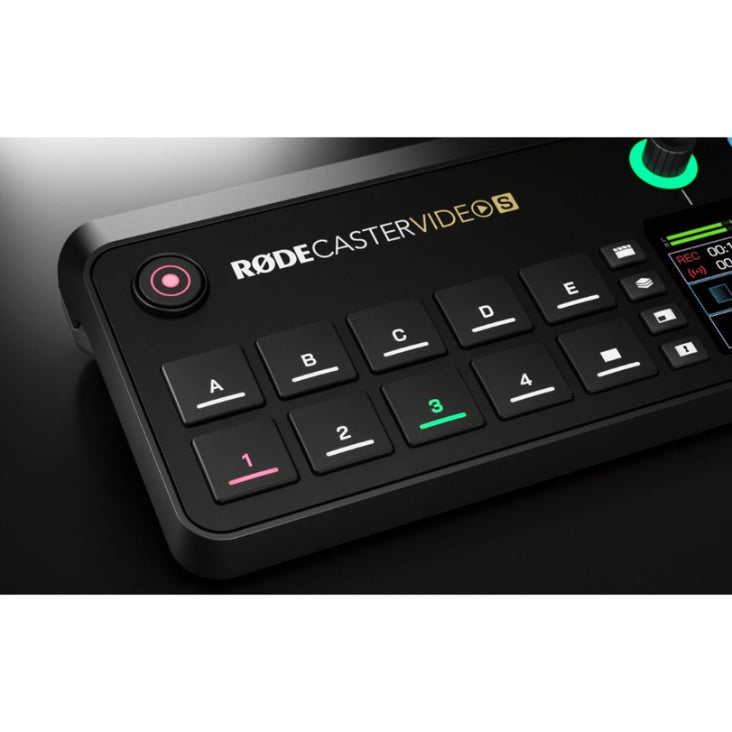

Switch between up to four video sources and five fully customisable scenes.
High-performance octa-core CPU video and audio processor.

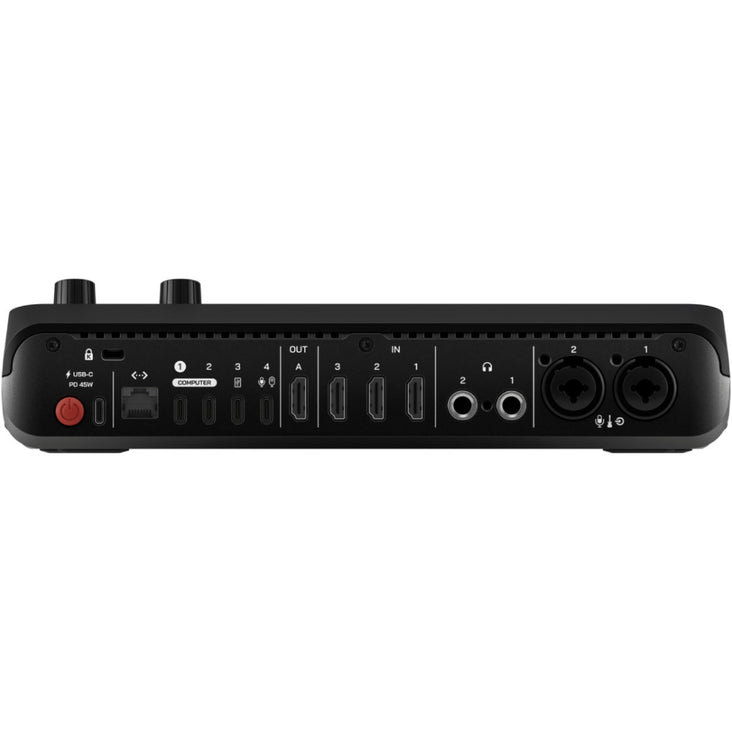

Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and Rode USB audio devices.
Two studio-grade Neutrik combo jacks with ultra-low noise, high-gain Revolution Preamps for capturing pristine audio from XLR microphones, instruments or any other audio source.
Powerful APHEX audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter, Big Bottom and Compellor effects Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel.
Support for network cameras (including PTZ operation) with up to four NDI inputs and one output via Ethernet, plus dual-cam streaming with the free Rode Capture app for iOS devices.

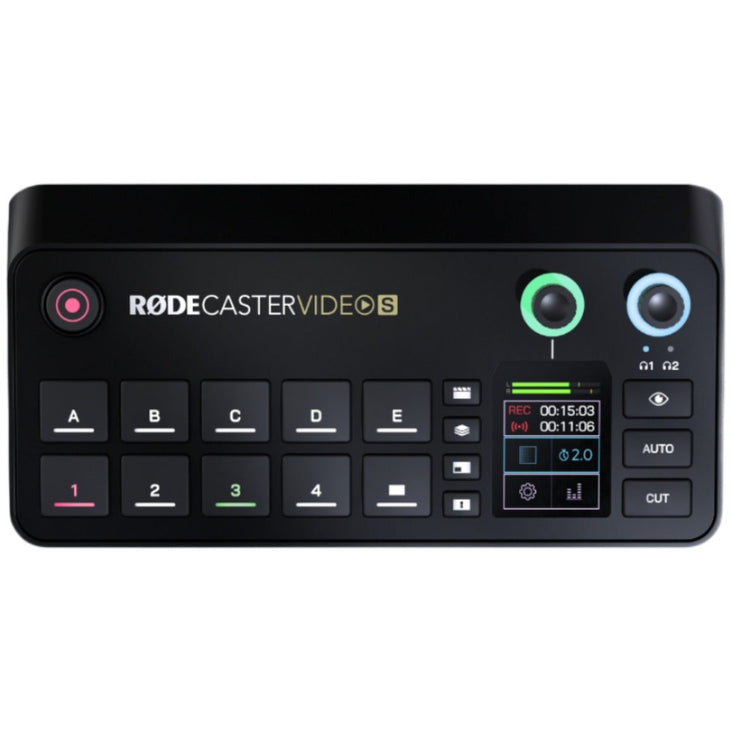

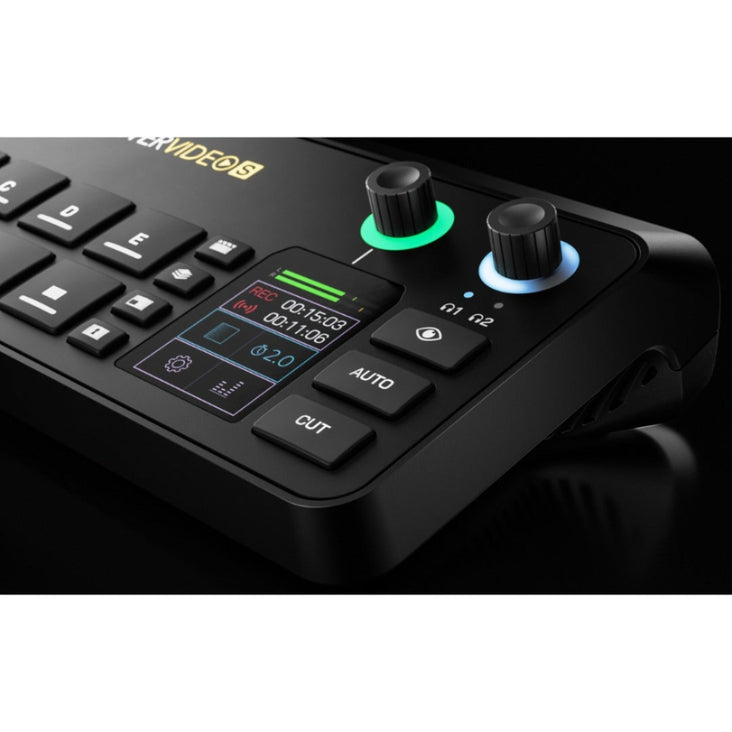

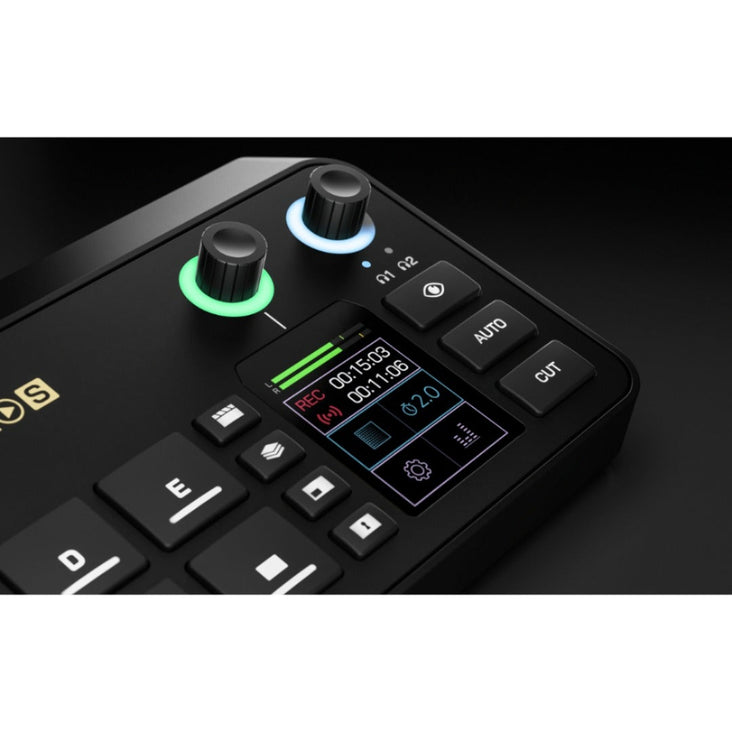

2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment.
Connect an external SSD via USB to record video or output directly to a computer via UVC.
Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RODECaster App.
Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs.
Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices.
Dual internal wireless receivers for connecting Rode Series IV wireless microphones.
Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post- editing flexibility.
Designed and made in Rode's state-of-the-art facilities in Sydney, Australia.
Specifications
- Switch Between Four Video Sources
- Five Fully Customisable Scenes
- High-Performance Octa-Core Processor
- Three HD HDMI Inputs
- One Configurable HDMI Output
- Multi-Function USB-C Port
- Ultra-Low Noise Revolution Preamps
- Capture Pristine XLR Audio
- APHEX Audio Processing Effects
- EQ, Compressor, Noise Gate
- High-Pass Filter and De-Esser
- Aural Exciter and Big Bottom
- Media Playback and Keying
- Transitions and Multi-Source Scenes
- Graphic Overlays from Front Panel
- Supports Network Cameras PTZ
- Up to Four NDI Inputs
- Dual-Cam Streaming Via App
- 2-Inch High-Resolution Touchscreen
- Versatile Rotary Encoder Control
- External SSD Video Recording
- Output Directly to Computer
- Remote Control and Custom Scenes
- Intelligent Auto-Switching Function
- Dual USB-C Audio Interfaces
- Dual Internal Wireless Receivers
- Stream Via Wi-Fi or Ethernet
- ISO Recording for Post-Editing
| Video Input Feeds | 4 simultaneous |
| HDMI Inputs | 3 type-A (HDMI 1.4b) |
| USB (UVC) Inputs | 1 multi-function USB-C for UVC video |
| HDMI Outputs | 1 configurable-Preview, Program, Multiview, Inputs 1 - 4 |
| Video Input Frame Rates | 1920x1080p: |
| 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| (HDMI only) 1920x1080i: 25, 29.97, 30 | |
| Video Output Frame Rates | 1920x1080p: |
| 24, 25, 30, 50, 60 | |
| Video Streaming Standards | 1920x1080p: |
| 24, 25, 30, 50, 60 | |
| Video Engine Colour Space / Bit Depth: | 4:4:4 RGB / 8-bit |
| HDMI Input Colour Space / Bit Depth: | 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit |
| USB Input Colour Space | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| HDMI Output Colour Space / Bit Depth: | 4:4:4 RGB, 4:4:4 YUV / 8-bit |
| USB Output Colour Space / Bit Depth: | 4:2:2 YUV / 8-bit |
| Format and Frame Rate Converters: | On all HDMI and USB inputs |
| NDI Protocols | Single TCP, Multicast |
| NDI Formats | Hx2, Hx3 |
| NDI Video Codecs | H.264, HEVC/H.265, 4:2:0, 8-bit |
| NDI Audio Codecs | AAC-LC, L-PCM Stereo 2.0 at 48kHz |
| NDI Interfaces | Wired Ethernet |
| Total Number of Layers | 9 simultaneous in Preview and Program |
| Downstream Keyers: | 2 (overlays and logo) |
| Chroma Keyers (Green and Blue) | 2 |
| Luma Keyer | 1 |
| Media Players | 2 simultaneous |
| Transitions | SMPTE wipes, dip and fade |
| True Preview | Display complete scenes and |
| overlays simultaneously in preview | |
| and program | |
| Generated Borders | All scenes |
| Multiview | Program and preview |
| Live inputs, scene and media | |
| Thumbnails | |
| Audio mixer and channel status | |
| Recording, network and storage | |
| Status | |
| Run time, date and time | |
| Information | |
| Media Player: | 24GB on-board storage |
| Videos: MP4 | |
| Images: PNG, JPG | |
| Audio: WAV | |
| Bluetooth | 5.3 (for stereo audio input or phone calls) |
| Analogue Audio Inputs | 2 combo jacks (microphone, line or instrument) with Revolution Preamps |
| Wireless Audio Inputs | 2 Series IV wireless receivers |
| Digital Audio Inputs | USB 1: |
| 2-in/2-out or multichannel (20-in) | |
| output | |
| USB 1 Chat (uses USB 1 port): | |
| 2-in/2-out with mix-minus | |
| USB 2: | |
| 2-in/2-out with MFi support | |
| USB 4: | |
| Compatible with Rode USB | |
| Microphones and RODECaster Pro | |
| II and Duo | |

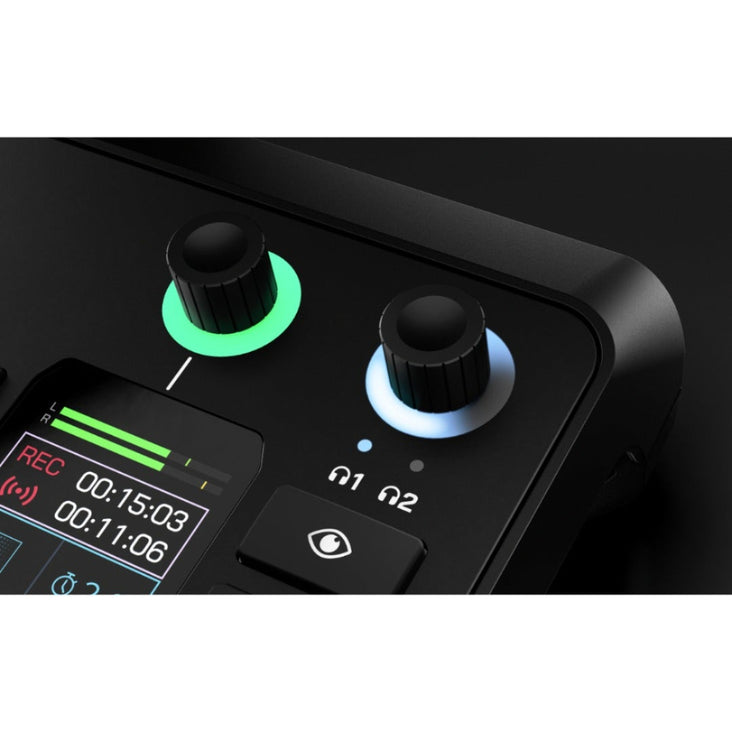

| Analogue Audio Outputs | 2 headphone outputs (1/4-inch) |
| Audio Processing | APHEX VoxLab Processing: per |
| Channel | |
| Advanced APHEX granular | |
| Processing on each channel: | |
| Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter, Big Bottom | |
| Preamps | Frequency range: 20Hz – 20kHz |
| Input gain: up to 76dB Input | |
| Equivalent Input Noise: | |
| -131.5dBV (A-weighted) | |
| Streaming Sample Rate / Bit Depth | 48kHz / 32-bit |
| Recording Sample Rate / Bit Depth | 48kHz / 24-bit |
| Direct Streaming: | Real Time Messaging Protocol (RP/RPS) over Ethernet or Wi-Fi |
| Network: | Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over- the-air updates. |
| Storage Media: | External USB mass storage device (exFAT format) for recordings |
| Video Recording: | Program feed as H.264/AVC MP4 file with embedded AAC stereo mix |
| Isolated (ISO) Video Recording: | 4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30) |
| Audio Recording: | Stereo mix WAV audio file |
| Multitrack Audio Recording: | 9 independent stereo WAV audio files |
| Compatible Operating Systems: | macOS 11 or later Windows 10 Version 1803 or later, Windows 11 |
| Power Supply Requirements: | USB-C PD 45W, 20V 2.25A |
| Weight | 0.875 kg |
| Dimensions | Length: 25.35 cm |
| Width: 12.84 cm | |
| Height: 6.02 cm |
What's Included
1 x Rode RODECaster Video S Production Console
1 x Power Supply
1 x SuperSpeed USB-C to USB-C Cable
