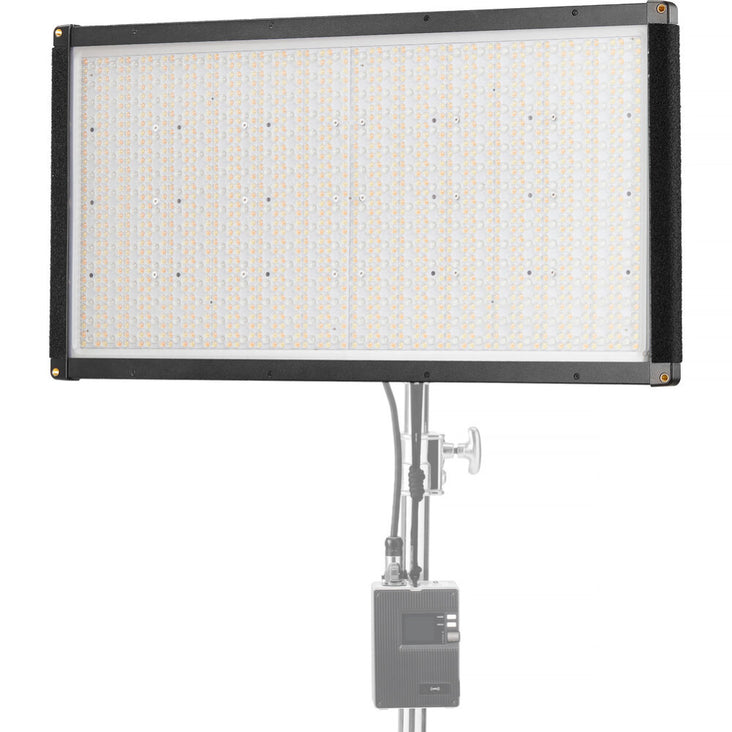

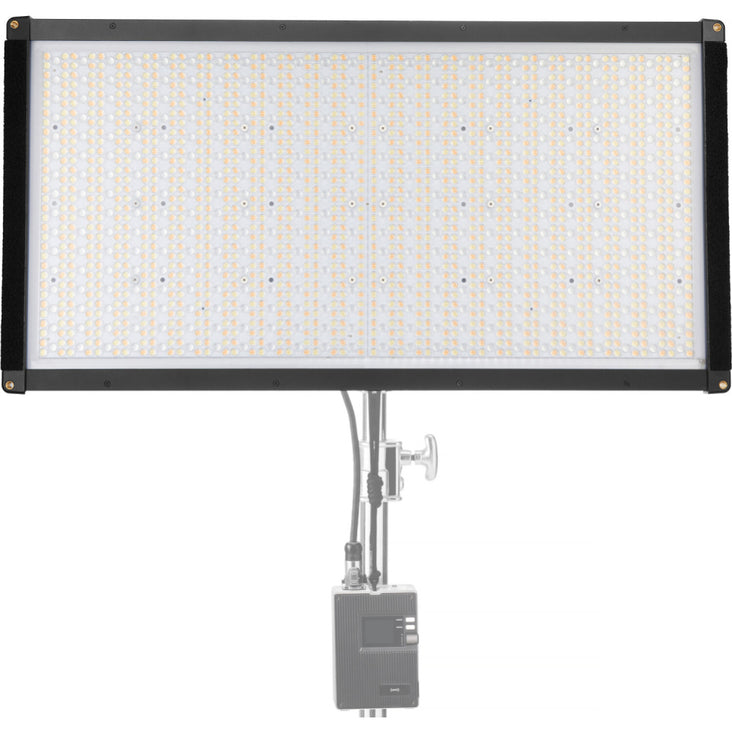

12 Month Warranty*The Godox LiteWafer UP150R RGB LED Light Panel is designed for creative professionals and production setups that demand high-quality lighting with full RGB capability, flexible control options and fast, versatile mounting. Offering a wide CCT range, excellent colour accuracy and advanced lighting features, it delivers strong brightness and consistent performance in a slim form factor. This version is built around a native 13.9 x 26.7" LED panel that can be expanded using optional connectors, and includes a controller, softbox and storage bag among other essential accessories. Suitable for everything from compact studios to mobile productions, the UP150R is ideal for solo creators as well as professional teams.
Optical Design, Slim-Profile Body

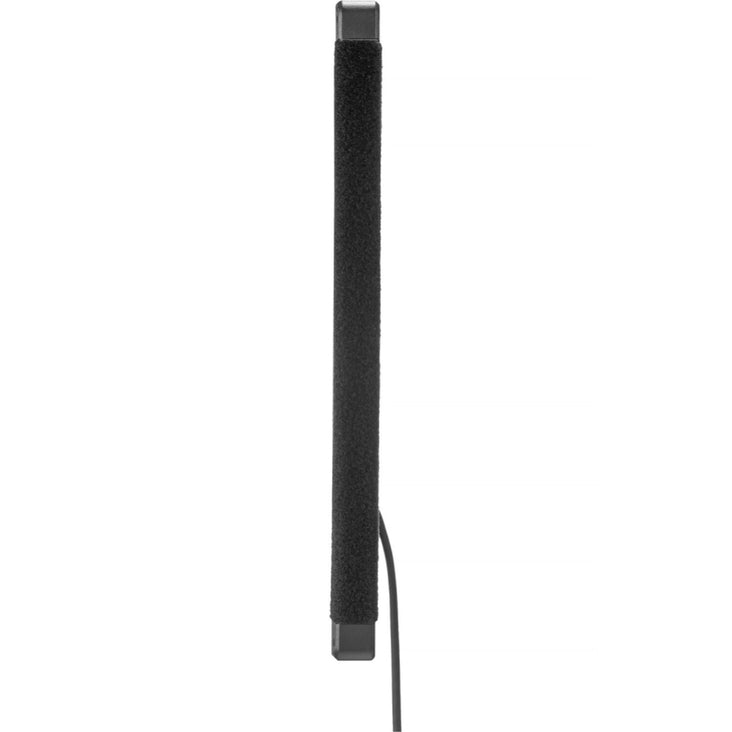

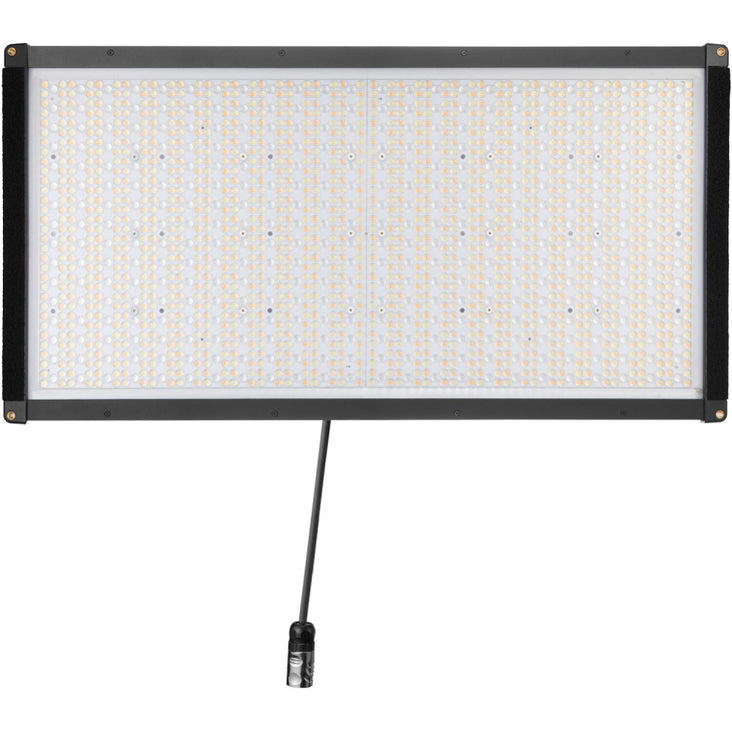

The LiteWafer UP150R is a 0.95" ultra-slim 180W LED panel with full colour capability and an extended colour temperature range from 1800 to 10,000K and 0-100% dimming. The LEDs used in the UP150R provide an impressive 20,400 lux at 3.3' (5600K) thanks to the fixture's optical lens boost design, while still maintaining soft, even illumination.
Fully Adjustable
The panel design is not its only relevant attribute. Let your creativity work in any colour and adapt your lighting to any scenario. Talking about adjustability, it's worth mentioning GM shift by -/+100% and four dimming curves for precision: linear, S-curve, exponential, and logarithmic. Find efficient performance and various lighting and control modes, whether you're illuminating live streaming, podcast, or short film setups.
Maximum Colour Control
Access the RGB mode for red, green, and blue colour variations, the HSI mode for hue, saturation, and intensity settings, the GEL mode to select from various preset filters, and finally, the creative FX mode for choosing from 14 different lighting effects for easy scene simulations. Additionally, very high CRI and TLCI ratings of 97 and 98 ensure true colour rendering for reliable detail and texture results.
Intuitive Settings, NFC App & DMX

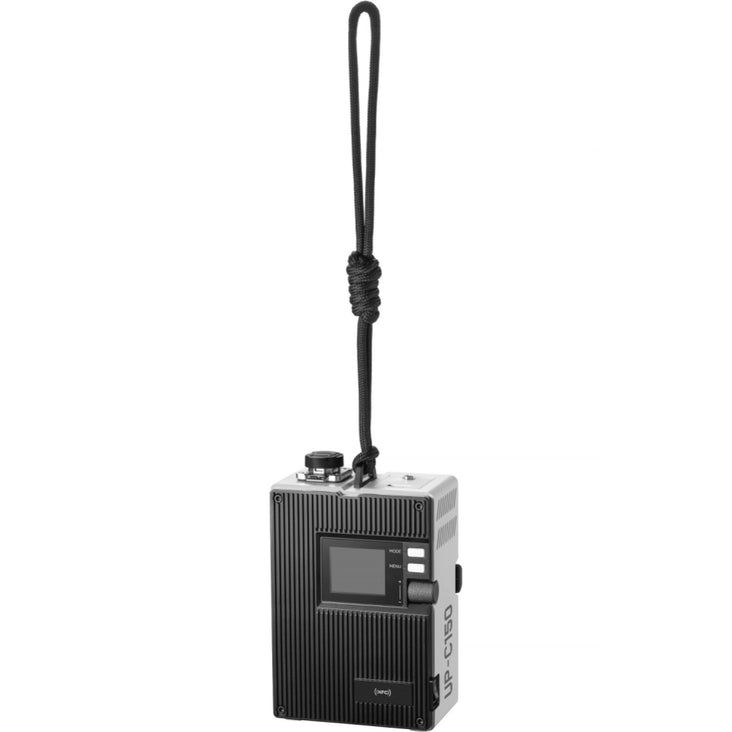

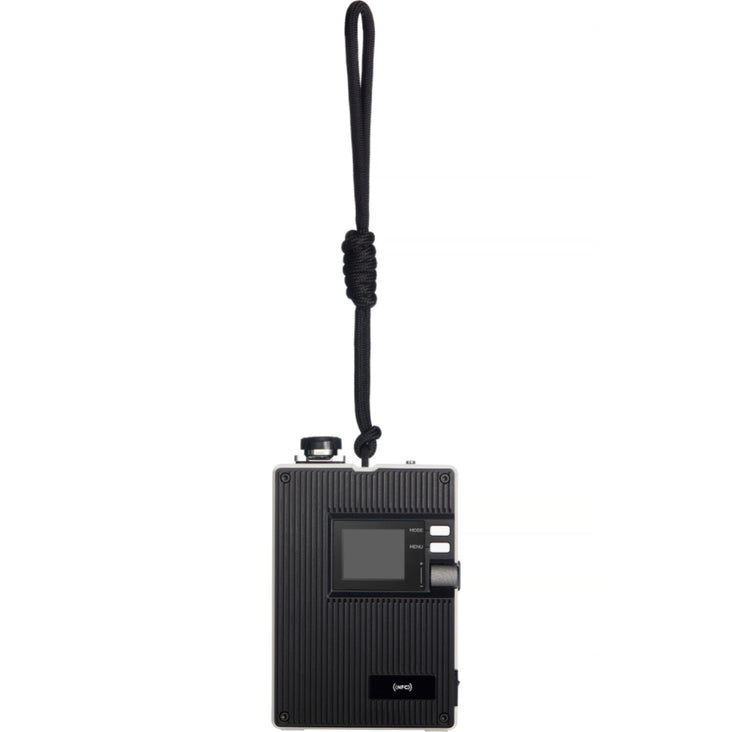

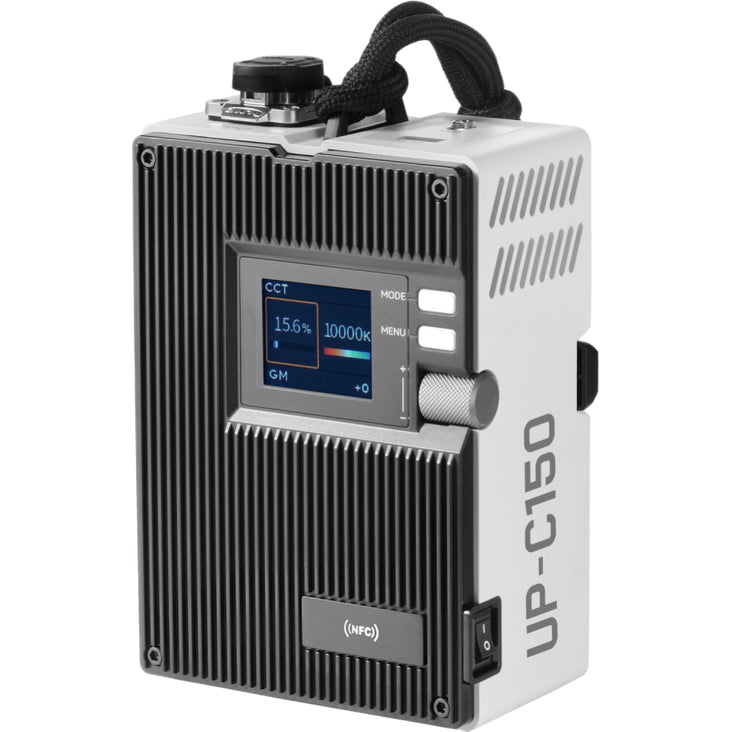

Godox also considered how to make the UP150R both intuitive and advanced. Adjust the lighting parameters using the included controller or go with quick app control with NFC capability.
The light can be remotely controlled via a Bluetooth connection from up to 98' away using the Godox Light app. Simply tap near the NFC area and pair it with the app.
The UP150R also allows wired DMX/RDM control for more advanced users and studio-grade workflows, which requires a separately available DMX-C1 adapter cable.
Power & Cooling

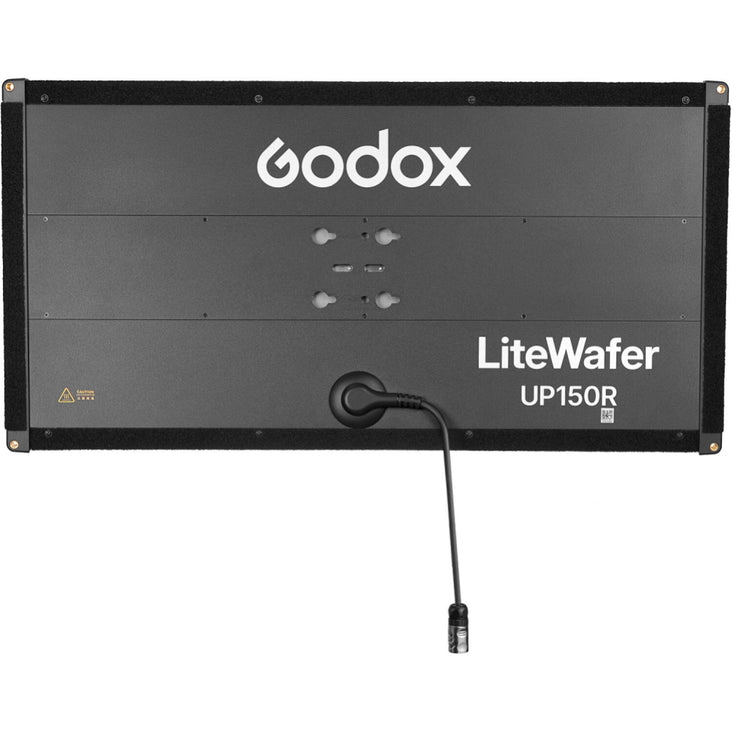

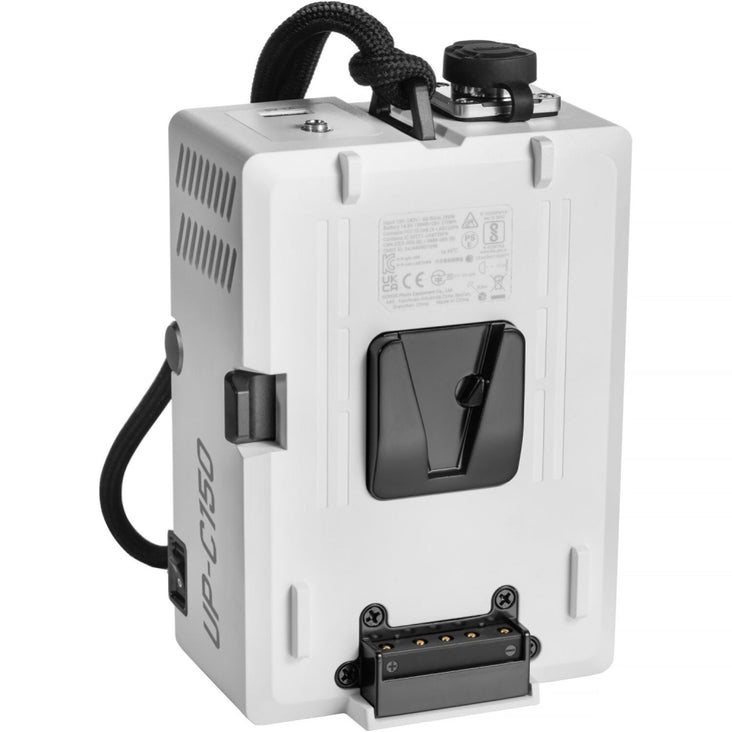

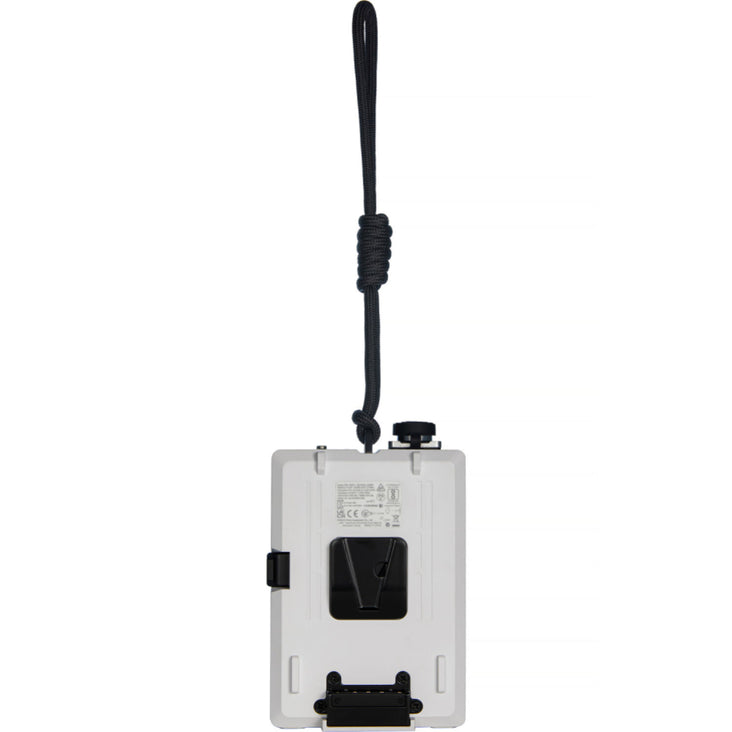

The unit's convenient metal body enables efficient cooling. A heat skin cools down the fixture to prolong durability and ensure consistent output even during extended shoots. The UP150R comes with an AC power cable, but it can also be used with separately available V-mount batteries. Place a single optional V-mount battery in the battery plate of the included controller. Besides that, a USB-A port is available for firmware updates. Use the controller box and shoulder strap for effortless shooting on the go.
Quick-Release System

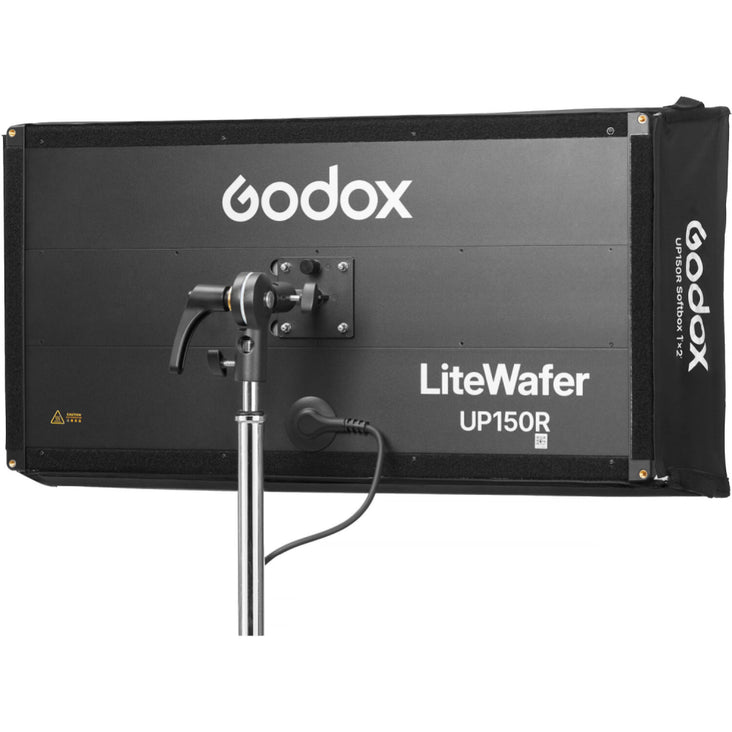

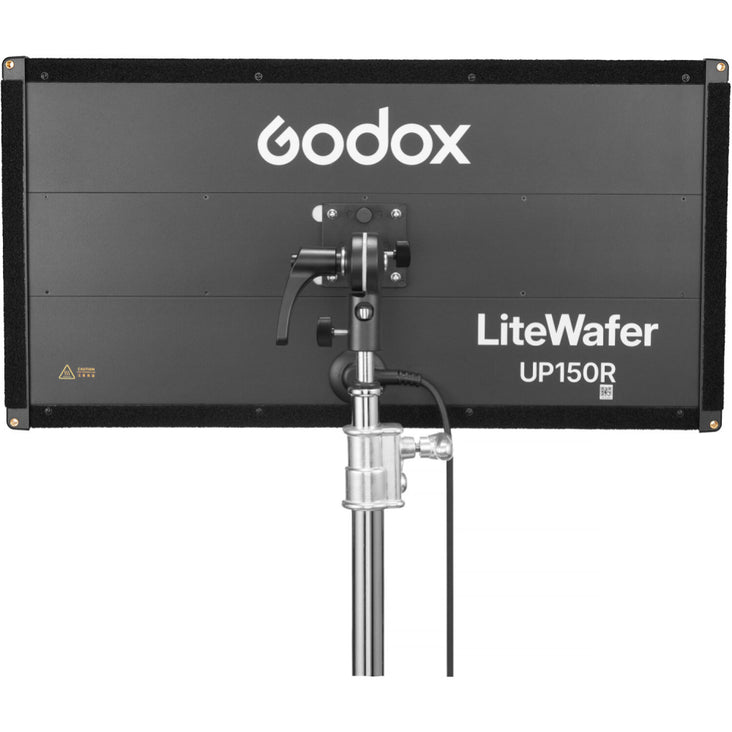

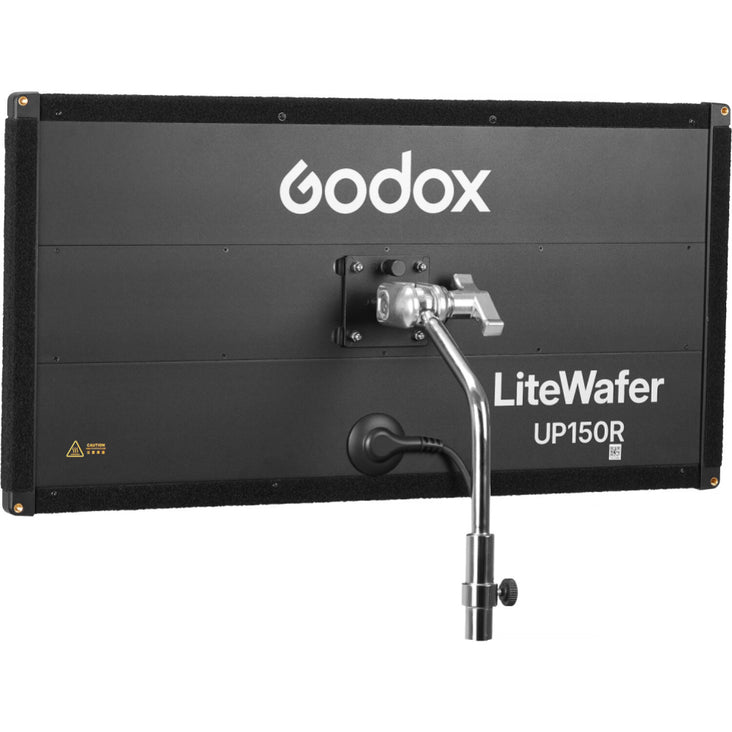

One of the great highlights of this light is the flexibility of its quick-release mounting system with a dedicated holder. Users will benefit from rapid setup and teardown, with a fixture that is quick to pack and portable-a great asset for fast-paced environments. This version includes a 5/8" baby pin, but Godox offers a separately available universal swivel holder for flexible positioning.
Lighting Expansion
The classic 1x2 panel design of the UP150R may be sufficient for many creators, but here Godox delivers flexibility for more demanding users and studios. Thanks to its seamless dual-light expansion system, the UP150R allows easy expansion by mounting two lights together for maximised output and larger lighting setups. This requires separately available straight connectors for achieving 2x2 and 1x4 structures when using two fixtures in horizontal or vertical positions.
Specifications
- For Video Production & Content Creation
- Output: 20,400 Lux at 3.3' (5600K)
- 1800-10,000K; RGBW Colour Control
- 13.9 x 26.7" Panel; AC/DC Operation
- CRI 97 | TLCI 98
- Onboard, DMX & App Control; NFC Function
- Opticetal Design
- al Lens Boost & Slim M
- Quick-Release Mounting System & 14 FX
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Softbox
|
| Included Storage Case |
Yes
|
| Photometrics |
5600K: 1895 fc / 20,400 Lux
|
| Colour Temperature |
1800 to 10,000K
|
| Colour Modes |
RGB, Daylight, Tungsten
|
| Colour Accuracy Standard |
CRI 97
|
| TLCI 98 | |
| Dimming |
Controller Included
|
| 0 to 100% | |
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
|
| Power Source |
AC Power (Cable Included)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
180 W
|
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Softbox
|
| Included Storage Case |
Yes
|
| Photometrics |
5600K:
|
| 1895 fc / 20,400 Lux at 3.3' / 1 m | |
| Standardised Measurement Supplied by the Manufacturer | |
| Colour Temperature |
1800 to 10,000K
|
| Colour Modes |
RGB, Daylight, Tungsten
|
| Colour Accuracy Standard |
CRI 97
|
| TLCI 98 | |
| Dimming |
Controller Included
|
| 0 to 100% | |
| Cooling System |
Passive
|
| Preprogrammed Effects |
Yes
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
|
| Mobile App Compatible |
Yes: Android & iOS
|
| App Name: Godox Light | |
| Functionality: Remote Control | |
| Wireless Range |
98.4' / 30 m
|
| Power Source |
AC Power (Cable Included)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Included Adapter / Cable |
Yes
|
| Power Consumption |
180 W
|
| Included Adapter |
1x 5/8" Stud
|
| Display |
Yes
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Dimensions |
68 x 35.41 x 2.41 cm (Fixture)
|
| 16 x 10.39 x 7.49 cm (Power Supply/Controller) | |
| Weight |
3.2 kg
|
| 0.85 kg (Power Supply/Controller) |

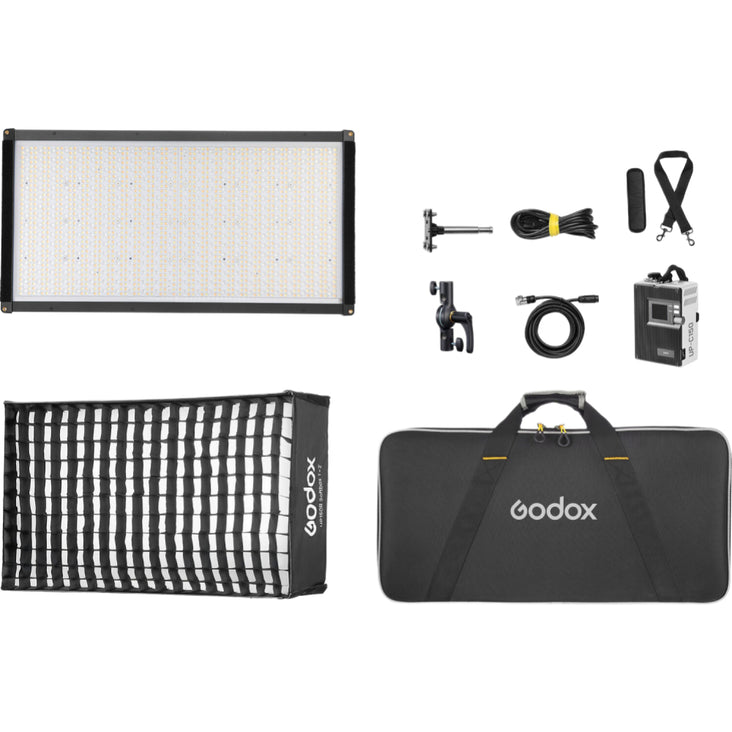

What's Included
1 x Godox LiteWafer UP150R RGB LED Light Pane

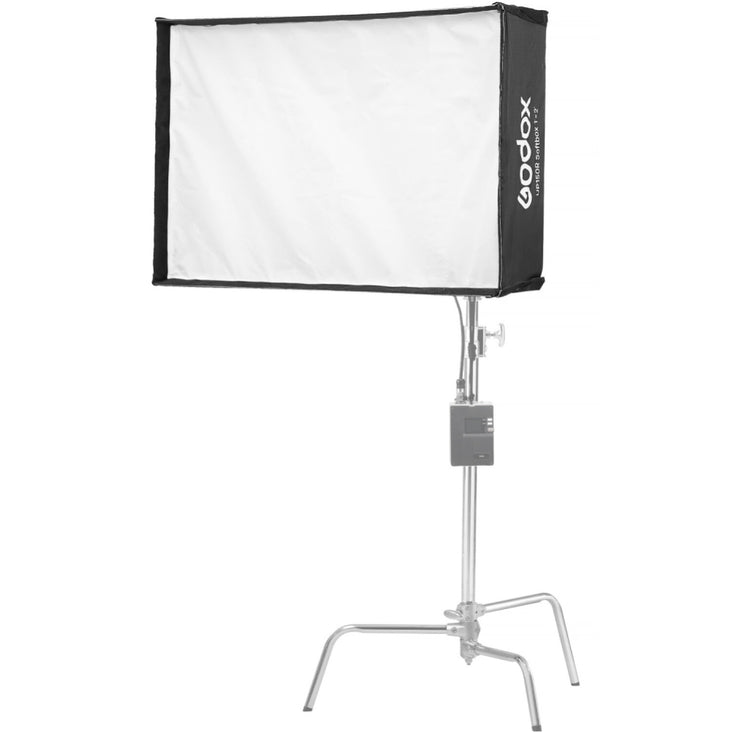

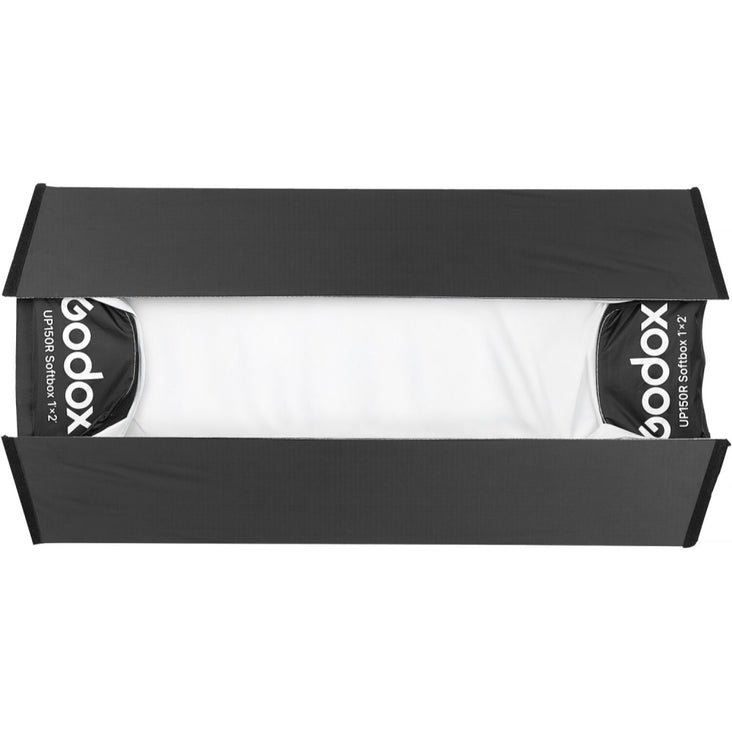

1 x Godox Softbox for LiteWafer UP150R Light (1 x 2')
1 x Light Body
1 x Adapter Holder
1 x 5/8" Baby Pin
1 x AC Power Cord
1 x Controller
1 x Controller Cable
1 x Shoulder Strap
1 x Storage Bag
