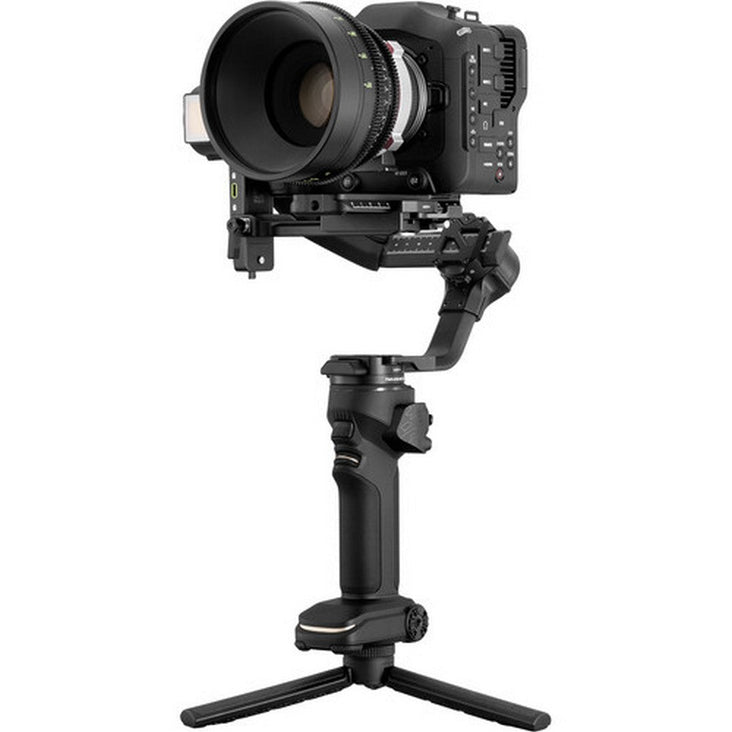

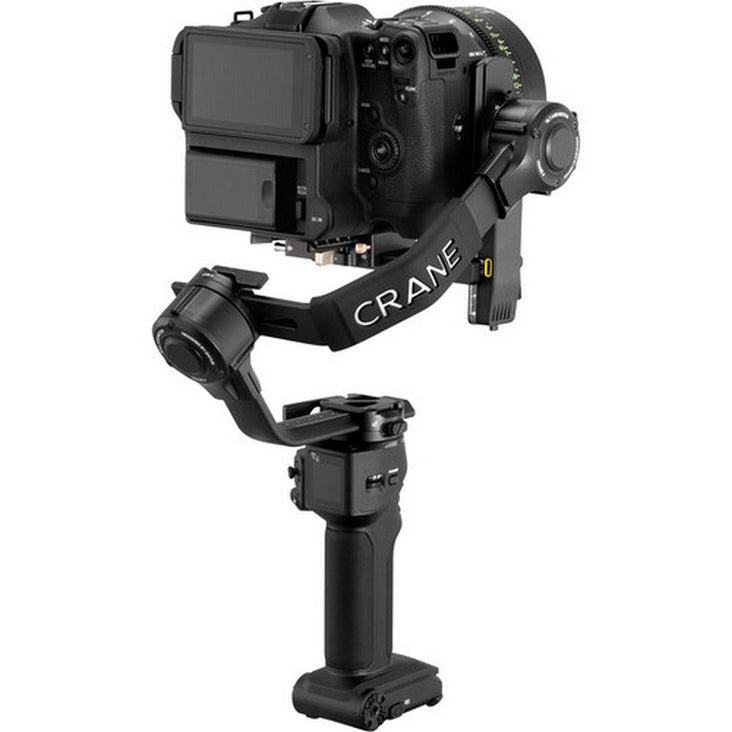

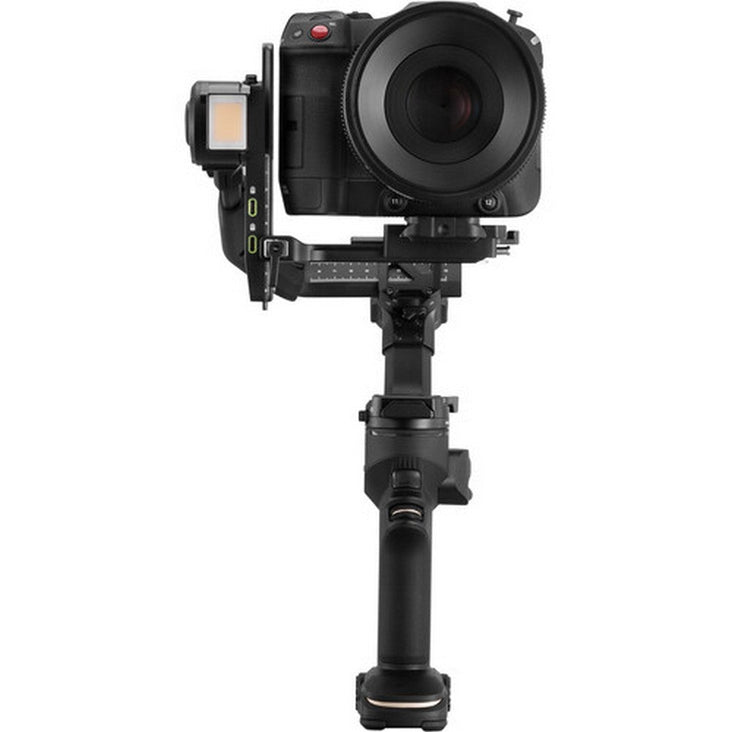

Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabiliser

Save 22%
$999.99 AUD $1,289.00 AUD
In stock

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

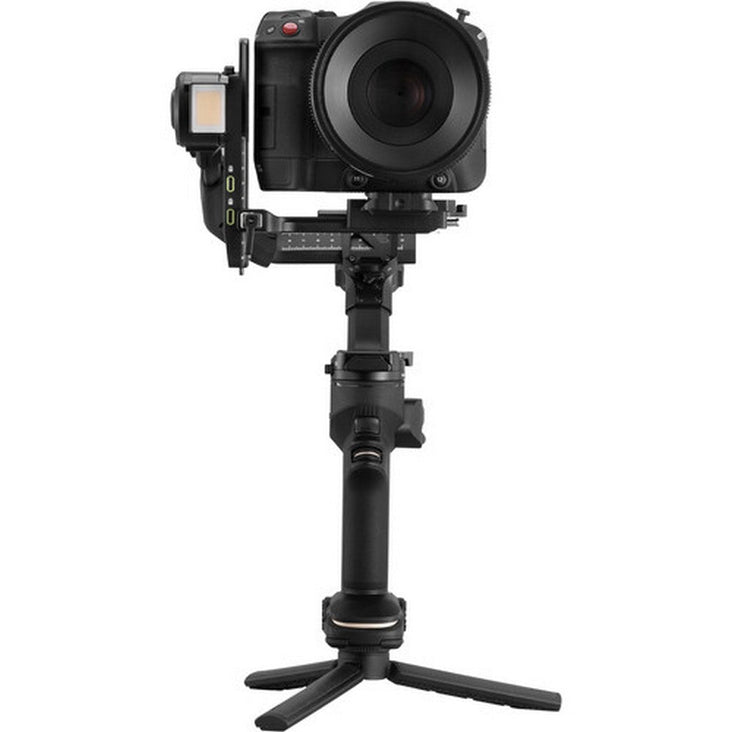

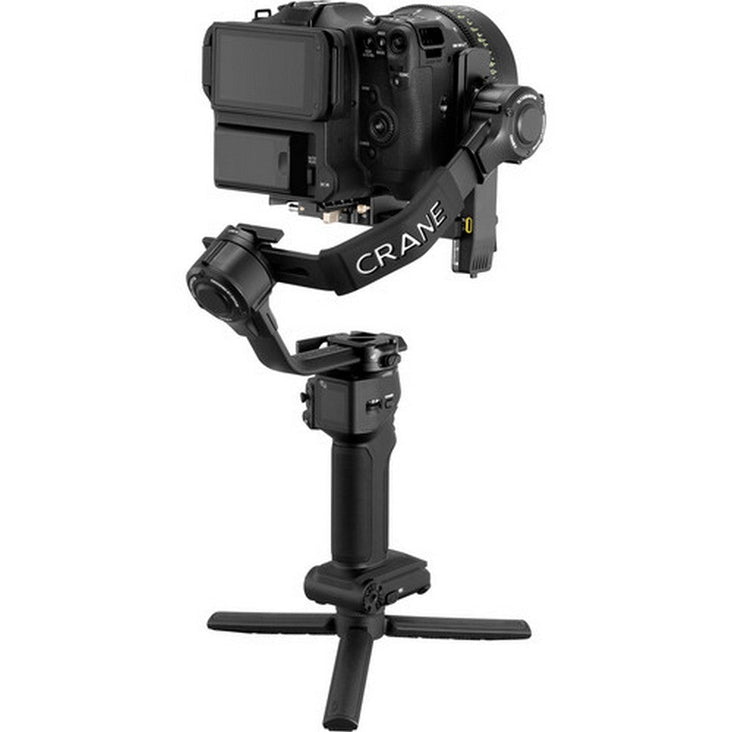

The Zhiyun CRANE 4 takes the familiar form factor and lightweight experience of previous Zhiyun gimbals while expanding the onboard features for native portrait shooting, Bluetooth shutter control, and an extended grip to accommodate cameras with full-frame lenses. Control the 360° pan, 207° tilt, and 70° roll rotation using the onboard controls. Balance indicator lights on each motor aid in achieving precise calibration. Dual-layer quick-release plates facilitate both landscape and portrait-oriented shooting with ease. Easily control your settings with the 1.22" colour touchscreen and Bluetooth-powered wireless shutter. The CRANE 4 also features a built-in fill light with a 3200 lux output and adjustable colour temperature.

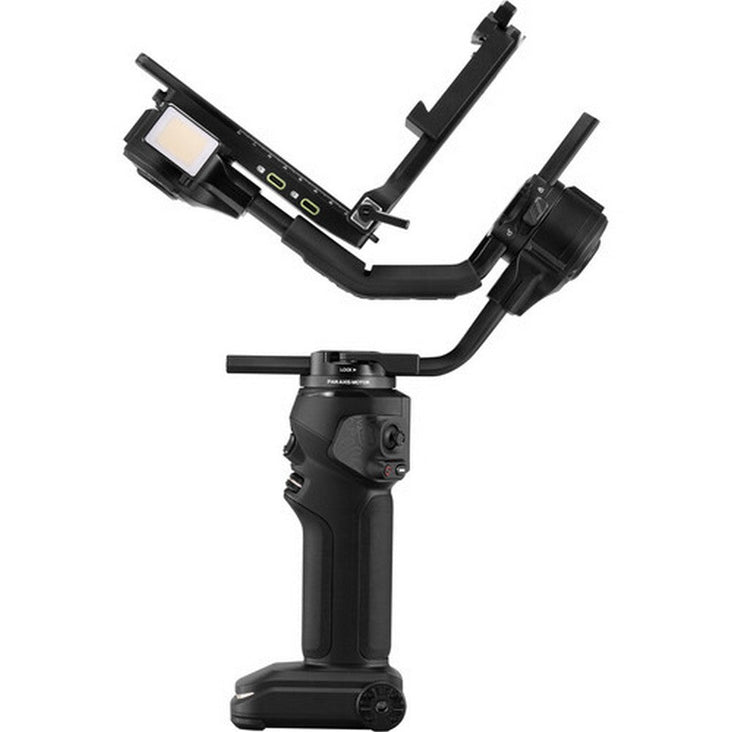

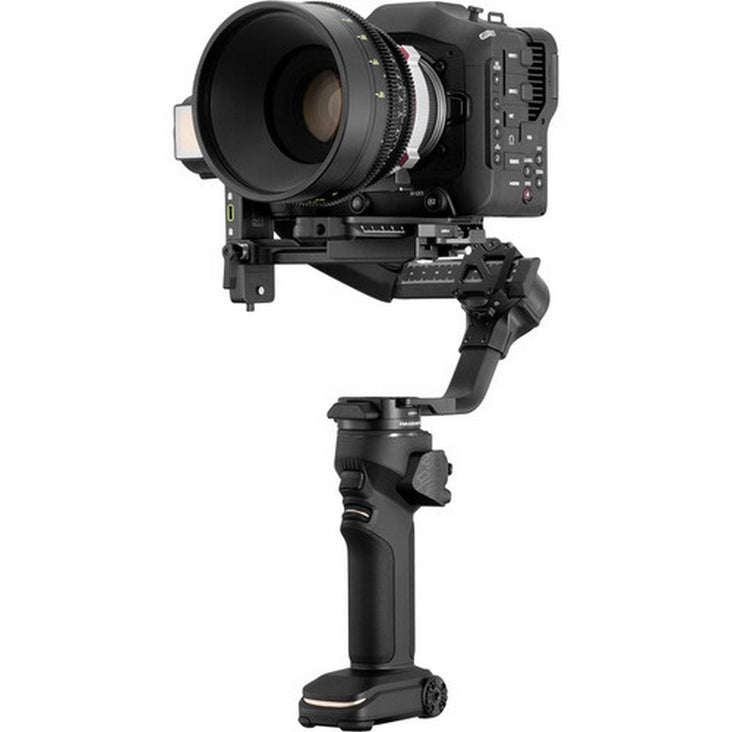

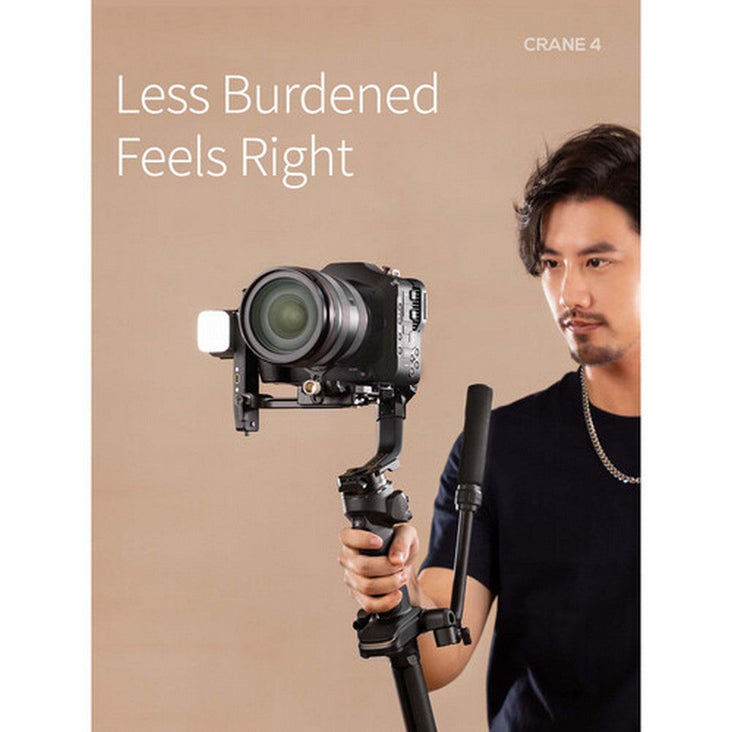

Lightweight Design, Extended Arm Length

  • With the CRANE 4 redesign comes an extended arm length and stronger motors, which expands the gimbal's gimbal and lens compatibility to DSLR, mirrorless, and compact cinema cameras with full-frame lenses attached.
  • The gimbal weighs just 1.6kg/ 3.6 lb but has a 6Kg/ 13.2 lb load capacity capable of supporting cameras like the Canon EOS 5D Mark IV, Blackmagic Pocket Cinema Camera 6K Pro, Nikon Z8, Panasonic LUMIX S1H, and Sony a7S III, all with full-frame lenses attached.
  • For a full list of compatible cameras, please see the most current compatibility information on the Zhiyun website page or see the camera compatibility list in PDF format.

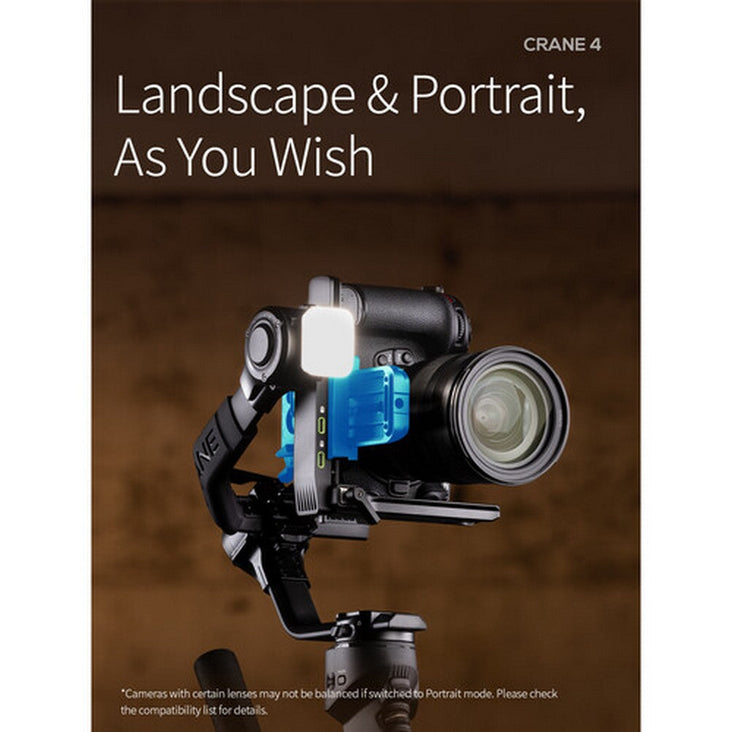

Dual-Layer Quick Release, Lens Support

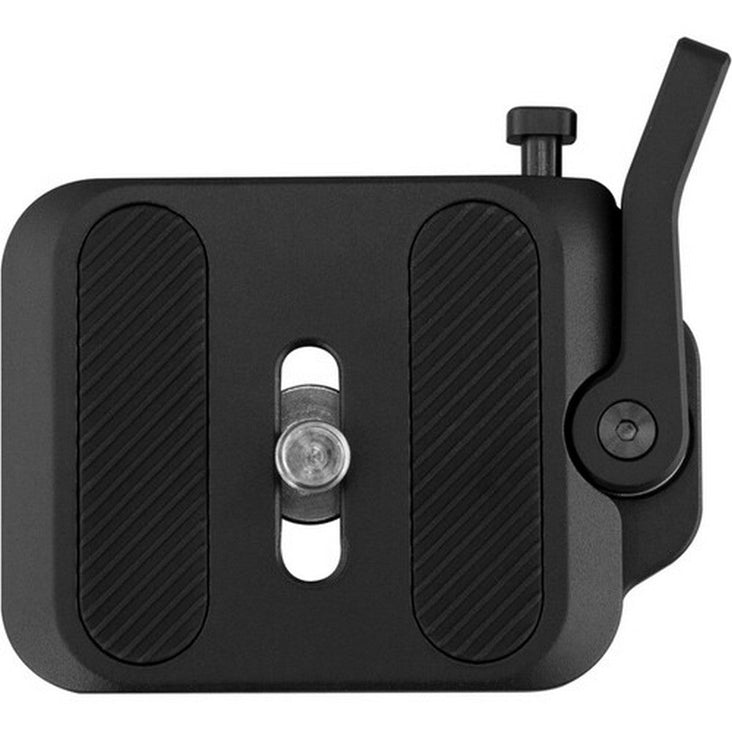

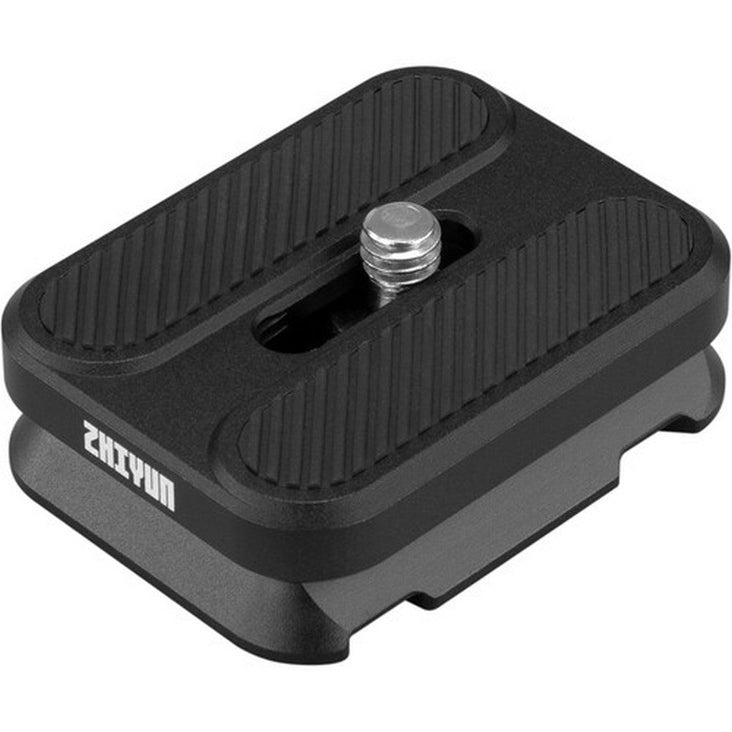

Mount your camera of choice on the camera quick release plate or upper quick release plate for efficient integration and balancing with the dual-layer plates on the CRANE 4. The lower quick release plate slides in the landscape orientation baseplate and offers a mounting point for the included lens support when using heftier full-frame lenses. The upper quick release slides easily into the portrait orientation baseplate.

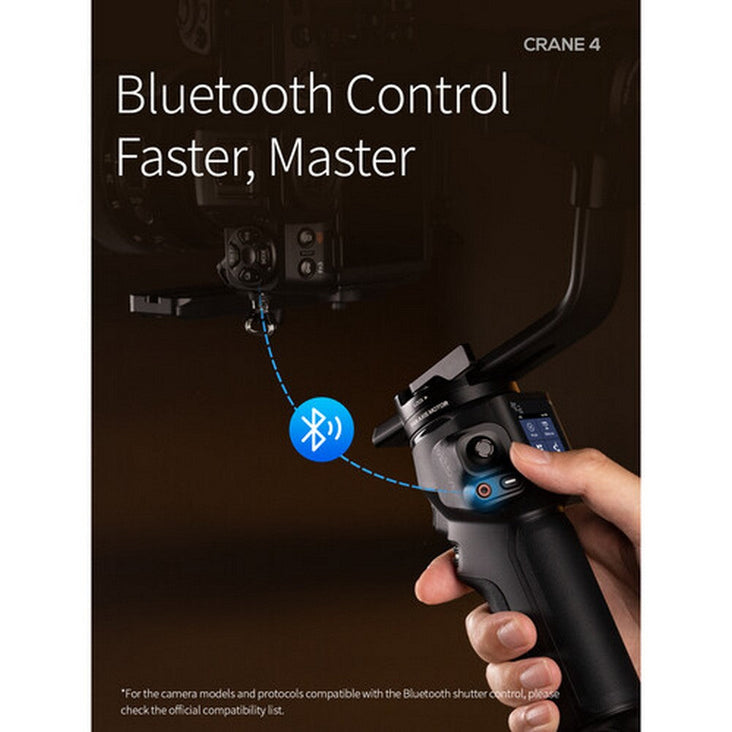

Bluetooth 5.0 Shutter Control
While the included camera control cables offer the option for wired shutter control, avoid complicated cable runs by using the embedded Bluetooth 5.0 shutter control. Wirelessly control your compatible camera's shutter and toggle recording via the onboard controls and touchscreen. For a full list of Bluetooth-compatible cameras, please see the most current compatibility information on the Zhiyun website page or see the camera compatibility list in PDF format.

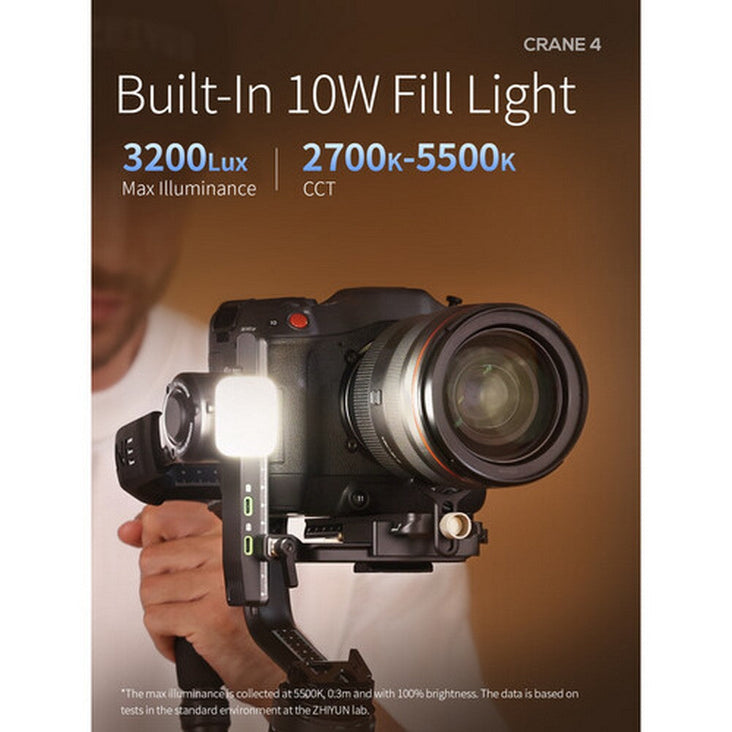

Powerful, Bright Fill Light

  • A built-in 10W fill light easily lights subjects thanks to its 3200 lux brightness. An included fill light diffuser can soften the light's effect as needed.
  • The light has a CRI of 95+ for accurate and natural colour reproduction.
  • Adjust the colour temperature of the light from 2700 to 5500K with the onboard control wheel.

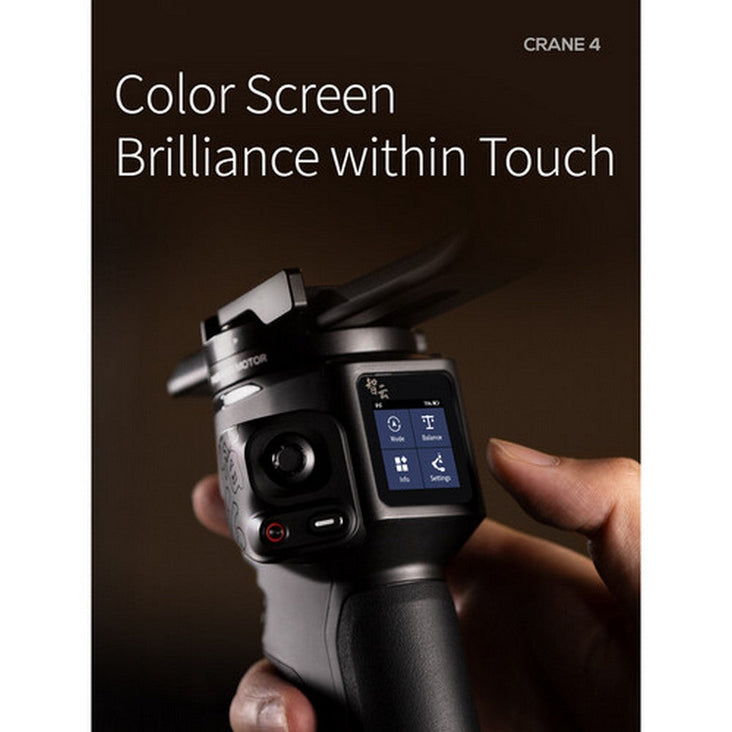

1.22" Color Touchscreen, Onboard Controls

  • Toggle between gimbal modes like Pan Follow Mode, Lock Mode, POV Mode, Follow Mode, Go Mode, Vortex Mode, and Portrait Mode.
  • Other shooting features include Panorama, Timelapse, and Motionlapse.
  • Check and view the balance status of each axis in real time.
  • Auto-calibrate after your rig is fully balanced.
  • Set the motor torque, smoothness, follow speed, and joystick speed of the gimbal.

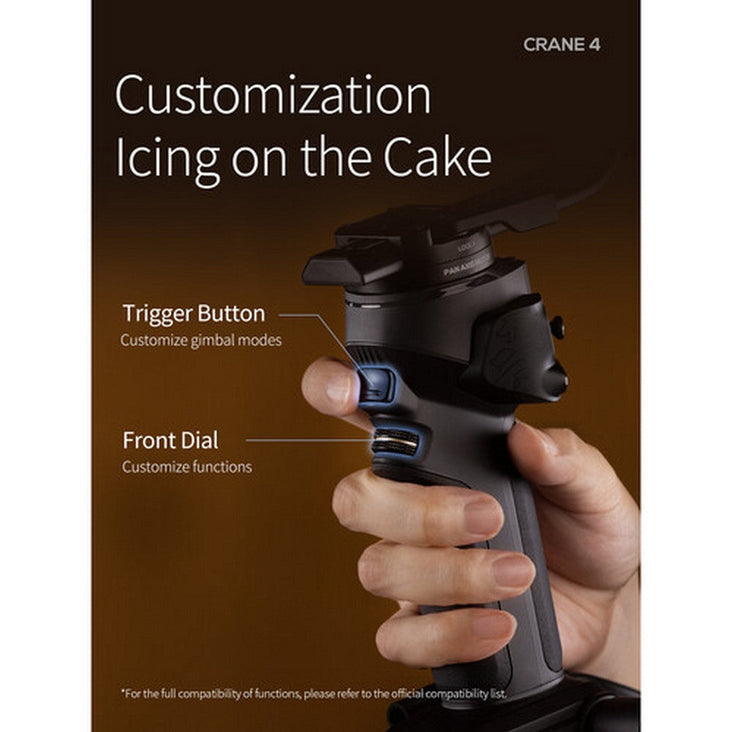

  • Customise the function of the trigger button and front dial to toggle settings or modes of your choice.

ZY Play App
Control your gimbal remotely from your iOS or Android device using the ZY Play App. Features of the app include virtual joystick control, photo and video control, motion sensor control, timelapse, panorama, and firmware upgrade. The gimbal's embedded Bluetooth technology facilitates the app connection.

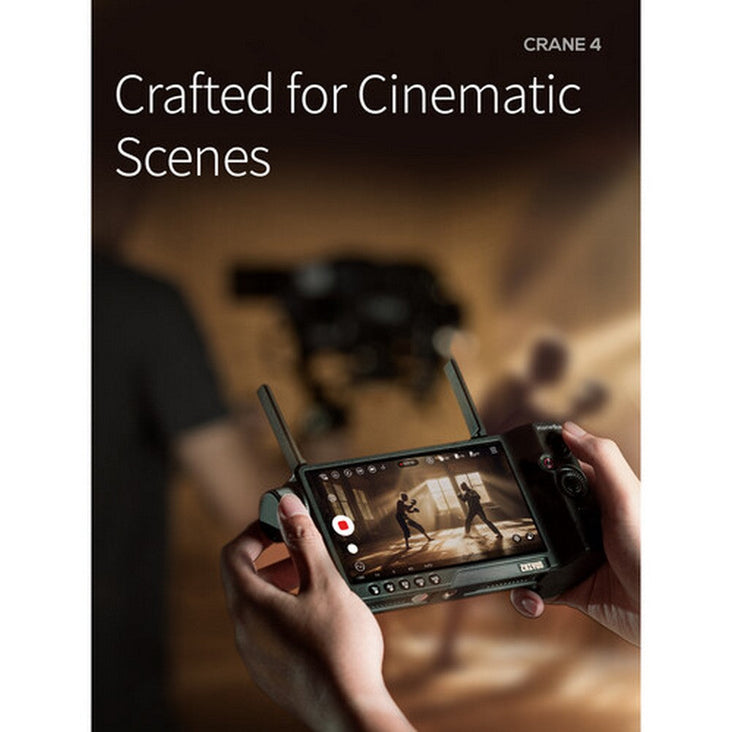

Follow Focus and Video Transmitter Integration
Attach additional pro-level tools to the CRANE 4 to communicate to others on set. Two USB-C ports at the front of the camera mounting area can connect follow focus motors for remote camera control. Another USB-C port at the back of the camera accepts the included camera control cables or connects to the separately available TransMount Image Transmission system. The transmitter unit can mount onto the bottom of your gimbal's baseplate to communicate with its corresponding viewing monitor.

All-Day Production
Four built-in 18650 batteries with a 2600mAh total capacity offer a runtime of 12 hours to shoot all-day events. The USB-C charging port supports PD fast charging to get you back up and running in 1.5 hours. You can charge the gimbal while it's in use to keep capturing the action.

Features

  • 13.2 lb Load Capacity
  • Extended Arm for Full-Frame Lenses
  • Dual-Layer Quick Release Plates
  • 360° Pan, 207° Tilt, 70° Roll Rotation
  • Bluetooth 5.0 Shutter Control
  • Built-In 3200 Lux Fill Light
  • Adjustable Colour Temperature
  • Creative Operation Modes, 12-Hr Runtime
  • 1.22" Touchscreen, Balance Indicators
  • 2600mAh Batteries, PD Fast Charge


Specifications

Load Capacity

13.2 lb / 6 kg

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Rotation Range

Mechanical Range
Pitch (Tilt): 214° (-72 to 142°)
Roll: 322° (-251 to 71°)
Yaw (Pan): 360°
Controllable Range
Pitch (Tilt): 207° (-71 to 136°)
Roll: 70° (-35 to 35°)
Yaw (Pan): 360° Unlimited

Camera Control

On Compatible Models

Camera Mounting Screw

3 x 1/4"-20 Male

Inputs/Outputs

1 x USB-C (Power / Firmware Updates)
1 x USB-C (Control / Video)
2 x USB-C (Control)

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 5.0

Mobile App Compatible

Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Battery Type

4 x 18650

Battery Capacity

2600 mAh

Battery Runtime

12 Hours

Battery Charging Time

1.5 Hours

Operating Voltage

11.0 to 16.8 VDC

Operating Current

200 to 14500 mA

Operating Temperature

14 to 77°F / -10 to 25°C

Display Type

Fixed Touchscreen LCD

Mounting

4 x 1/4"-20 Female

Dimensions

13.4 x 11 x 2.8" / 340 x 280 x 70 mm

Weight

3.68 lb / 1.67 kg (without Tripod)



What's Included
1 x Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer

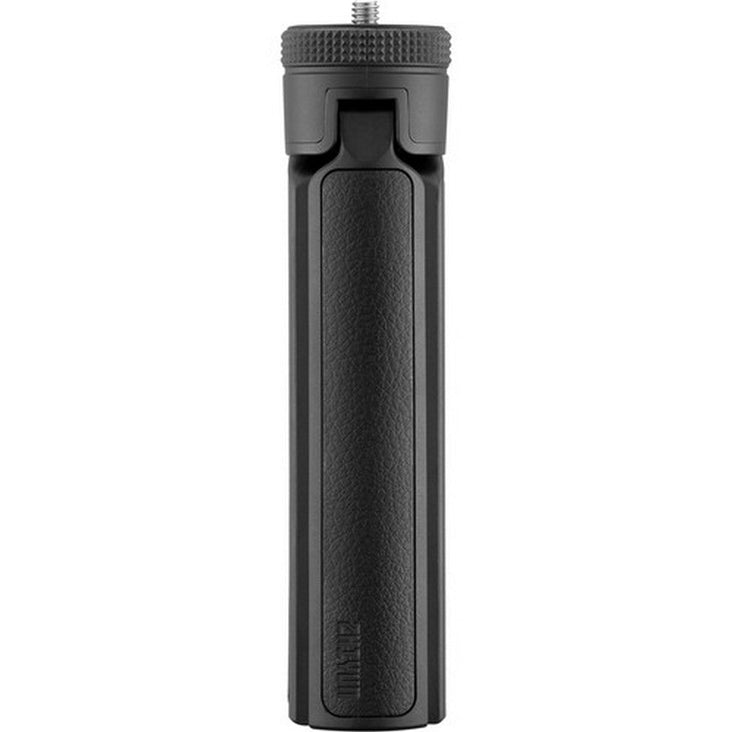

1 x Mini Tripod

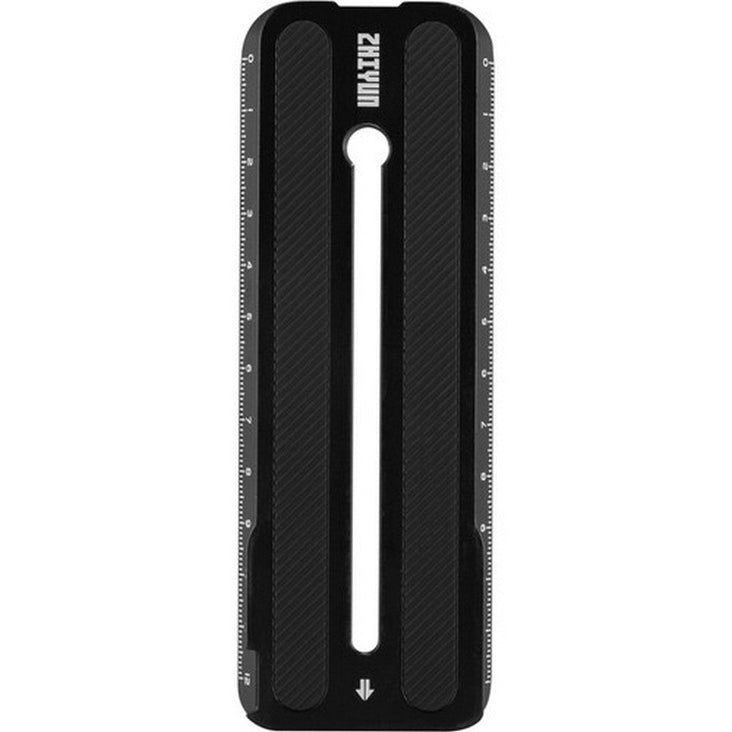

1 x Lower Quick Release Plate
1 x Upper Quick Release Plate
1 x Camera Quick Release Plate

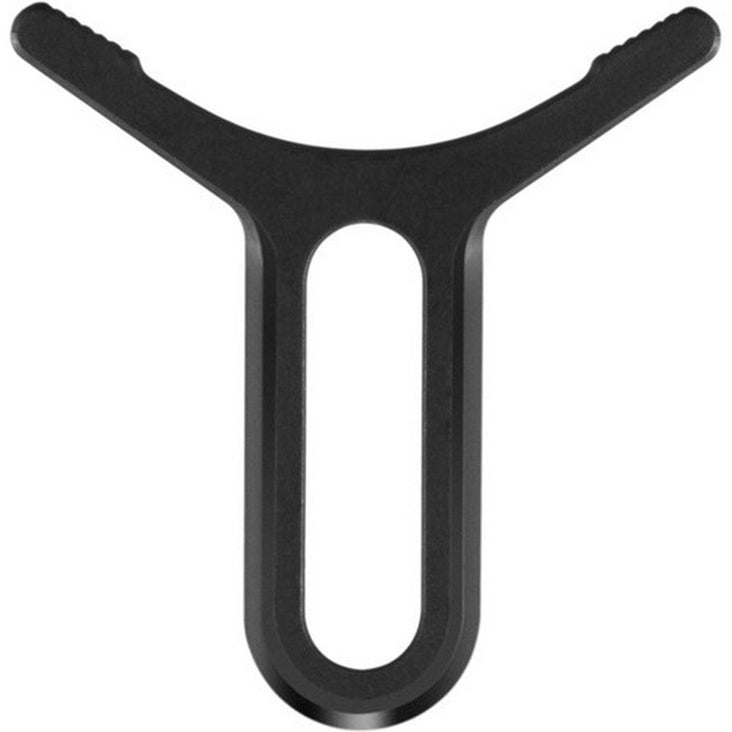

1 x Lens Support

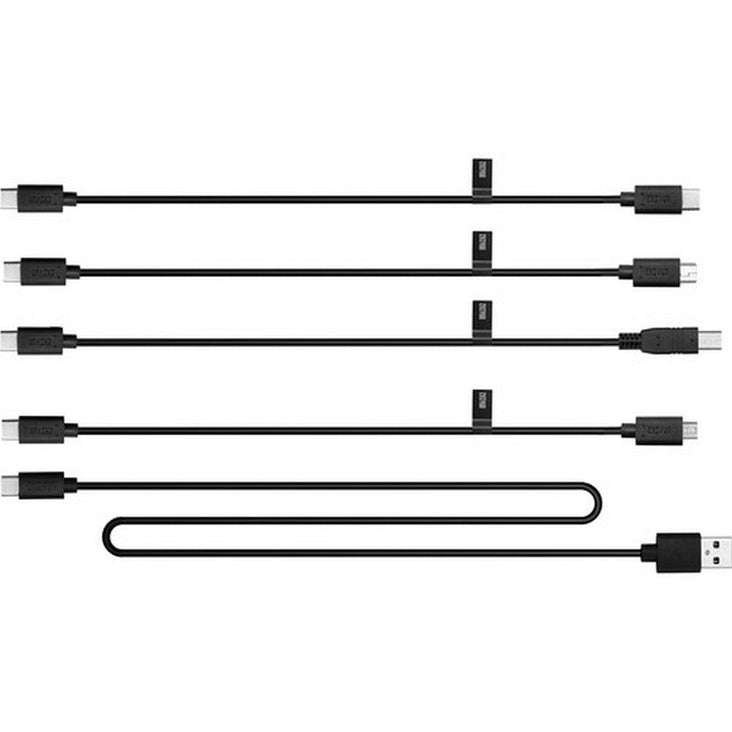

1 x USB-C to Sony Multi Control Cable
1 x USB-C to Mini-USB Canon Control Cable
1 x USB-C to Micro-USB Canon Control Cable
1 x USB-C to USB-C Panasonic Control Cable
1 x USB-C Charging Cable

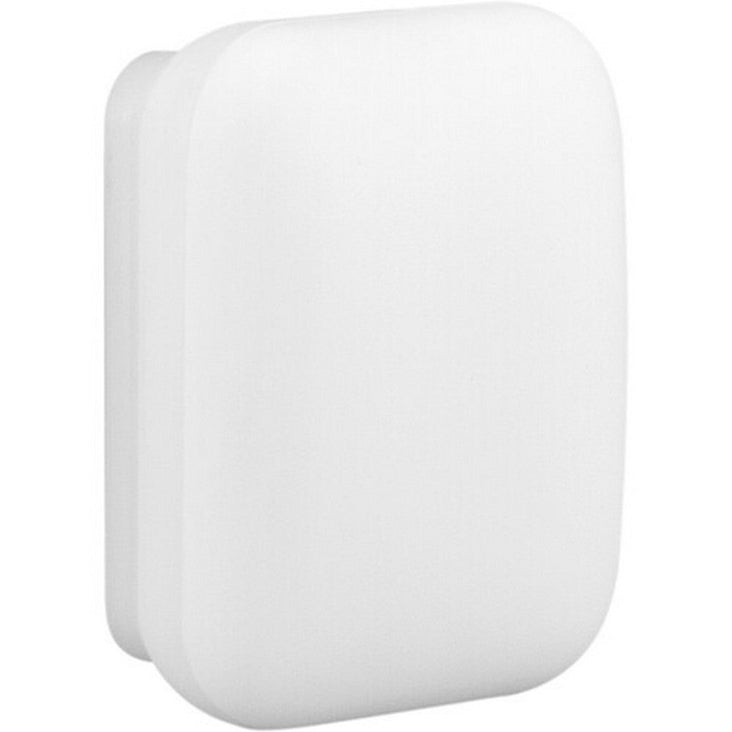

1 x Fill Light Diffuser

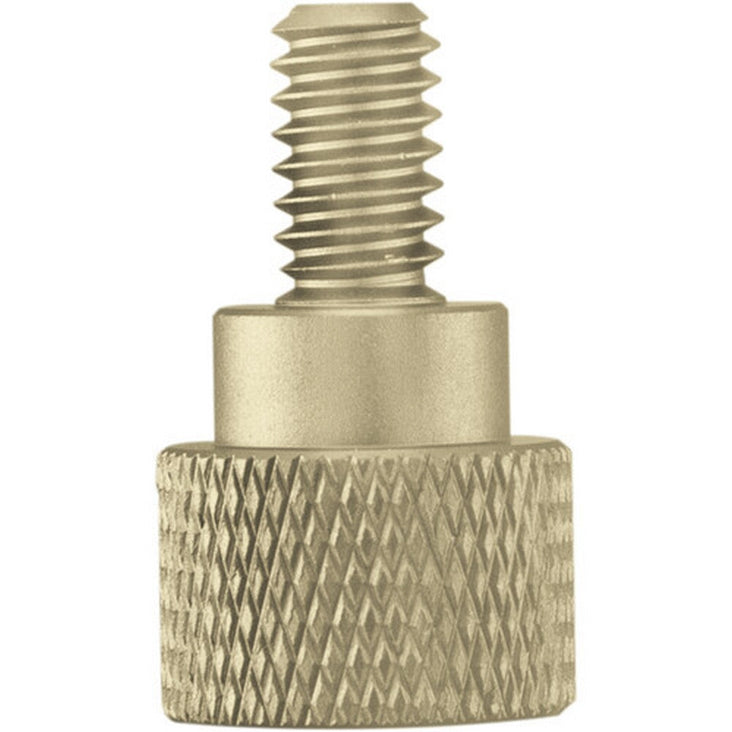

3 x 1/4"-20 Screw

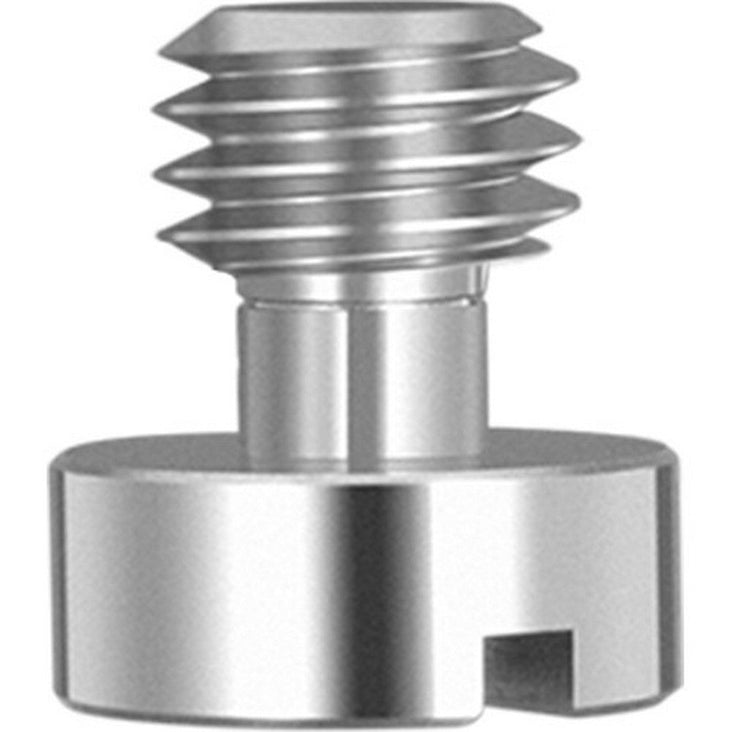

1 x 3/8"-16 Screw

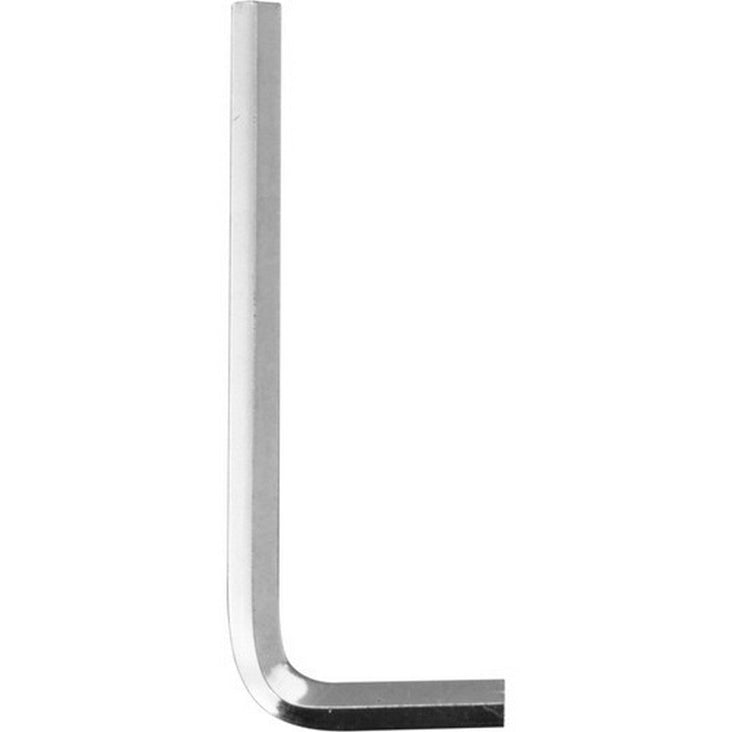

1 x Allen Key

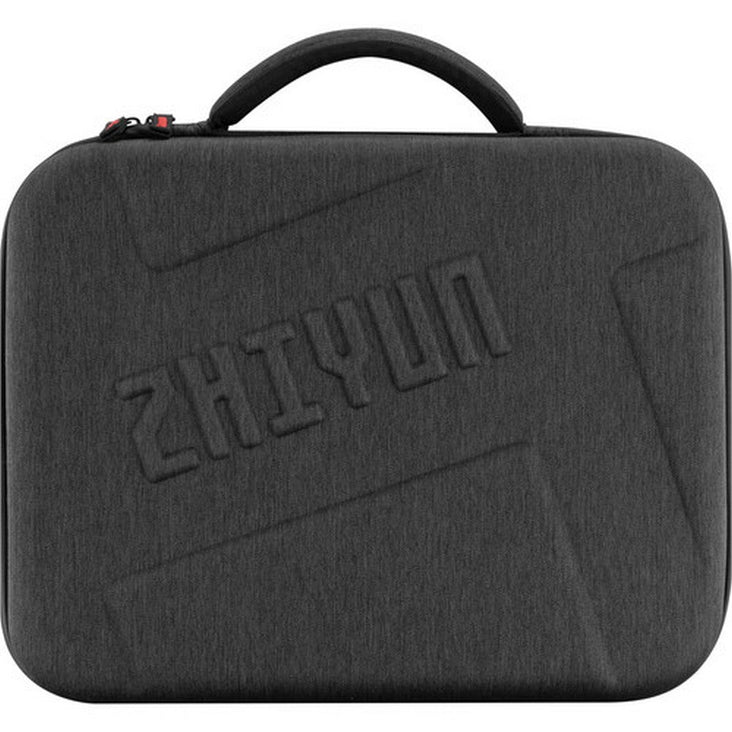

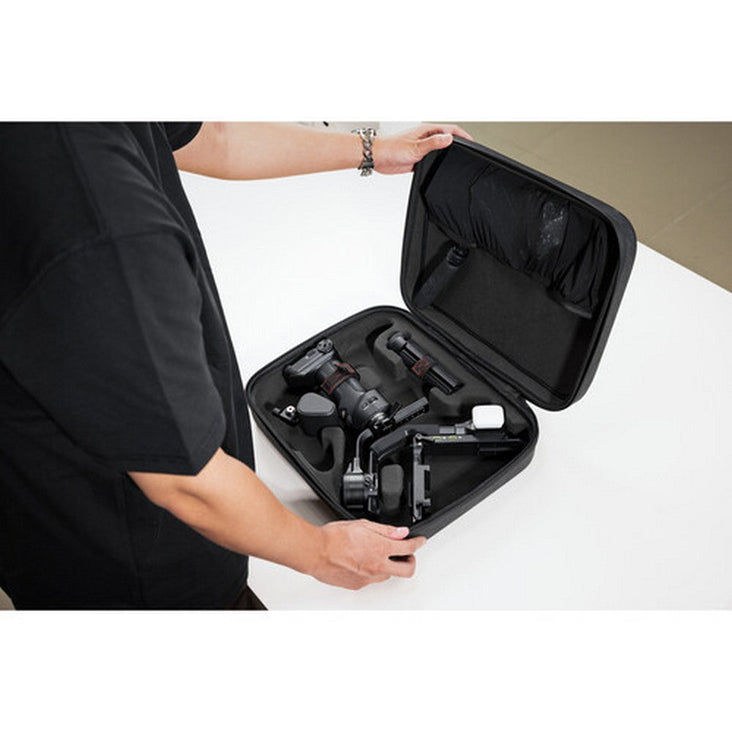

1 x Carrying Case
