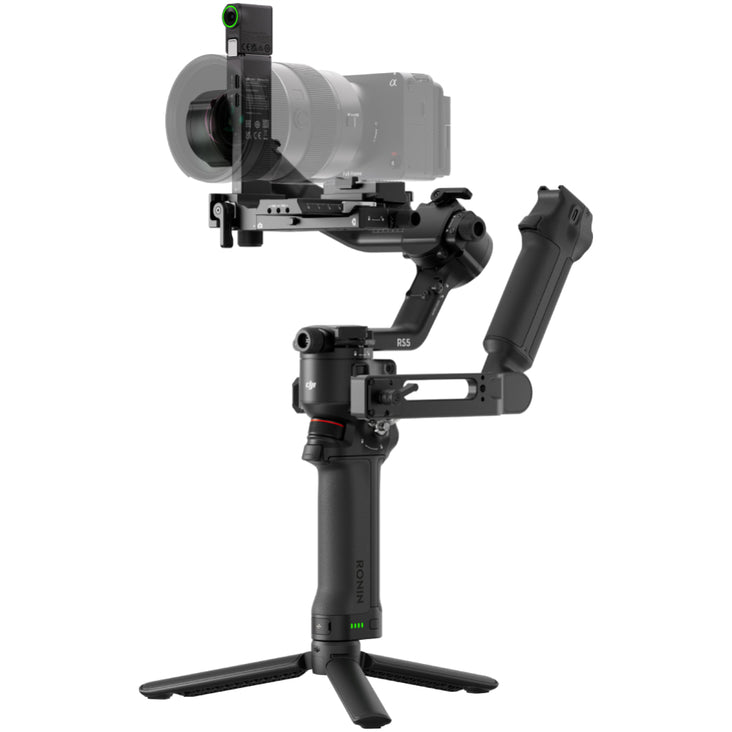

DJI RS 5 Combo
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

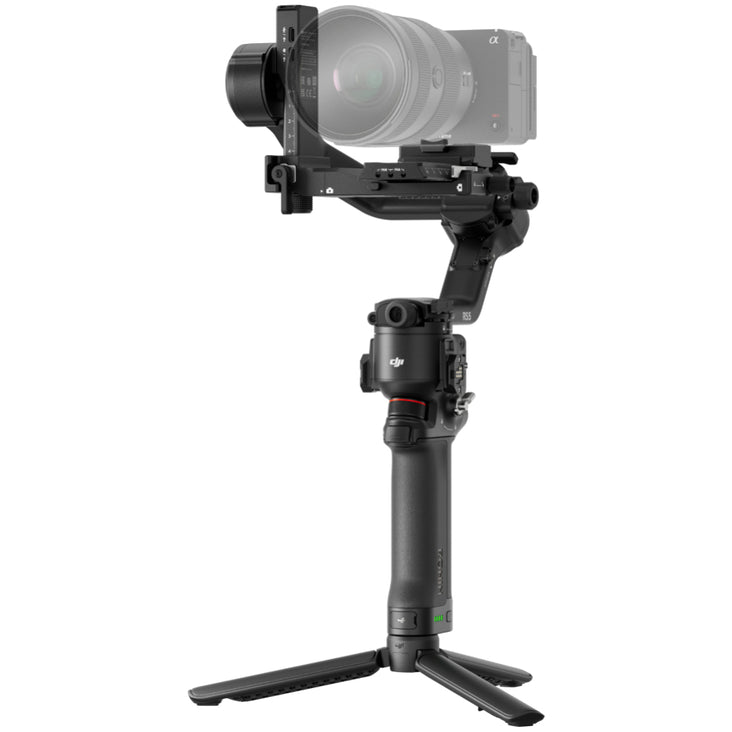

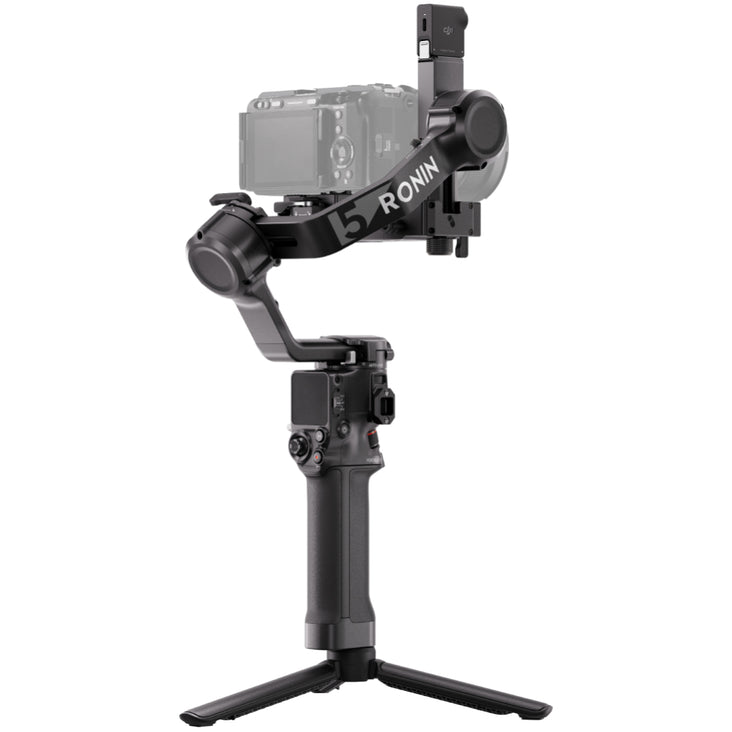

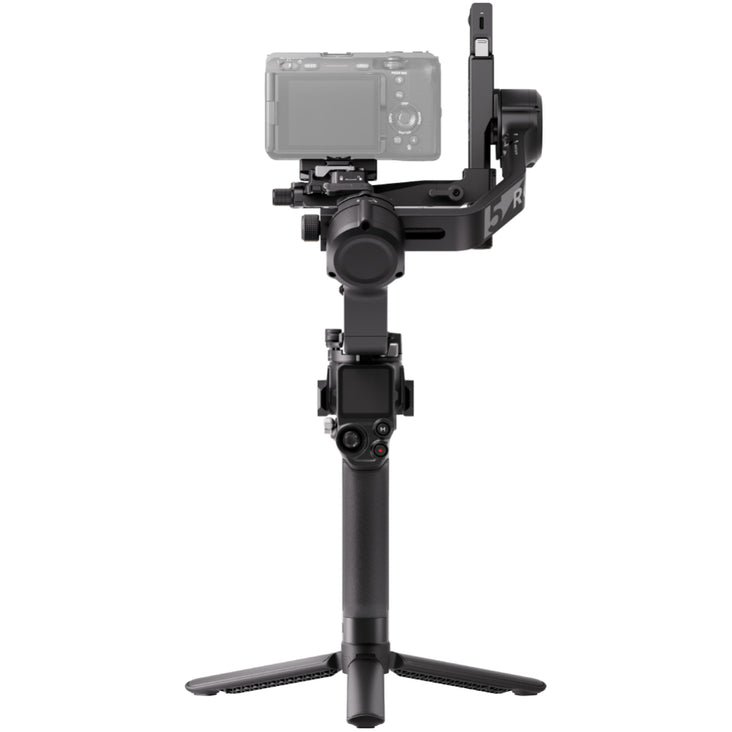

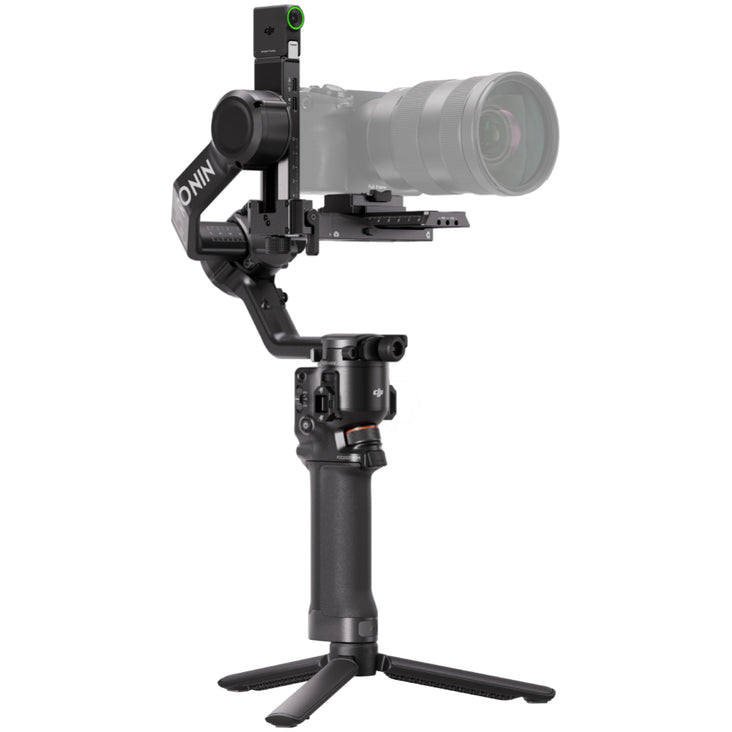

12 Month Warranty*The DJI RS 5 is a lightweight stabiliser designed for filmmakers and content creators, offering dependable performance and intuitive control for smooth, professional-quality footage.

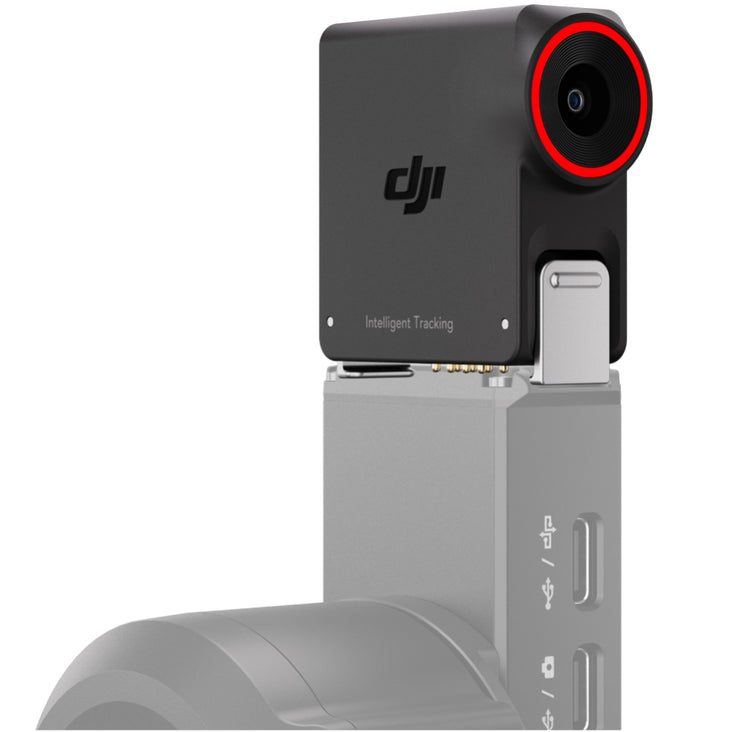

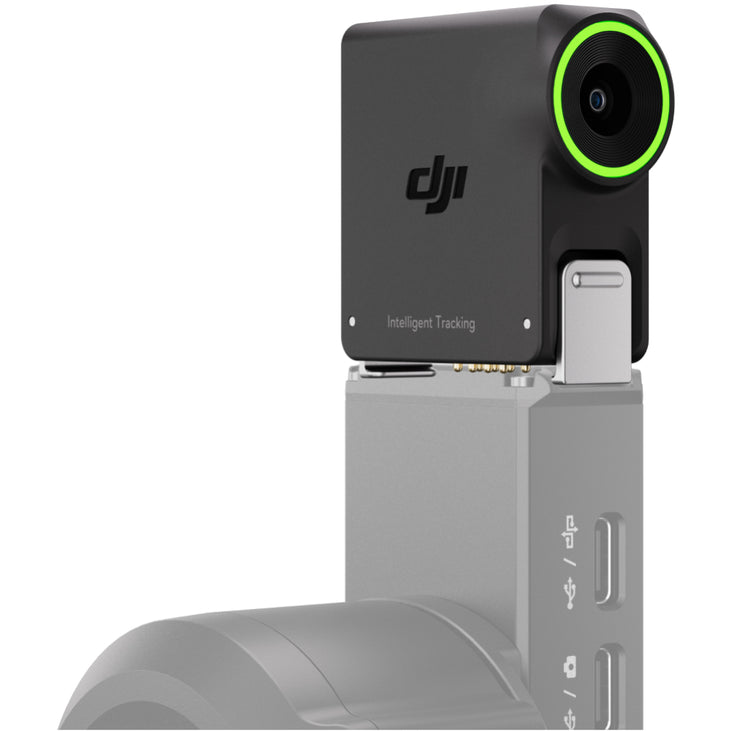

Enhanced Intelligent Tracking

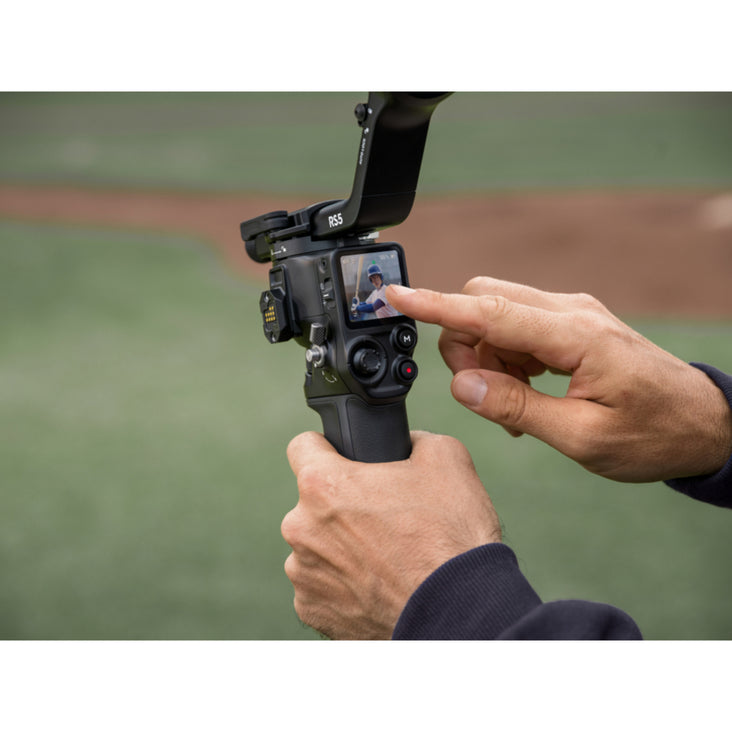

The RS Enhanced Intelligent Tracking Module allows you to select and track subjects directly from the gimbal's touchscreen, maintaining precise framing. Person tracking reaches up to 10 metres and supports reacquisition if the subject briefly leaves the frame.
Supported Modes Include:
ActiveTrack - Person
ActiveTrack - Vehicle
ActiveTrack - Pet
Powerful Stabilisation Performance
Peak motor torque has increased by 50% compared with the previous model, delivering excellent stability during fast action. The 5th-generation RS stabilisation algorithm optimises performance for walking, running, and vertical shooting, ensuring a perfect balance between smoothness and responsiveness.

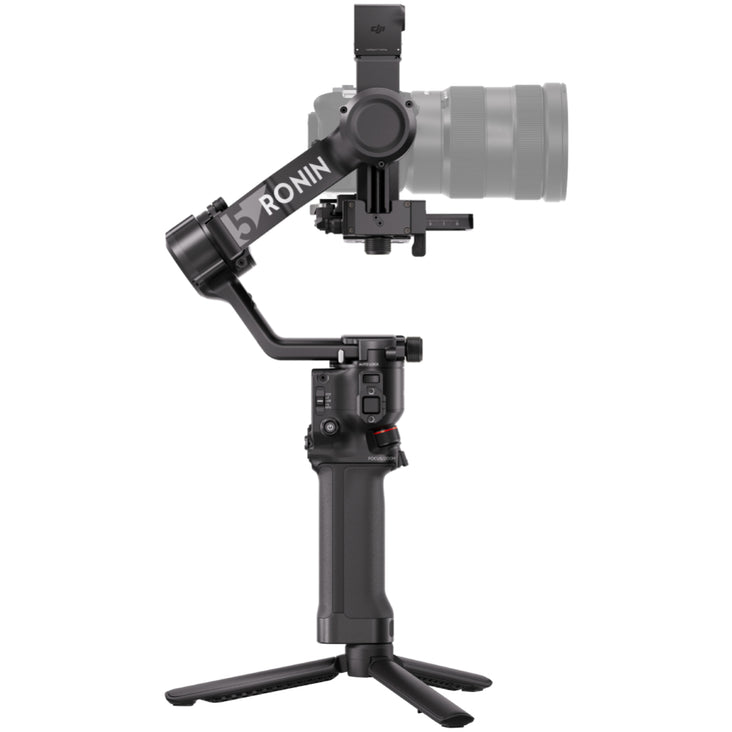

Compact Design, 3 kg Payload Capacity
Weighing only 1.46 kg (including battery grip and quick-release plates), the RS 5 supports payloads up to 3 kg and switches to vertical shooting without additional accessories. It handles a wide range of popular mirrorless camera and lens combinations effortlessly.
Compatible Examples
Sony: FX3 / A7M4 / A7C / A1 + FE 24-70mm F2.8
Canon: R5 Mark II + RF 24-70mm F2.8
Nikon: Z6 III / Z7 II + Z 24-70mm F2.8
Panasonic: S5M2 + 24-60mm F2.8
Fujifilm: X-T5 + XF 16-55mm F2.8

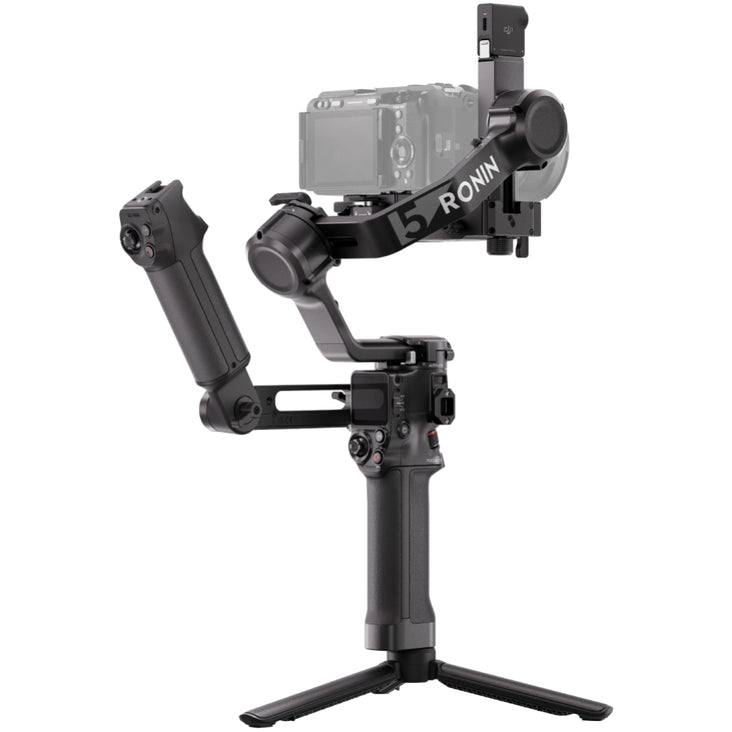

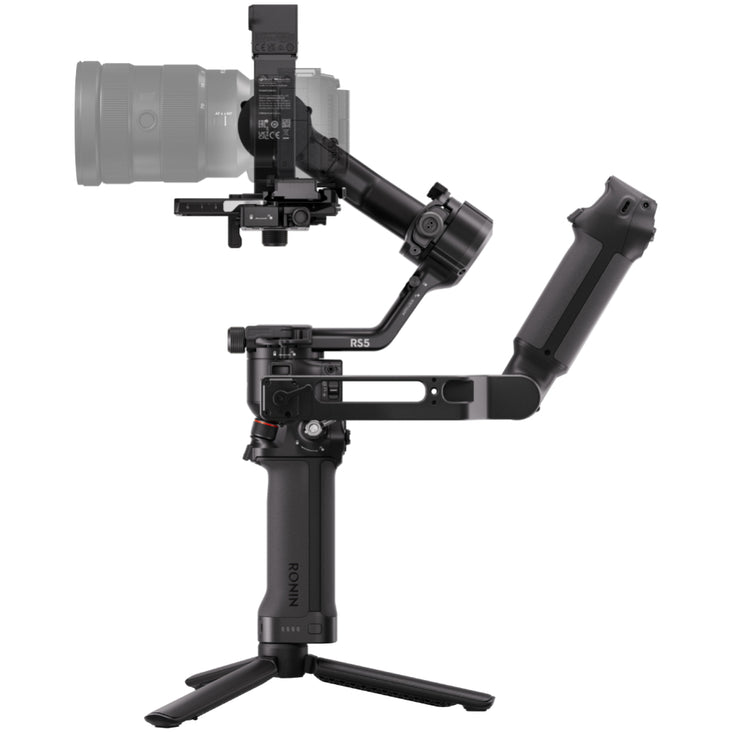

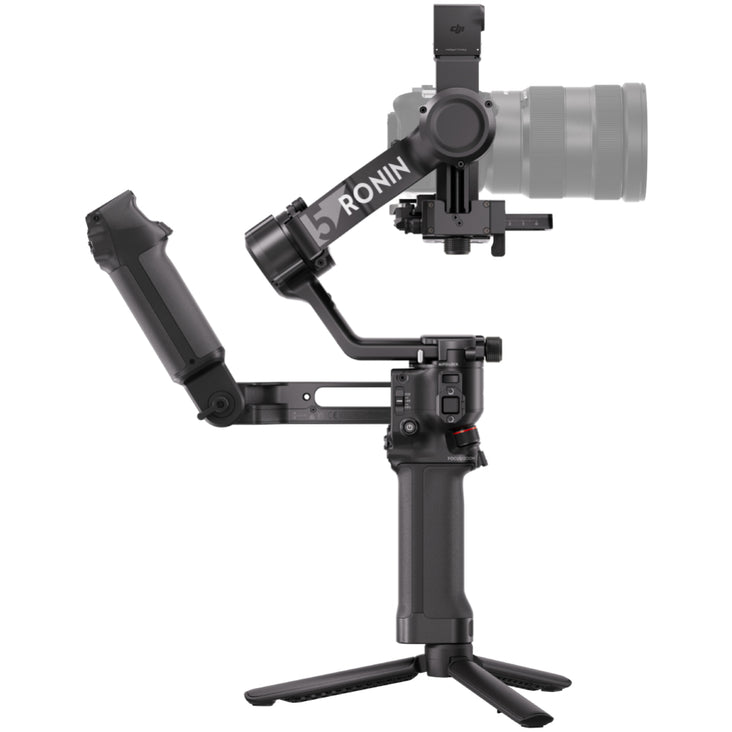

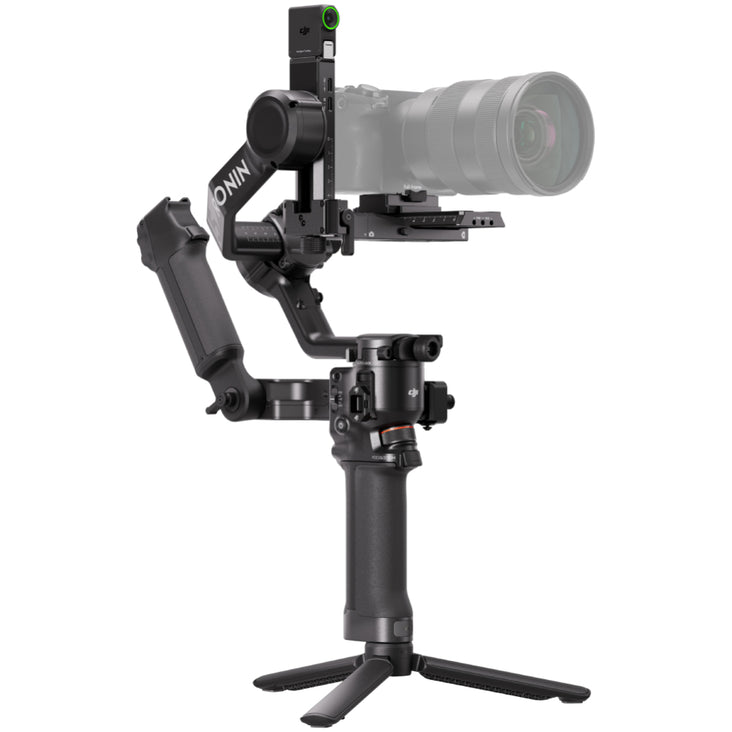

Electronic Briefcase Handle
The new Electronic Briefcase Handle enables comfortable single-handed operation. A built-in joystick and buttons provide immediate control over gimbal movement and camera functions, opening up more creative shooting angles.
Improved Battery Performance
Charge the battery fully in just one hour (60% faster charging). The standard battery grip offers approximately 14 hours of standby time (15% longer than the previous model).
Pair with the BG70 High-Capacity Battery Grip to reach up to 30 hours of maximum standby time. Supports 45W PD fast charging.
Expanded Bluetooth Shutter Compatibility
Bluetooth shutter control now includes select Panasonic and Fujifilm cameras in addition to Sony, Canon, and Nikon models. This allows wireless operation of shutter release, zoom, and Clear Image Zoom without cables.
Z-Axis Indicator
A dedicated Z-axis indicator provides real-time feedback, helping you adjust footsteps for consistently steady and professional-looking footage.

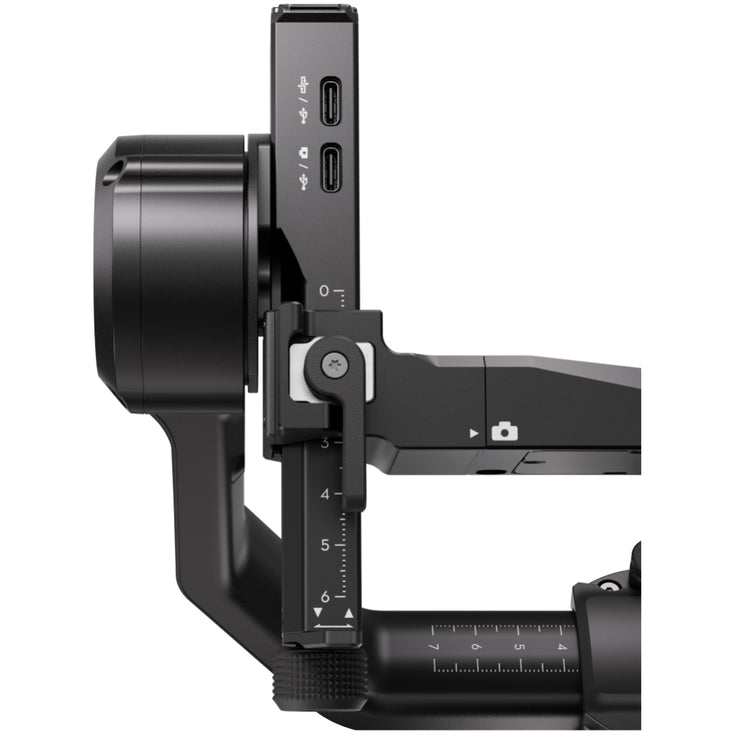

Precise and Smooth Balancing
Fine-tuning knobs on each axis use a leadscrew mechanism for quick, accurate adjustments. Teflon interlayers ensure smooth operation, even with heavier professional camera setups.

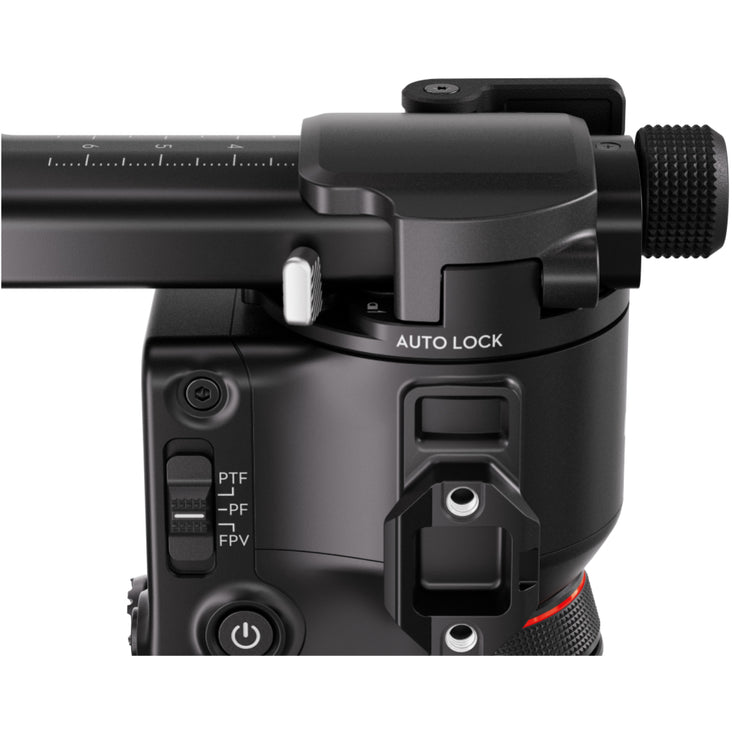

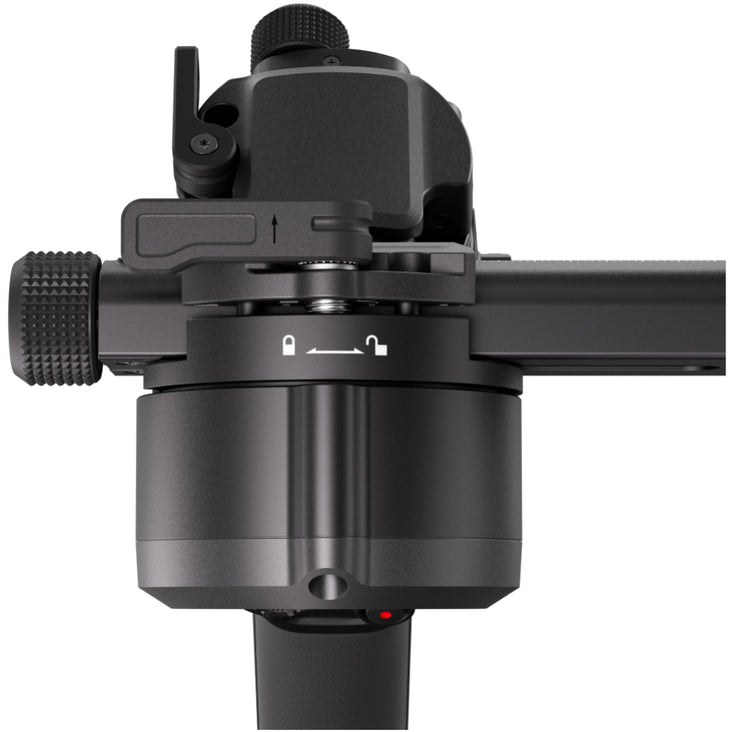

2nd-Generation Automated Axis Locks
Axis locks engage automatically when the gimbal powers off or enters sleep mode, simplifying transport and storage. They release instantly on power-up, so you can start shooting without delay.
Native Vertical Shooting
Switch to vertical mode quickly: loosen the single-side knob, remove the horizontal plate, rotate it 90 degrees, and retighten. The process takes seconds and requires no rebalancing of the tilt or pan axes.
Dual-Layer Quick-Release Plates
The Arca-Swiss upper plate and Manfrotto lower plate allow fast transitions between gimbal and tripod while preserving balance thanks to position memory. An adjustable guide on the upper plate secures the camera firmly.
Focus Pro Motor Support
Connect two Focus Pro Motors to control lens zoom with the joystick and achieve precise focus adjustments using the dial, creating smooth, professional lens movements.
DJI SDR Transmission Compatibility
Enable high-definition live feeds, remote gimbal and camera control, Force Mobile functionality, and more. Ideal for solo operators and small crews.
RSA Communication Port
Connect accessories such as the Electronic Briefcase Handle, RS Tethered Control Handle, and remote-control ring handles. The open RS SDK also supports custom functions developed by third parties.
The DJI RS 5 combines intelligent features, robust build quality, and refined ergonomics to support demanding creative workflows.
Specifications
- Touchscreen Subject Selection
- Smooth Precise Balancing
- Direct Gimbal and Camera Control
- Faster Charging and Extended Battery
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Camera Control Port (USB-C) Multifunctional Port (USB-C) |
| Battery | Model: BHX715-2150-15.48 Type: LiPo 4S Capacity: 2150 mAh Energy: 33.29 Wh Voltage: 11.2 V to 17.8 V USB Input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A Max Standby Time: Approx. 14 hours Charging Time: Approx. 1 hour Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.0 USB-C Charging Port |
| Ronin App Requirements | iOS 14.0 or above Android 9.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Tested Payload | 3.0 kg |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Axis Lock | Auto |
| Vertical Shooting | Supported |
| Operating Frequency | 2.4000-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1.193 kg(including the Upper and Lower Quick-Release Plates and screws) Grip: Approx. 0.274 kg Quick-Open Tripod: Approx. 0149 kg Upper and Lower Quick-Release Plates: Approx. 0.093 kg(including screws) |
| Dimensions | Folded: 24.74×11.57×25.87 cm (L×W×H, excluding camera, grip, and Quick-Open Tripod) Unfolded: 22.32×19.22×41.88 cm (L×W×H, including grip, excluding camera and Quick-Open Tripod) |
| DJI RS Enhanced Intelligent Tracking Module | Weight: Approx. 0.019 kg Dimensions: 3.59×1.75×3.85 cm (L×W×H) Tracking Distance: 0.5-10 m Operating Environment: Illuminance > 20 lux Trigger Modes: Gimbal trigger, gesture, gimbal touchscreen Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment Power Consumption: Approx. 1 W Operating Temperature: -10° to 45° C (14° to 113° F) Mounting Method: Magnetic attachment |
| Electronic Briefcase Handle | Weight: Approx. 0.149 kg Dimensions: 6×19.75×7.95 cm (L×W×H) Standby Power Consumption: Approx. 0.2 W Operating Temperature: -20° to 45° C (-4° to 113° F) |

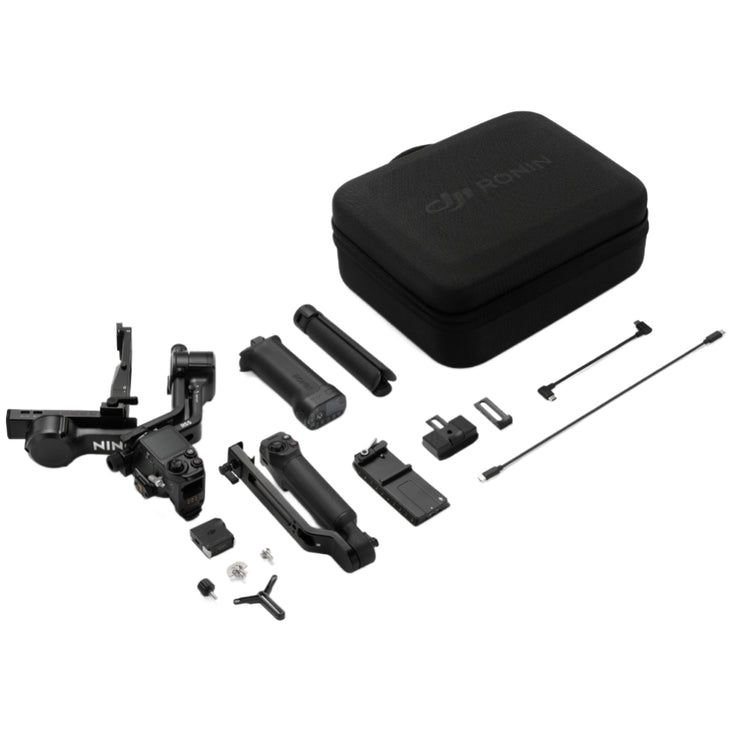

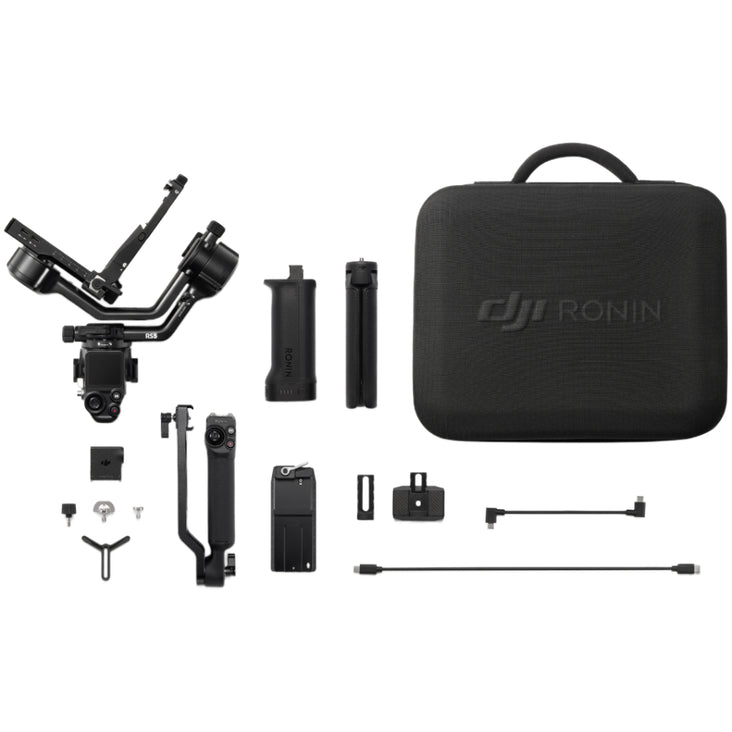

What's Included
1 x DJI RS 5 Combo
1 x Gimbal
1 x Quick-Open Tripod
1 x DJI Logo Sticker
1 x Carrying Case
1 x Lens-Fastening Support
1 x L-Shaped Cable (USB-C, 13 cm)
1 x Screw Kit
1 x RS 5 Upper Quick-Release Plate
1 x RS 5 Lower Quick-Release Plate
1 x BG33 Battery Grip
1 x RS Enhanced Intelligent Tracking Module
1 x Electronic Briefcase Handle
1 x Multi-Camera Control Cable (USB-C, 30 cm)
