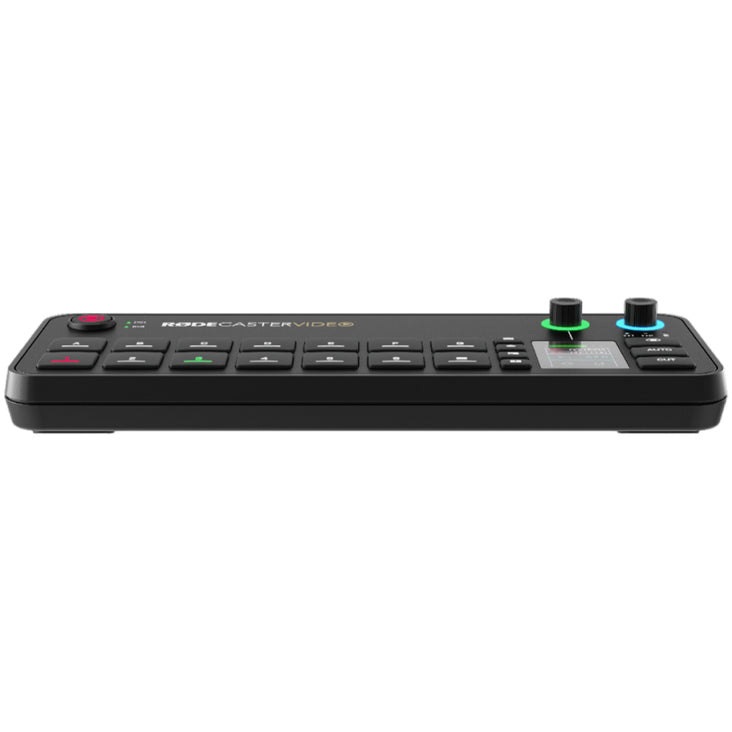

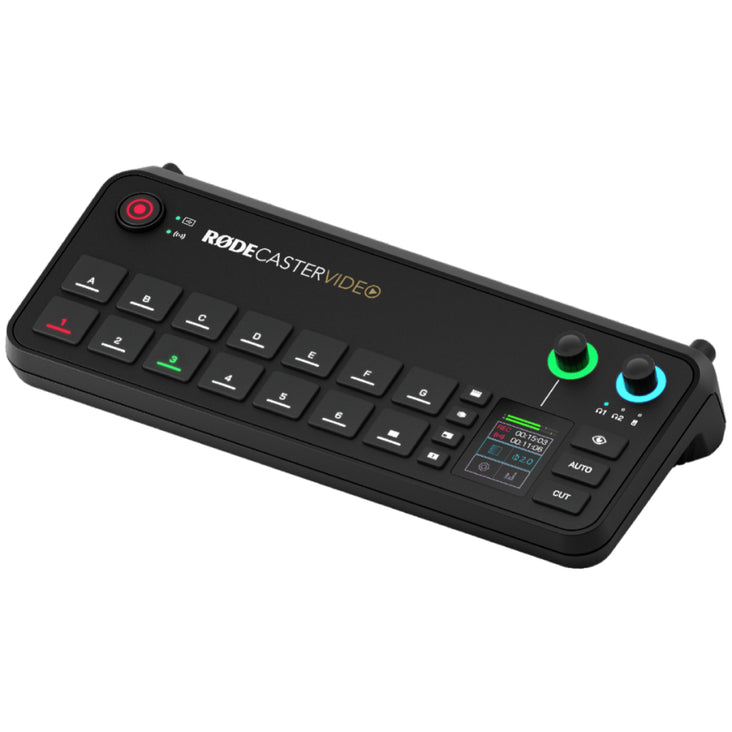

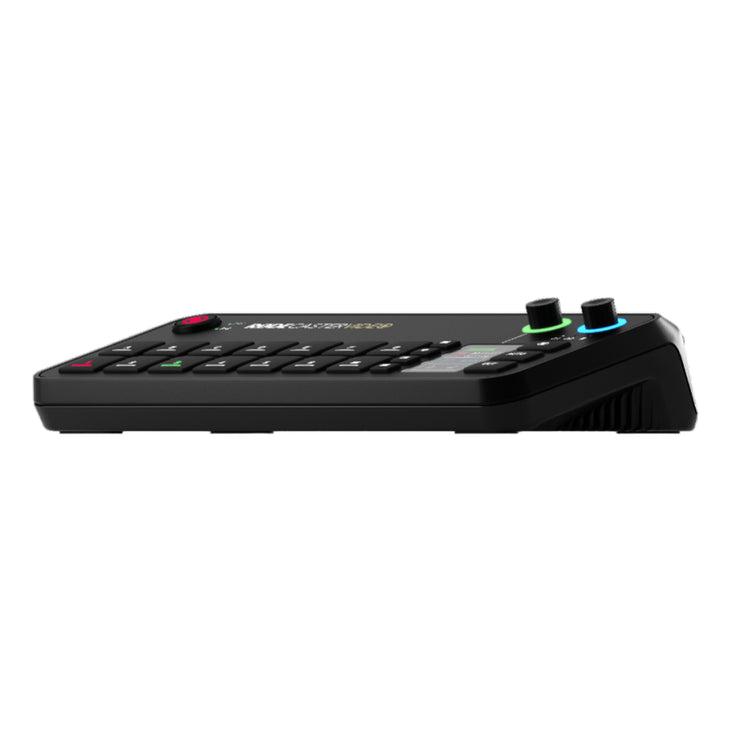

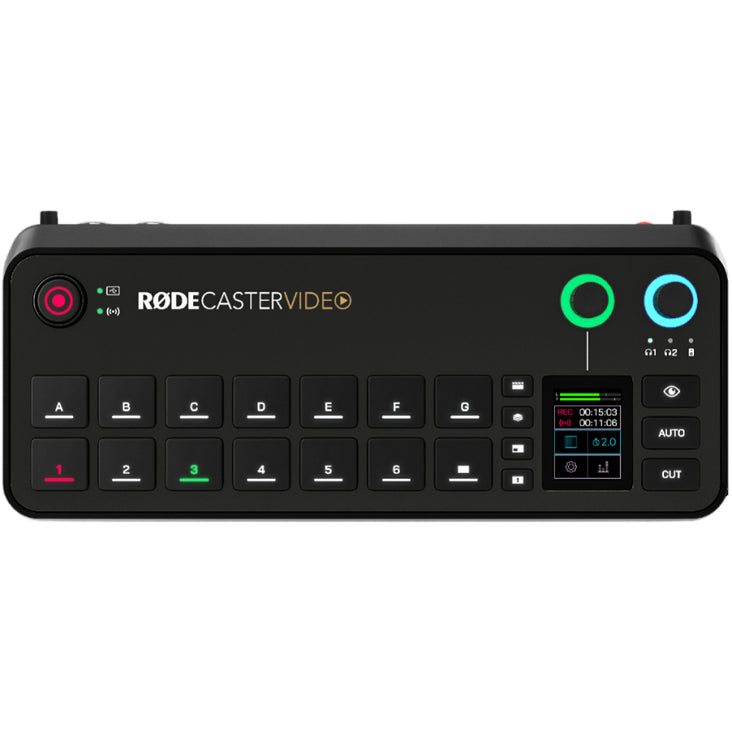

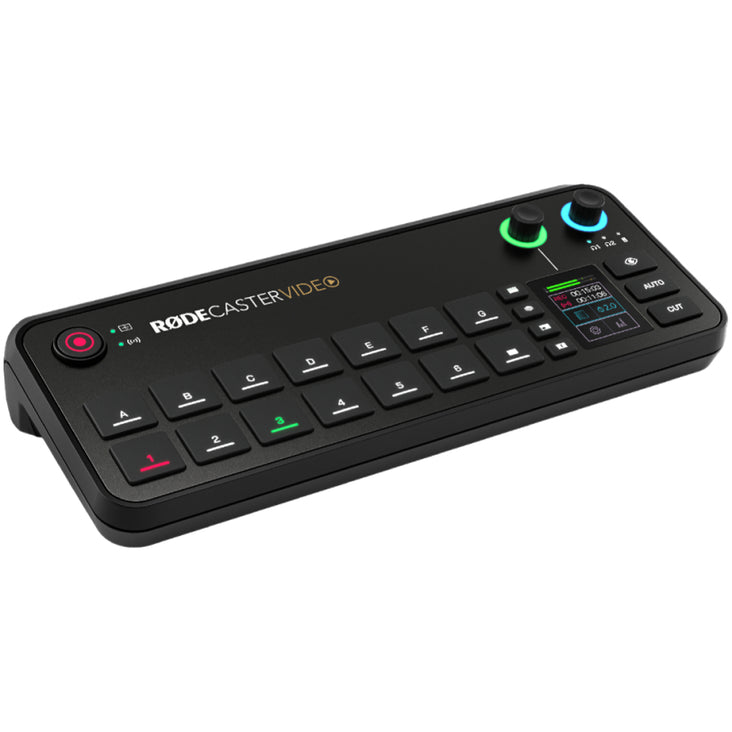

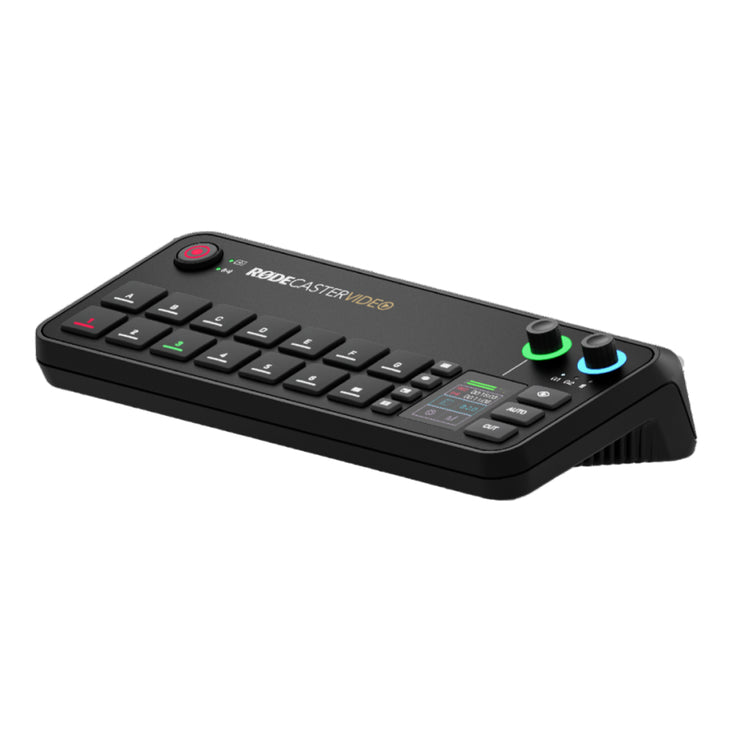

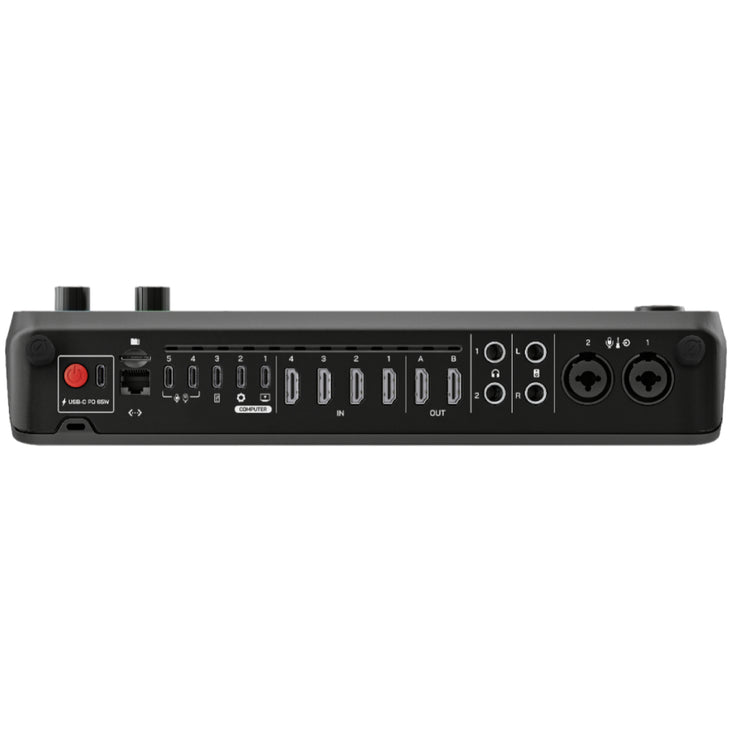

Rode RODECaster Video and Audio Production Console

Preorder
$1,949.00 AUD
In stock

Buy a Demo & Save

Buy an Open Box & Save

Interest Free Finance

  • 12 Month Warranty*
  • Click & Collect (Sydney)
  • Same Day Dispatch*
  • Friendly & Expert Advice
  • 100% Australian Stock
  • 7 Day Exchanges*

The RODECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.

Switch between up to six video sources and seven fully customisable scenes at the press of a button.

High-performance octa-core CPU video and audio processor.

Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview and multiview.

Two flexible USB-C ports for connecting webcams and RODE USB audio devices to use as additional video and audio sources.

Two studio-grade Neutrik combo jacks with ultra-low-noise, highgain Revolution Preamps for capturing pristine audio from XLR microphones, instruments or any other audio source.

Dual internal wireless receivers for connecting RODE Series IV wireless microphones.

Powerful APHEX audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter, Big Bottom and Compellor effects.

2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment.

Ability to create seven complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button.

Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs.

Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel.

Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene.

Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs.

Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete postediting flexibility.

Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RODE Central.



Specifications

  • Two Flexible USB-C Ports
  • Two Studio-grade Neutrik Combo Jacks
  • Dual Internal Wireless Receivers
  • APHEX Audio Processing Suite
  • 2-inch High-resolution Touchscreen
  • Seven Customisable Video Scenes
  • Automatic Chroma Keying
  • Front Panel Media & Graphics Control
  • Innovative "Inspect" Feature
  • Intelligent Auto-switching
  • Direct Streaming & Recording
  • Remote Control via RODE Central
Video Input Feeds 6 simultaneous
HDMI Inputs 4 type-A (HDMI 1.4b)
USB (UVC) Inputs 2 multi-function USB-C for UVC video
HDMI Outputs 2 configurable -
preview, program, multiview
Video Input Frame Rates 1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60
(HDMI only) 1920x1080i: 25, 29.97, 30
Video Output Frame Rates 1920x1080p:
24, 25, 30, 50, 60
Video Streaming Standards 1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60
Video Engine Colour Space/ Bit Depth 4:4:4 RGB / 8-bit
HDMI Input Colour Space/ Bit Depth 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV
/ 8, 10, 12-bit
USB Input Colour Space 4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space/ Bit Depth 4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space/ Bit Depth 4:2:2 YUV / 8-bit
Format and Frame Rate Converters On all HDMI and USB inputs
Total Number of Layers 9 simultaneous in Preview and Program
Downstream Keyers 2 (overlays and logo)
Chroma Keyers (Green and Blue) 2
Media Players 2 simultaneous
Transitions SMPTE wipes, dip and fade
True Preview Display complete scenes and overlays simultaneously in preview and program
Generated Borders All scenes
Multiview •   Program and preview
•   Live inputs, scene and media thumbnails
•   Audio mixer and channel status
•   Recording, network and storage status
•   Run time, date and time information
Media Player Expandable microSD card storage
Videos: MP4 Images: PNG, JPG Audio: WAV
Bluetooth 5.3 (for stereo audio input or phone calls)
Analog Audio Inputs 2 combo jacks (microphone, line or instrument) with Revolution Preamps
Wireless Audio Inputs 2 Series IV wireless receivers
Digital Audio Inputs USB 1:
2-in/2-out or multichannel (20-in) output
USB 1 Chat (uses USB 1 port):
2-in/2-out with mix-minus
USB 2:
2-in/2-out with MFi support
USB 4 & 5:
compatible with RODE USB microphones and RODECaster Pro II and Duo
Analog Audio Outputs 2 headphone outputs (1/4-inch)
2 balanced line outputs (1/4-inch, L/R)
Audio Mixer 20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1,
2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)
12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording,
monitors, USB Main, USB Chat, USB 1, 2, 4
and 5, Bluetooth
Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs
Audio Processing APHEX  VoxLab  Processing: per channel
Advanced APHEX  granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter, Big Bottom
Preamps Frequency range: 20Hz – 20kHz
Input gain: up to 76dB Input
Equivalent Input Noise:
-131.5dBV (A-weighted)
Direct Streaming Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi
Supported Platforms •   Youtube Live
•   Twitch Live
•   Facebook Live
•   Twitter/X Live
•   Custom server
Network Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the- air updates
Storage Media External USB mass storage device (exFAT format) for recordings
Video Recording Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
Isolated (ISO) Video Recording 6 video inputs and 1 Program feed as independent H.264/AVC files
(up to 1080p30)
Audio Recording Stereo mix WAV audio file
Multitrack Audio Recording 9 independent stereo WAV audio files
RODE Central Companion Software Scene builder: advanced construction of scenes and remote control of device
Auto-switching: configuration of automatic switching based on audio input
Audio mixer: advanced configuration and control of audio sources, processing and routing
Stream profiles: configuration for streaming settings and profiles
Device configuration: advanced settings and customisations
Compatible Operating Systems macOS 10.15 or later
Windows 10 Version 1803 or later,
Windows 11



What's Included

1 x Rode RODECaster Video and Audio Production Console
2 x External Antenna
1 x Power Supply
1 x SuperSpeed USB-C to USB-C Cable
