Portkeys LH7H 7" 1000nits Full HD Touchscreen Field Monitor
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Same Day Dispatch*
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*

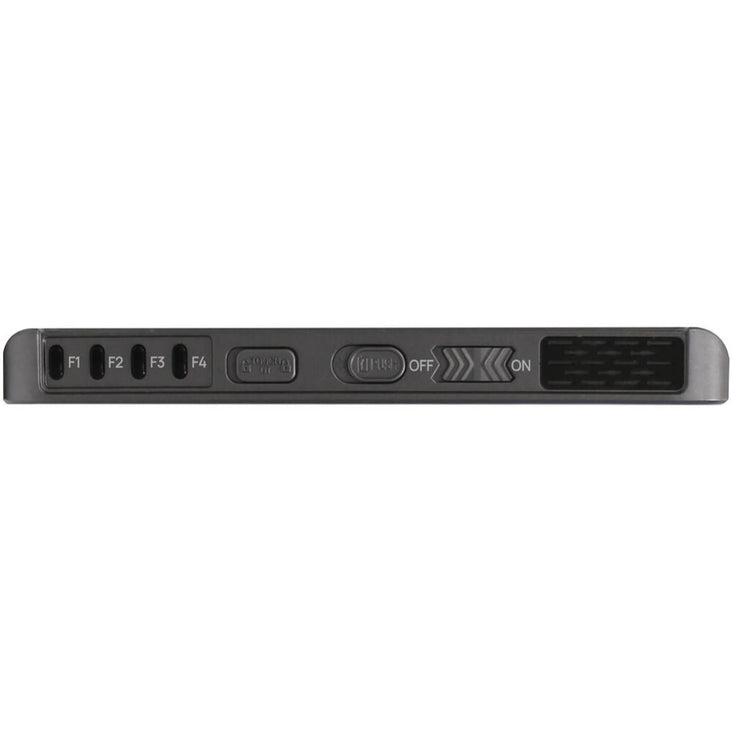

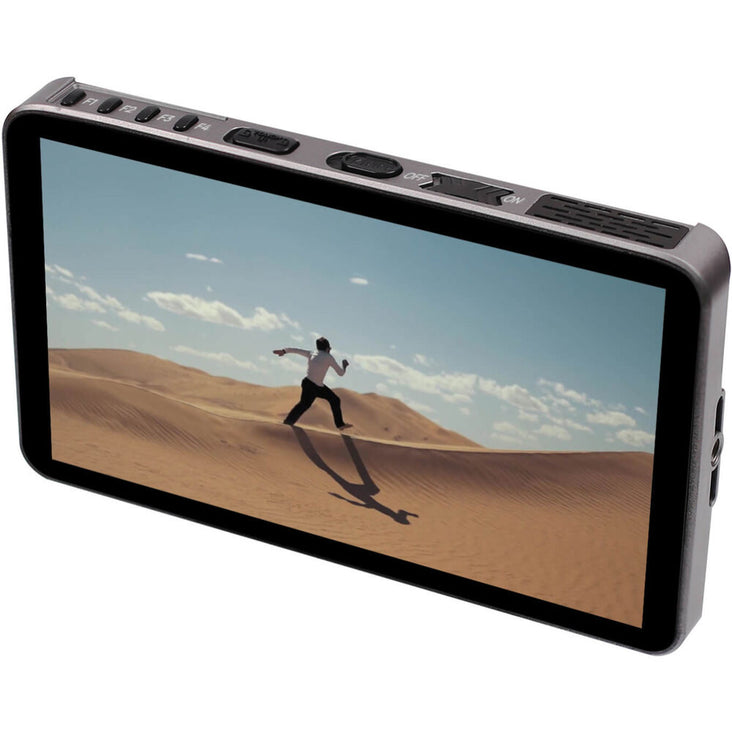

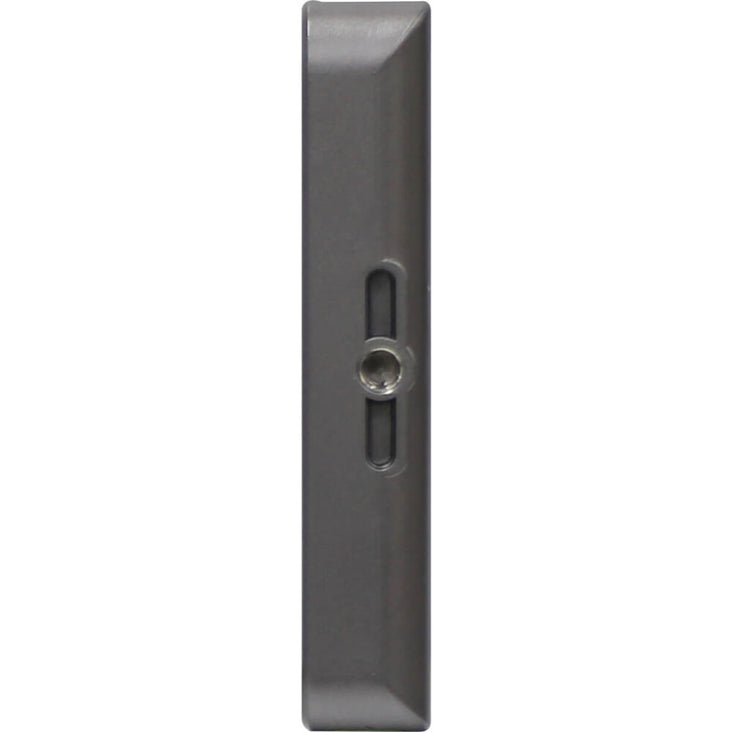

12 Month Warranty*Introducing the Portkeys LH7H, our entry-level 7-inch monitor designed to enhance your filmmaking experience. Featuring a daylight-viewable touchscreen and a comprehensive set of professional monitoring tools, this monitor ensures you capture every detail with precision. Customize your workflow with four user-assignable function buttons, while the robust yet lightweight housing, constructed from Polycarbonate and ABS, weighs only 245g (without battery). With multiple 1/4"-20 mounting points, easily attach it to your camera or camera rig for seamless integration into your setup.

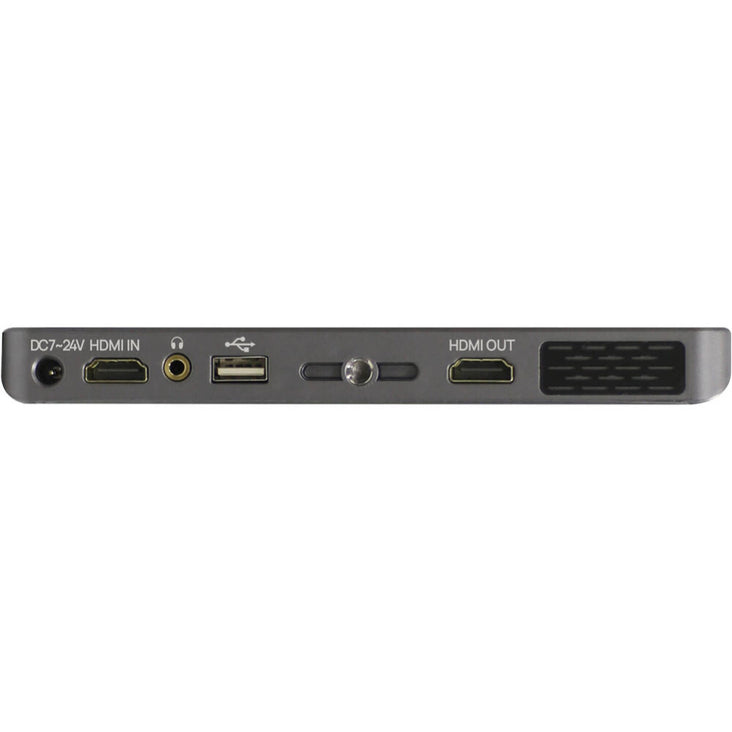

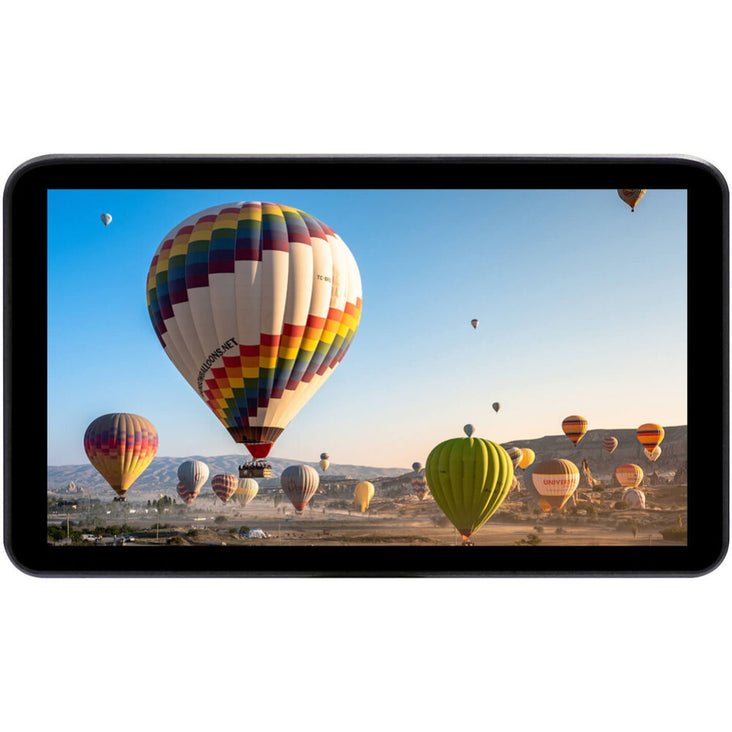

The Portkeys LH7H has a maximum brightness of 1,000 nits, which makes it easy to see your image in daylight shooting conditions. The 10-bit (8+2 FRC) panel makes colour reproduction more accurate with a rich level of colour details and no colour banding. The 7-inch display has a FullHD 1920 x 1080 resolution, a large viewing angle, and a 1000:1 contrast ratio. At the bottom of the monitor, you'll find one 4K HDMI input and one FullHD HDMI output. The 4K HDMI input can take signals up to 4K DCI at 24p, 4K UHD at 30p, or FullHD 1080p at up to 60p. Lastly, the HDMI input of the LH7H supports 4K oversampling to 1080p, resulting in high-resolution, high-detail 1080p video.

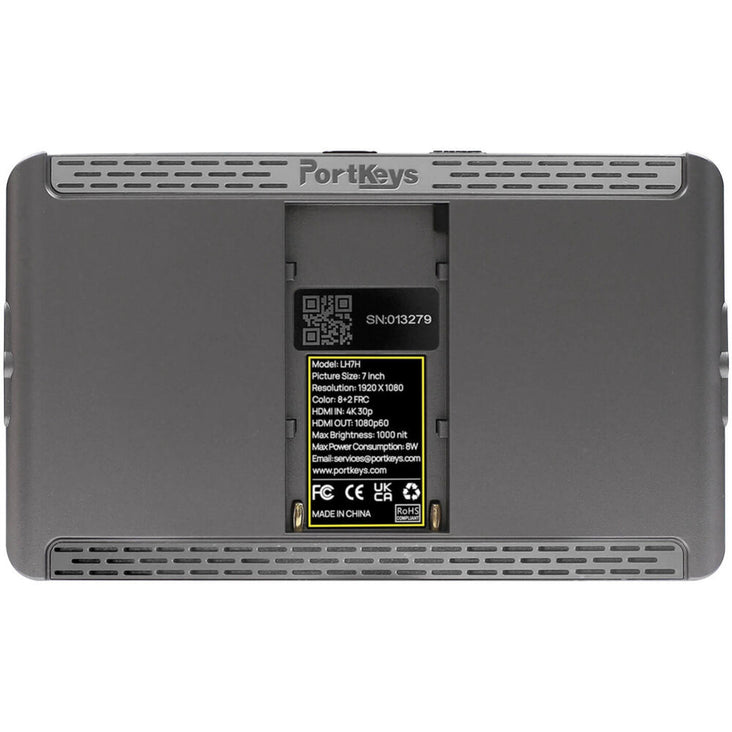

A built-in Sony NP-F-style battery plate at the back of the LH7H allows you to power the monitor for hours thanks to an extremely low power draw of only 8W. If you power your camera rig via a V-Lock or Gold Mount external battery, there is a 5.5mm barrel connector 7-24V power input at the bottom of the monitor, allowing you to power it infinitely. Lastly, the three-in-one USB-A port will enable you to load custom 3D LUTs, upgrade the monitor's firmware, and act as a power input/output port (max. 5V 2A).
Don't let the compact and lightweight form factor of the Portkeys LH7H fool you, as this professional monitor comes with all the monitoring features you can expect, including:
Specifications
- 7" HDMI 1920 x 1080 Touchscreen
- Up to DCI 4K24/UHD 4K30 Video Input
- 1000 cd/m² Brightness, HDR Preview
- HDMI Input & Output, Headphone Jack
- Anamorphic Correction via HDMI Output
- 3D LUT Support, L-Series Battery Plate
- Control Record, Shutter, Focus & More
- HDMI Cable & Screen Protector Included
- Low Power Draw of Only 8W
- Custom JPG Picture Custom Freeze Frame
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170° (85/85)
|
| Vertical: 170° (85/85) | |
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:01:00
|
| Bit Depth / Colour Support |
8-Bit+FRC (1.07 Billion Colours)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Waveform, Zebra
|
| Video I/O |
1x HDMI 1.4 Input
|
| 1x HDMI 1.4 Output | |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel (24 VDC) Input
|
| 1x USB-A (2 A / 5 VDC) Input | |
| Other I/O |
1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input]
|
| Video Format |
HDMI
|
| DCI 4K: 24 | |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94/50 | |
| 480i: 60/59.94/50 | |
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
8 W
|
| Mounting |
2x 1/4"-20 Female
|
| Material of Construction |
Plastic
|
| Dimensions |
17.62 x 10.38 x 1.84 cm
|
| Weight |
245 g
|
What's Included
1 x Portkeys LH7H 7" High-Bright Touchscreen Monitor
1 x Micro-USB Flash Drive
2 x Screen Protector
1 x HDMI Type-A Cable
1 x MH-2 Monitor Shoe Mount
1 x Cleaning Cloth
1 x Storage Box
